Titan EP2300 Suction Set Assembly Parts
Shop Titan EP2300 Suction Set Assembly Parts for maintenance and repair of the sprayer's material-intake system. Use the EP2300 exploded parts diagram to identify suction tubes or hoses, strainers, fittings, connectors, clamps, retainers, sealing points and related intake components by exact callout and replacement part number.
Find Titan EP2300 Suction Set Replacement Parts
The EP2300 Suction Set Assembly forms the material-intake path between the coating supply and the sprayer's pumping system. Its components help draw coating from the container, screen material at the intake where applicable and deliver it to the pump for pressurization.
A damaged suction tube or hose, restricted strainer, loose connection or compromised sealing point can interfere with priming and material delivery. When troubleshooting intake problems, inspect the complete suction path rather than replacing a single component based only on the symptom.
How to Find the Correct EP2300 Suction Set Part
Confirm EP2300
Verify that the sprayer being serviced is the Titan EP2300 before selecting suction-set replacement components.
Open the Suction Set Diagram

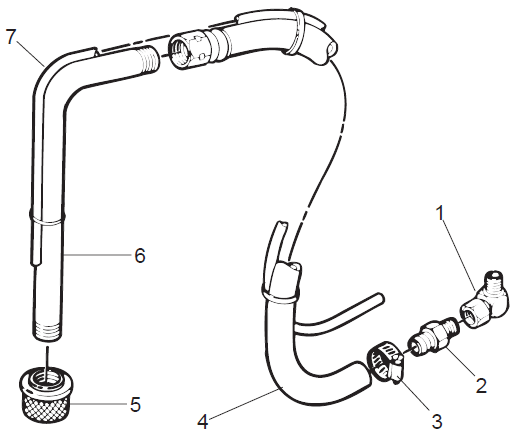

Use the EP2300 Suction Set Assembly exploded illustration to locate the intake component requiring inspection or replacement.
Match the Callout
Match the numbered diagram callout with the corresponding suction component in the EP2300 parts list.
Verify Part & Quantity
Confirm the exact replacement part number, description and required quantity before ordering.
How the EP2300 Suction Set Supplies Material
The suction assembly must provide a dependable material path from the coating container to the pump. Restrictions, damaged components or air entering the intake side can reduce the pump's ability to prime and maintain a consistent supply of coating.
Suction Tube or Hose
The applicable suction component provides the primary path for coating to travel from the material container toward the pump.
Strainer Components
The applicable intake strainer helps prevent larger unwanted material from entering the suction path and pump.
Fittings & Connections
Fittings and connectors join the intake components and help maintain a continuous material path to the pump.
Clamps & Retainers
Diagram-listed clamps, retainers and related hardware help secure suction components in their intended positions.
EP2300 Suction Set Components to Inspect
Inspect for cracks, cuts, deformation, deterioration or other damage that could restrict material flow or allow air into the intake path.
Check the strainer for dried coating, debris, physical damage or restriction that can reduce material pickup.
Inspect the suction-side connection at the pump for looseness, damage, contamination or evidence of air entry.
Inspect diagram-listed fittings and couplings for damaged threads, looseness, wear or compromised sealing surfaces.
Verify that applicable clamps and retaining components are present, secure and positioned according to the assembly diagram.
Check applicable joints and sealing areas because suction-side air entry can interfere with priming even without an obvious fluid leak.
Check the Complete EP2300 Material Intake Path
When an EP2300 has difficulty priming or maintaining material flow, begin at the coating supply and inspect the intake path toward the pump. This helps separate a suction-side problem from an internal fluid-section problem.
1. Check Material Supply
Confirm that adequate coating is available and that the intake component remains correctly positioned in the material.
2. Inspect the Strainer
Check for debris, dried coating or damage that could restrict material entering the suction assembly.
3. Inspect the Suction Path
Examine the tube or hose, fittings, joints, clamps and connections for damage, restriction or possible air entry.
4. Inspect the Pump Intake
If the suction set is serviceable, continue diagnosis at the pump inlet and related fluid-section components.
Common EP2300 Suction Set Problems
Use these symptoms as inspection starting points. Similar symptoms can also originate in the fluid section, PRIME/SPRAY system or other components, so verify the cause before ordering replacement parts.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| EP2300 Will Not Prime | Material level, strainer, suction tube or hose, fittings, connections and pump inlet. | Eliminate restrictions and suction-side air entry before replacing internal pump components. |
| Intermittent Material Pickup | Suction position, hose or tube condition, joints, fittings, clamps and material supply. | Check the complete intake path for loose connections, damage or conditions that allow air into the suction side. |
| Restricted Material Flow | Intake strainer, suction tube or hose, fittings and pump inlet. | Locate and correct the restriction, then continue into the fluid section if material flow remains inadequate. |
| Visible Suction Hose or Tube Damage | Damaged section, fittings, clamps, retainers and nearby connection points. | Identify the exact diagram-listed replacement and inspect nearby components for related damage. |
| Air Entering the Intake | Suction tube or hose, joints, fittings, sealing points and pump connection. | Inspect the suction path systematically because air entry may occur without an obvious external fluid leak. |
Suction Set Problem or Fluid Section Problem?
EP2300 Suction Set Assembly
Start here for suction tubes or hoses, intake strainers, fittings, connectors, clamps, retainers and related material-intake components.
EP2300 Fluid Section Assembly
If material reaches the pump but priming, pressure or output remains poor, inspect the piston, packings and valve components.
View EP2300 Fluid Section PartsEP2300 Piston Pump
Use the piston-pump section when identifying the complete pump and related pump repair components.
View EP2300 Piston Pump PartsVerify EP2300 Suction Set Part Compatibility
Do not select a suction tube, hose, strainer, fitting, connector, clamp or related component based only on appearance. Similar intake components used on other Titan EP, EPSE and EPX models can differ in dimensions, connections or application.
Confirm the EP2300 model, applicable Suction Set Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering. Do not assume interchangeability with EP2300SE or another EP-series model unless the applicable parts information confirms the same replacement part.
Before Buying Titan EP2300 Suction Set Parts
Verify the exact sprayer model before selecting suction-set replacement components.
Check the material supply, strainer, suction tube or hose and connections before selecting parts.
Inspect joints, fittings and sealing points because suction-side air entry can interfere with priming.
Locate the component in the Suction Set diagram and match its numbered callout to the parts list.
Confirm the exact replacement part number, description and quantity before ordering.
Find Related Titan EP2300 Parts & Assemblies
Priming and material-flow problems can involve the suction set, fluid section, pump or pressure-control system. Use the appropriate EP2300 assembly diagram to identify the actual repair area.
Prepare the EP2300 Safely Before Suction Set Service
Shut down the sprayer, disconnect or isolate the applicable power source and follow the manufacturer's complete pressure-relief procedure before service. Never loosen a pump, hose, valve, filter, fitting or other fluid component while the system is pressurized. Follow the applicable EP2300 service instructions during suction-set removal, inspection, component replacement, reassembly and testing.
Shop Titan EP2300 Suction Set Assembly Parts
Use the EP2300 Suction Set Assembly exploded diagram to identify the suction tube or hose, strainer, fitting, connector, clamp, retainer or related intake component you need, then verify the exact replacement part number and quantity before ordering.
Shop EP2300 Suction Set PartsTitan EP2300 Suction Set Assembly Parts FAQ
What does the Titan EP2300 Suction Set Assembly do?
The suction set provides the material-intake path from the coating supply to the sprayer's pumping system. Its components help supply coating to the pump during priming and spraying.
How do I identify the correct EP2300 suction-set part?
Use the EP2300 Suction Set Assembly exploded diagram, locate the required component and match its numbered callout to the exact replacement part number, description and quantity.
What should I inspect if my EP2300 will not prime?
Check the material supply, intake strainer, suction tube or hose, fittings, connections and pump inlet. If the suction path is serviceable, continue diagnosis into the fluid section and PRIME/SPRAY system.
Can a restricted suction strainer reduce EP2300 material flow?
A restricted intake path can interfere with material supply to the pump. Inspect the strainer and the remainder of the suction path when material pickup or flow is reduced.
Can an air leak in the suction set cause poor priming?
Air entering the suction side can interfere with material pickup and priming. Inspect the suction tube or hose, fittings, joints and pump connection for damage or compromised sealing.
Are EP2300 and EP2300SE suction parts interchangeable?
Do not assume interchangeability. Compare the applicable assembly diagrams and exact replacement part numbers before using a suction component across different models or configurations.
What should I verify before ordering EP2300 Suction Set parts?
Confirm the EP2300 model, correct Suction Set Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2300 Suction Set Part?
Have your EP2300 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct suction tube or hose, strainer, fitting, connector, clamp, retainer or related material-intake component.
