Titan EP2300 Dump Valve Assembly Parts (0294220)
Shop Titan EP2300 Dump Valve Assembly Parts (0294220) for maintenance and repair of the sprayer's dump and pressure-relief fluid path. Use the exploded parts diagram to identify valve seals, ball-related components, valve body parts, fittings, handles, retainers and related service components by numbered callout and exact replacement part number.
Find Titan EP2300 Dump Valve 0294220 Replacement Parts
The EP2300 dump valve assembly is part of the sprayer's fluid-control system. Its internal valve components, seals, ball-related parts and connections must work together to control the applicable fluid path and allow the system to operate correctly between pressure-building and pressure-relief functions.
Wear, contamination, damaged sealing surfaces or valve components that do not seat correctly can contribute to priming problems, leakage or difficulty building and maintaining pressure. Diagnose the complete fluid system and verify each required component against the 0294220 assembly diagram before ordering.
How to Find the Correct EP2300 Dump Valve Part
Confirm EP2300
Verify the sprayer model and confirm that you are servicing the applicable EP2300 dump valve configuration.
Confirm Assembly 0294220
Use the parts information for Dump Valve Assembly 0294220 before selecting internal or external valve components.
Match the Callout
Locate the component in the exploded diagram and match its numbered callout to the corresponding parts-list entry.
Verify Part & Quantity
Confirm the exact replacement part number, component description and required quantity before ordering.
How the EP2300 Dump Valve Assembly Works
The dump valve operates within the EP2300 fluid system to control the applicable pressure and return-fluid path. Internal valve parts and sealing surfaces must seat correctly when required and allow fluid flow through the intended path when the valve is actuated.
Valve Body & Internal Parts
The valve body and internal components form the controlled fluid path used by the dump valve assembly.
Ball & Seat Components
Applicable ball and seating components must remain clean and in serviceable condition for dependable valve operation.
Valve Seals
Diagram-listed seals help control leakage around applicable valve components and fluid connections.
Handle & Actuation Parts
Applicable handle, shaft and related actuation components allow the valve to be moved between its intended operating positions.
EP2300 Dump Valve Components to Inspect
Inspect the body, fluid passages, threads and mating areas for physical damage, contamination or compromised sealing surfaces.
Inspect applicable ball components for coating buildup, wear, deformation or damage that can prevent correct seating.
Check the applicable seating surface for contamination, wear or damage when the valve does not close or control fluid correctly.
Inspect seals and other diagram-listed sealing components for cuts, flattening, deterioration or evidence of leakage.
Inspect applicable operating components if the valve is difficult to move, loose or does not reach its intended position.
Verify the condition of diagram-listed fittings, connectors, retainers and hardware associated with the dump valve assembly.
Inspect the EP2300 Dump Valve as a Complete Assembly
A leaking or poorly operating dump valve may involve more than one internal component. Inspect the valve body, ball and seat area, seals, operating components and connected fluid path before deciding which replacement parts are required.
1. Inspect for Contamination
Check internal valve areas for dried coating, debris or contamination that may interfere with valve movement or seating.
2. Inspect Ball & Seat
Examine applicable ball and seating surfaces for wear, damage or conditions that prevent proper sealing.
3. Inspect Valve Seals
Check seals and mating surfaces when fluid leakage is visible around the valve assembly.
4. Inspect Connected Systems
If valve components appear serviceable, inspect the suction path, fluid section and related pressure-control components.
Common EP2300 Dump Valve Problems
Use these symptoms as inspection starting points. Similar operating problems can originate elsewhere in the EP2300 fluid system, so confirm the actual cause before ordering parts.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| EP2300 Will Not Build Pressure | Dump valve seating components, seals, fluid section, suction system and pressure-control system. | Determine whether fluid is bypassing through the valve or whether pressure loss originates elsewhere in the sprayer. |
| Fluid Continues Through the Return Path | Ball, seat, seals, internal valve components and operating mechanism. | Inspect for contamination, wear or damage that prevents the valve from seating correctly. |
| Fluid Leaks Around the Valve | Valve seals, fittings, threads, body and mating surfaces. | Relieve pressure, locate the exact leak source and inspect adjacent sealing surfaces before selecting replacement parts. |
| Valve Is Difficult to Operate | Handle, shaft, internal components, contamination and related retaining parts. | Inspect for dried material, physical damage or worn components that interfere with normal movement. |
| EP2300 Has Trouble Priming | Dump valve operation, suction set, inlet valve, fluid section and material supply. | Trace the priming path systematically before assuming the dump valve is the only source of the problem. |
Dump Valve, Fluid Section or Suction System?
EP2300 Dump Valve Assembly 0294220
Start here for valve seals, ball-related parts, seating components, handles, fittings, retainers and related dump valve components.
EP2300 Fluid Section Assembly
If the dump valve is operating correctly but pressure or priming remains poor, inspect the piston, packings and pump valves.
View EP2300 Fluid Section PartsEP2300 Suction Set Assembly
If the sprayer has difficulty drawing material, inspect the intake strainer, suction path, fittings and pump connection.
View EP2300 Suction Set PartsVerify 0294220 Dump Valve Part Compatibility
Do not select a valve seal, ball component, seat, fitting, handle, retainer or internal valve part based only on appearance. Similar valve components used on other Titan and SprayTECH sprayers can differ in dimensions, configuration or application.
Confirm the EP2300 model, Dump Valve Assembly 0294220, applicable exploded diagram, numbered callout, component description, required quantity and exact replacement part number before ordering. Do not assume interchangeability with another dump valve assembly unless the applicable parts information confirms the same replacement component.
Before Buying EP2300 Dump Valve 0294220 Parts
Verify the exact sprayer model before selecting dump-valve replacement components.
Verify that the parts diagram being used corresponds to the applicable 0294220 Dump Valve Assembly.
Check the ball, seat, seals, valve body and operating components together when internal wear is suspected.
Locate the required component in the exploded diagram and match its numbered callout to the parts list.
Confirm the exact replacement part number, description and required quantity before ordering.
Find Related Titan EP2300 Parts & Assemblies
Priming and pressure problems can involve the dump valve, suction system, fluid section or pressure-control system. Use the correct EP2300 diagram to isolate the repair area and identify the replacement components.
Relieve Pressure Before Servicing the EP2300 Dump Valve
Shut down the sprayer, disconnect or isolate the applicable power source and follow the manufacturer's complete pressure-relief procedure before servicing the dump valve. Never loosen the valve, pump, hose, filter, fitting or another fluid component while the system is pressurized. Follow the applicable service instructions during valve removal, disassembly, cleaning, inspection, component replacement, reassembly and operational testing.
Shop Titan EP2300 Dump Valve Assembly Parts

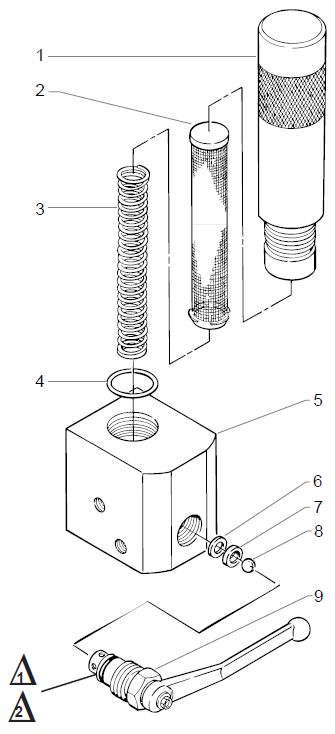

Use the 0294220 Dump Valve Assembly exploded diagram to identify the valve seal, ball component, seat, handle, fitting, retainer or related valve part you need, then verify the exact replacement part number and required quantity before ordering.
Shop EP2300 Dump Valve PartsTitan EP2300 Dump Valve Assembly 0294220 FAQ
What does the Titan EP2300 Dump Valve Assembly 0294220 do?
The dump valve is part of the EP2300 fluid-control system. Its internal components control the applicable fluid path during pressure-building and pressure-relief operation.
How do I identify the correct 0294220 dump valve part?
Use the exploded parts diagram for Dump Valve Assembly 0294220, locate the required component and match its numbered callout to the exact replacement part number, description and quantity.
Can a worn dump valve seal cause fluid leakage?
A damaged or worn sealing component can contribute to leakage. Inspect the seal, valve body, mating surfaces and nearby fittings to identify the actual leak source.
Can dump valve problems prevent the EP2300 from building pressure?
A valve that does not seat correctly can be associated with pressure loss. However, low pressure can also originate in the suction system, fluid section or pressure-control system, so diagnose the complete fluid path.
Should the ball and seat be inspected together?
Yes. When applicable to the diagram, inspect both the ball and its mating seat for contamination, wear or damage that could prevent correct valve sealing.
Can I use similar-looking dump valve parts from another Titan model?
Do not select parts based only on appearance. Confirm the exact assembly diagram and replacement part number because similar valve components may differ between models and assemblies.
What should I verify before ordering EP2300 dump valve parts?
Confirm the EP2300 model, Dump Valve Assembly 0294220, correct exploded diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2300 Dump Valve Part?
Have your EP2300 model information, assembly number 0294220, existing part number and exploded-diagram callout ready to help identify the correct valve seal, ball component, seat, fitting, handle, retainer or related dump valve replacement part.
Parts & Fitment Help: 713-931-0006
