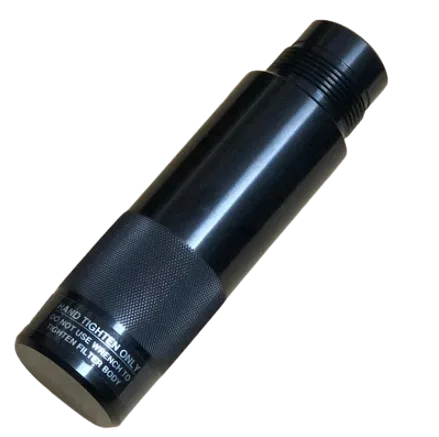

Titan 0294194 Filter Body Assembly (Replaces Titan 755-190)
OEM SprayTech Filtration Component
Titan 0294194 Filter Body Assembly is a genuine OEM inlet filter housing for compatible SprayTech airless sprayers. It houses the paint filter screen, traps debris before it reaches the spray gun, and provides a leak-tight seal between the suction tube and pump inlet. This part replaces Titan 755-190.
Compatibility Overview
A cracked or leaking filter body can cause air ingestion and loss of prime. Replacing the assembly restores a leak-free seal and proper filtration.
Titan Filtration Replacement Component
Titan 0294194 Filter Body Assembly for SprayTech Airless Sprayers
Titan 0294194 is a complete replacement for the inlet filter housing on compatible SprayTech airless sprayers. It holds the paint filter screen (sold separately) and directs fluid from the suction tube to the pump while trapping debris that could clog the spray tip. The official Titan EP2300 manual lists 0294194 as the Filter Body Assembly in the Dump Valve Assembly diagram. Over time, the filter body can crack, warp, or develop leaks at the seals, causing air ingestion, loss of prime, or contamination of the pump. Replacing the assembly restores a leak-free seal and proper filtration.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine OEM filter body assembly. Confirmed in the official Titan EP2300 manual as Item 1 in the Dump Valve Assembly. Replaces 755-190. |
| Function | Debris filtration (holds the screen that captures particles before they enter the pump); fluid sealing (provides leak-tight connection between suction tube and pump inlet); prime retention (maintains suction integrity to prevent loss of prime). |
| Compatible Models | SprayTech EP2005, EP2105, EP2205, EP2300, EP2300se, EP2400, EP2510; SprayTech EPX2305, EPX2405, EPX2455, EPX2505, EPX2555; SprayTech LC750, LC1250, LC1600; Titan 750 and 1600 Linecrew stripers. Always verify fitment using the correct parts diagram for your exact revision. |
| OEM Part Number | 0294194 Filter Body Assembly. Replaces 755-190. |
| Replacement Indicators | Visible cracks or damage to the housing; air leaks or loss of prime; external leakage from the filter body; stripped threads on the filter cap or suction tube fitting. |
| Related Parts Commonly Serviced Together | Filter screen or element (always install new); O-rings and gaskets (replace all sealing rings); suction tube and strainer (inspect for cracks or loose fit). |
| Why Genuine OEM | Correct dimensions and sealing surfaces ensure a leak-free fit and proper filtration. Using the specified filter body helps maintain pump efficiency and prevents air ingestion that can cause cavitation and premature wear. |
Service guidance: Always replace the filter screen and O-rings when installing a new filter body. Inspect the suction tube for cracks or damage at the same time. A damaged suction tube can cause air leaks that mimic filter body failure. The filter body is the housing only; the filter screen and sealing O-rings are typically sold separately. Always relieve system pressure and disconnect power before servicing.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
