Titan EP2300 Fluid Section Assembly Parts
Shop Titan EP2300 Fluid Section Assembly Parts for maintenance, rebuilding and repair of the sprayer's fluid-delivery system. Use the EP2300 exploded parts diagram to identify piston components, packings, inlet and outlet valve parts, seals, O-rings, housings, fittings and related pump components by exact callout and replacement part number.
Find Titan EP2300 Fluid Section Replacement Parts
The EP2300 fluid section contains working pump components responsible for drawing coating into the sprayer and moving it through the pressurized fluid path. The piston, packings, inlet valve, outlet valve and sealing components must work together for dependable priming, fluid movement and pressure generation.
Wear, contamination, damaged valve components or deteriorated sealing surfaces can contribute to poor priming, fluid leakage, reduced output and unstable pressure. Diagnose the symptom, inspect related components and use the applicable EP2300 Fluid Section Assembly diagram to verify the exact replacement part before ordering.
How to Find the Correct EP2300 Fluid Section Part
Confirm EP2300
Verify that the sprayer being serviced is the Titan EP2300 before selecting fluid-section replacement components.
Open the Fluid Section Diagram

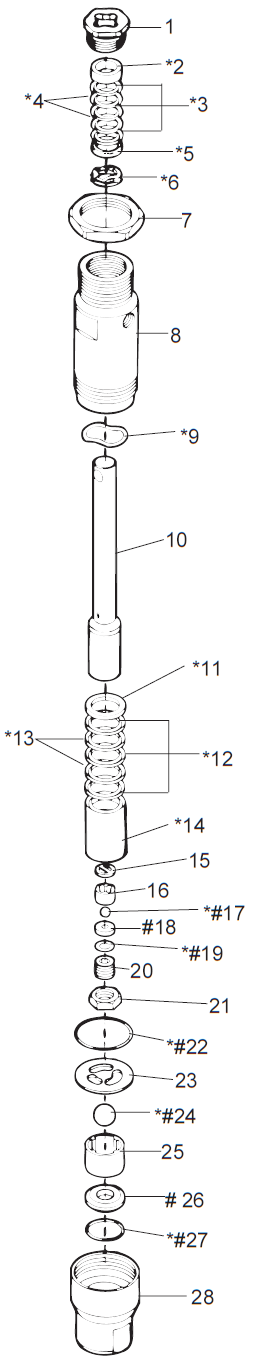

Use the EP2300 Fluid Section Assembly exploded illustration to locate the pump component requiring inspection or replacement.
Match the Callout
Match the numbered diagram callout with the corresponding piston, packing, valve, seal, housing or fitting entry in the parts list.
Verify Part & Quantity
Confirm the exact replacement part number, component description and required quantity before ordering.
How the EP2300 Fluid Section Moves Coating
The fluid section operates as a coordinated pumping system. Material must enter through the intake side, move through the pumping chamber and exit into the pressurized fluid path while the packings and seals control leakage around moving and stationary components.
Inlet Valve Components
The intake side allows coating to enter the fluid section during the appropriate portion of the pumping cycle.
Piston Components
Piston movement helps create the pumping action needed to draw in and move coating through the fluid section.
Packings & Seals
Packings, O-rings and other sealing components help control fluid leakage and maintain the pressure-producing pumping action.
Outlet Valve Components
Outlet-side components help direct pumped coating from the fluid section into the downstream pressurized fluid path.
EP2300 Fluid Section Components to Inspect
Inspect applicable piston surfaces and related components for wear, scoring, contamination or damage that can affect pump operation.
Inspect upper and lower packing areas for wear or damage when the fluid section leaks or has difficulty maintaining pressure.
Inspect the inlet-side valve components when the sprayer has trouble drawing material or maintaining a consistent material supply.
Inspect outlet-side components when pump output or pressure becomes inconsistent after the sprayer has successfully primed.
Check diagram-listed seals and O-rings for cuts, flattening, deterioration or other damage during fluid-section service.
Inspect housings, threads, fluid connections and related fittings for damage, leakage or compromised sealing surfaces.
Inspect Related EP2300 Pump Components Together
Fluid-section components operate as a system. When one internal component is worn, inspect the related sealing and valve surfaces before completing the repair. This helps identify additional wear that could affect the rebuilt fluid section.
1. Inspect the Piston
Look for wear, scoring or surface damage that may affect the surrounding packings and sealing performance.
2. Inspect the Packings
Check applicable packing components and nearby surfaces when leakage, pressure loss or reduced pump performance is present.
3. Inspect the Valves
Check inlet and outlet valve components for contamination, wear, damage or conditions that prevent proper seating.
4. Inspect Sealing Surfaces
Examine O-rings, seals, housings, fittings and mating surfaces for damage before reassembling the fluid section.
Common EP2300 Fluid Section Problems
Use the symptoms below as inspection starting points. Similar symptoms can also originate outside the fluid section, so confirm the actual cause before selecting replacement parts.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| EP2300 Will Not Prime | Material supply, suction path, inlet valve components, seals and PRIME/SPRAY system. | Eliminate intake restrictions and suction leaks before replacing internal fluid-section components. |
| Low or Unstable Pressure | Pump packings, inlet and outlet valves, piston components, suction path, filter and pressure-control system. | Determine whether pressure loss is caused by pump wear, fluid restriction, air entry or another sprayer system. |
| Fluid Leakage at Pump | Packings, seals, O-rings, fittings, housings and mating surfaces. | Locate the exact leak source and inspect related sealing surfaces before choosing replacement components. |
| Pump Cycles but Output Is Reduced | Inlet valve, outlet valve, packings, piston surfaces, suction components and downstream restrictions. | Inspect both fluid-section wear and the surrounding material path before completing the repair. |
| Difficulty Maintaining Material Flow | Material supply, suction components, pump valves, packings, filter and downstream fluid path. | Trace material flow from the source through the fluid section to identify the restriction or worn component. |
EP2300 Fluid Section or Pressure Control Parts?
EP2300 Fluid Section Assembly
Start here for piston components, pump packings, inlet and outlet valve parts, seals, O-rings, housings, fittings and related fluid-section components.
EP2300 Piston Pump
Use the Piston Pump section when identifying the complete pump assembly and its related pump repair components.
View EP2300 Piston Pump PartsEP2300 Pressure Control Assembly
If the pump can mechanically produce pressure but pressure adjustment or system response is incorrect, inspect the pressure-control system.
View EP2300 Pressure Control PartsVerify EP2300 Fluid Section Part Compatibility
Do not select piston components, packings, valve parts, seals, O-rings, housings or fittings based only on appearance. Similar fluid-section components used on other Titan EP, EPSE and EPX models can differ in dimensions, configuration or application.
Confirm the EP2300 model, applicable Fluid Section Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering. Do not assume an EP2300SE or another EP-series pump component fits the EP2300 unless the applicable parts information confirms the same replacement part number.
Before Buying Titan EP2300 Fluid Section Parts
Verify the exact sprayer model before selecting fluid-section replacement components.
Determine whether the problem involves priming, leakage, low pressure, reduced output or inconsistent material flow.
Check piston surfaces, packings, valves, seals and mating components together when rebuilding the fluid section.
Locate the required component in the Fluid Section diagram and match its numbered callout to the parts list.
Confirm the exact replacement part number, description and quantity before ordering.
Find Related Titan EP2300 Parts & Assemblies
Fluid-delivery problems can involve more than the fluid section. Use the appropriate EP2300 assembly diagram to identify the source of the problem and verify the correct replacement components.
Relieve Pressure Before Servicing the EP2300 Fluid Section
Shut down the sprayer, disconnect or isolate the applicable power source and follow the manufacturer's complete pressure-relief procedure before service. Never loosen a pump, hose, valve, filter, fitting or other fluid component while the system is pressurized. Follow the applicable EP2300 service instructions during fluid-section removal, disassembly, inspection, component replacement, reassembly and testing.
Shop Titan EP2300 Fluid Section Assembly Parts
Use the EP2300 Fluid Section Assembly exploded diagram to locate the piston, packing, valve, seal, O-ring, housing, fitting or related pump component you need, then verify the exact replacement part number and quantity before ordering.
Shop EP2300 Fluid Section PartsTitan EP2300 Fluid Section Assembly Parts FAQ
What does the Titan EP2300 fluid section do?
The fluid section contains the working pump components that draw coating into the sprayer and move it through the pressurized fluid path. These components include the piston, packings, valve components and associated seals.
How do I find the correct EP2300 fluid-section part?
Locate the component in the EP2300 Fluid Section Assembly exploded diagram, identify its numbered callout and match that callout with the exact replacement part number, description and quantity.
What should I inspect if the EP2300 will not prime?
Check the material supply, suction path, inlet valve components, pump seals and PRIME/SPRAY system. Poor priming can originate outside the fluid section, so inspect the complete intake path before replacing pump parts.
Can worn EP2300 pump packings cause fluid leakage?
Worn or damaged packings can contribute to leakage and reduced pumping efficiency. Inspect the packings together with the piston and related sealing surfaces before completing the repair.
What should I inspect if the EP2300 has low pressure?
Inspect the pump packings, inlet and outlet valve components, piston, suction path, filter and pressure-control system. Low pressure should be diagnosed across the complete fluid-delivery system.
Are EP2300 and EP2300SE fluid-section parts interchangeable?
Do not assume interchangeability based on similar model names. Compare the applicable diagrams and exact replacement part numbers before using a component across EP2300 and EP2300SE configurations.
What should I verify before ordering EP2300 fluid-section parts?
Confirm the EP2300 model, correct Fluid Section Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2300 Fluid Section Part?
Have your EP2300 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct piston component, packing, valve part, seal, O-ring, fitting or related fluid-section replacement part.
Parts & Fitment Help: 713-931-0006
