Titan EP2300 Pressure Control Assembly Parts
Find Titan EP2300 Pressure Control Assembly Parts for maintenance and repair of the sprayer's pressure-regulation system. Use the EP2300 exploded parts diagram to identify pressure adjustment, control, connection, mounting and related components by numbered callout, exact replacement part number and required quantity.
Find Titan EP2300 Pressure Control Replacement Parts
The EP2300 pressure-control system helps regulate sprayer operation as pressure demand changes. Its adjustment and control components work with the pressure-sensing system, piston pump and related machine components to provide the operating response required during priming and spraying.
Pressure symptoms should be diagnosed systematically. Low, unstable or unresponsive pressure can originate in the pressure-control system, but similar symptoms can also result from the suction path, piston pump, PRIME/SPRAY valve, filter, pressure-sensing components or associated connections.
Find the Correct EP2300 Pressure Control Part
Confirm EP2300
Verify the exact sprayer model before selecting pressure-control replacement components.
Open the Assembly Diagram

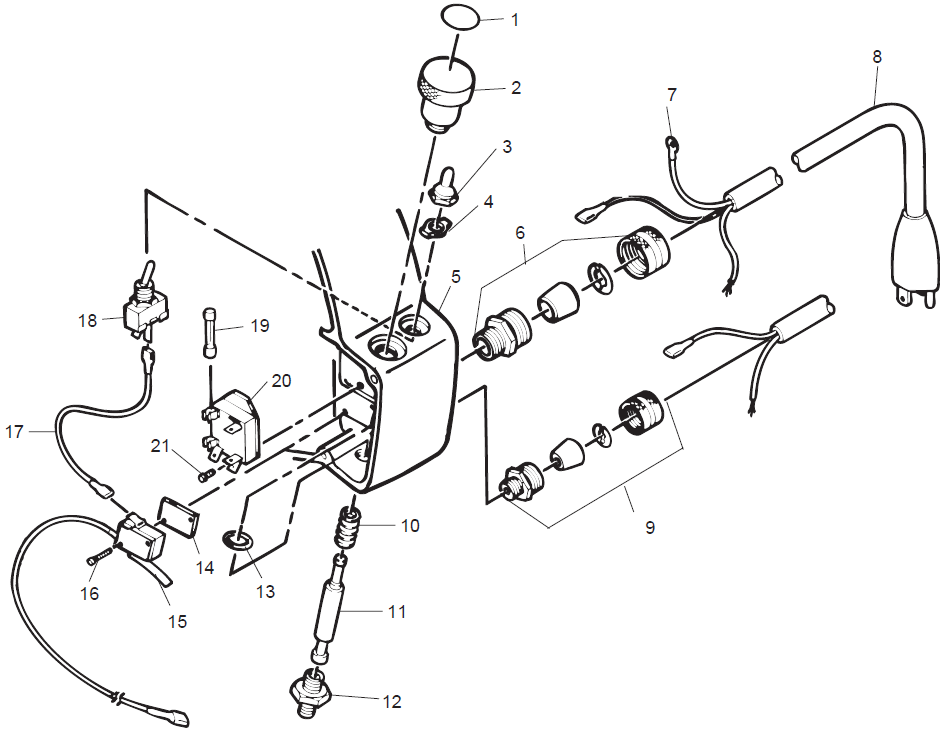

Use the EP2300 Pressure Control Assembly exploded illustration to locate the component requiring service.
Match the Callout
Match the numbered diagram callout with the corresponding component entry in the EP2300 parts list.
Verify Part & Quantity
Confirm the replacement part number, description and required quantity before ordering.
Understanding the EP2300 Pressure Control System
Pressure regulation depends on several systems working together. The pressure setting establishes the requested operating level, the sensing system provides pressure feedback and the control system responds as demand changes. The pump and fluid path must also be capable of producing and maintaining pressure correctly.
Pressure Setting Components
Applicable adjustment components allow the operator to change the requested pressure for the spraying application.
Pressure-Sensing System
Pressure feedback allows the control system to respond as fluid pressure and spray demand change.
Operating Control
Applicable control components help coordinate machine operation in response to the pressure setting and system feedback.
Connections & Hardware
Diagram-listed connectors, wiring, brackets and mounting hardware help integrate pressure-control components with the sprayer.
EP2300 Pressure Control Components to Inspect
Inspect applicable pressure-setting components for damage, wear, looseness or restricted movement.
Inspect diagram-listed control components when pressure response is inconsistent, intermittent or does not correspond with adjustment.
Inspect accessible wiring and connectors for looseness, visible damage, contamination or improper routing.
Include applicable pressure-sensing components and connections when diagnosing unstable or incorrect pressure response.
Check brackets, screws, retainers and other diagram-listed mounting hardware for correct positioning and secure attachment.
Check the pump, suction path, filter and PRIME/SPRAY valve when pressure symptoms could originate outside the control assembly.
Diagnose EP2300 Pressure Problems Systematically
Replacing the pressure control without first checking the fluid system can result in an unnecessary repair. Begin with the basic material path, confirm pump operation and then continue through pressure feedback and control components.
1. Verify Material Supply
Confirm adequate coating supply and inspect the suction system for restrictions, leaks or damaged intake components.
2. Verify Pump Operation
Inspect piston-pump packings and valve components when the sprayer cannot prime or mechanically develop pressure.
3. Inspect Pressure Feedback
Check applicable pressure-sensing components and their connections when pressure response is unstable or inaccurate.
4. Inspect the Control System
Inspect pressure adjustment, control components, accessible connections and mounting hardware before selecting replacement parts.
Common EP2300 Pressure Control Problems
The following symptoms are useful starting points for inspection. Always identify the actual cause before replacing pressure-control components.
| Symptom | Inspect | Repair Direction |
|---|---|---|
| Pressure Will Not Adjust | Pressure adjustment components, pressure feedback, control connections and pump operation. | Determine whether the problem is related to adjustment, sensing, control or the fluid system before replacing parts. |
| Pressure Fluctuates | Material supply, suction system, pump valves, packings, filter, pressure feedback and control connections. | Eliminate material-delivery and pump problems before focusing on pressure-control components. |
| Sprayer Will Not Build Pressure | Piston pump, suction path, PRIME/SPRAY valve, filter, pressure-sensing system and control components. | Trace the problem through the fluid system before assuming the pressure control requires replacement. |
| Intermittent Pressure Response | Accessible wiring, connectors, pressure feedback and control components. | Check for damaged or loose connections and verify the affected component with the parts diagram. |
| Pressure Adjustment Is Damaged | Adjustment component, surrounding control parts and mounting hardware. | Match the damaged component to its diagram callout and verify the exact replacement part number. |
Choose the Correct EP2300 Repair Section
Pressure Control Assembly
Find pressure adjustment, control, connection, mounting and related pressure-control components.EP2300 Piston Pump
Find piston components, packings, inlet and outlet valve parts, seals, O-rings and related pump repair components.EP2300 Final Assembly
Locate components by their position on the completed EP2300 sprayer and identify related machine assemblies.Verify EP2300 Pressure Control Part Compatibility
Do not choose a pressure-control component based only on appearance. Similar adjustment, sensing, electrical and mounting components used on other Titan sprayers may have different configurations, connections or applications.
Confirm the EP2300 model, correct Pressure Control Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering. Do not assume interchangeability with EP2300SE or other EP and EPX models without matching parts information.
Before Buying EP2300 Pressure Control Parts
Verify the exact model before selecting replacement control parts.
Determine whether the issue involves adjustment, unstable pressure, low pressure or intermittent response.
Check the suction path, pump, filter and pressure feedback before assuming the control assembly has failed.
Locate the component in the exploded diagram and match its callout with the corresponding parts-list entry.
Confirm the replacement part number, description and quantity before ordering.
Related Titan EP2300 Parts & Assemblies
Pressure symptoms can involve several areas of the sprayer. Use the appropriate EP2300 assembly diagram to identify parts accurately and avoid replacing unrelated components.
Relieve Pressure Before Servicing the EP2300
Shut down the sprayer, disconnect or isolate the applicable power source and follow the manufacturer's complete pressure-relief procedure before service. Never loosen a pressurized pump, hose, valve, filter, fitting or other fluid component. Electrical inspection and repair should follow the applicable service instructions and proper service procedures.
Shop Titan EP2300 Pressure Control Assembly Parts
Use the EP2300 Pressure Control Assembly exploded diagram to identify the component you need, match its numbered callout to the parts list and verify the exact replacement part number and quantity before ordering.
Shop EP2300 Pressure Control PartsTitan EP2300 Pressure Control Assembly Parts FAQ
What does the Titan EP2300 Pressure Control Assembly do?
The pressure-control system helps manage sprayer operation in response to the selected pressure and changing system demand. It works with pressure-sensing, pump and related machine components.
How do I identify the correct EP2300 pressure-control part?
Locate the component in the EP2300 Pressure Control Assembly exploded diagram and match its numbered callout to the corresponding part number, description and quantity.
Why is my Titan EP2300 not building pressure?
Inspect the material supply, suction system, piston pump, PRIME/SPRAY valve, filter, pressure-sensing system and pressure-control components. Failure to build pressure does not automatically indicate a bad pressure control.
What can cause unstable pressure on an EP2300?
Unstable pressure can be associated with material supply problems, suction leaks, worn pump components, filtration restrictions, pressure feedback or control connections. Diagnose the complete system before selecting replacement parts.
Should I replace the EP2300 pressure control for low pressure?
Not until the cause has been diagnosed. Verify material intake, pump condition, fluid flow and pressure feedback before determining that a pressure-control component requires replacement.
Are EP2300 and EP2300SE pressure-control parts interchangeable?
Do not assume interchangeability. Use the parts diagram for the exact model and confirm the same replacement part number before using a component across different configurations.
What should I verify before ordering EP2300 Pressure Control parts?
Confirm the EP2300 model, correct Pressure Control Assembly diagram, numbered callout, component description, replacement part number and required quantity before ordering.
