Titan Impact 440 Low Rider Assembly Parts – P/N 0558392
Find genuine OEM Titan Impact 440 Low Rider Assembly Parts (P/N 0558392) for servicing the Low Rider configuration of your Impact 440 airless sprayer. Use the exploded assembly diagram to identify the component you need, locate its numbered callout, and match it with the corresponding Titan OEM part number before ordering.
Maintain Your Impact 440 Low Rider Configuration
The Low Rider assembly provides the supporting frame and mobility arrangement for the applicable Titan Impact 440 configuration. Its components support the sprayer while helping make the machine easier to position, transport, store, and service.
If a wheel, frame component, handle, axle-related part, mounting point, fastener, or other Low Rider component becomes worn, bent, loose, damaged, or missing, use the correct P/N 0558392 exploded diagram to identify the required replacement instead of selecting a part by appearance alone.
What Does the Impact 440 Low Rider Assembly Do?
The Low Rider assembly forms the supporting structure around the applicable Impact 440 configuration. It provides mounting and support points for the sprayer while incorporating the components required for the machine's low-profile portable arrangement.
Because the assembly supports the weight and movement of the sprayer, structural damage, loose mounting hardware, worn wheels, damaged support points, or misaligned components should be inspected and corrected before continued use.
Impact 440 Low Rider Components to Inspect
Use the applicable P/N 0558392 exploded diagram to confirm exact component names, quantities, and part numbers. During service, inspect adjoining frame and mounting components for related wear or damage.
Inspect applicable frame tubes, supports, mounting areas, and structural components for bending, cracking, deformation, corrosion, or impact damage.
Check applicable wheels, axle-related components, retainers, and mounting points for wear, looseness, damage, binding, or missing hardware.
Inspect applicable handles, brackets, attachment points, and adjoining structural areas for looseness, damage, distortion, or excessive movement.
Verify that applicable bolts, screws, nuts, washers, clips, retainers, and related hardware are present, correctly installed, and serviceable.
Find Your Impact 440 Low Rider Parts Faster
Use the exploded Low Rider diagram to move from the physical component on your sprayer to the correct Titan replacement part number. This provides a more reliable fitment check than matching a wheel, bracket, frame part, or fastener by appearance alone.
Identify the worn, bent, loose, damaged, or missing component on your Impact 440 Low Rider assembly.

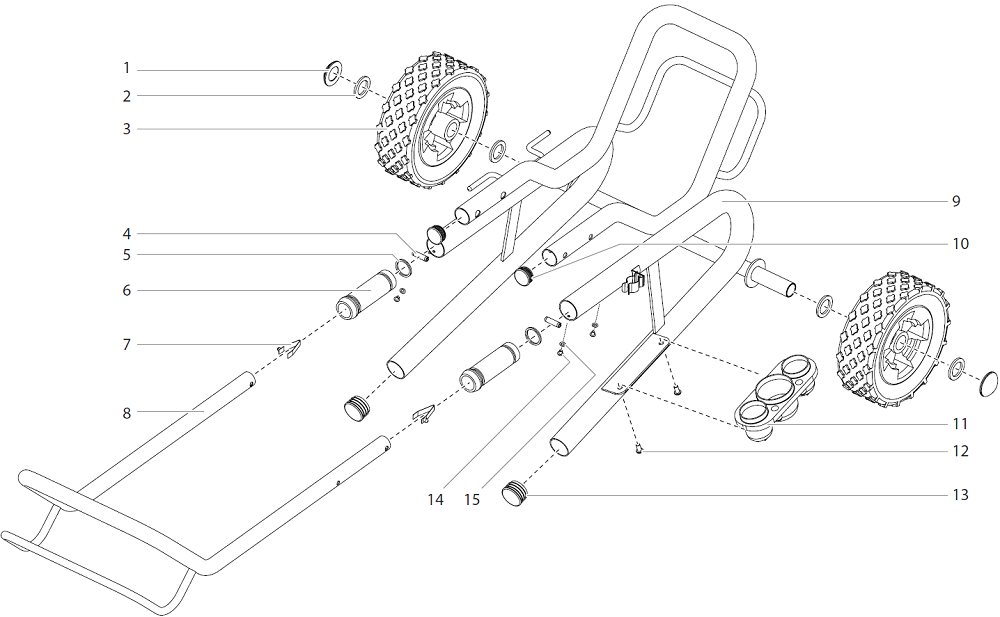

Locate the same component on the applicable Impact 440 Low Rider Assembly P/N 0558392 exploded drawing.
Match the numbered diagram reference with the corresponding genuine Titan OEM replacement part number.
Confirm the model, Low Rider configuration, assembly reference, callout, and exact part number before purchasing.
Impact 440 Low Rider Loose, Damaged, or Difficult to Move?
Inspect the complete affected area rather than replacing only the most obvious component. Mobility or stability problems can involve wheels, axle-related parts, retainers, frame components, brackets, mounting points, or loose and missing hardware.
Compare each suspect component with the P/N 0558392 exploded diagram and verify the exact Titan part number before replacement.
Impact 440 Low Rider Inspection Guide
| Condition | What to Inspect | Inspection Focus |
|---|---|---|
| Sprayer difficult to roll | Wheels, axle-related parts and retainers | Wear, binding, damage, contamination, looseness, or missing hardware |
| Machine feels unstable | Frame, supports, wheels and mounting hardware | Loose, bent, worn, damaged, or missing components |
| Handle or frame moves excessively | Mounting points, brackets and fasteners | Loose hardware, damaged mounting holes, deformation, or cracking |
| Visible structural damage | Frame and adjoining mounting locations | Bending, cracking, impact damage, distortion, or compromised support |
| Missing mounting hardware | Fasteners, washers, clips and retainers | Correct diagram callout, quantity, position, and Titan part number |
Confirm You Have the Impact 440 Low Rider Configuration
Frame and mobility components are configuration-specific. Before selecting replacement parts, verify that the machine being serviced corresponds to the Impact 440 Low Rider Assembly identified by P/N 0558392.
Use this diagram when servicing components specifically associated with the applicable Impact 440 Low Rider frame and mobility arrangement.
If your machine uses a different frame or mounting arrangement, use the exploded diagram corresponding to that configuration rather than assuming the Low Rider parts interchange.
Impact 440 Low Rider Service Guidance
If one structural or mobility component is damaged, inspect adjoining brackets, mounting points, retainers, and hardware before reassembly.
Keep removed fasteners, washers, clips, and retainers associated with their original locations to simplify correct reassembly.
After repair, verify that the machine is properly supported and applicable mobility components operate correctly before returning it to service.
Find the Correct Impact 440 Parts Section
If the component you need is not shown on the Low Rider Assembly diagram, identify where it is installed and use the corresponding Impact 440 parts section.
| Repair Area | Parts Section | Best Identification Method |
|---|---|---|
| Low Rider frame / mobility | Low Rider Assembly P/N 0558392 | Low Rider diagram + Titan part number |
| General machine component | Main Assembly | Main diagram + Titan part number |
| Material intake | Suction Set Assembly | Suction diagram + Titan part number |
| Mechanical power transfer | Drive Assembly | Drive diagram + Titan part number |
| Pump / fluid handling | Fluid Section Assembly | Fluid-section diagram + Titan part number |
Service Your Impact 440 Low Rider Assembly Safely
Before inspecting or replacing Low Rider components, shut down the sprayer, follow Titan's pressure-relief procedure, disconnect electrical power, and place the equipment on a stable surface. Properly support the machine before removing wheels, frame components, supports, or mounting hardware.
Follow applicable Titan service instructions for disassembly, inspection, replacement, reassembly, and testing. Do not operate or transport the sprayer with damaged structural components or improperly secured mounting hardware.
Confirm the Correct Impact 440 Low Rider Part Before Ordering
Wheels, frame components, brackets, supports, handles, fasteners, and mounting hardware can look similar across different Titan machines and configurations. A visual match alone does not establish compatibility.
Confirm that your sprayer corresponds to the Impact 440 Low Rider Assembly P/N 0558392, locate the required component on the correct exploded diagram, and match its numbered callout with the exact Titan OEM part number before purchasing.
Explore More Titan Impact 440 Parts
Continue through the Impact 440 parts catalog when your repair involves another machine system, or return to the complete Titan Impact parts category to locate parts for another sprayer.
Shop Titan Impact 440 Low Rider Assembly Parts
Use the P/N 0558392 exploded Low Rider Assembly diagram to locate the component your Impact 440 requires, verify its numbered callout and exact Titan OEM part number, and select the correct replacement for your repair.
Find Impact 440 Low Rider PartsTitan Impact 440 Low Rider Assembly Parts FAQs
What is Titan Impact 440 Low Rider Assembly P/N 0558392?
P/N 0558392 identifies the applicable Low Rider assembly referenced for the Titan Impact 440. Use its exploded parts diagram when identifying replacement components associated with this configuration.
How do I find the correct Impact 440 Low Rider replacement part?
Locate the component on the P/N 0558392 exploded assembly diagram, identify its numbered callout, and match that reference with the corresponding Titan OEM replacement part number.
What should I inspect if my Impact 440 is difficult to move?
Inspect the applicable wheels, axle-related components, retainers, mounting points, and hardware for wear, binding, damage, looseness, contamination, or missing components.
What should I inspect if the Low Rider frame feels loose?
Check the applicable frame components, brackets, attachment points, fasteners, supports, and adjoining mounting areas for looseness, deformation, cracking, wear, or missing hardware.
Can I use a similar-looking wheel or frame part?
Do not determine compatibility by appearance alone. Verify the component using the correct Low Rider exploded diagram, numbered callout, and exact Titan part number.
Should adjoining components be inspected when a Low Rider part is damaged?
Yes. Structural or mobility damage can affect nearby mounting points, brackets, fasteners, retainers, wheels, or supports. Inspect the complete affected area before reassembly.
Are these genuine Titan OEM Impact 440 parts?
AllTitanParts specializes in genuine Titan OEM replacement parts. Verify the individual product listing, assembly reference, diagram callout, and exact Titan part number before ordering.
Where can I find other Titan Impact 440 replacement parts?
Browse the complete Impact 440 parts category for Main Assembly, Suction Set, Drive Assembly, Fluid Section, frame, and other replacement components, or return to the Titan Impact Sprayer Parts category for additional models.
