Titan Impact 440 Suction Set Assembly Parts
Find genuine OEM Titan Impact 440 Suction Set Assembly Parts for servicing the material-intake side of your Impact 440 airless sprayer. Use the exploded suction-set diagram to identify the component you need, locate its numbered callout, and match it with the corresponding Titan OEM part number before ordering.
Keep Material Flowing Reliably to Your Impact 440
The suction set provides the material-intake path that allows the Impact 440 to draw coating from its supply container toward the pump. Its components must remain properly connected, unobstructed, and in serviceable condition for dependable priming and material delivery.
Worn, damaged, loose, blocked, or leaking suction-side components can contribute to poor priming, interrupted material flow, air entering the system, or inconsistent sprayer performance. Use the correct Impact 440 Suction Set Assembly diagram to identify replacement parts rather than selecting components by appearance alone.
What Does the Impact 440 Suction Set Do?
The suction set forms the intake route between the coating supply and the sprayer's pumping system. During operation, material must move through this intake path without unwanted air entry, excessive restriction, loose connections, or obstruction.
Problems on the suction side can sometimes resemble pump problems. For this reason, inspecting the suction assembly is an important troubleshooting step when an Impact 440 is difficult to prime, loses prime, draws material irregularly, or shows evidence of air entering the intake path.
Impact 440 Suction Components to Inspect
Refer to the exploded Suction Set Assembly diagram for the exact components used on your Impact 440 configuration. When diagnosing an intake problem, inspect the complete material path rather than only the most visible component.
Inspect applicable intake components for cracks, deformation, blockage, coating buildup, physical damage, or another condition that could restrict material flow.
Check applicable suction-side fittings and connections for looseness, damaged threads, wear, leakage, or conditions that could allow air into the system.

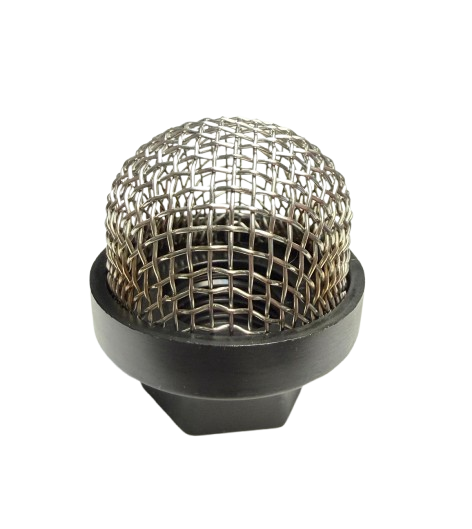

Inspect the applicable intake strainer or screen for dried coating, debris, restriction, damage, or excessive contamination that could interfere with material pickup.
Inspect applicable seals, clamps, retainers, fasteners, and adjoining hardware for wear, damage, incorrect installation, or missing components.
Find Your Impact 440 Suction Set Parts Faster
Use the exploded suction-set diagram as your primary identification reference. Following the physical component to its diagram callout and corresponding Titan OEM part number reduces the risk of ordering a similar-looking but incorrect part.
Determine where the issue appears within the material-intake path of your Impact 440.
Find the required component on the Impact 440 Suction Set Assembly exploded diagram.
Match the numbered diagram reference with the corresponding Titan OEM part number.
Verify the model, suction-set diagram, callout, and exact Titan part number before purchasing.
Impact 440 Won't Prime or Keep a Steady Material Supply?
Inspect the suction side before assuming that the pump requires major repair. A blocked intake, loose connection, damaged suction component, contaminated strainer, or air leak can interfere with the sprayer's ability to draw coating consistently.
Follow the complete intake path from the coating container toward the pump, checking each applicable component and connection before replacing parts.
Impact 440 Suction Set Troubleshooting Guide
| Symptom | What to Inspect | Inspection Focus |
|---|---|---|
| Sprayer is difficult to prime | Suction path, intake screen and connections | Blockage, restriction, loose fitting, damaged component, or air entry |
| Sprayer repeatedly loses prime | Suction fittings, seals and intake components | Loose connection, leakage, damaged seal, or suction-side air leak |
| Material flow is restricted | Strainer, screen and suction passage | Debris, dried coating, contamination, obstruction, or damaged intake component |
| Visible suction-side leakage | Connections, fittings, seals and adjoining components | Loose connection, damaged sealing surface, wear, or physical damage |
| Irregular material pickup | Complete suction set and material supply | Restriction, air entry, inadequate immersion, contamination, or damaged component |
Maintain the Impact 440 Suction System
Remove coating residue and debris according to Titan's cleaning procedures so the intake path and applicable strainer remain free of excessive restriction.
Check applicable suction-side fittings, seals, clamps, and connections for looseness, wear, leakage, or damage before operation.
Replace cracked, worn, damaged, leaking, or otherwise unserviceable suction components with the correctly identified Titan replacement part.
Suction Set Part or Fluid Section Part?
These systems work together but serve different portions of the material path. Identifying where the component is installed helps you choose the correct Impact 440 parts diagram.
Start here for applicable components forming the material-intake route from the coating supply toward the pumping section.
Use the applicable fluid-section diagram when the required component belongs to the pump section responsible for moving and pressurizing coating.
Find the Correct Impact 440 Parts Section
If the component you need does not appear in the Suction Set Assembly diagram, identify its physical location and function, then move to the corresponding Impact 440 parts section.
| Repair Area | Start Here | Identification Method |
|---|---|---|
| Material-intake component | Suction Set Assembly | Suction diagram + Titan part number |
| Pump / fluid-handling component | Fluid Section Assembly | Fluid-section diagram + Titan part number |
| Mechanical power-transfer component | Drive Assembly | Drive diagram + Titan part number |
| Motor-related component | Motor Assembly | Motor diagram + Titan part number |
| General machine component | Main Assembly | Main diagram + Titan part number |
Service Your Impact 440 Safely
Airless spraying equipment can retain high fluid pressure. Before inspecting, disconnecting, cleaning, or replacing suction-system components, shut down the sprayer and follow Titan's pressure-relief procedure and applicable service instructions.
Never attempt to loosen pressurized connections. Verify that replacement components are correctly installed and that the intake system is secure before returning the sprayer to operation.
Confirm the Correct Impact 440 Suction Part Before Ordering
Suction tubes, strainers, fittings, seals, connectors, and related components can look similar across different Titan models and configurations. Small differences can affect fitment and function.
Confirm your Titan Impact 440 model, use the correct Suction Set Assembly diagram, locate the component by its numbered callout, and match that reference with the exact Titan OEM part number before purchasing.
Explore More Titan Impact 440 Parts
If troubleshooting shows that the problem extends beyond the suction set, continue to the complete Impact 440 parts category or use the appropriate machine assembly diagram.
Shop Titan Impact 440 Suction Set Assembly Parts
Use the exploded Suction Set Assembly diagram to locate the component your Impact 440 requires, verify its numbered callout and exact Titan OEM part number, and select the correct replacement for your repair.
Find Impact 440 Suction Set PartsTitan Impact 440 Suction Set Assembly FAQs
What does the Titan Impact 440 suction set do?
The suction set provides the material-intake path used to draw coating from the supply container toward the pumping section of the Impact 440.
How do I find the correct Impact 440 suction part?
Locate the required component on the Impact 440 Suction Set Assembly exploded diagram, identify its numbered callout, and match it with the corresponding Titan OEM part number.
Can a suction-side problem cause poor priming?
Yes. Restriction, contamination, loose connections, damaged components, or unwanted air entering the suction path can interfere with priming and material pickup.
What should I inspect if my Impact 440 repeatedly loses prime?
Inspect the applicable suction tube, intake strainer, fittings, seals, connections, and complete intake path for blockage, looseness, leakage, damage, or possible air entry.
Is the suction set the same as the Impact 440 fluid section?
No. The suction set forms the material-intake route toward the pump, while the fluid section contains pump components involved in moving and pressurizing the coating.
Can I identify a suction component by appearance alone?
No. Similar-looking components can have different dimensions, connections, or applications. Verify the correct diagram callout and exact Titan OEM part number.
Are these genuine Titan OEM Impact 440 suction parts?
AllTitanParts specializes in genuine Titan OEM replacement parts. Confirm the individual listing, diagram reference, and exact Titan part number before ordering.
Where can I find other Titan Impact 440 replacement parts?
Browse the complete Titan Impact 440 parts category to locate components from the Main Assembly and other applicable machine sections, or browse the complete Impact Sprayer Parts category for additional Titan models.
