Titan EPX2455 Advantage Series Fluid Section Assembly Parts
Shop genuine OEM Titan EPX2455 Advantage Series Fluid Section Assembly Parts for maintenance and repair of the SprayTech Advantage EPX2455 airless sprayer. Use the model-specific exploded diagram to identify pump, valve, packing, sealing and related fluid-section components before ordering replacement parts.
Find the Correct EPX2455 Fluid Section Replacement Parts
The fluid section is the pumping area of the EPX2455 that handles coating material and develops the fluid pressure required for airless spraying. Because its internal components work together as a system, correct identification is important when servicing valves, packings, seals, piston-related components and other pump parts.

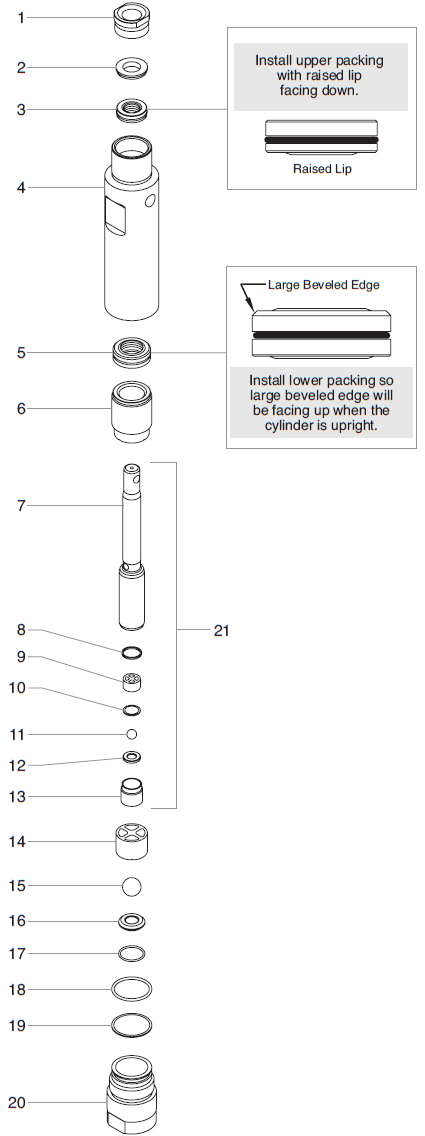

Locate the required component on the EPX2455 Fluid Section Assembly exploded view, note its numbered callout and match that reference to the corresponding parts-list entry. Verify the documented OEM part number before ordering rather than selecting a replacement based only on appearance.
Find Your EPX2455 Fluid Section Part in Four Steps
Confirm EPX2455
Verify that the sprayer is an Advantage EPX2455 before selecting model-specific pump components.
Open the Fluid Diagram
Use the EPX2455 Fluid Section Assembly exploded view to locate the component being serviced.
Match the Callout
Match the numbered diagram reference to the corresponding component in the parts list.
Verify the OEM Number
Confirm the documented OEM part number and EPX2455 application before ordering.
What the EPX2455 Fluid Section Does
The fluid section draws coating material into the pump and moves it through the sprayer's high-pressure fluid path. Internal pumping, valve and sealing components must work together correctly for consistent priming, pressure generation and material delivery.
The pump receives coating material through the suction side before it moves through the fluid section.
Reciprocating pump movement draws material in and moves it through the fluid path toward the outlet.
Valve components control material movement through the pump during the pumping cycle.
Packings and sealing components help maintain the internal sealing required for proper pump operation.
EPX2455 Fluid Section Components to Inspect
Use the exploded diagram for exact part identification. During pump service, inspect connected and mating components because wear in one area may affect sealing, valve operation or pumping performance elsewhere.
Inspect documented piston and adjoining pump components for visible wear or damage during fluid-section service.
Check documented sealing components when leakage or reduced pumping performance indicates possible internal wear.
Inspect the pump inlet and documented valve components when the sprayer has difficulty drawing material or priming.
Check documented outlet-side valve components when troubleshooting irregular pumping or pressure performance.
Inspect documented O-rings and associated sealing components whenever the fluid section is disassembled.
Inspect documented pump-body areas, threads and connections for visible damage before reassembly.
EPX2455 Fluid Section Symptoms & Inspection Areas
Pump symptoms can have multiple causes. Use the applicable operating and service information to diagnose the sprayer before replacing parts, and inspect connected components when the fluid section is opened.
| Symptom | Inspect First | Also Check | Related System |
|---|---|---|---|
| Sprayer Will Not Prime | Material supply and inlet path | Suction components and inlet valve area | Suction Set / Fluid Section |
| Low or Unstable Pressure | Fluid section and valve operation | Packings and connected fluid path | Fluid Section |
| Visible Fluid Leakage | Exact leak location | Packings, seals and connections | Fluid Section |
| Reduced Material Output | Pump and material intake path | Valves and drive movement | Fluid Section / Drive |
| Irregular Pumping | Valve and pumping components | Drive-to-pump movement | Fluid Section / Drive |
| Repeated Loss of Prime | Suction path and inlet system | Pump sealing and valve areas | Suction Set / Fluid Section |
Check Connected Components During Fluid Section Service
Inspect the material-intake path when diagnosing priming or material-supply problems.
Check mating valve components together rather than evaluating one part in isolation.
Inspect associated sealing components whenever the pump is opened for internal service.
Inspect drive-to-pump movement when pump action is irregular or incomplete.
Browse Related Titan EPX2455 Parts & Assemblies
Move directly to the EPX2455 assembly diagram that corresponds with the system you need to inspect, service or repair.
SprayTech Advantage EPX Parts Diagrams
Select your exact Advantage EPX model to browse its dedicated parts diagrams. Similar EPX sprayers may use different fluid-section, drive, motor, suction and cart components.
Return to the main Advantage category for additional Titan and SprayTech model-specific parts diagrams.
View All Advantage EP & EPX PartsVerify EPX2455 Fluid Section Parts Before Ordering
Do not assume that pump components from the EPX2155, EPX2255, EPX2355, EPX2555 or another Advantage sprayer fit the EPX2455. Similar-looking packings, seals, valve components and pump parts may use different OEM part numbers or applications. Confirm the exact model, diagram callout and documented OEM part number before purchasing.
Before Ordering EPX2455 Fluid Section Parts
Verify the exact Advantage model before selecting pump components.
Determine that the required component belongs to the pump rather than the suction, drive or main assembly.
Locate the component on the exploded view and match its reference to the parts list.
Confirm the documented Titan/SprayTech part number before ordering.
EPX2455 Fluid Section Service Safety
Shut the sprayer down, disconnect electrical power and perform the applicable pressure-relief procedure before fluid-section inspection or service. Airless spray equipment can retain hazardous high-pressure fluid after operation stops. Never use your hand to locate or stop a pressurized leak. Follow the applicable Titan/SprayTech service instructions for disassembly, cleaning, inspection, replacement, lubrication where specified and reassembly.
Shop Titan EPX2455 Advantage Fluid Section Parts
Use the EPX2455 Fluid Section Assembly exploded diagram to locate the required pump component, match its callout to the parts list and verify the OEM part number before ordering.
Shop EPX2455 Fluid Section PartsTitan EPX2455 Advantage Fluid Section Assembly FAQ
Where can I find Titan EPX2455 fluid section parts?
Use this EPX2455 Fluid Section Assembly page to identify documented pump components from the model-specific exploded diagram and corresponding parts list.
How do I identify the correct EPX2455 pump part?
Locate the component on the fluid-section exploded view, match its numbered callout to the parts list and verify the documented OEM part number.
What should I inspect if my EPX2455 will not prime?
Check the material supply, suction path and pump inlet area, then inspect the documented inlet-side components according to the applicable service information.
What should I inspect if the EPX2455 loses pressure?
Inspect the fluid path, valve operation, pump sealing components and other documented fluid-section parts while also ruling out external causes.
Where can I find EPX2455 suction system parts?
Use the dedicated EPX2455 Suction Set Assembly page for documented material-intake and suction-side components.
Where can I find EPX2455 drive parts?
Use the dedicated EPX2455 Drive Assembly page for mechanical power-transfer and related drive components.
Are EPX2355 and EPX2455 fluid section parts interchangeable?
Do not assume interchangeability. Verify the documented OEM part number and model application before using a component associated with another EPX model.
Why should I use the EPX2455 fluid section exploded diagram?
The diagram shows pump component locations and numbered callouts that correspond with the parts list, helping identify the correct OEM replacement component before ordering.
Need Help Finding an EPX2455 Fluid Section Part?
Have your EPX2455 model information, serial information when available, existing component number and exploded-diagram reference ready. These details can help identify the correct OEM pump, valve, packing, seal or related fluid-section component before ordering.
Parts & Fitment Help: 713-931-0006
