Titan Epic 447HPX | Fluid Section Assembly
Shop Titan Epic 447HPX Fluid Section Replacement Parts
Find Epic 447HPX Fluid Section Parts for your Titan electric airless paint sprayer at AllTitanParts. Browse fluid section components associated with the pump's material intake, pressurization, sealing, and outlet functions. Identify manufacturer-specified replacement parts such as piston components, packings, inlet and outlet valve parts, seals, and fluid section repair assemblies where listed. Whether you are troubleshooting pressure loss, repairing coating leakage, or addressing inconsistent pump performance, use the applicable Titan Epic 447HPX parts diagram to select the correct components.
Fluid Section Overview
Buy Titan Epic 447HPX Fluid Section Parts Online
The Titan Epic 447HPX Fluid Section Parts category helps painting contractors, equipment owners, maintenance personnel, and repair technicians identify replacement components associated with the fluid pumping assembly of the Titan Epic 447HPX electric airless paint sprayer.
The fluid section is responsible for drawing coating material from the supply container, pressurizing it through the pump's operating cycle, and directing it toward the spray hose and gun. Proper operation depends on the condition of the piston, packing system, inlet valve, outlet valve, and other designated fluid-contact components.
During operation, fluid section parts experience repeated mechanical movement and exposure to coating materials. Normal wear, abrasive particles, incompatible cleaning products, and insufficient maintenance can affect sealing surfaces and valve operation.
Common fluid section symptoms include reduced spray pressure, difficulty priming, coating leakage, inconsistent pump cycling, and poor fluid delivery. These problems may originate from worn packings, contaminated valves, damaged sealing surfaces, or restrictions elsewhere in the fluid system.
At AllTitanParts, you can review the Epic 447HPX fluid section category to identify listed replacement components. Before ordering, verify the sprayer model, applicable parts diagram, manufacturer part numbers, and any documented equipment revisions.
Fluid Pump Operation
How the Titan Epic 447HPX Fluid Section Works
The fluid section uses the sprayer's motor-driven pumping mechanism to move coating material through the fluid delivery system. The exact valve and piston arrangement must be confirmed from the manufacturer documentation.
Material Intake
The pump draws coating material through the designated suction and inlet components.
Valve Operation
Inlet and outlet valve components help control the direction of fluid movement through the pump.
Fluid Pressurization
The pump's moving components and sealing system support the generation of fluid pressure.
Pressurized Delivery
Coating material exits through the designated outlet and continues toward downstream filtration and spraying components.
Replacement Component Guide
Titan Epic 447HPX Fluid Section Assembly Replacement Components
The following groups describe common piston-pump fluid section service areas. They are not a confirmed inventory of separately available Epic 447HPX parts. Refer to the applicable Titan parts diagram to verify which items are fitted and individually serviceable.
Fluid Section Housing
The fluid section housing supports the pump's designated internal components and provides the required fluid passages.
Inspect for damaged threads, cracks, worn sealing surfaces, and other structural defects. Verify the correct manufacturer part number before replacement.
Pump Piston Components
The piston assembly contributes to the pump's reciprocating movement and fluid pressurization process.
Inspect for scoring, wear, surface damage, and compatibility with the specified packing components.
Upper Pump Packings
Where specified, upper packings seal designated moving interfaces to help contain pressurized coating material.
Worn packings can contribute to leakage and reduced pumping efficiency. Use the correct manufacturer-specified packing material and arrangement.
Lower Pump Packings
Where fitted, lower packings help maintain sealing within the pump's fluid pressurization area.
Verify the correct dimensions, material, orientation, and replacement procedure.

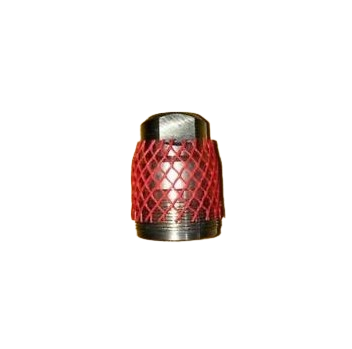

Inlet Valve Assembly
The inlet valve controls the designated entry of coating material into the pumping chamber.
Contamination, wear, or damaged sealing surfaces may contribute to poor priming or inconsistent material intake.
Outlet Valve Assembly
The outlet valve helps control fluid discharge from the pump toward the pressurized delivery system.
Inspect specified valve components for debris, wear, or sealing damage when pressure problems occur.
Valve Balls and Seats
Where included, valve balls and seats create sealing interfaces that control fluid movement.
Pitting, contamination, or wear may interfere with sealing. Match the specified ball and seat components.
Valve Springs and Retainers
Where fitted, springs and retainers help position or control designated valve components.
Use the correct manufacturer specifications and assembly orientation.
Fluid Section O-Rings and Seals
O-rings and seals help prevent leakage at designated fluid section interfaces.
Replace damaged components using the specified dimensions and coating-compatible materials.
Packing Adjustment Components
Where included, adjustment components support the manufacturer's specified packing installation and service arrangement.
Follow the applicable Titan service procedure rather than applying unverified adjustment methods.
Fluid Section Repair Kits
Where offered, repair kits may combine manufacturer-specified wear components for a particular pump service procedure.
Review the kit part number and included items before ordering.
Complete Fluid Section Assembly
Where available, a complete fluid section assembly may provide a replacement option when multiple internal components or the housing are damaged.
Verify assembly compatibility, included components, and the correct manufacturer part number.
Pump Wear Components
Understanding Epic 447HPX Pump Packings, Pistons, and Valves
The condition of the piston, packing system, and inlet and outlet valves has a direct effect on the fluid section's ability to move coating material and maintain pressure.
Pump packings: Packing components seal designated moving interfaces. Wear may allow coating material to leak past sealing surfaces or reduce pumping efficiency.
Piston components: The piston operates within the pump mechanism. Surface damage or wear can affect the interaction between the piston and its seals.
Inlet valve: The inlet valve supports material entry into the pumping chamber. Debris or damaged valve surfaces may interfere with priming.
Outlet valve: The outlet valve controls the designated discharge path. A valve that does not seal correctly may contribute to pressure loss or irregular fluid delivery.
When repairing these components, inspect related mating surfaces and use the manufacturer's approved replacement parts and service instructions. Replacing a worn seal without addressing a damaged piston or valve seat may not resolve the underlying problem.
Fluid Section Troubleshooting
Common Titan Epic 447HPX Fluid Section Problems
Fluid section symptoms may also result from suction restrictions, filter blockage, pressure-control problems, or spray equipment faults. Diagnose the complete system before replacing pump components.
| Observed Symptom | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Sprayer will not prime | Suction system, inlet valve, valve contamination | Follow the manufacturer's priming and troubleshooting procedures. |
| Low or inconsistent spray pressure | Packings, piston, valves, filter restrictions | Inspect the fluid system and replace confirmed worn components. |
| Coating leakage around pump | Packings, O-rings, sealing surfaces | Relieve pressure and inspect the affected sealing components. |
| Pump cycles but delivers little material | Inlet valve, outlet valve, piston seals, suction restrictions | Diagnose material intake and valve sealing performance. |
| Pump continues cycling unexpectedly | Valve sealing, packings, external leakage, pressure controls | Investigate pressure loss and verify the cause before repair. |
| Poor material intake | Suction components, inlet valve, air entry | Inspect the suction and inlet systems using approved procedures. |
| Recurring valve contamination | Coating debris, suction filtration, cleaning practices | Review coating preparation and the manufacturer's cleaning instructions. |
Pump Repair Planning
Repair or Replace the Titan Epic 447HPX Fluid Section?
The appropriate repair depends on the diagnosed failure, the condition of the pump's internal surfaces, and the availability of manufacturer-approved service parts.
Packing Replacement
Worn pump packings may be replaced when the piston and mating surfaces remain serviceable.
Valve Component Replacement
Damaged valve balls, seats, or other listed components may be replaced individually when supported by the manufacturer.
Piston Replacement
A worn or scored piston may require replacement if damage affects sealing or pump operation.
Complete Fluid Section Replacement
A complete assembly may be appropriate when multiple components or pressure-containing surfaces are damaged.
Parts Identification
How to Find the Correct Titan Epic 447HPX Fluid Section Parts
Confirm the Model
Verify the Titan Epic 447HPX model and equipment identification details.

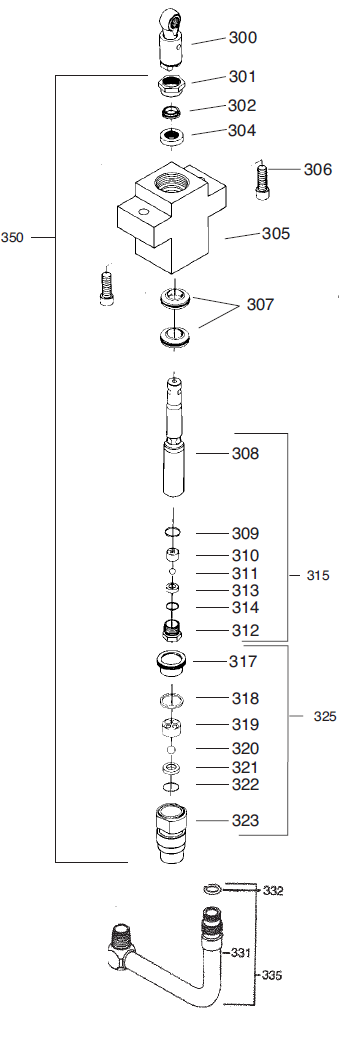

Review the Fluid Section Diagram
Locate the required piston, packing, valve, seal, or related pump component.
Match the Part Number
Compare the manufacturer component reference with the replacement product listing.
Verify Compatibility
Confirm component dimensions, material specifications, equipment revisions, and documented replacements.
Compatibility and Ordering
Choosing Compatible Epic 447HPX Fluid Section Replacement Parts
Fluid section components must match the pump's mechanical and pressure-system requirements. Similar-looking pistons, packings, valve seats, and seals may have different dimensions or material specifications.
- Confirm the sprayer model: Verify Titan Epic 447HPX identification.
- Review the fluid section diagram: Identify the required pump component.
- Match the manufacturer part number: Use the original number or documented replacement.
- Verify piston dimensions: Confirm the specified size and sealing interface.
- Check packing specifications: Match material, dimensions, and installation arrangement.
- Confirm valve compatibility: Use the correct balls, seats, springs, and retainers where fitted.
- Verify pressure-system requirements: Use appropriately rated manufacturer-specified components.
- Review repair kit contents: Confirm which components are included.
- Check equipment revisions: Use the applicable manufacturer documentation.
- Review product availability: Check individual listings before ordering.
Do not assume that Titan Epic 447HPX Fluid Section Parts are interchangeable with fluid section components from the Epic 447EX, Epic 440E, or other Titan sprayer models without manufacturer confirmation.
Preventive Maintenance
Titan Epic 447HPX Fluid Section Maintenance Tips
Clean the Fluid System
Flush the sprayer using the manufacturer's approved cleaning procedure and compatible cleaning materials.
Inspect Pump Packings
Monitor for coating leakage and follow the manufacturer's packing inspection and replacement instructions.
Prevent Valve Contamination
Use appropriate coating preparation and filtration practices to reduce debris entering the pump.
Use Approved Lubrication
Apply only manufacturer-recommended lubricants to the designated pump components where required.
Investigate Pressure Problems
Address recurring pressure loss, poor priming, or irregular pump operation before additional damage occurs.
Follow Service Instructions
Use the applicable Titan manual for pump disassembly, seal installation, valve servicing, and pressure-relief procedures.
Related Titan Epic Parts
Explore Titan Epic 447HPX Fluid Section and Related Assemblies
Epic 447HPX Fluid Section Parts
Browse the fluid section category and its listed pump replacement components.
Epic 447HPX Filter Block Parts
Explore filter block and fluid filtration replacement components.
Epic 447HPX Gear Box Parts
Browse gearbox and mechanical drive parts associated with the sprayer.
Titan Epic 447HPX Parts
Explore the complete Epic 447HPX model category and additional repair assemblies.
Titan Epic 447HPX Fluid Section Repair Safety
The fluid section operates within a high-pressure coating delivery system. Before removing a valve, loosening a fitting, replacing a seal, or disassembling the pump, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure.
Never use your hands to locate or stop a pressurized leak. Do not operate the sprayer with damaged pressure-containing components or unsecured fluid connections. High-pressure fluid injection can cause serious injury and requires immediate emergency medical treatment.
Titan Epic 447HPX Fluid Pump Repair
Order Titan Epic 447HPX Fluid Section Parts Online
Browse the Titan Epic 447HPX Fluid Section Parts category at AllTitanParts. Review the applicable parts diagram, identify the correct manufacturer part numbers, and select listed pump components for your repair.
Shop Epic 447HPX Fluid Section PartsFrequently Asked Questions
Titan Epic 447HPX Fluid Section Parts FAQ
What is the Titan Epic 447HPX Fluid Section?
The fluid section is the pump assembly responsible for drawing in coating material, pressurizing it, and directing it toward the spray hose and gun.
Where can I buy Titan Epic 447HPX Fluid Section Parts?
Visit the Titan Epic 447HPX Fluid Section Parts category at AllTitanParts to review available pump components.
Why will my Titan Epic 447HPX not prime?
Possible causes include suction restrictions, air entry, inlet valve contamination, or worn pump components. Follow the manufacturer troubleshooting procedure.
Can worn pump packings cause pressure loss?
Yes. Worn packings may allow fluid to bypass sealing surfaces, reducing pumping efficiency and contributing to pressure problems.
How do I identify the correct Epic 447HPX piston?
Use the applicable fluid section parts diagram and match the manufacturer piston part number and specifications.
What causes coating leakage around the fluid section?
Possible causes include worn packings, damaged seals, or defective sealing surfaces. Relieve pressure before inspection.
Can I replace the inlet valve separately?
Separate inlet valve replacement may be possible when the manufacturer lists the valve or its components as service parts.
What does the outlet valve do?
The outlet valve helps control the discharge of coating material from the pumping chamber toward the pressurized fluid system.
Should I replace the piston when replacing packings?
Not automatically. Inspect the piston and replace it if damage or wear exceeds the manufacturer's service limits.
Are Titan Epic 447HPX and Epic 447EX fluid section parts interchangeable?
Do not assume interchangeability. Confirm the manufacturer part numbers, pump configuration, and documented compatibility.
Can valve contamination affect pump performance?
Yes. Debris can interfere with valve sealing and contribute to poor priming, pressure loss, or inconsistent fluid delivery.
When should I replace the complete fluid section?
A complete assembly may be appropriate when the housing or multiple internal components are damaged, or when individual repair is not supported.
What should I verify before ordering fluid section parts?
Confirm the Epic 447HPX model, fluid section diagram, manufacturer part number, component dimensions, and documented compatibility.
How can I get help finding Titan Epic 447HPX Fluid Section Parts?
Contact AllTitanParts at 713-931-0006 with your Titan Epic 447HPX model information and the required fluid section part number or diagram reference.
