Titan Epic 440E | Filter Block Assembly Diagram
Shop Titan Epic 440E Filter Block Parts
Find genuine Epic 440E Filter Block Parts for your Titan electric airless paint sprayer at AllTitanParts. Browse 22 listed replacement components, including filter housing parts, manifold filtration components, PRIME/SPRAY valve hardware, gaskets, O-rings, screws, springs, washers, and seals. Use the exploded parts diagram and exact Titan part numbers to identify the correct components for your filter block repair.
Buy Titan Epic 440E Filter Block Replacement Parts
The Titan Epic 440E Filter Block Parts category contains components identified in the manufacturer's filter block assembly illustration. These parts support fluid filtration, sealing, valve operation, and the secure installation of related hardware.
During spraying, coating material moves through a pressurized fluid system. The filter helps capture particles that could contribute to downstream restrictions, while gaskets and O-rings help seal designated joints. The PRIME/SPRAY valve provides a means of controlling fluid routing during the appropriate operating procedures.
Filter block service may be required when the sprayer experiences leakage, clogged filtration, difficulty priming, damaged valve controls, or worn sealing components. These symptoms can have multiple causes, so correct diagnosis is important before ordering replacement parts.
The Epic 440E catalog includes several different gaskets and O-rings. Their similar appearance does not make them interchangeable. Match each component to its diagram reference and manufacturer part number.
Factory Diagram Reference
Titan Epic 440E Filter Block Parts List
Use this list to locate the exact replacement component in the Titan Epic 440E filter block diagram.
| Diagram Ref. | Titan Part Number | Component Description |
|---|---|---|
| 264 | 700-550 | Gasket |
| 265 | 700-438 | Gasket |
| 268 | 0509585 | Transducer Gasket, replaces 700-804 |
| 269 | 700-622 | Screw |
| 271 | 700-549 | Gasket |
| 272 | 700-685 | Screw |
| 274 | 700-537 | Gasket |
| 275 | 221-012 | Viton O-Ring |
| 276 | 222-012 | PTFE O-Ring |
| 278* | 700-721 | O-Ring |
| 278A | 700-897 | O-Ring |
| 280 | 700-698 | Spring |
| 281 | 700-706 | Washer |
| 284 | 700-697 | Valve Handle |
| 285 | 700-759 | Groove Pin |
| 286 | 0507254 | Prime Control Spray Valve, replaces 700-240 |
| 287 | 500-200-03 | Green 30 Mesh Coarse Filter, 2-Pack |
| 288 | 0532360A | Filter Housing |
| 289 | 560-038 | Handle Seal |
| 291 | 700-499 | O-Ring |
| 292 | 700-881 | Gasket |
| 296 | 700-705 | Washer |
Diagram references 278* and 278A identify separate O-ring listings. Verify the correct application before purchasing.
Shop by Component Type
Essential Epic 440E Filter Block Replacement Components

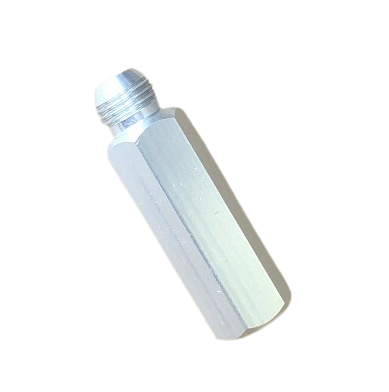

Titan 0532360A Filter Housing
Diagram reference 288. The filter housing encloses the specified fluid filter element. Inspect for damaged threads, cracks, or sealing surface defects. Confirm the correct filter and seal arrangement during reassembly.
Titan 500-200-03 Coarse Filter
Diagram reference 287. This green 30-mesh coarse filter is listed as a two-pack. Filter mesh selection affects the size of particles retained in the fluid path. Confirm compatibility with the sprayer and coating before installation.

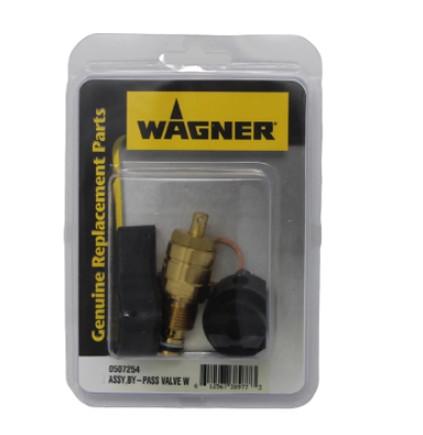

Titan 0507254 PRIME/SPRAY Valve
Diagram reference 286. The Prime Control Spray Valve is listed as replacing Titan 700-240. It is associated with fluid routing between the applicable priming and spraying functions. Verify the exact valve configuration before ordering.
Titan 700-697 Valve Handle
Diagram reference 284. The valve handle provides the operator interface for the designated PRIME/SPRAY valve mechanism. Inspect for breakage, looseness, or difficulty operating the control.
Titan 700-759 Groove Pin
Diagram reference 285. This groove pin is associated with the valve operating hardware. Match the original part number to maintain the specified mechanical connection.
Titan 700-698 Spring
Diagram reference 280. The spring provides mechanical force at its designated assembly location. Inspect for distortion, corrosion, or damage during authorized service.

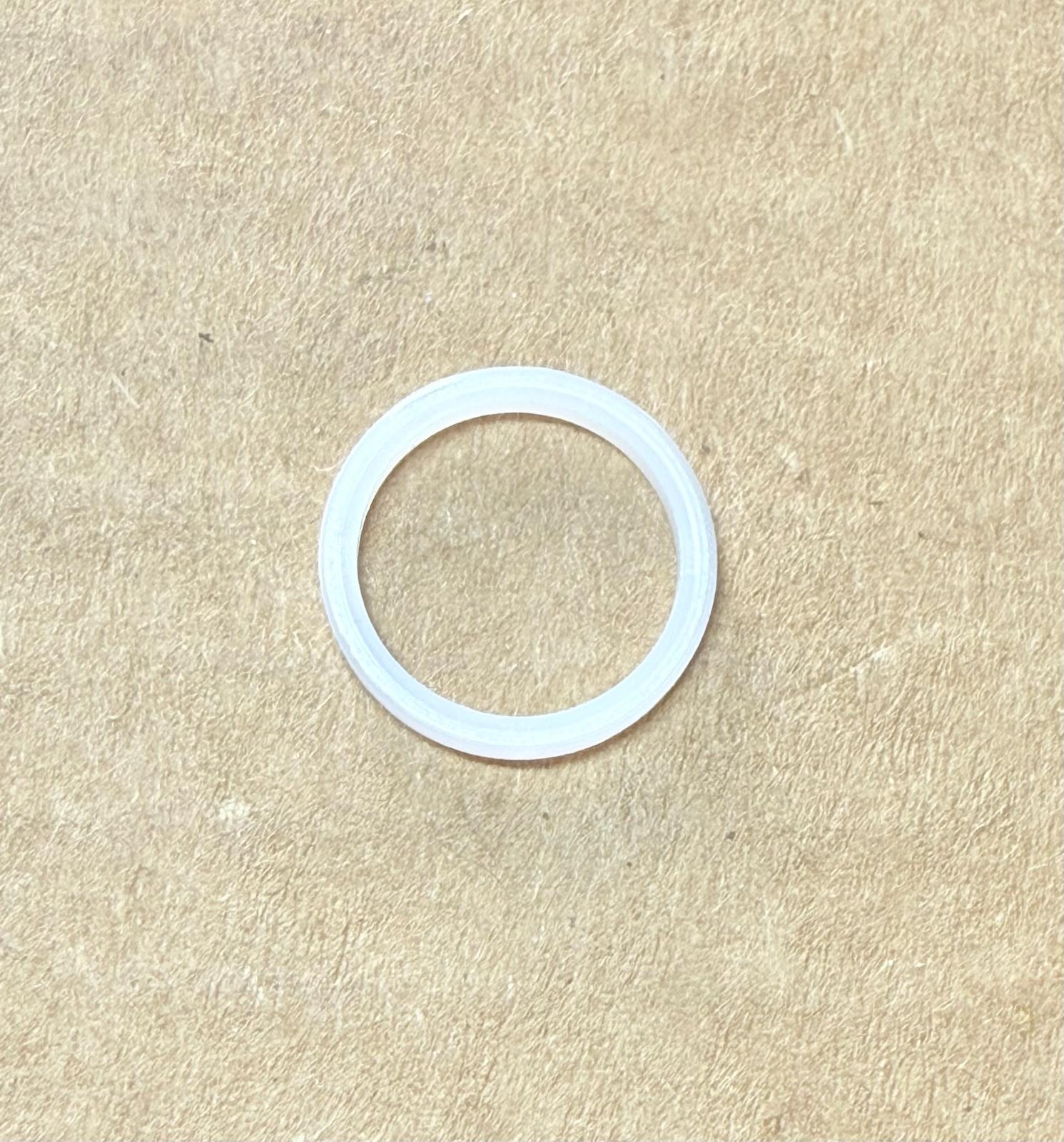

Titan 0509585 Transducer Gasket
Diagram reference 268. This transducer gasket is listed as replacing Titan 700-804. It provides sealing at the specified transducer installation interface. Verify the original gasket reference before purchasing.
Titan 221-012 Viton O-Ring
Diagram reference 275. This fluoroelastomer O-ring is used at its designated sealing location. Select the specified material and size rather than assuming another O-ring will provide an equivalent seal.
Titan 222-012 PTFE O-Ring
Diagram reference 276. This PTFE O-ring is distinct from the Viton O-ring listed at reference 275. Follow the manufacturer's parts diagram and assembly procedure when selecting sealing components.
Titan Epic 440E Filter Block Gaskets and O-Rings
The filter block assembly uses several different sealing components. The category lists Titan 700-550, 700-438, 700-549, 700-537, and 700-881 gaskets, along with Titan 221-012, 222-012, 700-721, 700-897, and 700-499 O-rings.
Gaskets typically seal designated mating surfaces, while O-rings seal specific grooves or component interfaces. Their effectiveness depends on material compatibility, correct dimensions, undamaged sealing surfaces, and proper installation.
Replace sealing components only with the specified part numbers. Never assume that two O-rings or gaskets are interchangeable based on color, appearance, or approximate size.
Common Titan Epic 440E Filter Block Problems
Use the following information as a diagnostic starting point. Always follow the correct Titan service manual.
| Symptom | Parts to Inspect | Recommended Check |
|---|---|---|
| Fluid leakage | Gaskets, O-rings, filter housing | Relieve pressure fully and inspect the affected sealing interface. |
| Reduced fluid flow | 500-200-03 filter, fluid passages | Check for filter contamination and other restrictions. |
| Difficulty switching PRIME/SPRAY | 700-697 handle, 700-759 pin, 0507254 valve | Inspect the operating mechanism and valve condition. |
| Poor priming | PRIME/SPRAY valve, suction path, pump | Check fluid routing and follow the manufacturer's priming procedure. |
| Leakage near pressure transducer | 0509585 gasket and related interface | Inspect the transducer seal using the approved procedure. |
| Damaged filter housing | 0532360A housing | Replace damaged pressure-containing components with the specified parts. |
How to Find the Correct Epic 440E Filter Block Part
Verify the Model
Confirm that your sprayer is a Titan Epic 440E.
Find the Diagram Reference
Locate the numbered component in the filter block illustration.
Match the Part Number
Compare the Titan part number and documented replacement information.
Confirm Before Ordering
Check quantity, product details, and current availability.
Titan Epic 440E Filter Block Maintenance Tips
- Inspect the filter regularly: Check for coating debris and clean or replace the filter according to the manufacturer's instructions.
- Check seals during service: Replace worn, cut, flattened, or otherwise damaged gaskets and O-rings.
- Monitor valve operation: Investigate a loose, broken, or difficult-to-operate PRIME/SPRAY handle.
- Inspect the housing: Look for damaged threads, cracks, and compromised sealing surfaces.
- Use the correct hardware: Match screws, washers, springs, and pins to their designated diagram positions.
- Follow cleaning procedures: Flush the fluid system with cleaning materials approved for the coating and sprayer.
High-Pressure Filter Block Repair Safety
Before removing the filter housing, valve, fittings, or sealing components, switch off the sprayer, disconnect electrical power, and complete the pressure-relief procedure in the applicable Titan manual. Never loosen a pressurized connection. High-pressure fluid injection injuries require immediate emergency medical attention. Replace damaged pressure-containing parts with correctly specified components and follow the manufacturer's reassembly instructions.
Order Titan Epic 440E Filter Block Parts Online
Shop filter housing components, 30-mesh filters, PRIME/SPRAY valve parts, gaskets, O-rings, and hardware at AllTitanParts. Use the factory diagram to confirm the exact replacement before purchasing.
Shop Epic 440E Filter Block PartsFrequently Asked Questions
Titan Epic 440E Filter Block Parts FAQ
What parts are included in the Epic 440E Filter Block category?
The category lists 22 products, including gaskets, O-rings, screws, washers, a spring, valve hardware, a PRIME/SPRAY valve, a coarse filter, and a filter housing.
What is the Titan Epic 440E filter housing part number?
Titan 0532360A is the listed Filter Housing at diagram reference 288.
Which filter is listed for the Titan Epic 440E?
Titan 500-200-03 is listed as a green 30-mesh coarse filter supplied in a two-pack, diagram reference 287.
What replaces Titan 700-240?
The catalog lists Titan 0507254 Prime Control Spray Valve as replacing Titan 700-240.
What replaces Titan 700-804 Transducer Gasket?
Titan 0509585 Transducer Gasket is listed as replacing Titan 700-804.
What is the Titan Epic 440E valve handle part number?
Titan 700-697 Valve Handle is identified at diagram reference 284.
What is the groove pin part number?
Titan 700-759 Groove Pin is listed at diagram reference 285.
Are Titan 221-012 and 222-012 O-rings interchangeable?
Do not assume so. Titan 221-012 is identified as a Viton O-ring, while Titan 222-012 is identified as a PTFE O-ring. They have separate diagram references.
Why is my Titan Epic 440E filter block leaking?
Potential causes include worn seals, damaged gaskets, compromised housing surfaces, or other fluid connection problems. Relieve pressure fully before inspection.
Can a clogged filter reduce spray performance?
Yes. A restricted filter can reduce fluid flow and contribute to inconsistent spraying. Check the filter and other possible restrictions according to the manufacturer's troubleshooting instructions.
Can I replace only the filter block gasket?
Individual gaskets are listed in the category. Confirm which gasket is damaged and whether the service procedure requires additional seals or components.
How do I identify the correct O-ring?
Use the exploded diagram reference and manufacturer part number. Do not select an O-ring based only on appearance or approximate dimensions.
Are these filter block parts compatible with other Titan sprayers?
Some parts may be listed for multiple models, but compatibility must be confirmed using the applicable manufacturer parts documentation.
Where can I buy Titan Epic 440E Filter Block Parts?
Shop the Epic 440E Filter Block Parts category at AllTitanParts, or call 713-931-0006 for parts identification assistance.
Need Help Identifying Epic 440E Filter Block Parts?
Have your Titan Epic 440E model, serial number, diagram reference, and original part number ready when contacting AllTitanParts.
713-931-0006
