Titan Epic 440E | Motor Diagram and OEM Components
Shop Titan Epic 440E Motor Parts
Find genuine Titan Epic 440E Motor Parts at AllTitanParts. This category features the Titan 700-040 Motor Brush, identified as reference 154 on the Titan Epic 440E motor parts diagram. Use the exploded drawing and manufacturer part number to locate the correct electrical motor service component before ordering. Whether you are investigating motor performance problems or replacing a worn brush, accurate identification helps you select the correct part for your equipment.
Motor Parts Overview
Buy Titan Epic 440E Motor Replacement Parts Online
The Titan Epic 440E Motor Parts category provides access to a manufacturer-identified replacement component for the electric motor used in the Titan Epic 440E airless paint sprayer.
The electric motor is responsible for providing mechanical power to the sprayer's drive and pumping system. In a brushed electric motor, carbon brushes maintain electrical contact with the rotating commutator, allowing electrical energy to be transferred to the motor armature.
Motor brushes are wear components. As brush material wears through normal operation, electrical contact may become unreliable. Depending on the motor condition, worn brushes can contribute to intermittent operation, reduced performance, or failure to run.
The factory diagram identifies Titan 700-040 Motor Brush as reference 154. This makes the original part number and diagram reference essential for locating the correct replacement.
Before purchasing, confirm the Titan Epic 440E model, examine the motor assembly documentation, and verify whether additional inspection or service is necessary. Replacing a brush will not correct every electrical or mechanical motor fault.
Factory Motor Diagram
Titan Epic 440E Motor Parts Diagram and Parts List
The current category lists the following manufacturer replacement component:
| Diagram Reference | Titan Part Number | Description | Component Function |
|---|---|---|---|
| 154 | 700-040 | Titan Motor Brush | Maintains electrical contact in the specified brushed motor assembly. |
Use the factory diagram and product listing to confirm the correct component and required service quantity.
Featured OEM Motor Component

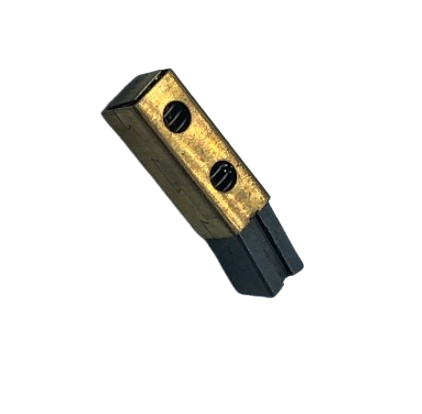

Titan 700-040 Motor Brush
The Titan 700-040 Motor Brush is a replacement electrical component identified in the Titan Epic 440E Motor Parts diagram. It is associated with the electric motor's brush and commutator contact system.
In a brushed motor, electrical contact is maintained as the commutator rotates. The brush is designed to make contact with the commutator surface while gradually wearing during operation. Excessive wear, contamination, mechanical damage, or poor brush movement can interfere with reliable electrical contact.
When servicing the motor, a technician should inspect the brush, brush holder, electrical connections, commutator condition, and any additional components specified in the manufacturer's repair procedure.
Titan 700-040
Motor Brush
154
Titan Epic 440E
When Should You Inspect the Titan 700-040 Motor Brush?
- The motor operates intermittently or fails to start.
- Motor performance changes unexpectedly.
- Visible brush wear or damage is found during approved servicing.
- The manufacturer-specified brush wear limit has been reached.
- Electrical contact problems are suspected after other causes have been ruled out.
These symptoms do not prove that the motor brush has failed. Electrical supply problems, switches, wiring, motor windings, drive damage, and other faults may produce similar behavior.
Important: Confirm the required brush quantity, condition of associated components, and installation procedure in the applicable Titan service documentation.
Technical Information
How the Titan Epic 440E Motor Brush Works
Electrical Contact
The brush provides an electrical contact point between the stationary motor circuit and the rotating commutator.
Motor Operation
Reliable contact supports electrical current transfer required for normal motor operation.
Normal Wear
Brush material gradually wears against the rotating commutator during service.
Service Inspection
Brush condition and related motor components should be checked according to the manufacturer's instructions.
Troubleshooting
Titan Epic 440E Motor Troubleshooting Guide
Motor-related symptoms require careful diagnosis. The following table identifies possible inspection areas but does not replace the manufacturer's electrical troubleshooting procedure.
| Motor Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Motor will not start | Power supply, electrical controls, brush wear, internal motor fault | Check external power conditions and follow the factory diagnostic procedure. |
| Intermittent motor operation | Electrical connections, brush contact, control components | Have qualified personnel inspect the electrical system and motor brush assembly. |
| Unusual sparking | Brush or commutator damage, electrical fault | Stop operation and arrange qualified motor inspection. |
| Motor runs unevenly | Electrical contact problems, motor fault, mechanical load | Inspect the motor and drive system using the approved troubleshooting procedure. |
| Excessive motor heat | Overload, electrical fault, ventilation restriction, motor wear | Shut down the machine and investigate the cause before restarting. |
Parts Identification Guide
How to Order the Correct Titan Epic 440E Motor Brush
Confirm Your Model
Verify that the sprayer identification matches Titan Epic 440E.
Check Diagram Reference
Locate reference 154 in the Titan Epic 440E Motor Parts diagram.
Match the Part Number
Confirm that Titan 700-040 is the specified motor brush for the installed motor.
Review Service Requirements
Check the required quantity and any additional service steps before ordering.
Preventive Maintenance
Titan Epic 440E Motor Maintenance Tips
Inspect Motor Brushes
Check brush wear at manufacturer-specified service intervals and replace components when required.
Keep Ventilation Clear
Prevent excessive buildup of dust and coating residue around accessible motor ventilation openings.
Inspect External Wiring
With the machine disconnected from power, inspect accessible cords and external connections for visible damage.
Monitor Unusual Operation
Investigate abnormal noise, heat, intermittent operation, or visible electrical damage promptly.
Related Titan Parts
Shop Titan Epic 440E Replacement Parts
Titan Epic 440E Motor Parts
View the motor diagram and the Titan 700-040 Motor Brush listing.
Titan Epic 440E Parts
Browse the main Epic 440E model directory for additional repair assemblies.
Titan Epic 440E Motor Repair Safety
Before inspecting or replacing motor components, switch off the sprayer, disconnect it from electrical power, and follow the complete pressure-relief procedure in the applicable Titan manual. Allow the motor to cool before servicing. Electrical repairs should be performed by qualified personnel. Never operate the motor with protective covers removed or bypass electrical safety devices. Follow manufacturer instructions for inspection, replacement, reassembly, and testing.
Titan Epic 440E Motor Parts
Order Titan 700-040 Motor Brush Online
Find the Titan 700-040 Motor Brush, diagram reference 154, in the Epic 440E Motor Parts category. Confirm the required service quantity and manufacturer specifications before ordering.
Shop Titan Epic 440E Motor PartsFrequently Asked Questions
Titan Epic 440E Motor Parts FAQ
What motor part is listed for the Titan Epic 440E?
The category lists the Titan 700-040 Motor Brush, identified as reference 154 in the factory motor diagram.
What is the Titan 700-040 Motor Brush?
It is a replacement electrical motor brush associated with the Titan Epic 440E motor assembly. Its function is to maintain electrical contact with the motor commutator.
What is the diagram reference for Titan 700-040?
The Titan Epic 440E motor parts diagram identifies Titan 700-040 as reference 154.
Where can I buy Titan Epic 440E Motor Parts?
You can order listed components from the Titan Epic 440E Motor Parts category at AllTitanParts.
What are common signs of worn motor brushes?
Possible signs include intermittent operation, difficulty starting, and abnormal electrical contact. These symptoms can also result from other motor or control faults.
Will replacing the motor brush fix a motor that will not start?
Only if the brush is responsible for the fault. Power supply, wiring, switches, motor windings, and mechanical problems can also prevent operation. Diagnosis is necessary before replacement.
How many Titan 700-040 Motor Brushes do I need?
Confirm the number required by the installed motor and the manufacturer's service instructions. The diagram reference identifies the part but does not by itself establish the purchase quantity.
Can I use a generic motor brush instead of Titan 700-040?
Do not assume a generic brush is equivalent. Brush dimensions, material, connection design, and operating requirements must match the motor manufacturer's specifications.
Are Titan Epic 440 and Epic 440E motor brushes interchangeable?
Interchangeability should not be assumed. Verify the exact motor configuration and manufacturer part number for each sprayer model.
How often should I inspect the motor brushes?
Follow the maintenance intervals and brush wear limits specified in the applicable Titan service documentation.
Should I inspect the commutator when replacing a motor brush?
Yes, where the manufacturer's service procedure calls for it. Excessive commutator wear or damage can affect the performance of a replacement brush.
How can I confirm the correct Titan Epic 440E Motor Brush?
Match the sprayer model, motor diagram reference 154, and Titan part number 700-040. For parts identification assistance, contact AllTitanParts at 713-931-0006.
