Exploded parts diagram · 7 parts

Titan EP2510 Transducer Assembly Parts

Genuine Titan OEM parts for Titan EP2510 Transducer Assembly Parts, matched to the official factory parts diagram. Search a part number, or call us and we'll confirm the fit before you order.

Exploded view
Parts diagram

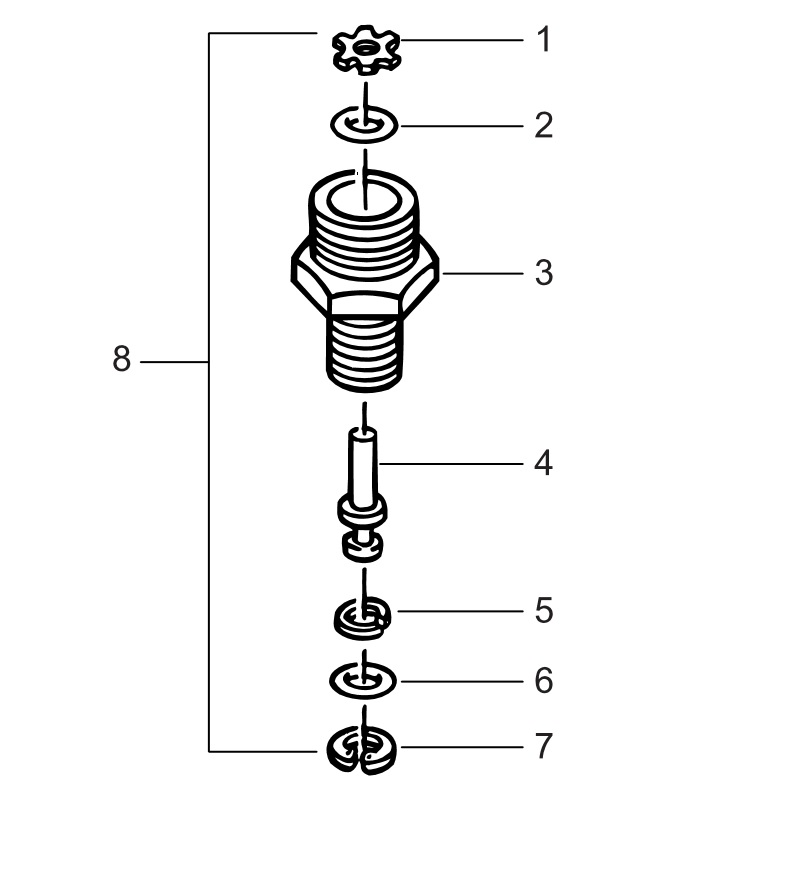

Click a numbered marker on the drawing to see that part, its price and Add to Cart.

Titan EP2510 Transducer Assembly Parts
Numbered to the diagram

Shop all 7 parts

7 parts
View:
1
Item
Titan 50431 Retainer ring 5005-31-Z.D
Titan 50431 Retainer ring 5005-31-Z.D
Part #: 50431
UPC: 024964139859
OEM SprayTECH Retaining Hardware Titan 50431 Retainer Ring is a genuine OEM precision fastene...
$2.50
QTY:
Buy Now
2
Item
TITAN 50504 O-Ring
TITAN 50504 O-Ring
Part #: 50504
UPC: 024964139880
OEM SprayTECH Sealing Component TITAN 50504 O-Ring is a genuine OEM sealing component used in...
$2.90
QTY:
Buy Now
2
Genuine OEM
Titan
TITAN 50504 O-Ring
Part #: 50504
$2.90
Buy Now
4
Item
Titan 02232 Piston
Titan 02232 Piston
Part #: 02232
UPC: 024964130658
OEM SprayTECH Fluid Section Component Titan 02232 Piston is a genuine OEM precision-machined ...
$11.90
QTY:
Buy Now
4
Titan 02232 Piston Genuine OEM
Titan
Titan 02232 Piston
Part #: 02232
$11.90
Buy Now
5
Item
Titan 50512 Back Up Ring
Titan 50512 Back Up Ring
Part #: 50512
UPC: 024964139903
OEM SprayTECH Sealing Support Component Titan 50512 Back Up Ring is a genuine OEM support rin...
$4.40
QTY:
Buy Now
5
Genuine OEM
Titan
Titan 50512 Back Up Ring
Part #: 50512
$4.40
Buy Now
6A
Item
Titan 02305 O- Ring
Titan 02305 O- Ring
Part #: 02305
UPC: 024964130672
OEM SprayTECH Sealing Component Titan 02305 O-Ring is a genuine OEM replacement seal used in ...
$22.20
QTY:
Buy Now
6A
Titan 02305 O- Ring Genuine OEM
Titan
Titan 02305 O- Ring
Part #: 02305
$22.20
Buy Now
7
Item
Titan 50423 Retainer Ring n5000-25
Titan 50423 Retainer Ring n5000-25
Part #: 50423
UPC: 024964139842
OEM SprayTECH Retaining Hardware Titan 50423 Retainer Ring is a genuine OEM precision fastene...
$9.10
QTY:
Buy Now
7
Genuine OEM
Titan
Titan 50423 Retainer Ring n5000-25
Part #: 50423
$9.10
Buy Now
8
Item

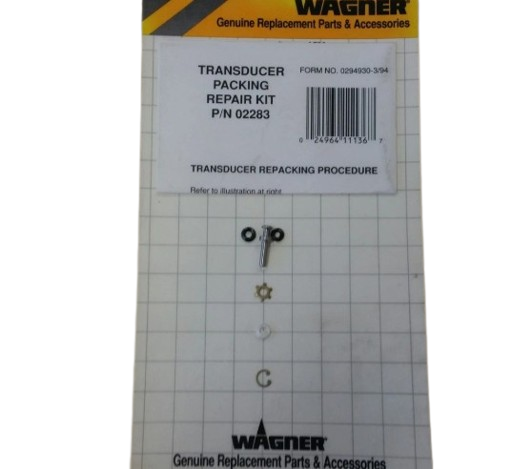

Titan/SprayTech 02283 Transducer Packing Kit
Titan/SprayTech 02283 Transducer Packing Kit
Part #: 02283
UPC: 024964111367
OEM SprayTECH Transducer Rebuild Kit Titan/SprayTech 02283 Transducer Packing Kit is a genuin...
$36.48
$38.60Save 5%
QTY:
Buy Now
8
Titan/SprayTech 02283 Transducer Packing Kit −5%
Titan
Titan/SprayTech 02283 Transducer Packing Kit
Part #: 02283
$36.48 $38.60 Save $2.12
Buy Now
Buying guide

Titan EP2510 Transducer Assembly Parts: what to know before you buy

Titan • EP2510 • Transducer Assembly • Pressure-Sensing Parts

Titan EP2510 Transducer Assembly Parts

Shop Titan EP2510 Transducer Assembly Parts for maintenance, troubleshooting and repair of the sprayer's pressure-sensing system. Use the applicable EP2510 exploded parts diagram to identify transducer components, pressure connections, seals, fittings, electrical connections, mounting parts and related hardware by exact callout and replacement part number.

Titan EP2510 Transducer Assembly Pressure Sensing Replacement Parts
Transducer Assembly Overview

Find Titan EP2510 Transducer Assembly Replacement Parts

The EP2510 transducer assembly is part of the sprayer's pressure-feedback system. It senses fluid-system pressure and provides the pressure information required by the control system to respond to changing operating conditions and the selected pressure setting.

Pressure problems should not automatically be attributed to the transducer. Worn pump components, suction problems, fluid leakage, pressure-control faults or damaged connections can produce similar symptoms. Diagnose the complete pressure system and identify the required transducer component from the correct EP2510 diagram before ordering.

Parts Identification

How to Find the Correct EP2510 Transducer Part

01

Confirm EP2510

Verify that the machine being serviced is the Titan EP2510 and identify the applicable sprayer configuration.

02

Open the Transducer Diagram

Use the applicable EP2510 Transducer Assembly exploded illustration to locate the pressure-sensing component or related hardware.

03

Match the Callout

Match the numbered diagram callout with the corresponding component description in the EP2510 parts list.

04

Verify Part & Quantity

Confirm the exact replacement part number, description and required quantity before ordering.

Pressure-Sensing Function

How the EP2510 Transducer Supports Pressure Control

The transducer provides pressure feedback from the fluid system to the sprayer's control system. This feedback allows the pressure-control system to respond as operating pressure changes. Correct transducer operation, secure connections and a properly functioning pump are therefore important to consistent sprayer pressure response.

Pressure Detection

Fluid Pressure Sensing

The transducer monitors pressure conditions within the applicable portion of the EP2510 fluid system.

Feedback

Control System Input

Pressure information from the sensing system is used by the applicable control components to regulate sprayer response.

Fluid Connection

Fittings & Seals

Applicable fittings and sealing components maintain the required connection between the pressure-sensing assembly and fluid system.

System Connection

Electrical & Mounting Parts

Applicable electrical connections and mounting components integrate the transducer assembly with the EP2510 control system.

Component Guide

EP2510 Transducer Assembly Components to Inspect

Transducer Components

Use the applicable parts diagram to identify the pressure-sensing component and verify its exact replacement part number.

Pressure Connections

Inspect the applicable fluid connection for leakage, contamination, physical damage or other conditions that can affect pressure sensing.

Seals & O-Rings

Inspect diagram-listed seals and O-rings for cuts, flattening, deterioration or damage when servicing the assembly.

Fittings

Check applicable fittings and mating surfaces for leakage, thread damage or physical deterioration.

Electrical Connections

Inspect applicable connectors and wiring for looseness, visible damage or deterioration before replacing pressure-sensing parts.

Mounting Hardware

Verify that diagram-listed mounting parts, fasteners and retainers are present and correctly positioned.

Pressure Diagnostic Path

Diagnose EP2510 Pressure Feedback Problems

A pressure-related symptom can originate in the pump, suction system, pressure-control assembly, transducer assembly or associated connections. Check the complete system in sequence before replacing the pressure transducer or related parts.

1. Verify Pump Operation

Confirm that the EP2510 can prime and move material before attributing a pressure problem to the transducer.

2. Inspect Fluid Connections

Check applicable pressure connections, fittings and seals for leakage, damage or other visible problems.

3. Inspect Electrical Connections

With power safely disconnected, inspect applicable transducer connections for looseness or visible damage.

4. Check Pressure Control

Evaluate the pressure-control system together with pressure feedback before determining which component requires replacement.

Troubleshooting

Common Titan EP2510 Pressure-Sensing Problems

These symptoms are inspection starting points rather than automatic confirmation of a failed transducer. Verify the pump, pressure-control system and associated connections before selecting replacement parts.

Symptom What to Inspect Repair Direction
Unstable Pressure Pump operation, suction path, pressure feedback, control system and transducer connections. Determine whether pressure instability originates in the fluid system or pressure-feedback system before replacing parts.
Incorrect Pressure Response Transducer assembly, electrical connections and pressure-control components. Inspect pressure-feedback and control connections before replacing the sensing component.
Sprayer Will Not Build Pressure Suction system, piston pump, dump or priming valve, transducer and pressure-control system. Verify that the pump can physically build and retain pressure before diagnosing the transducer.
Intermittent Pressure Control Transducer connector, wiring, control connections and applicable mounting components. Inspect for loose, damaged or intermittent connections before replacing major components.
Leak Near Transducer Connection Pressure fitting, seals, O-rings, threads and mating surfaces. Completely relieve pressure, identify the exact leak source and replace only the verified damaged component.
Find Your Parts Faster

Transducer or Another EP2510 Repair Area?

Current Section

EP2510 Transducer Assembly

Start here for pressure-sensing components, pressure connections, seals, fittings, electrical connections and mounting hardware.

Pressure Regulation

EP2510 Pressure Control

If pressure feedback is present but the sprayer does not respond correctly to pressure adjustment, inspect the pressure-control assembly.

View EP2510 Pressure Control Parts
Pump & Fluid Pressure

EP2510 Piston Pump

If the sprayer cannot prime, build pressure or maintain material delivery, inspect the piston pump before assuming a sensing fault.

View EP2510 120V Standard Piston Pump Parts
Complete Machine

EP2510 Final Assembly

Use the final assembly to locate related controls, fittings, connections, mounting components and complete-machine hardware.

View EP2510 Final Assembly Parts
Fitment Verification

Verify EP2510 Transducer Part Compatibility

Do not select a transducer, fitting, seal, connector, fastener or other pressure-sensing component based only on appearance. Similar components used on other Titan EP-series sprayers can differ by configuration, connection or application.

Confirm the EP2510 model, applicable machine configuration, correct Transducer Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume compatibility with EP2400, EP2300 or another EP-series sprayer unless the applicable parts information confirms the same replacement part.

Buying Guide

Before Buying Titan EP2510 Transducer Parts

Confirm EP2510

Verify the exact sprayer model and applicable configuration before selecting pressure-sensing parts.

Diagnose the Symptom

Determine whether the problem involves pressure feedback, pressure adjustment, leakage or another fluid-system condition.

Check Related Systems

Inspect the piston pump and pressure-control system before assuming the transducer is responsible.

Match the Callout

Locate the component in the transducer diagram and match its numbered callout to the parts list.

Verify Part & Quantity

Confirm the exact replacement part number, description and required quantity before ordering.

EP2510 Parts Navigation

Start with the transducer assembly for pressure-sensing and feedback components. If diagnosis points to pressure regulation, pump performance or another machine system, use the appropriate EP2510 assembly page to identify the required replacement component.

EP2510 Transducer Assembly Parts Current section for pressure-sensing components, fittings, seals, connections and mounting hardware. EP2510 Pressure Control Parts Find pressure-adjustment, control, connection, mounting and related pressure-regulation components. EP2510 Piston Pump, 120V Standard Find piston components, pump packings, inlet and outlet valve parts, seals and related pump components. EP2510 Motor Assembly Parts Browse motor components, electrical connections, mounting parts and related drive-system components. EP2510 Final Assembly Parts Browse fittings, hoses, controls, brackets, mounting components, fasteners and other complete-machine parts. Titan Spraytech EP & EPX Parts Browse additional Titan Spraytech EP and EPX airless sprayer parts, model categories and assembly diagrams.
Service Safety

Relieve Pressure Before Transducer Service

Shut down the EP2510, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before servicing the transducer assembly. Never remove or loosen a transducer, pressure fitting, pump component, hose, valve, filter or other fluid-system component while pressurized. Follow the applicable service instructions when disconnecting electrical connections or removing, replacing and testing pressure-sensing components.

EP2510 Pressure-Sensing Replacement Parts

Shop Titan EP2510 Transducer Assembly Parts

Use the applicable EP2510 Transducer Assembly exploded diagram to identify the pressure-sensing component, fitting, seal, connector, mounting part or related hardware you need, then verify the exact replacement part number and required quantity before ordering.

Shop EP2510 Transducer Parts
Frequently Asked Questions

Titan EP2510 Transducer Assembly Parts FAQ

What does the Titan EP2510 transducer assembly do?

The transducer assembly senses fluid-system pressure and provides pressure feedback used by the sprayer's control system to respond to changing operating conditions.

How do I identify the correct EP2510 transducer part?

Confirm the EP2510 model and applicable configuration, open the correct Transducer Assembly diagram and match the numbered callout to the exact replacement part number and required quantity.

Does unstable EP2510 pressure always mean the transducer is bad?

No. Pump wear, suction problems, pressure-control faults, fluid leakage and connection problems can also produce unstable pressure. Diagnose the complete system before replacing the transducer.

What should I inspect if pressure response is inconsistent?

Inspect the piston pump, pressure connections, transducer assembly, electrical connections and pressure-control components to determine where the problem originates.

What should I check if fluid leaks near the EP2510 transducer?

After completely relieving system pressure, inspect the applicable fitting, seal, O-ring, threads and mating surfaces to identify the exact source of the leak.

Are EP2400 and EP2510 transducer parts interchangeable?

Do not assume interchangeability between models. Compare the applicable diagrams and exact replacement part numbers before using a pressure-sensing component from another EP-series sprayer.

What should I verify before ordering EP2510 transducer parts?

Confirm the EP2510 model, applicable machine configuration, correct Transducer Assembly diagram, numbered callout, component description, exact replacement part number and required quantity.

Parts & Fitment Assistance

Need Help Finding an EP2510 Transducer Part?

Have your EP2510 model information, machine configuration, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct transducer, pressure fitting, seal, connector, mounting component or related replacement part.

Parts & Fitment Help: 713-931-0006
