Exploded parts diagram · 6 parts

Titan EP2510 Pressure Control Assembly Parts

Genuine Titan OEM parts for Titan EP2510 Pressure Control Assembly Parts, matched to the official factory parts diagram. Search a part number, or call us and we'll confirm the fit before you order.

Exploded view
Parts diagram

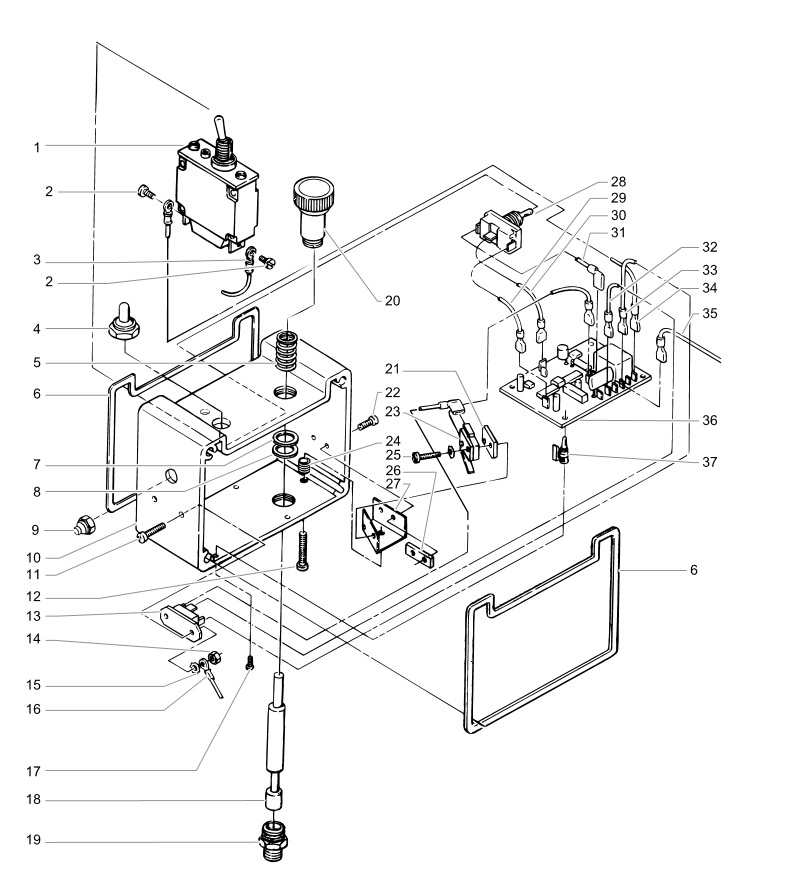

Click a numbered marker on the drawing to see that part, its price and Add to Cart.

Titan EP2510 Pressure Control Assembly Parts
Numbered to the diagram

Shop all 6 parts

6 parts
View:
5
Item
Titan 02712 Spring
Titan 02712 Spring
Part #: 2712
UPC: 024964131242
OEM Titan Mechanical Component Titan 02712 Spring is an OEM spring used to provide tension, r...
$21.50
QTY:
Buy Now
5
Titan 02712 Spring Genuine OEM
Titan
Titan 02712 Spring
Part #: 2712
$21.50
Buy Now
8
Item

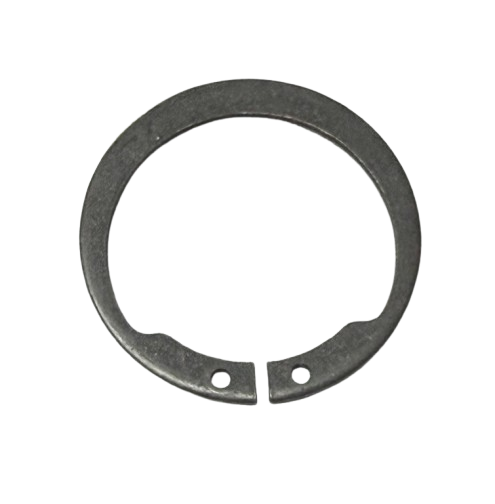

Titan 9822522 Retainer Ring - (Replaces Titan 704-124)
Titan 9822522 Retainer Ring - (Replaces Titan 704-124)
Part #: 9822522
UPC: 024964141852
OEM Titan Hardware Component Titan 9822522 Retainer Ring is a genuine OEM snap ring that replac...
$2.90
QTY:
Buy Now
14
Item
Titan 9810102 Hex Nut
Titan 9810102 Hex Nut
Part #: 9810102
UPC: 024964168736
OEM SprayTech Fastener Titan 9810102 Hex Nut is a genuine replacement 6-32 hex nut for the Sp...
$3.40
QTY:
Buy Now
14
Genuine OEM
Titan
Titan 9810102 Hex Nut
Part #: 9810102
$3.40
Buy Now
19
Item
Titan 02208 Transducer Assembly
Titan 02208 Transducer Assembly
Part #: 2208
UPC: 024964122981
OEM SprayTECH Pressure Sensing Component Titan 02208 Transducer Assembly is a genuine OEM pre...
$72.90
$79.50Save 8%
QTY:
Buy Now
19
Titan 02208 Transducer Assembly −8%
Titan
Titan 02208 Transducer Assembly
Part #: 2208
$72.90 $79.50 Save $6.60
Buy Now
20
Item
Titan 0295426 Control Knob
Titan 0295426 Control Knob
Part #: 295426
UPC: 024964137381
OEM SprayTech Control Component Titan 0295426 Control Knob is a genuine OEM replacement knob fo...
$22.13
QTY:
Buy Now
20
Titan 0295426 Control Knob Genuine OEM
Titan
Titan 0295426 Control Knob
Part #: 295426
$22.13
Buy Now
25
Item
Titan 9800604 Screw
Titan 9800604 Screw
Part #: 9800604
UPC: 024964141463
OEM Titan Hardware Component Titan 9800604 Screw is an OEM microswitch screw (PHPNHD, 4-40 x ...
$2.00
QTY:
Buy Now
25
Titan 9800604 Screw Genuine OEM
Titan
Titan 9800604 Screw
Part #: 9800604
$2.00
Buy Now
Buying guide

Titan EP2510 Pressure Control Assembly Parts: what to know before you buy

Titan • EP2510 • Pressure Control • Replacement Parts

Titan EP2510 Pressure Control Assembly Parts

Shop Titan EP2510 Pressure Control Assembly Parts for maintenance, troubleshooting and repair of the sprayer's pressure-control system. Use the applicable EP2510 exploded diagram to identify pressure adjustment components, control parts, connections, mounting hardware and related pressure-system components by exact callout and replacement part number.

Titan EP2510 Pressure Control Control System Replacement Parts
Pressure Control Overview

Find Titan EP2510 Pressure Control Replacement Parts

The EP2510 pressure-control system works with the sprayer's pumping and pressure-feedback systems to regulate operating pressure. Its components help translate the selected pressure setting and system feedback into the operating response required from the sprayer.

If the EP2510 will not respond correctly to pressure adjustment, develops unstable pressure or behaves inconsistently, inspect the complete system before replacing parts. Pump wear, suction problems, dump-valve issues and pressure-feedback components can create symptoms similar to a pressure-control fault.

Parts Identification

How to Find the Correct EP2510 Pressure Control Part

01

Confirm EP2510

Verify that the machine being serviced is the Titan EP2510 and identify the applicable machine configuration.

02

Open the Control Diagram

Use the applicable EP2510 Pressure Control Assembly exploded illustration to locate the component requiring service.

03

Match the Callout

Match the numbered diagram callout with the corresponding component description in the EP2510 parts list.

04

Verify Part & Quantity

Confirm the exact replacement part number, description and required quantity before ordering.

Pressure Control Function

How the EP2510 Pressure Control System Works

The pressure-control assembly is part of a larger operating system. The selected pressure setting, pressure feedback, motor response and piston pump condition work together to determine how the sprayer builds and maintains pressure. For this reason, accurate diagnosis is important before individual control components are replaced.

Pressure Adjustment

Pressure Setting Components

Applicable adjustment components allow the operator to select the required operating pressure for the spray application.

Pressure Feedback

Pressure-Sensing System

Pressure feedback provides system information used by the control system to respond to changing pressure conditions.

Control Response

Operating Control

Applicable control components work with pressure feedback and the sprayer drive system to regulate operating response.

System Integration

Connections & Hardware

Connections, mounting components and related hardware secure and integrate pressure-control components within the EP2510.

Component Guide

EP2510 Pressure Control Components to Inspect

Pressure Adjustment Components

Inspect applicable adjustment components for damage, looseness or conditions that prevent normal pressure selection.

Control Components

Use the applicable diagram to identify the control components associated with EP2510 pressure regulation and operating response.

Electrical Connections

Where applicable, inspect wiring connections and terminals for looseness, visible damage or improper connection.

Pressure-Sensing Connection

Inspect the applicable pressure-feedback connection when the sprayer responds incorrectly to changes in system pressure.

Mounting Hardware

Check brackets, fasteners, retainers and mounting points that secure pressure-control components to the sprayer.

Related Fluid Components

Inspect nearby fluid-system components when pressure symptoms may be caused by leakage, restriction or internal pump bypass.

Pressure Diagnostic Path

Diagnose EP2510 Pressure Problems Before Replacing Parts

Pressure problems can originate in several EP2510 systems. A methodical inspection helps distinguish a pressure-control problem from a pump, suction, priming or fluid-system problem.

1. Verify Material Supply

Confirm adequate coating supply and inspect the suction path for restriction, leakage or air entry.

2. Verify Pump Operation

Confirm that the piston pump can prime, cycle and move material before diagnosing the pressure-control assembly.

3. Inspect Pressure Feedback

Check applicable pressure-sensing components and connections when pressure response is unstable or inconsistent.

4. Inspect the Control System

Inspect applicable pressure-adjustment, control, connection and mounting components after related fluid systems have been checked.

Troubleshooting

Common Titan EP2510 Pressure Control Problems

Use these symptoms as diagnostic starting points. Do not replace a pressure-control component until the related pump, fluid and pressure-feedback systems have been considered.

Symptom What to Inspect Repair Direction
Pressure Will Not Adjust Pressure-adjustment components, control system, connections and pressure feedback. Determine whether the adjustment input and pressure-feedback system are functioning before replacing components.
Pressure Fluctuates Material supply, suction path, pump valves, packings, pressure-feedback components and control connections. Check the complete fluid and pressure system for the source of unstable operation.
Sprayer Will Not Build Pressure Piston pump, dump or priming valve, suction system, pressure feedback and pressure control. Confirm that the pump can move and retain fluid pressure before diagnosing the control assembly.
Intermittent Pressure Response Control connections, pressure-feedback connection, applicable electrical connections and mounting components. Inspect for loose, damaged or intermittent connections before replacing major components.
Pressure Adjustment Is Damaged Adjustment components, mounting hardware and adjacent control parts. Use the EP2510 Pressure Control Assembly diagram to identify the exact damaged component and replacement part number.
Find Your Parts Faster

Pressure Control or Another EP2510 Repair Area?

Current Section

EP2510 Pressure Control Assembly

Start here for pressure adjustment, control, connection, mounting and related pressure-regulation components.

Pump & Pressure

EP2510 Piston Pump

If the EP2510 cannot prime, build pressure or maintain material delivery, inspect the piston pump and its internal components.

View EP2510 120V Standard Piston Pump Parts
Mechanical Drive

EP2510 Drive Assembly

If the motor operates but the pump does not cycle correctly, inspect the mechanical drive system and pump connection.

View EP2510 Drive Assembly Parts
Complete Machine

EP2510 Final Assembly

Use the final assembly for complete-machine controls, connections, brackets, fittings, mounting components and related hardware.

View EP2510 Final Assembly Parts
Fitment Verification

Verify EP2510 Pressure Control Part Compatibility

Do not select a pressure-adjustment component, control part, connector, bracket, fastener or other pressure-control component based only on appearance. Similar components used on other Titan EP-series sprayers can differ by configuration or application.

Confirm the EP2510 model, applicable machine configuration, correct Pressure Control Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume interchangeability with EP2400, EP2300 or another EP-series sprayer unless the applicable parts information confirms compatibility.

Buying Guide

Before Buying EP2510 Pressure Control Parts

Confirm EP2510

Verify the exact sprayer model and applicable configuration before selecting replacement components.

Diagnose the Symptom

Determine whether the problem involves pressure adjustment, fluctuation, pressure loss or another sprayer system.

Check Related Systems

Inspect the piston pump, suction path and pressure-feedback system before assuming the control assembly is responsible.

Match the Callout

Locate the required component in the pressure-control diagram and match its callout to the parts list.

Verify Part & Quantity

Confirm the exact replacement part number, description and required quantity before ordering.

EP2510 Parts Navigation

Start with the pressure-control assembly for pressure adjustment and control components. If diagnosis points to the pump, drive system or another complete-machine component, use the appropriate EP2510 assembly page to locate the replacement part.

Service Safety

Disconnect Power and Relieve Pressure Before Service

Shut down the EP2510, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before servicing the pressure-control system. Never loosen a pump, hose, valve, filter, fitting or other fluid component while pressurized. Follow the applicable service instructions when inspecting electrical connections, pressure-control components, pressure-feedback components, wiring or related assemblies.

EP2510 Pressure Control Replacement Parts

Shop Titan EP2510 Pressure Control Assembly Parts

Use the applicable EP2510 Pressure Control Assembly diagram to identify the pressure adjustment, control, connection, mounting or related component you need, then verify the exact replacement part number and required quantity before ordering.

Shop EP2510 Pressure Control Parts
Frequently Asked Questions

Titan EP2510 Pressure Control Assembly FAQ

What does the Titan EP2510 pressure control assembly do?

The pressure-control system works with the sprayer's pressure feedback, drive and pumping systems to regulate operating response according to the selected pressure setting.

How do I identify the correct EP2510 pressure control part?

Confirm the EP2510 model and applicable configuration, use the correct Pressure Control Assembly diagram and match the numbered callout to the exact replacement part number and required quantity.

Why will my EP2510 not respond to pressure adjustment?

The cause can involve pressure-adjustment components, pressure feedback, control connections or another part of the fluid system. Diagnose the complete system before replacing control components.

Can a pump problem cause unstable EP2510 pressure?

Yes. Worn packings, pump valve problems, suction issues or internal fluid leakage can contribute to unstable pressure and can resemble a pressure-control problem.

What should I inspect if the EP2510 will not build pressure?

Inspect the material supply, suction system, piston pump, applicable dump or priming valve, pressure-feedback components and pressure-control system before deciding which part requires replacement.

Are EP2400 and EP2510 pressure control parts interchangeable?

Do not assume interchangeability between models. Compare the applicable diagrams and exact replacement part numbers before using a component from another Titan EP-series sprayer.

What should I verify before ordering EP2510 pressure control parts?

Confirm the EP2510 model, applicable machine configuration, correct Pressure Control Assembly diagram, numbered callout, component description, exact replacement part number and required quantity.

Parts & Fitment Assistance

Need Help Finding an EP2510 Pressure Control Part?

Have your EP2510 model information, machine configuration, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct pressure-adjustment, control, connection, mounting or related replacement component.

Parts & Fitment Help: 713-931-0006
