Exploded parts diagram · 7 parts

Titan EP2510 Prime Spray Valve Assembly Parts

Genuine Titan OEM parts for Titan EP2510 Prime Spray Valve Assembly Parts, matched to the official factory parts diagram. Search a part number, or call us and we'll confirm the fit before you order.

Exploded view
Parts diagram

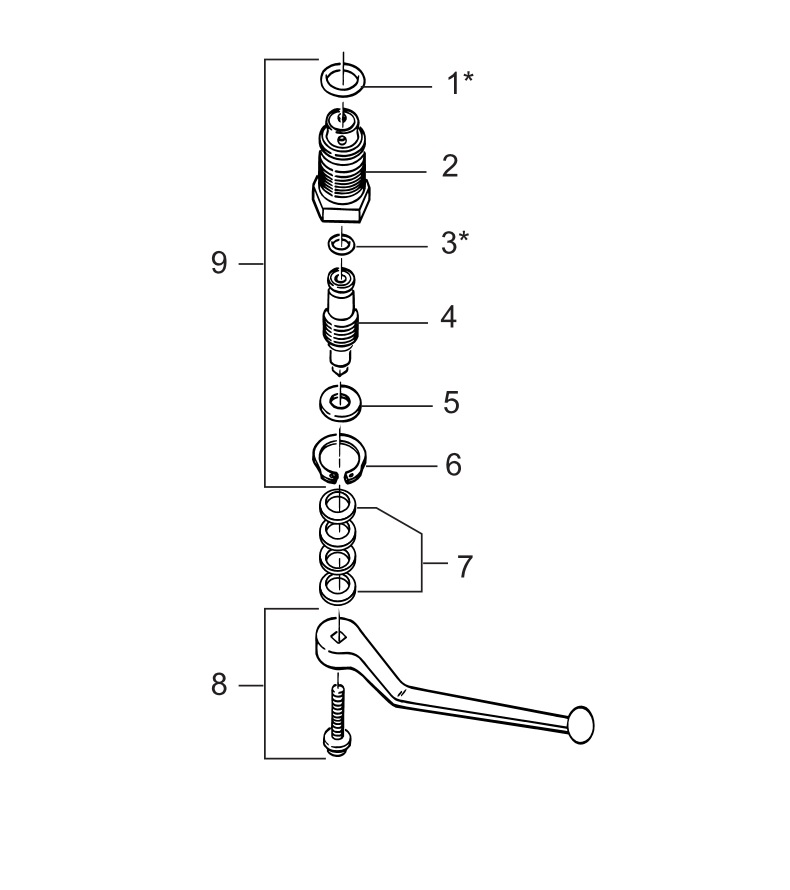

Click a numbered marker on the drawing to see that part, its price and Add to Cart.

Titan EP2510 Prime Spray Valve Assembly Parts
Numbered to the diagram

Shop all 7 parts

7 parts
View:
-
Item
Titan 0294966 Dump Valve Repair Kit
Titan 0294966 Dump Valve Repair Kit
Part #: 0294966
UPC: 024964116317
OEM SprayTECH Dump Valve Rebuild Kit Titan 0294966 Dump Valve Repair Kit is a genuine OEM kit...
$107.70
$120.20Save 10%
QTY:
Buy Now
-
Titan 0294966 Dump Valve Repair Kit −10%
Titan
Titan 0294966 Dump Valve Repair Kit
Part #: 0294966
$107.70 $120.20 Save $12.50
Buy Now
1
Item

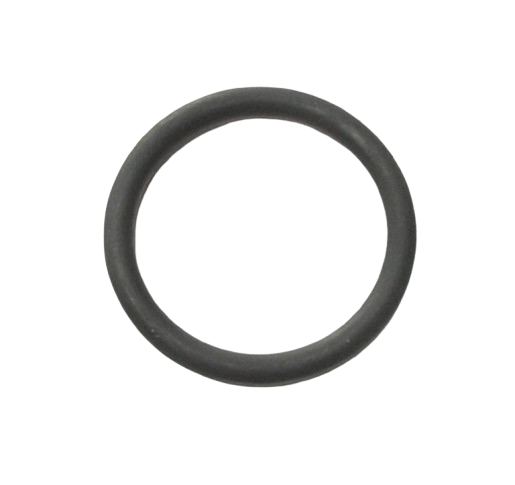

Titan 9871046 O-Ring
Titan 9871046 O-Ring
Part #: 9871046
UPC: 4004025025587
OEM SprayTech Fluid System Seal Titan 9871046 O-Ring is a genuine OEM seal for compatible Spr...
$2.40
QTY:
Buy Now
1
Titan 9871046 O-Ring Genuine OEM
Titan
Titan 9871046 O-Ring
Part #: 9871046
$2.40
Buy Now
2
Item

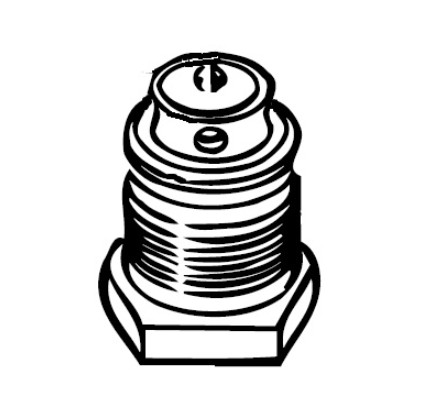

Titan 0294498 Body, Dump Valve
Titan 0294498 Body, Dump Valve
Part #: 0294498
UPC: 024964136278
OEM SprayTech Dump Valve Component Titan 0294498 Dump Valve Body is a genuine OEM component f...
$89.96
$98.10Save 8%
QTY:
Buy Now
2
Titan 0294498 Body, Dump Valve −8%
Titan
Titan 0294498 Body, Dump Valve
Part #: 0294498
$89.96 $98.10 Save $8.14
Buy Now
3
Item
Titan 9871045 Stem O-Ring
Titan 9871045 Stem O-Ring
Part #: 9871045
UPC: 4004025025570
OEM Titan Valve Stem Sealing Component Titan 9871045 Stem O-Ring is a genuine OEM replacement...
$2.00
QTY:
Buy Now
3
Titan 9871045 Stem O-Ring Genuine OEM
Titan
Titan 9871045 Stem O-Ring
Part #: 9871045
$2.00
Buy Now
5
Item

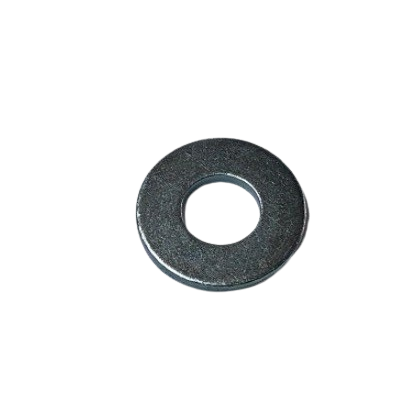

Titan 0294501 Dump Valve Washer
Titan 0294501 Dump Valve Washer
Part #: 0294501
UPC: 4004025023606
OEM Titan Dump Valve Sealing Component Titan 0294501 Dump Valve Washer is a genuine OEM repla...
$6.80
QTY:
Buy Now
5
Titan 0294501 Dump Valve Washer Genuine OEM
Titan
Titan 0294501 Dump Valve Washer
Part #: 0294501
$6.80
Buy Now
6
Item

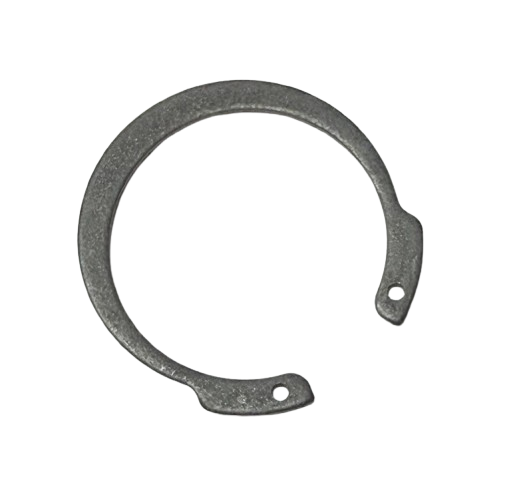

Titan 9822516 Inverted Retaining Ring
Titan 9822516 Inverted Retaining Ring
Part #: 9822516
UPC: 4004025025525
OEM Titan Retaining Ring Titan 9822516 Inverted Retaining Ring is a genuine OEM fastener for ...
$3.40
QTY:
Buy Now
6
Titan 9822516 Inverted Retaining Ring Genuine OEM
Titan
Titan 9822516 Inverted Retaining Ring
Part #: 9822516
$3.40
Buy Now
7
Item
Titan 0294788 Belleville Washer Kit
Titan 0294788 Belleville Washer Kit
Part #: 0294788
UPC: 024964136728
OEM SprayTech Pressure Control Component Titan 0294788 Belleville Washer Kit is a genuine OEM...
$13.80
QTY:
Buy Now
7
Genuine OEM
Titan
Titan 0294788 Belleville Washer Kit
Part #: 0294788
$13.80
Buy Now
Buying guide

Titan EP2510 Prime Spray Valve Assembly Parts: what to know before you buy

Titan • EP2510 • Prime/Spray Valve • Fluid Routing Parts

Titan EP2510 Prime Spray Valve Assembly Parts

Shop Titan EP2510 Prime Spray Valve Assembly Parts for maintenance, troubleshooting and repair of the sprayer's PRIME/SPRAY fluid-routing system. Use the applicable EP2510 exploded parts diagram to identify valve components, seals, O-rings, fittings, handles, retainers, fasteners and related replacement parts by exact callout and part number.

Titan EP2510 Prime/Spray Valve Fluid Routing Replacement Parts
Prime/Spray Valve Overview

Find Titan EP2510 Prime Spray Valve Replacement Parts

The EP2510 Prime Spray Valve Assembly controls an important fluid-routing function of the airless sprayer. In the PRIME position, the fluid system is configured for priming and pressure-relief operation. In the SPRAY position, the valve supports the pressurized fluid path required for normal spraying.

Wear, contamination, damaged seals or problems within the valve assembly can contribute to difficult priming, inability to build or maintain pressure, leakage or improper fluid routing. Because similar symptoms can also originate in the suction system, fluid section or pressure-control system, diagnose the complete fluid path before replacing valve parts.

Parts Identification

How to Find the Correct EP2510 Prime Spray Valve Part

01

Confirm EP2510

Verify that the machine being serviced is the Titan EP2510 and identify the applicable sprayer configuration.

02

Open the Valve Diagram

Use the applicable EP2510 Prime Spray Valve Assembly exploded illustration to locate the component requiring service.

03

Match the Callout

Match the numbered diagram callout with the corresponding valve, seal, fitting, handle or hardware description in the parts list.

04

Verify Part & Quantity

Confirm the exact replacement part number, description and required quantity before ordering.

Valve Function

How the EP2510 Prime Spray Valve Controls Fluid Routing

The Prime Spray Valve Assembly provides a controlled way to change the fluid path between priming or pressure-relief operation and spraying. Correct valve operation is important when preparing the sprayer, relieving system pressure and establishing the fluid path needed for normal spraying.

Prime Position

Priming Fluid Path

The PRIME position supports the fluid-routing condition used while priming the pump and during the applicable pressure-relief procedure.

Spray Position

Pressurized Spray Path

The SPRAY position supports the closed fluid-routing condition required for the sprayer to build and deliver operating pressure.

Sealing

Valve Seals & O-Rings

Applicable seals and O-rings help control internal and external leakage around the valve and its fluid connections.

Operator Control

Handle & Retaining Parts

The applicable handle and retaining components allow the valve to be positioned between its operating states and held correctly in the assembly.

Component Guide

EP2510 Prime Spray Valve Components to Inspect

Valve Components

Inspect diagram-listed valve components for contamination, wear, scoring, sticking or physical damage that may affect fluid routing.

Seals & O-Rings

Inspect applicable seals and O-rings for cuts, flattening, deterioration or other damage that can contribute to leakage.

Valve Handle

Check the applicable handle and connecting components for damage, looseness or restricted movement between PRIME and SPRAY positions.

Fittings & Connections

Inspect fluid fittings, threads and mating surfaces for leakage, contamination, looseness or physical damage.

Retainers & Hardware

Verify that diagram-listed retainers, screws and related hardware are present, undamaged and correctly positioned.

Valve Body & Mating Surfaces

Inspect applicable valve-body surfaces and mating areas for wear, contamination or damage before installing replacement components.

Valve Diagnostic Path

Diagnose EP2510 Prime Spray Valve Problems

Priming and pressure symptoms can originate in the suction system, fluid section, Prime Spray Valve Assembly or pressure-control system. Diagnose the fluid path systematically before determining which valve component requires replacement.

1. Check Material Supply

Confirm adequate coating supply and inspect the suction path for air leakage, restriction or loose connections.

2. Verify Pump Operation

Confirm that the EP2510 fluid section can draw and move material before attributing a priming problem to the Prime Spray Valve.

3. Inspect Valve Operation

With the system safely depressurized, inspect the valve for contamination, wear, leakage or restricted movement.

4. Check Seals & Connections

Inspect applicable seals, O-rings, fittings and mating surfaces for fluid leakage or physical damage.

Troubleshooting

Common Titan EP2510 Prime Spray Valve Problems

These symptoms are diagnostic starting points rather than confirmation of a failed valve. Inspect the suction system, fluid section and related pressure components where appropriate before ordering replacement parts.

Symptom What to Inspect Repair Direction
Sprayer Will Not Prime Material supply, suction system, fluid section and Prime Spray Valve components. Eliminate suction and pump problems, then inspect valve operation and the applicable return-fluid path.
Cannot Build Pressure in SPRAY Prime Spray Valve, valve seals, fluid section and pressure-control system. Determine whether fluid is bypassing through the valve or whether pressure loss originates elsewhere in the pump system.
Fluid Leaks Around Valve Valve seals, O-rings, fittings, threads and mating surfaces. Relieve pressure completely, locate the exact leak source and replace the verified damaged component.
Valve Is Difficult to Operate Handle, valve components, retainers and contamination around the assembly. Inspect for buildup, damaged hardware or internal valve wear before replacing components.
Pressure Does Not Relieve Correctly Prime Spray Valve operation, return path and associated fluid connections. Stop using the sprayer until the pressure-relief problem is diagnosed and corrected according to the applicable service instructions.
Find Your Parts Faster

Prime Spray Valve or Another EP2510 Repair Area?

Current Section

EP2510 Prime Spray Valve

Start here for valve components, seals, O-rings, fittings, handles, retainers, fasteners and related PRIME/SPRAY valve parts.

Pump Repair

EP2510 Fluid Section

If the sprayer cannot draw material or the pump has internal leakage, inspect the piston, packings and pump valve components.

View EP2510 Fluid Section Parts
Filter & Fluid Routing

EP2510 Filter/Valve Assembly

If the problem involves filtration, fluid connections or other valve components, inspect the Filter/Valve Assembly.

View EP2510 Filter/Valve Parts
Pressure Regulation

EP2510 Pressure Control

If the valve and fluid section are functioning correctly but pressure regulation remains abnormal, inspect the pressure-control system.

View EP2510 Pressure Control Parts
Fitment Verification

Verify EP2510 Prime Spray Valve Part Compatibility

Do not select a valve component, seal, O-ring, fitting, handle, retainer or fastener based only on appearance. Similar Prime Spray Valve components used on Titan EP-series sprayers can differ by valve design, sealing arrangement, connection or machine configuration.

Confirm the EP2510 model, applicable machine configuration, correct Prime Spray Valve Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume interchangeability with EP2400, EP2300 or another EP-series sprayer unless the applicable parts information confirms compatibility.

Buying Guide

Before Buying Titan EP2510 Prime Spray Valve Parts

Confirm EP2510

Verify the exact sprayer model and applicable configuration before selecting Prime Spray Valve parts.

Identify the Symptom

Determine whether the problem involves priming, pressure buildup, leakage, valve movement or pressure relief.

Inspect Related Systems

Check the suction system and fluid section when priming or pressure symptoms could originate outside the valve assembly.

Match the Callout

Locate the required component in the Prime Spray Valve diagram and match its numbered callout to the parts list.

Verify Part & Quantity

Confirm the exact replacement part number, description and required quantity before ordering.

EP2510 Parts Navigation

Start with the Prime Spray Valve Assembly for PRIME/SPRAY fluid-routing components. If diagnosis points to the internal pump, filtration, pressure regulation or pressure feedback, use the related EP2510 assembly page to identify the required replacement part by exact diagram callout.

EP2510 Prime Spray Valve Assembly Parts Current section for valve components, seals, O-rings, fittings, handles, retainers and related PRIME/SPRAY valve hardware. EP2510 Filter/Valve Assembly Parts Find filter components, valve parts, seals, housings, fittings and related fluid-system hardware. EP2510 Fluid Section Assembly Parts Find piston components, pump packings, inlet and outlet valve parts, seals and internal pump components. EP2510 Piston Pump, 120V Standard Browse the broader EP2510 piston pump assembly and related pump repair components. EP2510 Pressure Control Parts Find pressure-adjustment, control, connection and mounting components for pressure-system repairs. EP2510 Transducer Assembly Parts Find pressure-sensing components, fittings, seals, connections and related mounting hardware. EP2510 Final Assembly Parts Browse fittings, hoses, controls, brackets, mounting components, fasteners and other complete-machine replacement parts. Titan Spraytech EP & EPX Parts Browse additional Titan Spraytech EP and EPX airless sprayer parts, model categories and assembly diagrams.
Service Safety

Relieve Pressure Before Prime Spray Valve Service

Shut down the EP2510, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before servicing the Prime Spray Valve Assembly. Never loosen or remove a valve component, hose, fitting, filter, pump component or other fluid-system part while pressurized. If the valve does not permit normal pressure-relief operation, follow the applicable Titan service procedure before attempting repair. Use the appropriate service instructions for valve removal, cleaning, inspection, replacement, reassembly and testing.

EP2510 Prime Spray Valve Replacement Parts

Shop Titan EP2510 Prime Spray Valve Assembly Parts

Use the applicable EP2510 Prime Spray Valve Assembly exploded diagram to identify the valve component, seal, O-ring, fitting, handle, retainer, fastener or related fluid-routing part you need, then verify the exact replacement part number and required quantity before ordering.

Shop EP2510 Prime Spray Valve Parts
Frequently Asked Questions

Titan EP2510 Prime Spray Valve Assembly Parts FAQ

What does the Titan EP2510 Prime Spray Valve do?

The Prime Spray Valve changes the fluid-routing condition between priming or pressure-relief operation and the pressurized fluid path required for normal spraying.

How do I identify the correct EP2510 Prime Spray Valve part?

Confirm the EP2510 model and applicable configuration, open the correct Prime Spray Valve Assembly diagram and match the numbered callout to the exact replacement part number and required quantity.

Can a Prime Spray Valve problem prevent the EP2510 from priming?

A valve or fluid-routing problem can contribute to priming symptoms. The material supply, suction system and fluid section should also be inspected because those systems can produce similar symptoms.

Why does my EP2510 fail to build pressure in SPRAY mode?

Possible areas to inspect include the Prime Spray Valve and its seals, the piston pump, fluid connections, pressure-control system and pressure-sensing components. Diagnose the complete pressure path before replacing the valve.

What should I inspect if the Prime Spray Valve leaks?

After completely relieving pressure, inspect the applicable valve components, seals, O-rings, fittings, threads and mating surfaces to identify the exact source of leakage.

Are EP2400 and EP2510 Prime Spray Valve parts interchangeable?

Do not assume interchangeability between models. Compare the applicable diagrams and exact replacement part numbers before using a Prime Spray Valve component from another Titan EP-series sprayer.

What should I verify before ordering EP2510 Prime Spray Valve parts?

Confirm the EP2510 model, applicable machine configuration, correct Prime Spray Valve Assembly diagram, numbered callout, component description, exact replacement part number and required quantity.

Parts & Fitment Assistance

Need Help Finding an EP2510 Prime Spray Valve Part?

Have your EP2510 model information, machine configuration, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct valve component, seal, O-ring, fitting, handle, retainer, fastener or related replacement part.

Parts & Fitment Help: 713-931-0006
