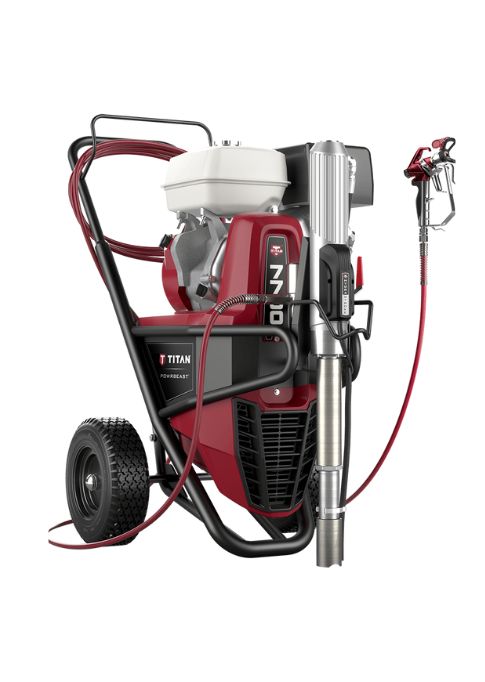

On a PowrBeast, pressure loss, pulsing and failure to prime usually trace to the tip, the filters, the inlet and outlet valves or the packings, in that order of cost. Check the tip and filters first, then the fluid section valves and packings. A leak at the wet cup points to the packings or a scored rod. Your manual has the procedures.
Titan's own PowrBeast troubleshooting tables were not available to us, so this page does not pretend to replace them. What it does is the general airless logic that applies to any piston pump, tied to the PowrBeast diagram pages and part numbers. Use it to decide what to look at and what to order. The manual for your model, on the manuals page, has the procedures.
Check the cheap things first
Most pressure and pattern complaints begin at the spray end, so start there. A worn tip has a wider orifice, so pressure falls, the pattern turns coarse or streaky and more paint is used. Replace the tip when the pattern degrades. A clogged reversible tip can often be cleared by turning the handle as the tip instructions describe.
Then look at the filters. Airless systems usually have a suction strainer, a manifold filter at the pump and a gun filter, and a partly blocked one causes pressure loss, pulsing and spitting. The PowrBeast pages list the 0089959 gun filter, three manifold filters (930-005, 930-006 and 930-007) and the 930-050 filter service kit. If the filters are clean and the tip is new, the next suspect is the pump. Also confirm that the pressure control knob (0537305B) has not been turned down, because pattern problems also come from the pressure setting, distance and speed.
Symptom, first check and where the part lives
| Symptom | Check first | Then the diagram page |
|---|---|---|
| Pressure drops, or the pattern is coarse or streaky | Tip wear, gun filter, manifold filter, pressure setting | Accessories and High Pressure Filter; then Fluid Section |
| Pulsing or a loss of pressure that comes and goes | Blocked filters, then the inlet and outlet valves | High Pressure Filter, then Fluid Section |
| Pressure will not hold | Packings, then the valve seats and balls | Fluid Section |
| Leak or paint at the wet cup | Packings and the piston rod | Fluid Section |
| Will not prime | Suction strainer, then the valves | Fluid Section |
| Switch, lamp or solenoid questions | The manual, then the electrical and solenoid parts | Main Assembly I and Solenoid Assembly |
Each assembly has its own page for the 4700/4700T, the 7700 and the 9700. Open the one for your model.
Pressure loss or pulsing
The inlet and outlet valves open and close on each stroke, and the seats and balls are what wear. A worn seat or ball lets coating slip back, which shows up as pulsing, loss of pressure or a failure to prime. Packings do the same job on the piston rod: when they wear, pressure will not hold. The parts differ between the 4700 and the 7700/9700, so use the page for your model.
Valve and packing parts by fluid section
| Part | 4700 / 4700T page | 7700 / 9700 page |
|---|---|---|
| Packings | 106-002A repacking set | 138-153A repacking kit |
| Foot (inlet) valve seat | 762-137 | 0509623 inlet valve seat |
| Foot valve ball | 138-340 | 0509707 |
| Outlet valve seat | 107-058 | 236-012 |
| Outlet valve ball | 569-021 | 0509710 |
The 4700 page lists a second ball number at the same callouts (0552232 for the outlet, 0555596 for the foot valve). Confirm which one your pump takes before ordering.
Open the 4700/4700T fluid section page or the 7700 and 9700 page. Both list service kits (0537917 and 0537907 are examples), but we do not say what each kit contains. Confirm the contents with our parts team, and use the manual for the repair steps.
Leak at the wet cup
The wet cup holds lubricant that keeps the packings working, and a leak or paint in it is the classic sign of worn packings. Check the rod while the pump is open. A scored rod destroys new packings, so a repack that fails early usually means the rod needs looking at too. The rod is 107-029 on the 4700 (listed as a displacement rod), 451-131 on the 7700 and 451-131A on the 9700. Keep the wet cup topped up with 314-480 Piston Lube as the manual describes.
Will not prime
Start with the suction side. The inlet screen (451-018) sits on the fluid section pages, and the 4700 pages also list a siphon tube (0537462). A screen blocked with dried coating will starve the pump, so clean it before you touch the pump. After that, the valves on the fluid section are next, because a ball that does not seat will not let the pump draw. The bleed valve assemblies have their own pages, with the housing, stem, seal and ball for the standard version and a separate heavy materials version on the 4700/4700T. Priming steps are in the manual.
Electrical and hydraulic assemblies
We do not have a verified PowrBeast fault table for these, so we make no claim about what a symptom means. What we can give you is where the parts are, so you know where to look once the manual points you there. The Solenoid Assembly page lists the 0537207A assembly, 0537910 coil and 0537915 block. Main Assembly I lists the 2301766 control lamp and, on the 7700 and 4700 pages, a switch. The 9700 page has the 0537222A PCB board assembly. On the oil side, the Hydraulic System page lists the 451-220 hydraulic filter, the 537351 hydraulic pump and the hoses. Diagnose with the manual, then buy the part it names.
When to call
If the symptom does not match any line above, or two pages could both hold the part, phone (713) 931-0006 with the model, power type, serial number and a description of what the sprayer does. That is quicker than ordering a kit on a guess.
Parts most often needed when troubleshooting a PowrBeast:
−15%
The Short Version
Tip first, filters second, then the fluid section valves and packings. A leak at the wet cup points at the packings and a possibly scored rod. Pick parts from the page for your model, because the 4700 and the 7700/9700 do not share fluid section numbers.
