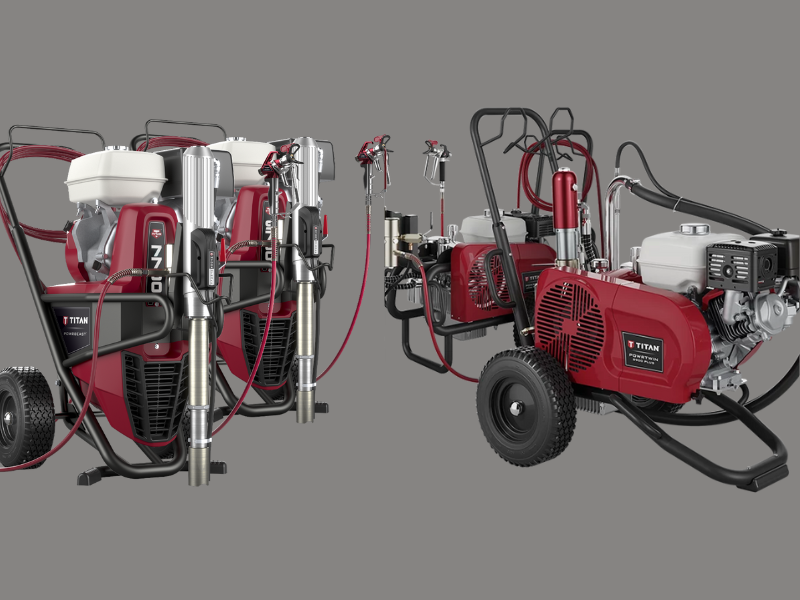

On Titan's published figures the PowrTwin 12000 Plus DI delivers 3.15 gpm at up to 3600 psi for up to 6 guns, and the PowrBeast 9700 delivers 3.0 gpm at 3300 psi for up to 5 guns. Both list a Honda GX270 engine. The DI has the larger tip at every gun count. Each has its own parts diagrams, so order from the one for your model.
The numbers side by side
These are the biggest gas hydraulic sprayers in each line, the ones a crew machine is usually sized from. The table gives the figures Titan publishes for each. It is a reference, not a ranking.
PowrTwin 12000 Plus DI (gas) and PowrBeast 9700 (gas), as listed
| Item | PowrTwin 12000 Plus DI | PowrBeast 9700 |
|---|---|---|
| Titan part | 290023 | 0537007 |
| Maximum delivery | 3.15 gpm | 3.0 gpm |
| Maximum pressure | 3600 psi (24.8 MPa) | 3300 psi (22.8 MPa) |
| Engine | Honda GX270 | Honda GX270 (270 cc) |
| Guns | Up to 6 | Up to 5 |
PowrTwin figures are from Titan's PowrTwin 12000 Plus DI page. PowrBeast 9700 figures are from dealer listings that reproduce Titan's spec block. No engine horsepower is given because the listings disagree.
The two sprayers list the same engine family, the Honda GX270, so the difference is in the hydraulic and pump side. The DI is listed at 3.15 gpm and the 9700 at 3.0 gpm, which is a small gap in flow. The bigger gap is in pressure and gun count: 3600 psi against 3300 psi, and six guns against five.
Tip sizes
Maximum tip size by number of guns
| Guns | PowrTwin 12000 Plus DI | PowrBeast 9700 |
|---|---|---|
| 1 gun | 0.058" | 0.055" |
| 2 guns | 0.040" | 0.039" |
| 3 guns | 0.034" | 0.031" |
| 4 guns | 0.030" | 0.027" |
| 5 guns | 0.026" | 0.023" |
Maximums for the number of guns, not recommended tips. The DI is also listed for up to 6 guns; the 9700 for up to 5.
At every gun count that both lists give, the DI's maximum is the larger, and the gaps run from 0.001" to 0.003". That follows from the higher delivery, because the tip limit is how much of the pump's output each gun can draw. Because tip sizes for a given job are chosen by the coating, not by the limit, a smaller tip is always inside either chart. The limit matters most when you add guns.
Pressure
Titan lists the DI's pressure control as 400 to 3600 PSI, and the PowrBeast 9700's maximum operating pressure as 3300 psi. A sprayer's maximum does not set how hard you should spray. Most coatings do not need maximum pressure, and every hose, gun, tip guard and fitting must be rated for at least the highest pressure the system can reach. If you move between these two lines, check the rating of your existing hose and whips; a part sized for 3300 psi may not be suitable for a 3600 psi system.
Parts on the diagrams
Both lines have a full set of diagram pages on the site, and they are laid out differently. The PowrTwin 12000 Plus DI set includes a belt guard assembly page, gas and DC electric convertokit pages, a gun manifold page, a fluid section page and a main assembly page. The PowrBeast 9700 set shows the drive and controls on its Main Assembly I page, with the pump on its fluid section page.
- 0537486 Belt, Gas Engine, and 0537212A Motor / Pump Assembly are listed on 9700 Main Assembly I.
- 0537222A PCB Board Assembly and 0537305B Pressure Control Knob are on the same page.
- 0537256 Fluid Section Assembly is on Main Assembly I, with the 138-153A repacking kit on the fluid section page.
- The 12000 Plus DI belt guard parts are on their own page, listed below.
Repacking kit, springs, seats and balls.
Belt, motor/pump, PCB board and pressure control knob.
The pump end for the 12000 Plus DI.
Belt guard parts for the DI.
Every PowrBeast diagram page.
We do not claim that parts interchange between the two lines. Treat the diagrams as separate.
Which to open
Read the model tag
It will say PowrTwin 12000 Plus DI or PowrBeast 9700. The PowrBeast 9700 unit is on the site as 0537007, and the PowrTwin 12000 DI Plus as 0290023.
Open that model's fluid section first
Pump wear is the most common reason to order, so start there.
Then the drive end
For the PowrBeast open Main Assembly I. For the DI open the main assembly and belt guard pages.
Call if you are not sure
Phone (713) 931-0006 with model and serial number. Manuals are on our manuals page.
Starting points for each line:
−15%
The Short Version
The 12000 Plus DI is listed at 3.15 gpm, 3600 psi and up to 6 guns, and the 9700 at 3.0 gpm, 3300 psi and up to 5 guns, both with a Honda GX270. The DI carries the larger tip limit at each gun count. Choose by crew size and coating, and order parts from the diagrams for the sprayer you own.
