Restore Reliable Material Pickup With Correct AirCoat Suction-Set Parts
Shop diagram-matched components for the Titan AirCoat Air-Assisted Suction Set (Optional), including the suction-hose assembly, return-hose assembly, 16-mesh inlet filter, O-ring, retaining clips, male elbow fitting, and tie wrap. Match the numbered diagram callout to the exact Titan part number before ordering.
What the Optional AirCoat Suction Set Contains
The AirCoat Air-Assisted Suction Set is an optional material-feed assembly that allows the AirCoat 620 spray system to draw coating directly from an external container. It is designed for applications that require a larger material supply, longer spraying periods, or continuous production without repeatedly refilling an onboard hopper.
The suction set provides the connection between the coating container and the fluid pump inlet. During operation, the pump creates the suction required to pull material through the intake tube and into the fluid section. The fluid pump then pressurizes the coating and directs it through the high-pressure filter, fluid regulator, spray hose, and AirCoat spray gun. Regulated assist air introduced at the gun improves atomization and produces a controlled spray pattern with reduced overspray.
The optional assembly typically incorporates the suction tube, intake strainer, return tube, fluid hoses, fittings, seals, clamps, and related connection hardware required to establish a secure material path. The intake strainer helps prevent larger contaminants from entering the pump, while the return line directs circulating or priming material back into the coating container.
The AirCoat Air-Assisted Suction Set is particularly useful for extended production runs and applications involving larger coating volumes. Drawing directly from a separate container reduces interruptions caused by frequent hopper refilling and enables operators to select a container size appropriate for the job. The assembly also supports priming, pressure relief, material circulation, flushing, and coating recovery procedures.
Reliable suction depends on airtight connections throughout the material-feed path. Loose fittings, damaged seals, split tubes, clogged strainers, hardened coating deposits, or an intake tube positioned above the material level can allow air into the system. These conditions may cause difficult priming, pump cavitation, interrupted fluid delivery, pressure fluctuations, or an inconsistent spray pattern.
Routine maintenance should include cleaning the suction tube and strainer, inspecting hoses for cracks or collapse, tightening connections, checking seals, and confirming that the return tube remains securely positioned inside the material container. All wetted components should be thoroughly flushed whenever changing coatings or placing the sprayer into storage.

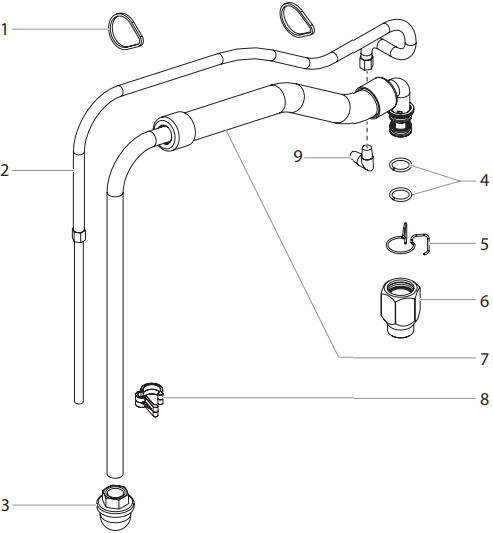

The exploded parts diagram identifies the suction, filtering, return, sealing, and connection components used in the optional assembly. Matching each diagram callout with the correct Titan part number helps technicians restore dependable material intake while preserving the operating performance and serviceability of the AirCoat 620 Air-Assisted Airless Spray System.
Systems Supported by the Optional Suction Set
- Draws coating material from an external supply container through the suction-hose assembly.
- Screens incoming material through the 16-mesh inlet filter before it reaches the pump.
- Maintains a sealed suction connection through the O-ring and correctly fitted elbow.
- Returns material through the return-hose assembly during priming, flushing, and pressure relief.
- Secures hose routing and connection points through retaining clips, hose clips, and the tie wrap.
When Contractors Use This Parts Diagram
- Converting or servicing an AirCoat system equipped with the optional suction arrangement.
- Correcting slow priming, weak material pickup, intermittent flow, or air entering the suction path.
- Replacing a clogged inlet filter, leaking O-ring, damaged hose, or loose elbow fitting.
- Repairing weak return flow during priming, flushing, or pressure relief.
- Identifying exact clips, seals, fittings, and hose assemblies before service.
Common AirCoat Optional Suction-Set Symptoms
Use the symptom to identify the likely intake, filtration, sealing, return, or retention area, then inspect connected parts before ordering.
High-Value AirCoat Optional Suction-Set Parts
These major suction, return, filtration, sealing, and fitting components represent the most important service areas. Match each product to the correct diagram item and Titan part number.
Titan 0551102 Suction Hose Assembly
Primary fluid-intake assembly that transfers coating material from the supply container to the AirCoat pump.
Titan 0508614 Return Hose Assembly
Routes material back to the supply container during priming, flushing, and pressure-relief operations.
Titan 0295565 Inlet Filter, 16 Mesh
Screens debris from incoming coating material before it enters the suction hose and pump.
Titan 9871105 O-Ring
Seals the siphon or elbow connection to help prevent air entry, fluid leakage, and loss of suction.
Titan 9822526 Retaining Clip
Secures a designated suction-set connection so the hose and fitting remain correctly engaged.
Titan 0551356 Male Elbow
Ninety-degree fitting that directs material flow while connecting suction-set components in the required orientation.
How to Order the Correct AirCoat Suction-Set Part
Follow this sequence to reduce fitment mistakes and avoid replacing parts that are not responsible for the operating problem.
Record the symptom
Note whether the problem involves priming, weak pickup, air entry, leakage, return flow, filtration, or loose routing.
Verify the configuration
Confirm the machine uses the optional Titan AirCoat suction set shown on this exploded-parts page.
Match the callout
Locate the component on the suction-set diagram and record its numbered item and exact Titan part number.
Inspect connected parts
Check adjoining hoses, clips, O-rings, fittings, filter condition, and routing before ordering.
Maintenance Practices That Protect the Optional Suction Set
- Clean the 16-mesh inlet filter before dried coating restricts material pickup.
- Inspect the suction hose for cracks, soft spots, kinks, collapse, abrasion, or hardened material.
- Check the return hose for leakage, blockage, stiffness, and correct positioning in the supply container.
- Inspect the O-ring and male elbow for damage, contamination, looseness, or poor sealing.
- Verify that retaining clips and hose clips remain installed and fully engaged.
- Replace broken or brittle tie wraps and route hoses away from sharp, hot, or moving surfaces.
- Flush the suction and return paths thoroughly after use with compatible cleaning material.
Build a More Complete AirCoat Suction-Set Repair
When replacing the suction hose, inspect the 16-mesh filter, O-ring, male elbow, retaining clip, hose clip, and connection surfaces. When replacing the return hose, check its routing, tie wrap, clips, container position, and the fluid path for dried material.
Replace damaged sealing and retention parts during the same repair rather than reusing brittle O-rings, distorted clips, or cracked hose ends. Correct routing and complete sealing are essential for reliable priming.
Shop Major AirCoat Optional Suction-Set Components
Use these verified internal links to continue directly to the complete diagram and major replacement components.
Titan AirCoat Optional Suction-Set FAQs
Use these answers to confirm suction-hose, return-hose, filter, O-ring, fitting, clip, and routing repairs.
