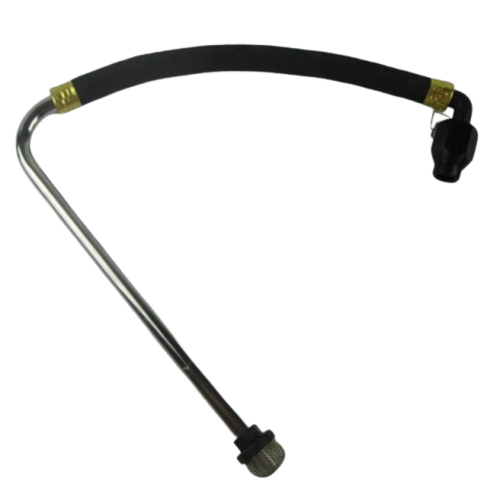

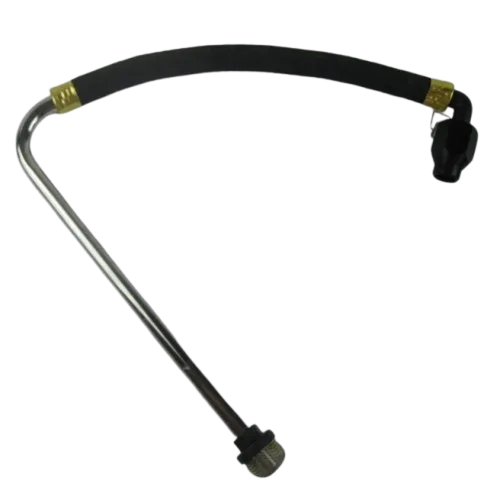

OEM Titan Suction Hose Assembly
Titan 0551102 Suction Hose Assembly is an OEM fluid intake conduit that transfers coating material from the supply container to the pump assembly on compatible AirCoat Air-Assisted Airless Sprayers, SprayTech EPX series, and AirCoat NEW systems.
Compatibility Table
OEM suction hose assembly restores proper fluid intake, prevents cavitation, and maintains consistent material flow for quality spray application.
Titan Suction Hose Assembly Replacement
Titan 0551102 is an OEM suction hose assembly that transfers coating material from the supply container to the pump assembly on compatible AirCoat Air-Assisted Airless Sprayers, SprayTech EPX series, and AirCoat NEW systems. This fluid intake conduit is an essential component of the suction set that maintains smooth, uninterrupted coating flow from the paint container to the pump assembly.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine Titan suction hose assembly that transfers coating material from the supply container to the pump assembly. Listed as Item 7 in the AirCoat parts diagram. The suction system plays a critical role in maintaining pump pressure and preventing contamination during air-assisted airless spraying. |
| Material & Specifications | Solvent-resistant hose material with reinforced wall construction for continuous exposure to paints, coatings, and cleaning solvents. Designed for consistent suction pressure and smooth material transfer. Chemical-resistant construction for use with a wide range of industrial coatings including enamels, lacquers, and urethanes. |
| Dimensional Data | Approximately 3/8 inch inside diameter with flexible construction for routing from the supply container to the pump inlet. Length designed specifically for AirCoat and EPX system configurations. Precision-fit to connect to the siphon elbow and retaining clip. |
| Function | Draws coating material from the supply container via siphon action. Regulates fluid intake to maintain consistent suction pressure. Delivers smooth, uninterrupted material flow to the pump. Works in conjunction with the inlet filter and siphon elbow O-ring to prevent air from entering the fluid line. |
| Industrial Applications | Industrial coatings, cabinetry, wood finishing, metal fabrication, enamels, lacquers, urethanes, and other precision coating applications where uninterrupted material flow and clean filtration are essential. |
| Compatible Titan Machines | SprayTech AirCoat, SprayTech AirCoat NEW, SprayTech EPX2155, SprayTech EPX2255, SprayTech EPX2355, AirCoat Spray System. |
| Accurate Part Number | 0551102 Suction Hose Assembly (also referenced as Syphon Assembly). |
| Related Parts Commonly Serviced Together | Inlet filter (0295565), siphon elbow O-ring (9871105), retaining clip (9822526), return hose assembly (0508614), and tie wrap (9850638). |
| Common Problems Solved | Loss of suction caused by cracked hose allowing air to enter the fluid line, collapsed or restricted hose restricting material flow, clogged or blocked hose preventing material pickup, and sputtering caused by air entering the suction line. |
| Service Guidance | Inspect the suction hose regularly for cracks, kinks, or blockages. A damaged or obstructed siphon assembly can interrupt fluid flow, lower pressure stability, and reduce overall spray quality. Ensure the hose is routed without sharp bends that could restrict flow. Loss of suction is commonly caused by cracked siphon hoses or loose fittings allowing air to enter the fluid line. Replace immediately if any damage is observed. Do not attempt to repair a damaged suction hose with tape or splicing as this can create air leaks and safety hazards. |
| Use with Coating Systems | Supports AirCoat air-assisted airless sprayers used in industrial coatings, cabinetry, wood finishing, metal fabrication, and other precision coating applications. |
| Commercial Benefits | Restores proper fluid intake, prevents cavitation and pressure fluctuations, ensures consistent material flow, maintains spray quality, and reduces pump wear from running dry or sucking air. |
The 0551102 Suction Hose Assembly delivers material from the supply container to the sprayer, ensuring smooth and reliable material transfer during operation. This fluid intake conduit is essential for maintaining smooth, uninterrupted coating flow from the paint container to the pump assembly. Over time, suction hoses can become cracked from material exposure, kinked from improper routing, or clogged with dried coating. A damaged or obstructed siphon assembly can interrupt fluid flow, lower pressure stability, and reduce overall spray quality. Loss of suction is commonly caused by cracked siphon hoses, loose fittings, or worn O-rings allowing air to enter the fluid line. If you notice visible cracks, kinks restricting flow, difficulty priming, or sputtering during operation, replace the suction hose assembly. Inspect the suction hose regularly for cracks, kinks, or blockages and ensure the hose is routed without sharp bends that could restrict flow.
Quick answers for confirming fitment, function, and service value.
