Shop replacement components for the AirCoat Air-Assisted Main Assembly, including the power cord, electrical housing, power switch, hopper assembly, compressor filter, air regulator, air gauge, relief valve, pressure gauge assembly, air-assist compressor, bonded hose, air whip hose, coupler, fittings, and mounting hardware. Use the exploded drawing, item number, and exact Titan part number to identify the correct component before ordering.

Diagram-Based Selection

Match the numbered callout to the exact part number shown in the AirCoat main assembly listing.

Air & Fluid Control

Locate compressor, regulator, gauge, relief-valve, hose, coupler, hopper, and pressure-monitoring components.

Electrical Service

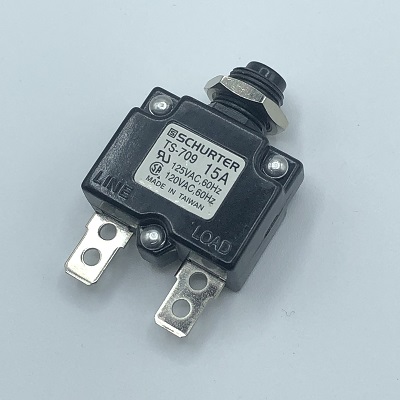

Identify the power cord, strain reliefs, switch, electrical housing, cover, and circuit-protection components.

Complete-System Diagnosis

Inspect electrical, pneumatic, material-supply, pressure-control, and hose components as one connected system.

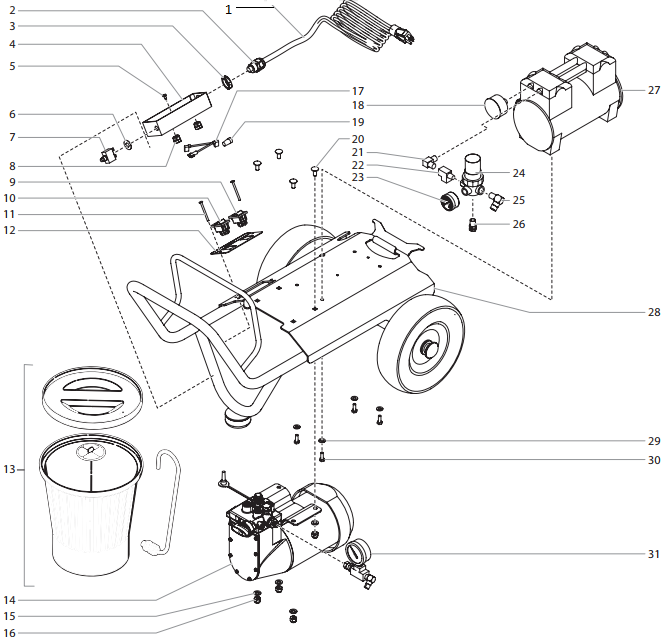

Assembly Overview

What the AirCoat Air-Assisted Main Assembly Contains

The main assembly combines the external electrical, pneumatic, pressure-control, material-supply, and hose components that support AirCoat fine-finish spraying. Major listed parts include the 0524313 power cord set, 0524447 electrical housing, 9850936 power switch, 0550016 electrical cover, 0288144 hopper assembly, 0551376 compressor filter, 0276538 air gauge, 0551360 air regulator, 0551361 relief valve, 0508609A air-assist compressor, and 0524221A pressure gauge assembly.

The assembly also includes the 0524333 bonded hose, 0550371 air hose assembly, 0275640 male air coupler, fittings, strain reliefs, lock nuts, screws, and related hardware. Because these components work together, weak atomizing air, unstable pressure, electrical interruption, leakage, or poor material delivery may involve more than one part. Diagnose the complete system before ordering.

Main Functions

Functions Supported by the Main Assembly

Supplies electrical power to the integrated AirCoat equipment and compressor system.
Produces and regulates atomizing air for air-assisted fine-finish spraying.
Displays air and material pressure for setup, monitoring, and troubleshooting.
Stores and feeds coating material through the hopper and connected fluid path.
Connects the sprayer to the gun through bonded fluid and pneumatic hose components.

Service Applications

When Contractors Use This Parts Diagram

No-power, intermittent-power, tripped-breaker, or damaged-cord diagnosis.
Weak, unstable, or missing atomizing-air troubleshooting.
Air pressure that cannot be adjusted or monitored correctly.
Leaking hoses, couplers, tees, elbows, regulators, or relief valves.
Hopper, compressor, pressure-gauge, switch, and electrical-enclosure replacement.

Troubleshooting & Maintenance

Common AirCoat Main Assembly Symptoms

Use operating symptoms as a starting point, then inspect the connected system and confirm the exact replacement part through the assembly diagram.

Operating symptom	Areas to inspect	Recommended action

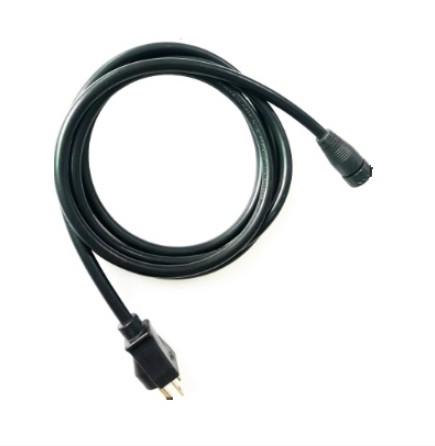

Unit does not power on	0524313 power cord, 9850936 switch, circuit protection, wiring, strain reliefs, and electrical housing	Disconnect power and inspect the Titan 0524313 Power Cord Set, switch, and terminals for damage or loose connections.

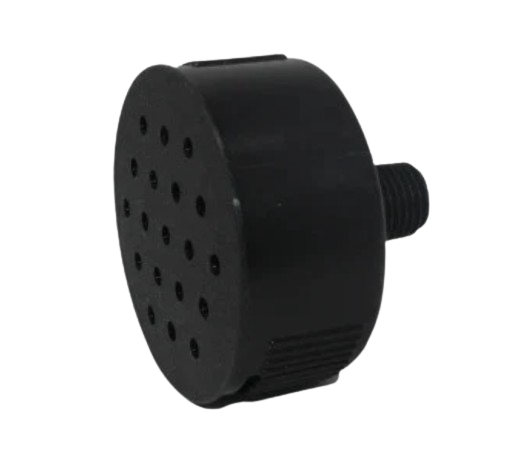

Compressor runs but atomizing air is weak	0551376 compressor filter, 0551360 regulator, air hose, coupler, fittings, and leaks	Clean or replace the Titan 0551376 Compressor Filter and test the regulator, hoses, and fittings for restriction or leakage.

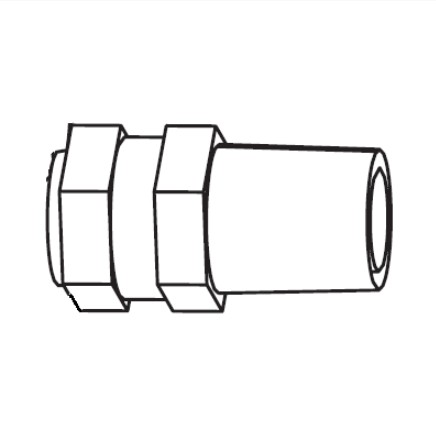

Air pressure cannot be adjusted	0551360 regulator, 0276538 air gauge, 0551361 relief valve, tee, elbows, and supply hose	Inspect the Titan 0551360 Air Regulator and confirm that the gauge and relief valve respond correctly.
Gauge reading is missing or unstable	0276538 air gauge, 0524221A pressure gauge assembly, fittings, leaks, pulsation, and blocked passages	Compare actual system behavior with the Titan 0276538 Air Gauge and pressure-gauge assembly before replacement.

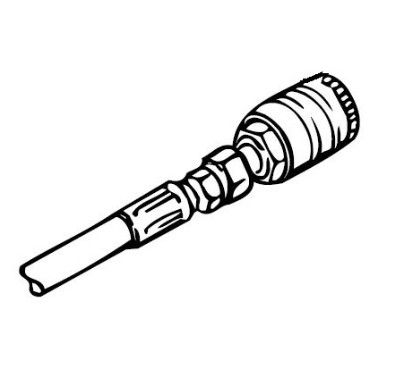

Air leaks around the hose connection	0275640 coupler, 0550371 air hose, 0524333 bonded hose, tees, elbows, threads, and seals	Depressurize the system and inspect the Titan 0275640 Male Air Coupler and connected hose fittings.
Compressor is noisy, hot, or will not build air	0508609A compressor, filter, ventilation, regulator, relief valve, fittings, and downstream restrictions	Stop operation and inspect the Titan 0508609A Air-Assist Compressor and the complete pneumatic path.

Major Replacement Components

High-Value AirCoat Main Assembly Parts

These compressor, pressure-control, material-supply, hose, and electrical parts represent major AirCoat repairs. Verify the diagram callout and exact part number before purchase.

Atomizing-Air Source

Titan 0508609A Air-Assist Compressor

The primary compressor supplies the regulated atomizing air used to shape and soften the AirCoat spray pattern.

View Titan 0508609A

Air Pressure Control

Titan 0551360 Air Regulator

The regulator allows the operator to set atomizing-air pressure for coating viscosity, gun setup, and finish requirements.

View Titan 0551360

Pressure Monitoring

Titan 0524221A Pressure Gauge Assembly

The packaged pressure-gauge assembly provides a visible reference for setup and fluid-pressure troubleshooting.

View Titan 0524221A

Material Supply

Titan 0288144 Hopper Assembly

The hopper stores and feeds coating material into the pump for compact fine-finish spraying and controlled material changes.

View Titan 0288144

Bonded Hose Set

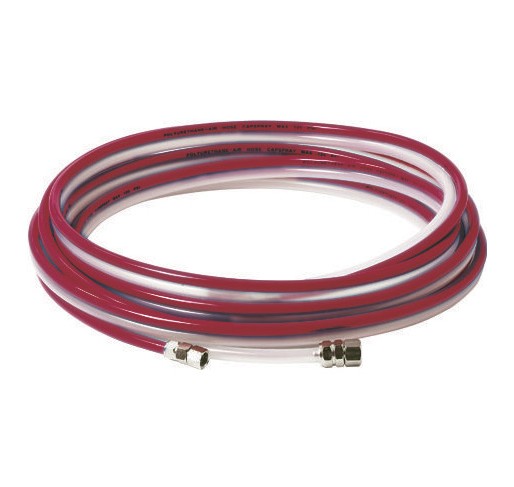

Titan 0524333 Bonded Hose, 50 Feet

The bonded hose supports organized fluid and air delivery between the sprayer and air-assisted spray gun.

View Titan 0524333

Electrical Control

Titan 9850936 Power Switch

The main power switch controls electrical operation and should be inspected with the cord, breaker, housing, and wiring.

View Titan 9850936

Parts Selection Guide

How to Order the Correct AirCoat Main Assembly Part

Follow this sequence to reduce fitment mistakes and avoid replacing parts that are not responsible for the operating problem.

STEP 1

Record the exact symptom

Identify whether the problem involves electrical power, atomizing air, fluid pressure, leakage, material supply, or hose delivery.

STEP 2

Verify the AirCoat version

Confirm the machine identification and production revision before comparing the main assembly parts diagram.

STEP 3

Match the callout

Use the exploded illustration to match the numbered item with the corresponding Titan part number.

STEP 4

Inspect connected parts

Check hoses, fittings, wiring, seals, filters, gauges, strain reliefs, and mounting hardware before completing the order.

Preventive Care

Maintenance Practices That Protect the Main Assembly

Relieve fluid and air pressure, then disconnect electrical power before service.
Inspect the power cord, plug, strain reliefs, switch, and housing before each work period.
Keep the compressor filter and ventilation openings clean and unobstructed.
Drain moisture and contamination from the pneumatic path as required.
Inspect bonded and air hoses for cuts, abrasion, bulges, kinks, or leaking fittings.
Clean the hopper and material passages with a compatible cleaning procedure after use.
Investigate abnormal gauge readings, regulator behavior, or relief-valve discharge before continued spraying.

Complete Repair Planning

Build a More Complete AirCoat Main Assembly Repair

Compressor repairs should include inspection of the compressor filter, regulator, air gauge, relief valve, air hose, coupler, fittings, mounting screws, and ventilation path. Replacing the compressor while leaving a blocked filter, leaking fitting, or faulty regulator in service may cause poor performance or repeat failure.

Electrical repairs should include the power cord, strain reliefs, lock nut, electrical housing, circuit protection, power switch, cover, wiring terminals, and grounding points. Hose or pressure-control repairs should include mating threads, seals, elbows, tees, gauge connections, and the spray-gun end of the bonded hose.

Fast Parts Navigation

Select a link below to review product details, then confirm the item number and part number against the main assembly diagram.

Air-Assist Compressor 0508609A Air Regulator 0551360 Air Gauge 0276538 Relief Valve 0551361 Hopper Assembly 0288144 Bonded Hose 0524333

FAQ Section

AirCoat Air-Assisted Main Assembly FAQs

These answers help contractors and repair technicians diagnose the AirCoat main system and select diagram-matched replacement components.

What is included in the AirCoat main assembly?+

It includes external electrical controls, the air-assist compressor, pressure-control components, hopper, gauges, hoses, couplers, fittings, covers, and mounting hardware shown in the exploded diagram.

What should I check when atomizing air is weak?+

Inspect the compressor filter, air regulator, air gauge, hoses, coupler, fittings, relief valve, and compressor output. A leak or restriction can imitate compressor failure.

When should the compressor filter be replaced?+

Replace the Titan 0551376 Compressor Filter when it is clogged, damaged, contaminated, or causing restricted air delivery.

What can cause an unstable air-gauge reading?+

Possible causes include a leaking hose or fitting, regulator instability, compressor pulsation, blockage, a sticking relief valve, or damage to the Titan 0276538 Air Gauge.

Why does the relief valve discharge air?+

The relief valve may open because of excessive pressure, a regulator fault, downstream restriction, or valve contamination. Stop operation and diagnose the pressure-control system before continued use.

Can a damaged bonded hose affect spray quality?+

Yes. Kinks, internal restrictions, leaks, damaged fittings, or separation can reduce pressure stability and disrupt material or air delivery. Replace damaged high-pressure hose rather than attempting a patch repair.

Which parts should be inspected with the power switch?+

Inspect the power cord, breaker, electrical housing, cover, wiring terminals, strain reliefs, lock nut, and grounding connections whenever the switch or electrical enclosure is serviced.

Can I order an AirCoat part by appearance alone?+

No. Similar gauges, switches, regulators, fittings, and compressor components may differ by model or revision. Match the diagram callout and exact Titan part number before ordering.

What safety steps are required before service?+

Relieve fluid pressure, discharge pneumatic pressure, disconnect electrical power, lock the gun trigger, allow hot parts to cool, and follow the applicable Titan safety procedure before disassembly.

Find the Correct Replacement Part

Service Your AirCoat System With Diagram-Matched Main Assembly Parts

Browse the listed electrical, compressor, pressure-control, material-supply, hose, coupler, gauge, regulator, filter, fitting, and mounting components. Verify the exact callout and part number before ordering.

Search using:

Titan part number
Main assembly callout
AirCoat model & revision
Operating symptom
Component name

AirCoat Air-Assisted Main Assembly

Find Diagram-Matched AirCoat Air-Assisted Main Assembly Parts
