Titan Impact X 410 Filter Assembly Parts
Shop Titan Impact X 410 Filter Assembly Parts for genuine OEM filter elements, filter bowls, caps, seals, pressure transducers, bypass valves and related fluid-system components. Identify your replacement using the factory exploded diagram and exact Titan part number.
Keep your Impact X 410 filtration system properly serviced, reduce debris-related restrictions and find the components needed for accurate fluid-system maintenance.
Buy Genuine Titan Impact X 410 Filter Replacement Parts
The filter assembly helps capture unwanted particles in the coating material before they travel farther through the high-pressure fluid system. A properly maintained filter can reduce debris-related blockages in downstream components.
The factory breakdown also identifies associated fluid-control components, including the pressure transducer and bypass valve assembly. Whether you need a filter element, damaged bowl, sealing component or a related replacement fitting, use the exploded diagram to locate the correct OEM part.
Shop Titan Impact X 410 Filter Components

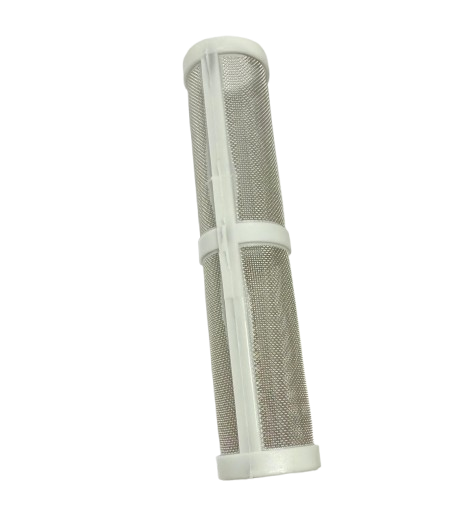

60-Mesh Filter
Factory-listed filter element designed to capture particles from the coating material.

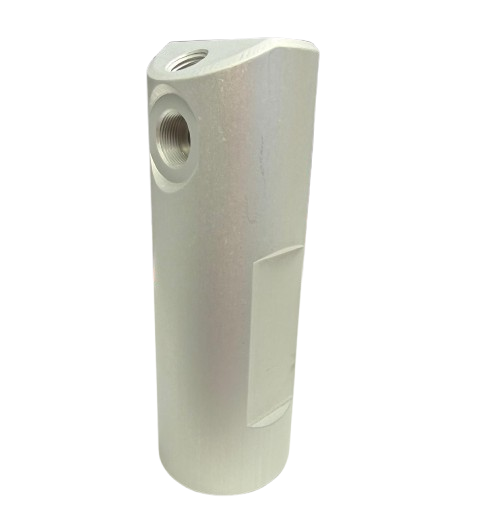

Titan 2424933Filter Bowl
Replacement housing component used in the filter assembly.

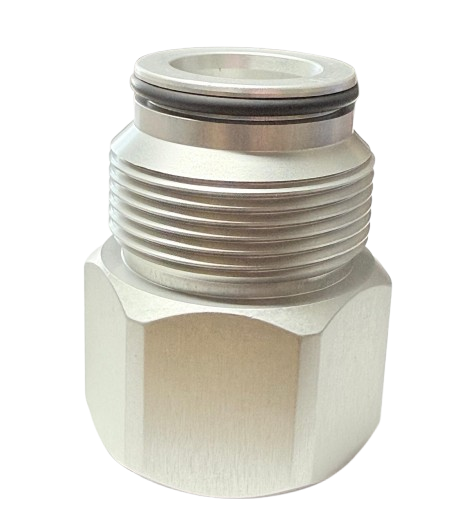

Titan 2424886AFilter Cap and O-Ring
Components used to secure and seal designated filter assembly connections.
Titan 2424931A / 2424934Pressure Transducer
Pressure-sensing component used by the sprayer's control system.
Titan 2427607AImpact X 410 Filter Assembly OEM Parts Reference
Use the factory-listed part numbers below to identify your replacement. Match the component to its diagram callout before ordering.
| Titan Part Number | Component | Application |
|---|---|---|
| 2424931A | Filter Cap | Filter closure |
| 2424934 | O-Ring | Filter assembly sealing |

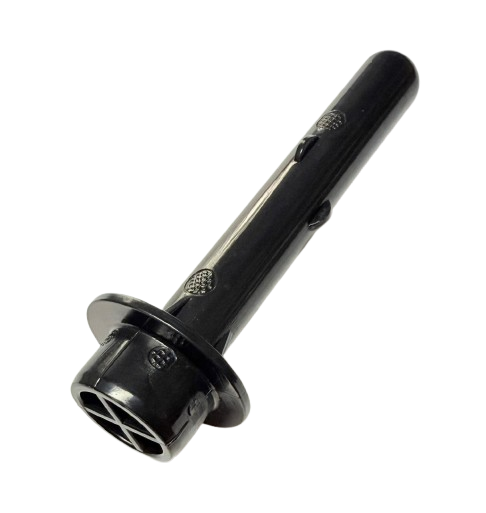

| 2424932 | Filter Core | Filter element support |
| 2424933 | 60-Mesh Filter | Coating material filtration |
| 2424886A | Filter Bowl | Filter housing |
| 2427607A | Transducer | Pressure sensing |
| 700-537 | Gasket | Fluid assembly sealing |
| 2440405 | By-Pass Valve Assembly | Fluid bypass control |
| 227-006 | 1/4-inch Outlet Fitting | Fluid outlet connection |

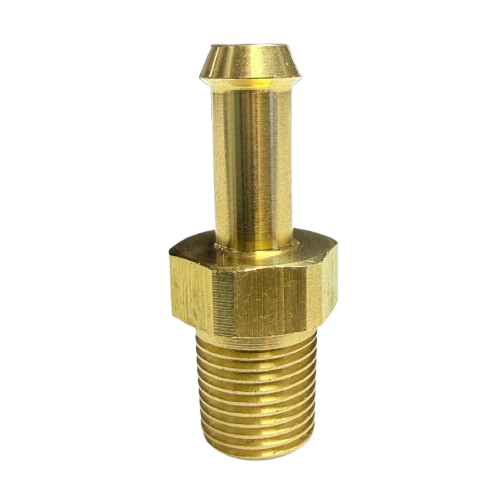

| 2442856 | Return Tube Fitting | Return tube connection |
How to Identify the Correct Impact X 410 Filter Part
Verify that your sprayer is a Titan Impact X 410.
Find the filter, seal, valve or fitting in the exploded diagram.
Compare the diagram reference with the corresponding Titan part number.
Review the replacement description and confirm fitment before purchasing.
Common Impact X 410 Filter Assembly Problems
A filter restriction, damaged seal or fluid-control fault can contribute to sprayer performance problems. Diagnose the cause before replacing components.
| Symptom | Inspect | Guidance |
|---|---|---|
| Reduced material flow | 60-mesh filter and filter core | Check for accumulated debris or damage. |
| Leakage near filter housing | Filter bowl, cap, O-ring and gasket | Inspect sealing surfaces and damaged components. |
| Irregular pressure response | Transducer and related control system | Follow Titan electrical and pressure-control diagnostics. |
| Priming or return-flow issue | Bypass valve and return connections | Inspect for blockage, damage or incorrect valve operation. |
Filter Maintenance and Replacement Guidance
Inspect the filter element according to the coating material, operating conditions and Titan's maintenance instructions. A blocked or damaged filter can restrict material flow, while a damaged O-ring or filter bowl may cause leakage.
Always relieve system pressure before opening the filter assembly. Clean reusable components only as permitted by the manufacturer, inspect the filter housing and sealing surfaces, and reinstall parts using the correct assembly procedure. Replace damaged components rather than attempting improvised repairs.
Find More Titan Impact X 410 Parts
Browse related assembly diagrams to identify additional replacement components for your sprayer.
Why Choose Genuine Titan Filter Assembly Parts?
Genuine Titan components are identified by manufacturer part number for the applicable sprayer assembly. Selecting the specified replacement helps maintain the intended filter fit, sealing arrangement and fluid-system connections.
Do not assume that filters, bowls, pressure sensors or bypass valves from other Titan Impact models are interchangeable. Match the exact OEM part number and documented machine application before ordering.
Filter Assembly Service Safety
Airless paint sprayers operate under high pressure. Before opening the filter bowl or disconnecting fluid fittings, shut down the sprayer, disconnect electrical power and complete the pressure-relief procedure specified in the Titan operator manual. Electrical and pressure-control repairs should be performed by qualified personnel using the correct service documentation.
Titan Impact X 410 Filter Assembly Parts FAQ
Answers to common questions about OEM filters, filter bowls, pressure transducers and replacement part selection.
What parts are listed in the Titan Impact X 410 filter assembly?
The category lists a filter cap, O-ring, filter core, 60-mesh filter, filter bowl, pressure transducer, gasket, bypass valve assembly, outlet fitting and return tube fitting.
What is the Titan Impact X 410 60-mesh filter part number?
Titan 2424933 is listed as the 60-mesh filter in the Impact X 410 filter assembly category.
Which filter bowl is listed for the Impact X 410?
Titan 2424886A is the factory-listed filter bowl. Confirm its diagram reference before ordering.
Can I replace the filter O-ring separately?
Yes. Titan 2424934 is listed as an individual O-ring in the filter assembly category. Verify the sealing location and replace the component according to Titan service instructions.
Why does my Impact X 410 lose pressure or spray unevenly?
Possible causes include a clogged filter, worn fluid-section components, suction restrictions or pressure-control problems. Diagnose the machine using Titan troubleshooting procedures before replacing parts.
What is the Impact X 410 pressure transducer part number?
Titan 2427607A is listed as the pressure transducer in the filter assembly category. Confirm the exact application before installation.
How do I order the correct Titan Impact X 410 filter assembly part?
Locate the component on the factory exploded diagram, match the numbered callout to the OEM part number and review the product listing before ordering.
Shop Genuine Titan Impact X 410 Filter Assembly Parts
Find OEM filter elements, bowls, caps, seals, transducers, bypass valves and fluid fittings. Use the exploded diagram to identify the correct replacement for your Titan Impact X 410.
BUY IMPACT X 410 FILTER PARTSNeed assistance identifying a part? Call 713-931-0006.
