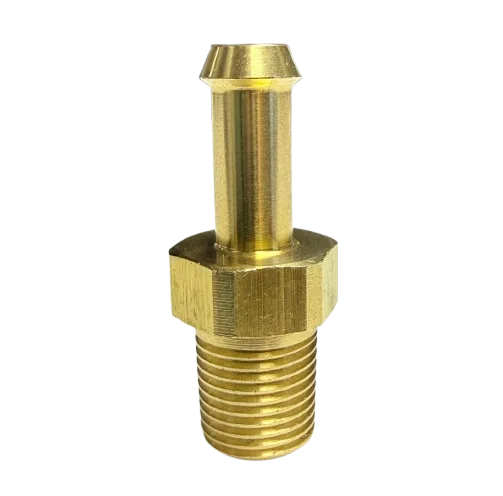

Titan 2442856 Return Tube Fitting

$2.70
Available to Order
Part #: 2442856



Titan Impact X 410 Return Line & Fluid Filter Assembly Parts

Maintain the return-line connection on your airless sprayer with the Titan 2442856 Return Tube Fitting. Listed for the Titan Impact X 410 filter assembly, this replacement component provides the designated return-tube connection, supporting proper fluid routing during priming and return-flow operations when installed according to manufacturer instructions.

Brand Titan
Part Number 2442856
Product Type Return Tube Fitting
Listed Machine Impact X 410
Function: Provides the designated connection for the sprayer's fluid return tube.
Assembly Location: Titan Impact X 410 filter and return-flow system.
Repair Application: Replacement of a cracked, worn, damaged, leaking, or otherwise unserviceable return tube fitting.

Fitment Note: Titan 2442856 is identified in the Impact X 410 filter assembly parts listing. It is a separate component from Titan 227-006 Outlet Fitting and Titan 2440405 By-Pass Valve Assembly. Verify the return tube connection, fitting geometry, and complete part number before ordering.



Quantity
Buy Now
Genuine OEM Part Fast Shipping Easy Returns



Titan Impact X 410 Return Tube, Fluid Routing & Filter Assembly Components

Maintain Reliable Return-Line Connections with Titan 2442856 Return Tube Fitting

Maintain the designated return-flow connection in your professional airless sprayer with the Titan 2442856 Return Tube Fitting. This replacement component is identified in the Titan Impact X 410 filter assembly parts listing. It provides the specified interface for the fluid return tube, supporting controlled return-flow routing during the sprayer's priming and related fluid-circulation operations. Replacing a confirmed defective fitting can help restore connection integrity without unnecessarily replacing otherwise serviceable fluid-system components.

Manufacturer Titan
Part Number 2442856
Component Type Return Tube Fitting
Application Impact X 410

Titan 2442856 Technical & Ordering Details

Product Overview Replacement return tube fitting identified for the Titan Impact X 410 airless sprayer filter and fluid-return assembly.
Manufacturer & Part Number Titan 2442856
Function Provides the specified connection for the return tube within the sprayer's designated fluid-routing system.
Industrial Applications Fluid return-line maintenance for professional airless sprayers used in residential painting, commercial finishing, construction maintenance, property restoration, and compatible industrial coating applications.
Documented Compatible Machine Titan Impact X 410 Airless Sprayer
Identified in the Impact X 410 filter assembly parts listing.
Additional Machine Compatibility Additional Titan sprayer applications require confirmation from the applicable manufacturer parts diagrams. Similar return-line connections do not establish interchangeability.
Accurate Part Identification 2442856, Return Tube Fitting. Distinct from Titan 227-006 1/4-inch Outlet Fitting.
Compatible Assemblies Titan Impact X 410 filter assembly and associated return-flow connection at the fitting's designated installation position.
Related Parts Titan 2440405 By-Pass Valve Assembly; Titan 227-006 1/4-inch Outlet Fitting; Titan 2424886A Filter Bowl; Titan 700-537 Gasket; associated return tubing identified in the applicable assembly diagram.
Common Problems Addressed Fluid seepage at the return connection, damaged fitting surfaces, poor tube retention, or connection defects confirmed during inspection.
Coating Systems Professional airless coating delivery systems using Titan-approved coating materials and fluid-routing configurations.
Connection Type Manufacturer-designated return tube connection. Exact tube size, thread specification, retention method, and sealing arrangement require confirmation from Titan technical documentation.
Material & Dimensions Exact fitting material, dimensions, and connection geometry should be verified from manufacturer documentation. Do not substitute a generic fitting based only on appearance.
Operating Pressure Use the fitting only in its manufacturer-designated system location. Its exact operating pressure specification should not be inferred from the sprayer's maximum rated pressure.
OEM & Brand Titan manufacturer-identified replacement return tube fitting, part number 2442856.
Commercial Benefits Provides a targeted repair option for a confirmed return-line connection defect, supports maintenance of the priming and return-flow system, and helps avoid unnecessary replacement of serviceable assemblies.
Repair Application Replacement of a cracked, worn, damaged, leaking, or otherwise unserviceable return tube fitting when inspection identifies the fitting as the source of the problem.
Package Contents Return tube fitting identified by Titan part number 2442856. Return tubing, separate clamps, seals, adapters, and other service components should not be assumed included unless explicitly specified.
Safety & Compatibility Warning Follow Titan's complete pressure-relief and service procedures before disconnecting the return tube or fitting. Do not modify the fitting or substitute an unverified connection component.
Ordering Guidance Confirm Titan 2442856 against the installed Impact X 410 filter assembly diagram. Inspect the return tube, mating connection, and applicable retention components before ordering.
Return Flow & Filter Assembly Service Reference

Titan Impact X 410 Return Tube Fitting & Related Parts

Related components for return-flow maintenance, fluid-routing troubleshooting, and accurate replacement-part identification.

Reference Titan Part No. Component Description Service Function
Primary Product 2442856 Return Tube Fitting Provides the designated connection for the fluid return tube.
Related Component 2440405 By-Pass Valve Assembly Controls the designated by-pass fluid-routing function.
Related Component 227-006 1/4-inch Outlet Fitting Provides a separately designated fluid outlet connection.
Related Component 2424886A Filter Bowl Forms part of the fluid-filter housing.
Related Component 700-537 Gasket Provides sealing at its designated assembly interface.
Related Component 2427607A Transducer Provides pressure feedback to the compatible electronic control system.

Important: These are separately identified components from the Impact X 410 filter assembly parts group. The table does not establish that the by-pass valve, outlet fitting, gasket, transducer, or return tubing is included with Titan 2442856.

How Does Titan 2442856 Return Tube Fitting Work?

The return tube fitting provides the designated connection between the fluid return tube and its mating assembly interface. Its role is to support the intended return-flow path while maintaining the connection required by the manufacturer's fluid-system design.

During priming, a professional airless sprayer may route coating material through a return line according to its specified operating procedure. This circulation assists with establishing fluid flow and purging air before spraying. The return tube connection must remain correctly installed for the system to function as designed.

The fitting is a connection component rather than the by-pass valve itself. Titan 2440405 is separately identified as the By-Pass Valve Assembly, while Titan 2442856 provides the designated return-tube interface. These components perform different functions and should not be confused when selecting repair parts.

A damaged fitting, deteriorated return tube, or incorrect connection can interfere with fluid routing or cause leakage. Effective repair requires identifying the actual failed component and ensuring that the fitting, tube, and mating connection are compatible and correctly assembled.

Common Symptoms of a Damaged Return Tube Fitting

Fluid Leakage

A damaged fitting or incorrect tube connection may allow coating material to escape at the return-line interface.

Loose Tube Connection

Worn or damaged connection features may prevent the return tube from remaining correctly seated.

Cracks or Deformation

Physical damage to the fitting can compromise its connection geometry or suitability for continued service.

Restricted Return Flow

A blocked or damaged connection may contribute to restricted fluid movement through the return path.

These conditions may also originate from damaged tubing, incorrect installation, contamination, or a defective by-pass valve. Diagnose the complete return-flow connection before replacing the fitting.

Inspection & Replacement Guidance

1. Relieve fluid pressure. Follow Titan's complete pressure-relief procedure before disconnecting the return tube or servicing the fitting.

2. Disconnect the power source. Shut down the sprayer and isolate its electrical supply before performing fluid-system maintenance.

3. Confirm the correct fitting. Verify Titan part number 2442856 against the Impact X 410 filter assembly parts diagram.

4. Inspect the return tube. Examine the tube and connection area for cracks, wear, deformation, contamination, or other signs of damage.

5. Inspect the mating interface. Check the fitting connection and adjacent assembly surfaces for damage that could prevent proper installation or sealing.

6. Remove the defective fitting. Use Titan's approved removal procedure and appropriate tools. Avoid damaging the return tube or surrounding fluid-system components.

7. Install the replacement. Follow the manufacturer's specified connection, retention, sealing, and tightening requirements. Do not force incompatible components together or use unapproved sealants.

8. Verify return-flow operation. Complete the prescribed priming and operational checks. Inspect for leakage from a safe position and confirm that the return tube remains properly connected.

Related Parts & Return-Line Service Planning

Titan 2440405 By-Pass Valve Assembly: Controls the designated by-pass fluid path. Inspect its operation when diagnosing priming or unwanted return-flow problems.
Titan 227-006 1/4-inch Outlet Fitting: Provides a separate outlet connection within the fluid system. Do not substitute it for the return tube fitting.
Titan 2424886A Filter Bowl: Inspect the filter housing and adjacent fluid-system components for damage or leakage during service.
Titan 700-537 Gasket: A separately identified sealing component in the filter assembly parts group. Verify its designated installation position from the applicable diagram.
Return Tube & Retention Components: Inspect the installed tubing and any manufacturer-specified connection hardware. Confirm their individual part numbers before ordering.
Professional Airless Sprayer Return Flow & Fluid Connection Maintenance

Order Titan 2442856 Return Tube Fitting

Maintain the designated return-tube connection on your Titan Impact X 410 with the correctly identified replacement fitting from AllTitanParts. Verify the installed return-line configuration, inspect the tube and mating components, and select the parts required for a properly diagnosed repair.

Frequently Asked Questions

Answers about Titan 2442856 compatibility, return-line function, troubleshooting, and replacement.

What is Titan 2442856 Return Tube Fitting?

It is a replacement connection component identified in the Titan Impact X 410 filter assembly parts listing. It provides the designated interface for the sprayer's fluid return tube.

Which Titan sprayer uses return tube fitting 2442856?

The Titan Impact X 410 airless sprayer is identified in the relevant filter assembly parts listing. Additional model compatibility must be confirmed using the applicable manufacturer parts documentation.

What does a return tube fitting do on an airless sprayer?

It provides the designated connection for the fluid return tube, supporting the intended return-flow path during priming and other manufacturer-specified fluid-circulation operations.

Is Titan 2442856 the same as Titan 227-006 Outlet Fitting?

No. Titan 2442856 is identified as a return tube fitting, while Titan 227-006 is separately identified as a 1/4-inch outlet fitting. They have different part numbers and designated connection functions.

Can a damaged return tube fitting cause fluid leakage?

Yes. A damaged fitting, incorrectly seated tube, or defective mating connection can allow coating material to leak. Inspect the entire connection to determine which component requires replacement.

Does Titan 2442856 include the return tube?

The product is identified as a return tube fitting. Do not assume that return tubing, separate clamps, seals, or additional fittings are included unless the product package explicitly confirms them.

What should I inspect before ordering Titan 2442856?

Confirm the complete part number and fitting location in the Impact X 410 parts diagram. Inspect the return tube, connection surfaces, and applicable retention hardware to determine whether additional components require replacement.
