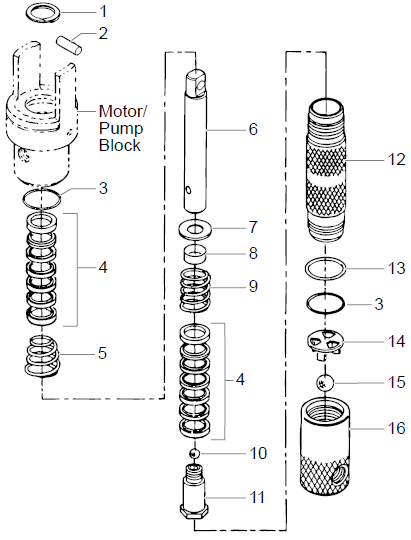

PowrTwin 3500 50th Ann. Fluid Pump

PowrTwin 3500 50th Ann. Fluid Pump
Titan 143-019 Retaining Ring
Titan 143-019 Retaining Ring

Item No: 1

Part #: 143-019

  PowrBeast / PowrLiner / PowrTwin part 143-019 is a retaining ring designed to secure c...

$18.70
QTY:
Titan 107-003 Connecting Pin
Titan 107-003 Connecting Pin

Item No: 2

Part #: 107-003

  Titan part 107-003 is a connecting pin used to link critical mechanical components in ...

$18.50
QTY:
Titan 106-015 O-Ring PTFE
Titan 106-015 O-Ring PTFE

Item No: 3

Part #: 106-015

  Titan part 106-015 is a PTFE O‑ring engineered for high‑performance sealing in cri...

$15.60
QTY:

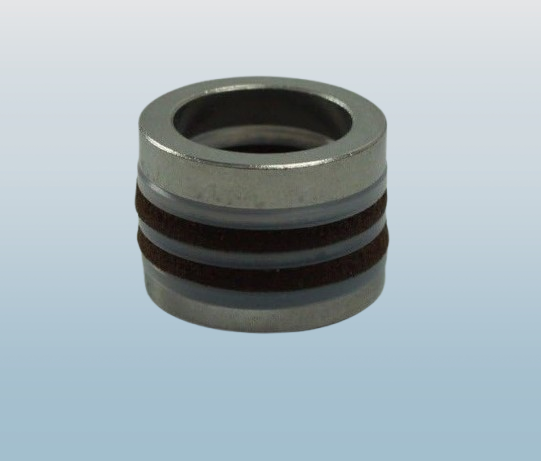

Titan 106-002A Repacking Set
Titan 106-002A Repacking Set

Item No: 4

Part #: 106-002A

  Titan part 106-002A is a repacking set designed to rebuild the pump fluid section on compa...

Retail Price: $89.30
You save: $7.41 (8.30%)
Our Price: $81.89
QTY:
Titan 106-005 Upper Packing Spring
Titan 106-005 Upper Packing Spring

Item No: 5

Part #: 106-005

  Titan part 106-005 is an upper packing spring designed to maintain proper tension on t...

$15.60
QTY:
Titan 107-029 Displacement Rod
Titan 107-029 Displacement Rod

Item No: 6

Part #: 107-029

  Part 107-029 is a displacement rod designed for high‑performance airless paint spray...

Retail Price: $189.30
You save: $23.66 (12.50%)
Our Price: $165.64
QTY:
Titan 106-001 Spring Retainer
Titan 106-001 Spring Retainer

Item No: 7

Part #: 106-001

  Titan part 106-001 is a spring retainer designed to securely position and retain the s...

$20.40
QTY:

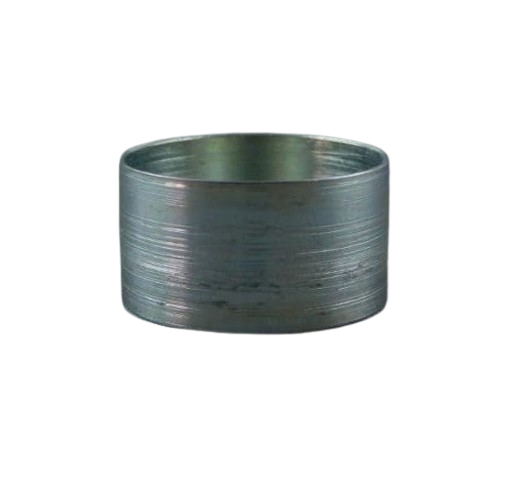

Titan 106-116 Sleeve Spring
Titan 106-116 Sleeve Spring

Item No: 8

Part #: 106-116

  Titan part 106-116 is a sleeve spring used in the pump or valve assembly of compatible...

$25.50
QTY:
Titan 106-016 Lower Packing Spring
Titan 106-016 Lower Packing Spring

Item No: 9

Part #: 106-016

  Titan part 106-016 is a lower packing spring used in the pump manifold of compatible Pow...

Retail Price: $30.90
You save: $1.7 (5.50%)
Our Price: $29.20
QTY:
Titan 569-021 Ball Outlet Valve
Titan 569-021 Ball Outlet Valve

Item No: 10

Part #: 569-021

  AirCoat / PowrBeast / PowrLiner / PowrTwin part 569-021 is a ball outlet valve designe...

$5.90
QTY:

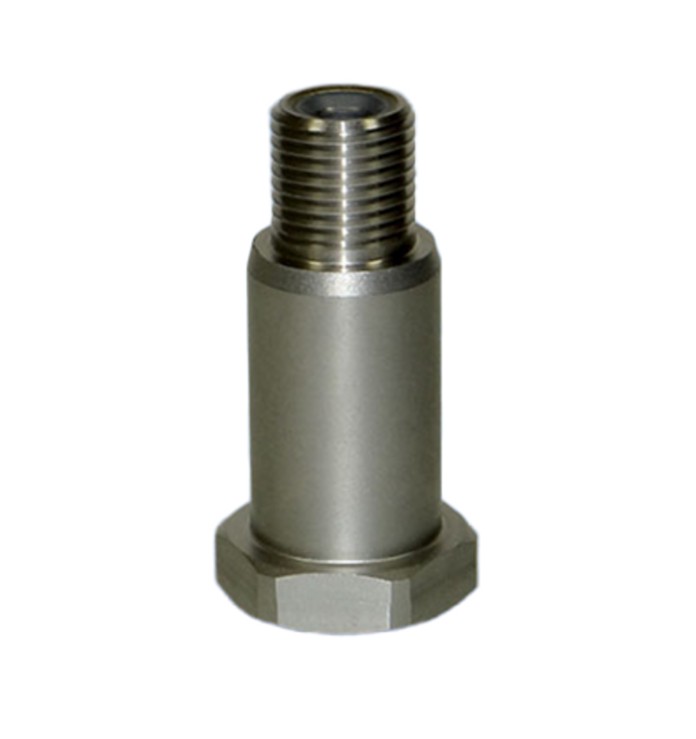

Titan 106-011A Piston seat, pkgd
Titan 106-011A Piston seat, pkgd

Item No: 11

Part #: 106-011A

Titan 106-011A Piston seat, pkgd *Replaced Part # 106-011*fits: PowrTwin 3500,  PowrTwin 4500, ...

Retail Price: $237.30
You save: $32.98 (13.90%)
Our Price: $204.32
QTY:
Titan 106-014 O-Ring
Titan 106-014 O-Ring

Item No: 13

Part #: 106-014

  Titan part 106-014 is a replacement O‑ring designed to create a reliable fluid seal ...

$4.80
QTY:
Titan 138-340 Foot Valve Ball
Titan 138-340 Foot Valve Ball

Item No: 15

Part #: 138-340

  PowrLiner / PowrTex / PowrTwin / PowrBeast / Admiral / Commander part 138-340 is a foo...

$12.20
QTY:
Titan 107-013 Foot Valve Assembly
Titan 107-013 Foot Valve Assembly

Item No: 16

Part #: 107-013

  Titan part 107-013 is a foot valve assembly used to control paint flow from the contai...

Retail Price: $308.90
You save: $45.1 (14.60%)
Our Price: $263.80
QTY:

PowrTwin 3500 50th Ann Fluid Pump Parts

The PowrTwin 3500 50th Ann Fluid Pump Parts are designed to deliver consistent fluid movement, reliable pressure generation, and efficient coating transfer throughout the spraying system. As one of the most critical assemblies in the sprayer, the fluid pump draws material from the supply source and pressurizes it for delivery to the spray gun. This assembly includes essential components such as the displacement rod, pump cylinder, foot valve assembly, piston seat, packing springs, O-rings, retaining rings, connecting pins, and repacking kits.

Built for demanding commercial and industrial applications, these components work together to maintain smooth pump strokes, stable pressure output, and consistent spray performance. Properly maintained fluid pump parts help reduce downtime, improve coating efficiency, and extend the service life of the sprayer. Wear items such as packings, valve components, and seals should be inspected regularly to ensure optimal operation.

Routine servicing of the PowrTwin 3500 50th Ann Fluid Pump Parts helps prevent pressure loss, material leakage, and uneven spray patterns. Replacing worn components before failure can significantly improve pump efficiency and maintain reliable performance on large-scale painting and coating projects.

FAQs

Loss of prime is commonly caused by a worn foot valve assembly, damaged valve ball, or debris preventing the valve from sealing properly.

This issue is often linked to worn packings, damaged O-rings, or excessive wear on the displacement rod that prevents proper sealing.

Continuous cycling typically indicates worn piston seats, leaking packings, or internal valve wear that allows pressure to bypass inside the pump.

Reduced output can occur when the pump cylinder becomes worn, the inlet valve is partially blocked, or internal pump components are no longer sealing effectively.

Uneven strokes are usually caused by damaged packing springs, worn connecting components, or buildup of dried coating material inside the pump assembly affecting smooth movement.
