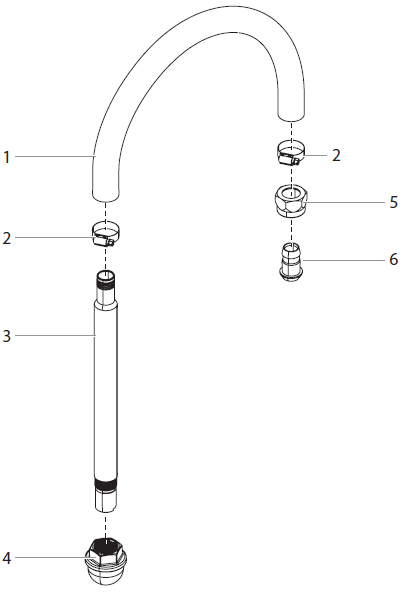

PowrLiner 3500/3500s Siphon Hose Assembly Parts P/N 0537242A

PowrLiner 3500/3500s Siphon Hose Assembly Parts (P/N 0537242A)

The PowrLiner 3500/3500s Siphon Hose Assembly plays a critical role in keeping your line striping machine running smoothly. This assembly is responsible for pulling paint from the container and delivering it consistently to the pump. When any part of the siphon system is worn, clogged, or loose, it can lead to poor suction, uneven spray patterns, or frequent interruptions on the job.

Designed specifically for Titan PowrLiner 3500 and 3500s models, these OEM replacement parts are built for durability and dependable performance in demanding striping environments. Whether you’re maintaining your equipment or replacing damaged components, this siphon hose assembly helps ensure steady paint flow, reduced downtime, and reliable results on every project.

Key Components

• Titan 253426 Union Nut – Secures the siphon connection tightly to prevent leaks and air intake.
• Titan 710-046 Inlet Screen – Filters out debris before it enters the pump, protecting internal components.
• Titan 103-679 Hose Clamp – Keeps hoses firmly in place to maintain strong suction.
• Titan 0537512A Down Tube – Extends into the paint container, allowing smooth and efficient material pickup.

FAQs

1. What does the siphon hose assembly do on a PowrLiner 3500/3500s?

The siphon hose assembly draws paint from the container and feeds it into the pump. A properly working assembly ensures smooth, consistent paint flow and helps prevent pressure loss or spray interruptions.

2. Why is the Titan 710-046 inlet screen important?

The inlet screen acts as the first line of defense against debris. It catches dirt, dried paint, or small particles before they can enter the pump, helping prevent clogs and costly damage.

3. What happens if the union nut or hose clamp becomes loose?

Loose fittings can allow air into the suction line, which reduces suction power and causes uneven spraying. Replacing or tightening worn union nuts and hose clamps restores proper sealing and performance.

4. When should the down tube be replaced?

The down tube should be replaced if it becomes cracked, bent, or heavily worn. A damaged down tube can restrict paint flow or allow air leaks, affecting spray consistency.

5. Can I replace individual siphon hose parts instead of the full assembly?

Yes. Each component such as the inlet screen, hose clamp, union nut, or down tube can be replaced individually. This makes routine maintenance more cost-effective and extends the life of your machine.
