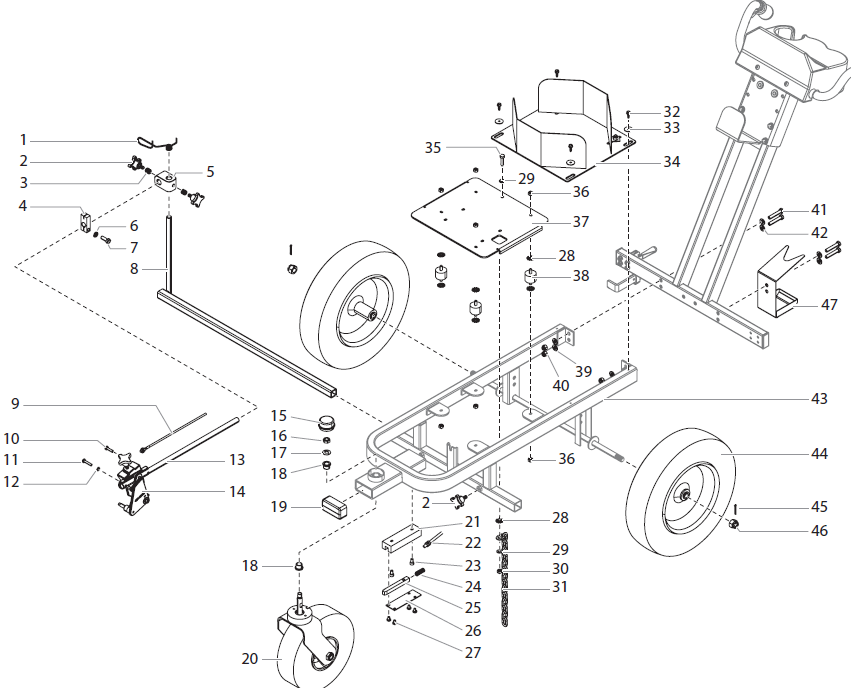

PowrLiner 3500/3500s Cart Assembly 1 Parts

PowrLiner 3500/3500s Cart Assembly 1 Parts

Titan 424-288 Cable Tension Guide

Titan 424-288 Cable Tension Guide

Item No: 1

Part #: 424-288

This Titan 424-288 cable tension guide is a direct replacement component designed for ...

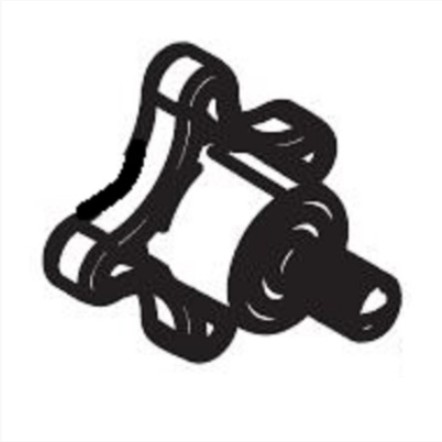

Titan 0290349 Knob Assembly

Titan 0290349 Knob Assembly

Item No: 2

Part #: 0290349

Knob Assembly for PowrLiner Sprayers (3500 Series, 4500, 5500, and More) The Po...

Titan 0290350 Spring

Titan 0290350 Spring

Item No: 3

Part #: 0290350

PowrLiner part 0290350 is a spring used in the pressure control or unloader valve asse...

Titan 424-226 Cable Mounting Clamp

Titan 424-226 Cable Mounting Clamp

Item No: 4

Part #: 424-226

Part number 424-226 is a Cable Mounting Clamp used in various PowrLiner models includi...

Retail Price: $91.30

You save: $7.58 (8.30%)

Our Price: $83.72

Titan 0290899 Clamp Body

Titan 0290899 Clamp Body

Item No: 5

Part #: 0290899

Titan 0290899 Clamp Body - Secure and Durable Connection Ensure a firm and stable connection with...

Retail Price: $107.60

You save: $11.19 (10.40%)

Our Price: $96.41

Titan 0509292 Lock washer

Titan 0509292 Lock washer

Item No: 6

Part #: 509292

Part 0509292 is a replacement lock washer used in various assembly points across a wide range of...

Titan 862-436 Screw

Titan 862-436 Screw

Item No: 7

Part #: 862-436

Hydra / Advantage / PowrBeast / PowrLiner / PowrTwin / ProMark II / RentSpray part 862...

Titan 0290167A Gun Riser Weldment

Titan 0290167A Gun Riser Weldment

Item No: 8

Part #: 0290167A

This Titan 0290167A gun riser weldment is a direct replacement structural component de...

Retail Price: $227.60

You save: $28.45 (12.50%)

Our Price: $199.15

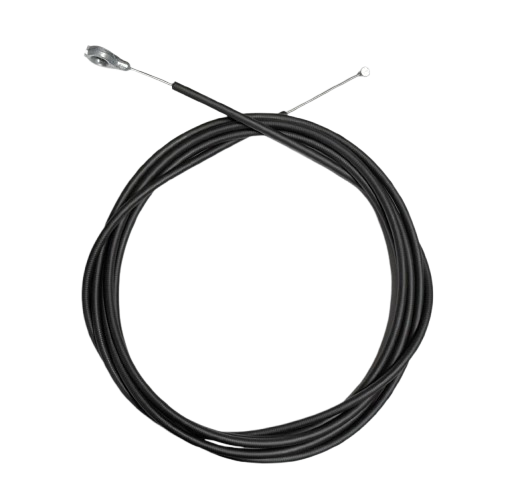

Titan 0537518 Gun Cable

Titan 0537518 Gun Cable

Item No: 9

Part #: 0537518

Titan 0537518 Gun Cable - Reliable Connection for Spray Systems Titan 0537518 Gun...

Retail Price: $50.00

You save: $3.8 (7.60%)

Our Price: $46.20

Titan 858-636 Bracket Screw

Titan 858-636 Bracket Screw

Item No: 10

Part #: 858-636

Part 858-636 is a genuine Bracket Screw used to secure critical components—such as m...

Titan 858-002 Lock Washer

Titan 858-002 Lock Washer

Item No: 11

Part #: 858-002

Part number 858-002 is a lock washer designed to prevent nuts and bolts from loosening...

Titan 9805456 Screw

Titan 9805456 Screw

Item No: 12

Part #: 9805456

Part 9805456 is a specific screw used as a fastener in various sprayer assemblies. It secures panels...

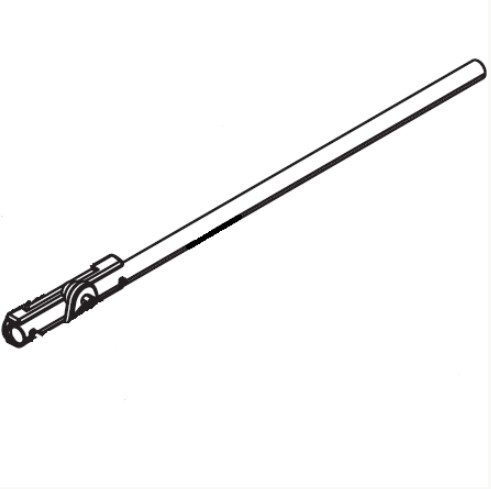

Titan 0290327 support arm

Titan 0290327 support arm

Item No: 13

Part #: 0290327

Titan 0290327 support armFits: Powrliner 3500, Powrliner 8955, Powrliner 6955 and Powrliner 4955

Retail Price: $94.40

You save: $7.84 (8.31%)

Our Price: $86.56

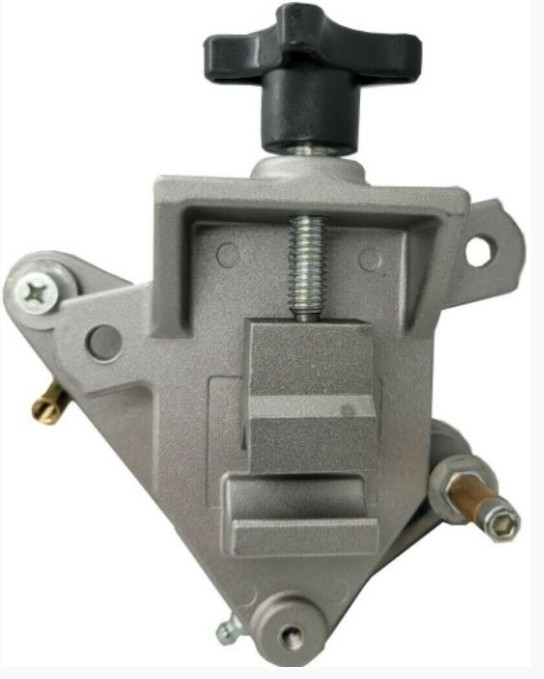

Titan 0290381 Gun holder assembly

Titan 0290381 Gun holder assembly

Item No: 14

Part #: 0290381

Titan 0290381 Gun holder assembly, gun holder, pl, pkgd – Secure and Reliable Mounting for Spray G...

Retail Price: $314.30

You save: $45.89 (14.60%)

Our Price: $268.41

Titan 779-086 End Cap

Titan 779-086 End Cap

Item No: 15

Part #: 779-086

Part number 779-086 is an end cap designed to seal or close off the open end of a tube...

Titan 759-063 Hexagonal Nut

Titan 759-063 Hexagonal Nut

Item No: 16

Part #: 759-063

Titan part 759-063 is a hexagonal nut used to secure critical components in the drive as...

Titan 759-514 Spring Washer LC800

Titan 759-514 Spring Washer LC800

Item No: 17

Part #: 759-514

Part number 759-514 is a spring washer used in LC800 pump assemblies and PowerLiner se...

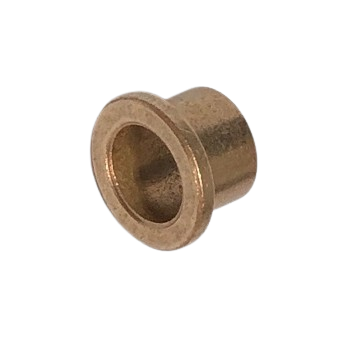

Titan 759-430 Flanged Bearing, 5/8

Titan 759-430 Flanged Bearing, 5/8

Item No: 18

Part #: 759-430

Part number 759-430 is a 5/8 inch Flanged Bearing that supports rotating shafts and reduces friction...

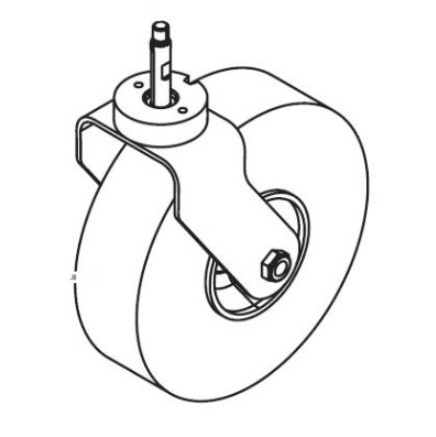

Titan 0290143A Wheel assembly

Titan 0290143A Wheel assembly

Item No: 20

Part #: 0290143A

This Titan 0290143A wheel assembly is a direct replacement component designed for use ...

Retail Price: $262.00

You save: $32.75 (12.50%)

Our Price: $229.25

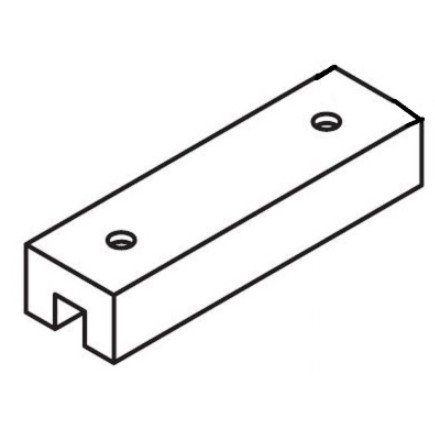

Titan 0290897 Block

Titan 0290897 Block

Item No: 21

Part #: 0290897

Titan 0290897 BLOCK - Durable and Reliable Component Titan 0290897 Block is a must-have for profe...

Retail Price: $98.80

You save: $8.2 (8.30%)

Our Price: $90.60

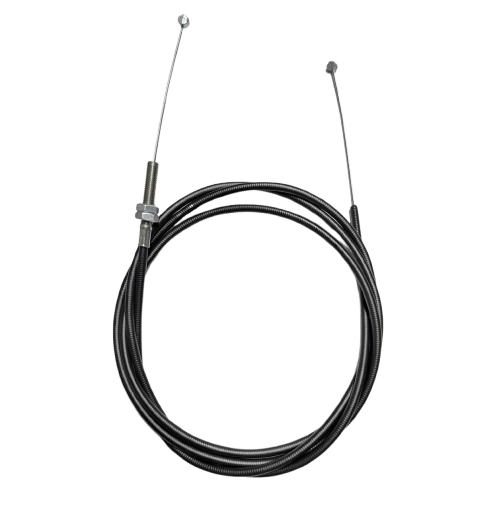

Titan 0537542 Cable, wheel lock

Titan 0537542 Cable, wheel lock

Item No: 22

Part #: 0537542

Titan 0537542 Cable, wheel lock, pl3500 - Secure Locking Mechanism Titan 0537542 Cable, Wheel Lock,...

Retail Price: $40.20

You save: $3.06 (7.61%)

Our Price: $37.14

Titan 9805455 Screw

Titan 9805455 Screw

Item No: 23

Part #: 9805455

Titan part 9805455 is a replacement screw used to secure various components on compati...

Titan 756-087 Spring

Titan 756-087 Spring

Item No: 24

Part #: 756-087

Part number 756-087 is a replacement spring used in PowerLiner series airless sprayers...

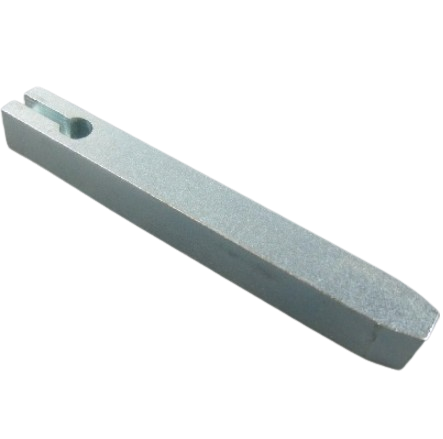

Titan 0290898 Caster Lock Pink

Titan 0290898 Caster Lock Pink

Item No: 25

Part #: 0290898

Titan 0290898 Caster Lock Pink - Secure and Durable Locking Ensure stability and precision with T...

Retail Price: $40.90

You save: $3.11 (7.60%)

Our Price: $37.79

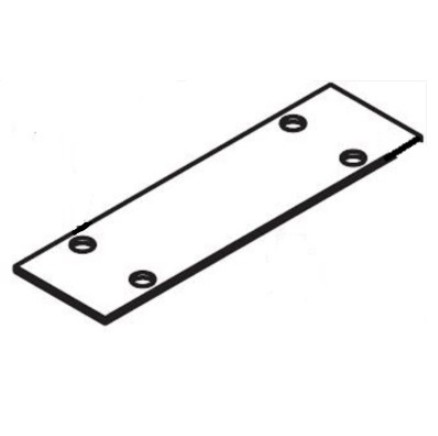

Titan 0290896 Block Cover

Titan 0290896 Block Cover

Item No: 26

Part #: 0290896

Titan 0290896 Block Cover - Durable Protection for Titan Equipment Titan 0290896 Block Cover is a...

Titan 0509219 Screw

Titan 0509219 Screw

Item No: 27

Part #: 0509219

Part 0509219 is a replacement screw used in various assembly points across a wide range of compa...

Titan 9822639 Lock washer

Titan 9822639 Lock washer

Item No: 28

Part #: 9822639

Titan 9822639 Lock washer is a 5/16-inch internal/external tooth lock washer for Titan Powrliner and...

Titan 756-088 Washer Sae Flat 5/16

Titan 756-088 Washer Sae Flat 5/16

Item No: 29

Part #: 756-088

Part 756-088 is a standard 5/16-inch SAE flat washer used in various sprayer assemblies. It dist...

Titan 9811122 Nut

Titan 9811122 Nut

Item No: 30

Part #: 9811122

Part 9811122 Nut is a genuine replacement fastener used across multiple Elite, Helix, ...

Titan 0537919 Chain, cut to length, 19

Titan 0537919 Chain, cut to length, 19"(replaces Titan 424-283)

Item No: 31

Part #: 0537919

Titan 0537919 Chain, cut to length, 19" - Durable and Versatile replaces Titan 424-283 Titan 053791...

Retail Price: $74.80

You save: $6.21 (8.30%)

Our Price: $68.59

Titan 9805460 Self Drilling Screw

Titan 9805460 Self Drilling Screw

Item No: 32

Part #: 9805460

Part number 9805460 is a Self Drilling Screw that provides secure fastening for components on compat...

Titan 770-223 Washer, STL, 1/4ID x 1

Titan 770-223 Washer, STL, 1/4ID x 1" OD

Item No: 33

Part #: 770-223

Part 770-223 Washer, STL, 1/4" ID x 1" OD is a precision flat washer manufactured from...

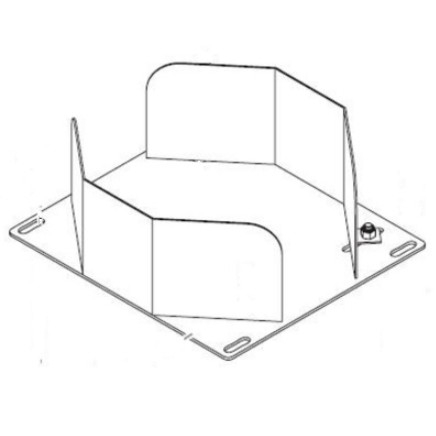

Titan 0290697A Bucket Holder Assembly

Titan 0290697A Bucket Holder Assembly

Item No: 34

Part #: 0290697A

Part number 0290697A is a bucket holder assembly designed to securely hold a paint pai...

Retail Price: $382.10

You save: $55.79 (14.60%)

Our Price: $326.31

Titan 860-544 Screw, HEX HD

Titan 860-544 Screw, HEX HD

Item No: 35

Part #: 860-544

TITAN 860-544 or 860544 SCREW, HEX HD, 5/16-18 X 1-1/4 - Secure and Durable Fastening Titan 860-544...

Titan 9811122 Nut

Titan 9811122 Nut

Item No: 36

Part #: 9811122

Part 9811122 Nut is a genuine replacement fastener used across multiple Elite, Helix, ...

Titan 0537516 Vibration mount

Titan 0537516 Vibration mount

Item No: 38

Part #: 0537516

Titan 0537516 Vibration mount - Stability and Performance Titan 0537516 Vibration Mount is an essen...

Titan 0509285 Flat Washer

Titan 0509285 Flat Washer

Item No: 39

Part #: 0509285

Titan 0509285 Flat Washer or Washer,flat 3/8 replaces Titan 862-001.Fits the following models: PowrL...

Titan 862-410 Locknut

Titan 862-410 Locknut

Item No: 40

Part #: 862-410

Genuine replacement part 862-410 is a locknut designed to securely fasten components w...

Titan 9805477 Screw, Hex Head

Titan 9805477 Screw, Hex Head

Item No: 41

Part #: 9805477

Titan part 9805477 is a hex head screw used to secure components on compatible PowrLin...

Titan 0509285 Flat Washer

Titan 0509285 Flat Washer

Item No: 42

Part #: 0509285

Titan 0509285 Flat Washer or Washer,flat 3/8 replaces Titan 862-001.Fits the following models: PowrL...

Titan 0290096A Frame Weldment

Titan 0290096A Frame Weldment

Item No: 43

Part #: 0290096A

Part number 0290096A is a Frame Weldment that provides the primary structural foundation for compati...

Retail Price: $1453.80

You save: $232.61 (16.00%)

Our Price: $1221.19

Titan 756-079 Cotter Pin

Titan 756-079 Cotter Pin

Item No: 45

Part #: 756-079

Part 756-079 is a replacement cotter pin for a wide range of compatible PowrLiner equipment. Thi...

Discontinued by Manufacturer

Titan 756-078 Castle Nut 5/8-18

Titan 756-078 Castle Nut 5/8-18

Item No: 46

Part #: 756-078

Part 756-078 is a replacement 5/8-18 castle nut for compatible HVLP and PowrLiner equipment. Thi...

PowrLiner 3500 / 3500S Cart Assembly 1 Parts

The PowrLiner 3500 / 3500S Cart Assembly 1 Parts play a critical role in maintaining spray accuracy, operator control, and overall machine stability for Titan PowrLiner 3500 and 3500S line stripers. Designed for professional striping applications, these OEM components secure the spray gun, manage cable routing, and reduce vibration during operation—ensuring clean, consistent line quality on every job.

This assembly includes essential parts such as the Titan 0290381 Gun Holder Assembly, Titan 0537516 Vibration Mount, Titan 424-226 Cable Mounting Clamp, Titan 0290350 Spring, Titan 0290349 Knob Assembly, and Titan 424-288 Cable Tension Guide. Together, these components stabilize the spray gun, control cable tension, and absorb machine vibration caused by continuous use and uneven surfaces.

Using genuine Titan OEM cart assembly parts guarantees proper fitment, reliable performance, and long-term durability. Whether you are replacing worn components or restoring your PowrLiner to factory condition, these parts help minimize downtime and maintain professional-grade striping accuracy.

FAQs

1. What does the Titan 0290381 Gun Holder Assembly do?

The Titan 0290381 gun holder assembly secures the spray gun in the correct position during striping. A worn or loose holder can cause gun movement, leading to uneven lines and reduced accuracy.

2. Why is the Titan 0537516 Vibration Mount important?

The vibration mount helps absorb machine movement and engine vibration during operation. If the mount is damaged or worn, excessive vibration can affect line quality and increase wear on surrounding components.

3. When should the Titan 0290349 Knob Assembly or Titan 0290350 Spring be replaced?

These parts should be replaced if adjustments no longer hold securely or if the gun tension feels loose or inconsistent. Proper spring tension and knob function are essential for maintaining accurate spray alignment.

4. What role do the Titan 424-226 Cable Mounting Clamp and Titan 424-288 Cable Tension Guide play?

These components manage cable routing and tension, ensuring smooth gun engagement and release. Worn clamps or guides can cause cable binding, delayed response, or inconsistent spray control.

5. Is Cart Assembly 1 compatible with both PowrLiner 3500 and 3500S models?

Yes, these cart assembly 1 parts are specifically designed for use with both the PowrLiner 3500 and 3500S, ensuring proper fit, reliable operation, and factory-level performance.
