PowrLiner 3500/3500s Outlet Valve Assembly Parts

PowrLiner 3500 / 3500S Outlet Valve Assembly Parts

The PowrLiner 3500 / 3500S Outlet Valve Assembly Parts are essential for maintaining proper fluid flow and pressure regulation in your Titan PowrLiner 3500 or 3500S line striper. The outlet valve assembly controls the exit of paint from the pump to the spray gun, ensuring steady pressure and preventing backflow or leaks.

Using genuine Titan replacement parts helps restore the pump’s reliability and performance by ensuring correct sealing, spring tension, and valve alignment. Whether you’re experiencing pressure drops, pulsation, or leaks, replacing the outlet valve components with OEM parts can resolve these issues and extend the life of your machine.

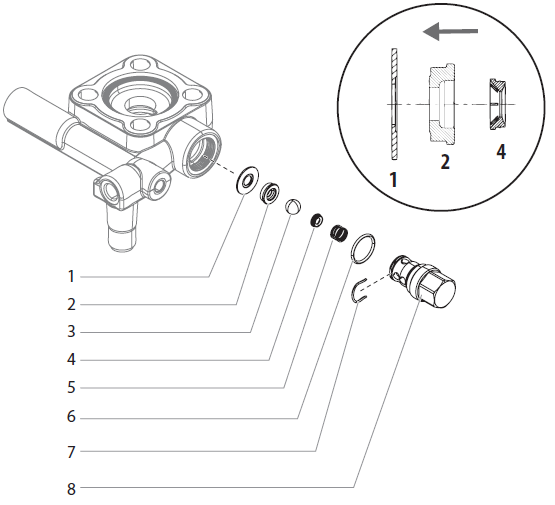

Key Parts in the Outlet Valve Assembly

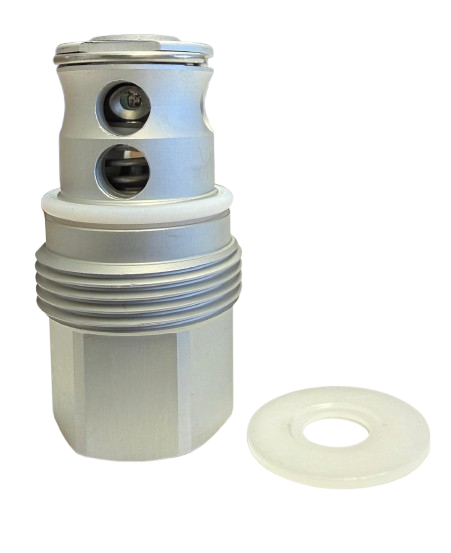

• Titan 2413371 Outlet Valve Assembly Replacement Set – Includes essential components needed to rebuild or replace the outlet valve assembly.

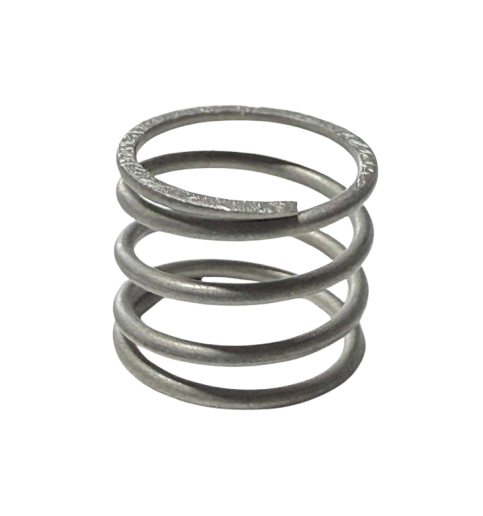

• Titan 341326 Compression Spring – Provides the necessary tension for proper valve operation.

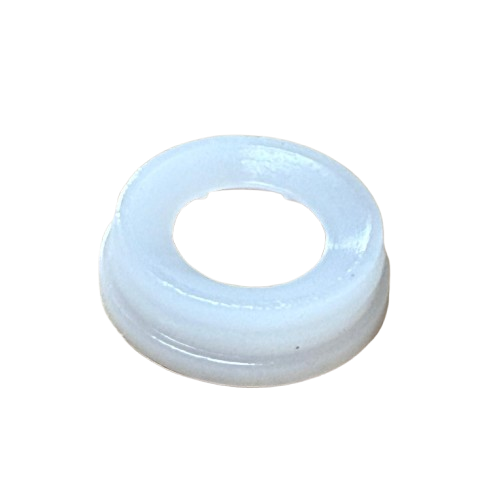

• Titan 253405 Spring Support Ring – Supports the spring and maintains correct positioning within the valve.

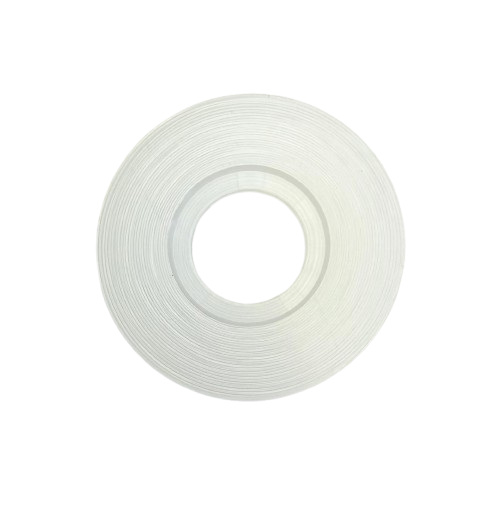

• Titan 341347 Seal – Ensures tight sealing to prevent leaks and maintain pressure.

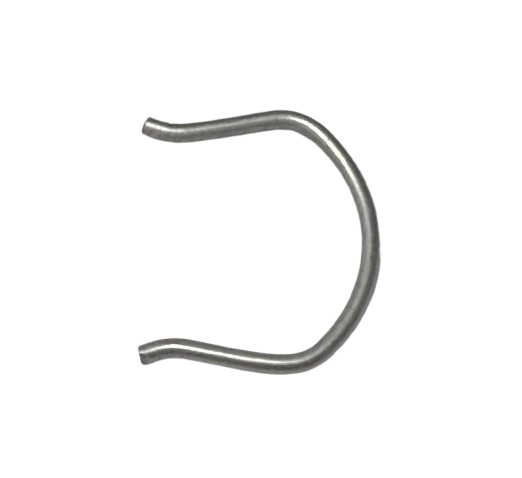

• Titan 0341328 Clip – Secures valve components in place and prevents movement during operation.

Replacing worn outlet valve parts restores smooth flow and improves overall striping performance, especially during long runs or heavy-duty applications.

FAQs

What are the signs that the outlet valve assembly needs replacement?

Common signs include pressure loss, inconsistent spray output, pulsation, or paint leaking from the pump area. These symptoms often indicate worn seals, weak springs, or damaged valve components.

How does the Titan 341326 Compression Spring affect valve performance?

The Titan 341326 compression spring provides tension to keep the valve seated properly. If the spring becomes weak or damaged, the valve may fail to seal correctly, causing pressure loss and poor spray performance.

When should I replace the Titan 341347 Seal and Titan 253405 Spring Support Ring?

Replace the seal and support ring whenever you rebuild the outlet valve assembly or if you notice leaks or reduced pressure. Worn seals and support rings can compromise valve integrity and lead to premature pump wear.

What is included in the Titan 2413371 Outlet Valve Assembly replacement set?

The Titan 2413371 replacement set includes the necessary components to rebuild the outlet valve assembly, typically including seals, springs, support rings, and clips. This set helps restore proper valve function without needing a full valve replacement.

1. Can I rebuild the outlet valve assembly myself?
   Yes, most technicians can rebuild the outlet valve assembly using the replacement set and individual parts. Proper cleaning, correct assembly, and correct spring positioning are essential to ensure reliable valve operation and prevent leaks.
