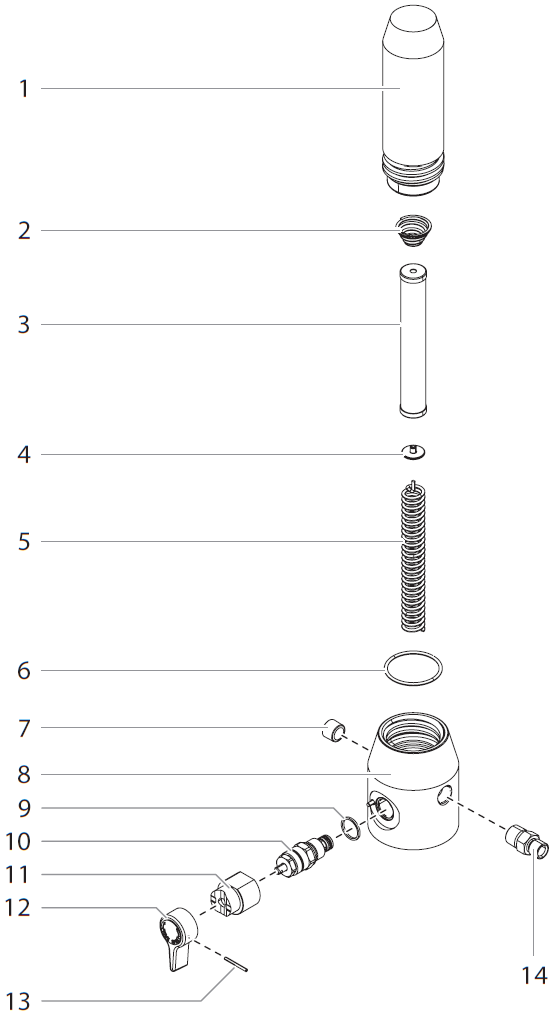

Impact 740 Filter Assembly Parts (P/N 805-269A)

Titan 700-258 PrimeSpray Valve Assembly

Item No: -

Part #: 700-258

Titan 700-258 PrimeSpray Valve Assembly replaces obsolete Titan parts Titan 800-915, Titan 761-757 a...

Retail Price: $125.10

You save: $13.01 (10.40%)

Our Price: $112.09

QTY:

Titan 800-905 Filter Body (can be ordered as Titan 800-705)

Item No: 1

Part #: 800-905

Titan 800-905 Filter Body or Manifold Filter Body Bowl is replaced by Titan 800-705 for various Tita...

Retail Price: $168.00

You save: $17.47 (10.40%)

Our Price: $150.53

Discontinued by Manufacturer

Titan 14058 Filter Spring

Item No: 2

Part #: 14058

Titan 14058 Filter Spring relaces Titan 800-252, it sits inside the filter housing of the Titan Filt...

$3.70

QTY:

Titan 730-067 60 Mesh Manifold Filter

Item No: 3

Part #: 730-067

Titan 730-067 is a 60 Mesh Manifold Filter designed for filtering latex and enamel paints for Tita...

$18.00

QTY:

Titan 702-251 Filter Screen Adapter

Item No: 4

Part #: 702-251

Titan 702-251 Filter Screen Adapter is same as Titan 508603. This adapter is located at the tip of ...

$9.30

QTY:

Titan 757-105 Filter Support Spring

Item No: 5

Part #: 757-105

Titan 757-105 Filter Support Spring helps keep the filter in place by providing tension in various T...

$10.30

QTY:

Titan 800-906 PFTE O-Ring

Item No: 6

Part #: 800-906

Titan 800-906 PFTE O-Ring is a durable sealing component for Titan sprayers like the Titan Impact 74...

$13.30

QTY:

Titan 805-508 Filter Housing

Item No: 8

Part #: 805-508

Titan 805-508 Filter Housing or Filter Bypass Housing has a few threaded holes that holds the bypass...

Retail Price: $360.80

You save: $52.68 (14.60%)

Our Price: $308.12

QTY:

Titan 700-537 Gasket

Item No: 9

Part #: 700-537

Titan 700-537 Bypass Valve Gasket replaces Titan 507745 ensures proper sealing to prevents leaks in ...

$2.50

QTY:

Titan 800-925 Bypass Valve Assembly

Item No: 10

Part #: 800-925

Titan 800-925 Bypass Valve Assembly is designed for use on various Titan paint sprayers like the Tit...

Retail Price: $157.90

You save: $19.74 (12.50%)

Our Price: $138.16

QTY:

Titan 700-252B Cam Base

Item No: 11

Part #: 700-252B

TitTitan 700-252B Cam Base is a genuine OEM part designed to meet the same specifications and standa...

$6.30

QTY:

Titan 700-697 Valve Handle

Item No: 12

Part #: 700-697

Titan 700-697 Valve Handle is designed for use on various Titan paint sprayers like the Titan Impact...

$18.50

QTY:

Titan 700-759 Groove Pin

Item No: 13

Part #: 700-759

Titan 700-759 Groove Pin is designed for use on various Titan paint sprayers like the Titan Impact 3...

$3.80

QTY:

Titan 812-003 Fitting

Item No: 14

Part #: 812-003

Titan 812-003 Fitting is a hex pipe nipple with the following specifications: 3/8" NPT (M) x 1/4" NP...

$13.10

QTY:

Upgrade Your Spray System with New Impact 740 Filter Assembly Parts

Ensure smooth, clog-free operation of your airless sprayer with genuine Impact 740 Filter Assembly Parts (P/N 805-269A), available exclusively at AllTitanParts.com. Designed to maintain peak spraying efficiency, these OEM components play a critical role in protecting your sprayer from debris and paint blockages that can damage internal components.

The Titan Impact 740 Filter Assembly includes high-performance elements such as the filter housing, filter support, screen, and drain valve components, each engineered to meet Titan’s exact specifications. Whether you’re replacing a worn screen or servicing the entire filter assembly, these parts ensure optimal paint flow and reduce downtime on the job site.

When working with high-performance equipment like the Titan 740, regular filter maintenance is essential. Our detailed parts breakdown helps you quickly identify and order the exact Impact 740 Filter Assembly Parts (P/N 805-269A) you need—saving time, preventing costly mistakes, and extending the life of your sprayer.

At AllTitanParts, we’re committed to providing authentic Titan replacement parts with fast shipping and exceptional support. Don’t settle for aftermarket components—invest in the quality and reliability of genuine Titan parts.

Order your Impact 740 Filter Assembly Parts (P/N 805-269A) today and keep your Titan sprayer operating at its best with clean, consistent results every time.
