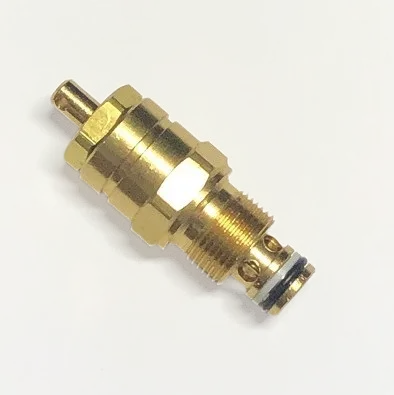

Titan 800-925 Bypass Valve Assembly

Name: Titan 800-925 Bypass Valve Assembly
Brand: Titan
SKU: 800-925
Price: 138.16 USD
Availability: InStock

$138.16

$157.90

Save 13%

Available to Order

Part #: 800-925

OEM Titan PRIME/SPRAY Component

Titan 800-925 Bypass Valve Assembly is a genuine OEM valve component used in the PRIME/SPRAY fluid-control system of compatible Titan airless sprayers. It restores proper fluid routing between prime and spray modes when the original valve is worn, leaking, or sticking.

Brand: Titan Part #: 800-925 Type: Bypass Valve Assembly Primary Fit: Impact 740 / 840 / 1040 / 1140

Compatibility

Brand	Compatible Titan Machine	Part Number	Serviced With	Technical Detail
Titan	Impact 740, 840, 1040, 1140	800-925	Gasket 700-537, handle 700-697, cam base	Manufacturer documentation lists these models for the PRIME/SPRAY bypass valve system.
Titan	Impact 340, 400	800-925	Filter block seals, valve hardware	Listed in replacement-parts cross-references. Verify machine revision.
Titan	RentSpray 650	800-925	Bypass valve components	Cross-referenced for this model. Confirm pump configuration.
Titan	MultiFinish 440	800-925	PRIME/SPRAY valve system	Listed for this spray system. Check filter assembly diagram.

Distinct from 700-258, which is the complete PRIME/SPRAY valve assembly including gasket, cam base, handle, and groove pin. 800-925 is the individual bypass valve component. Inspect the filter block, gasket, and surrounding hardware during repair.

Quantity

Buy Now

Genuine OEM Part Fast Shipping Easy Returns

Titan PRIME/SPRAY Fluid Control Replacement

Titan 800-925 Bypass Valve Assembly for Airless Sprayer Repairs

Titan 800-925 is a genuine OEM bypass valve assembly used in the PRIME/SPRAY fluid-control system of compatible Titan airless sprayers. It restores proper fluid routing between priming and spraying modes when the original valve is worn, leaking, or sticking.

OEM: Titan Part #: 800-925 Type: Bypass Valve Assembly Use: PRIME/SPRAY Fluid Control

Detail	Technical / Commercial Information
Product Overview	OEM Titan bypass valve assembly for the PRIME/SPRAY fluid-control system. Identified as an individual component in applicable filter assembly diagrams.
Function	Directs coating material between prime mode (bypass return to supply) and spray mode (pressurized flow to the gun). A properly seating valve is essential for correct priming and pressure development.
Documented Applications	Manufacturer documentation lists Impact 740, 840, 1040, and 1140. Replacement-parts cross-references also identify Impact 340, Impact 400, RentSpray 650, and MultiFinish 440.
Distinction from 700-258	800-925 is the individual bypass valve assembly. 700-258 is the complete PRIME/SPRAY valve assembly that includes the gasket, cam base, handle, and groove pin in applicable manuals. Select the part that matches your repair scope.
Replacement Indicators	Fluid leakage from the valve body or sealing interface, valve sticking during PRIME/SPRAY operation, failure to route fluid correctly, visible damage or corrosion, and recurring bypass-related problems after other causes are ruled out.
Related Parts Commonly Serviced Together	Gasket 700-537, valve handle 700-697, cam base, groove pin, filter housing, and surrounding fluid connections. These are separately listed and should be inspected during repair.
Installation Note	Follow the manufacturer pressure-relief procedure and disconnect power before servicing. Never loosen a pressurized valve or fitting. Reassemble using the specified orientation and torque values from the service manual.
Target Users / Markets	Painting contractors, rental fleets, maintenance crews, and repair shops running compatible Titan Impact, RentSpray, and MultiFinish sprayers.
Commercial Benefits	Restores correct PRIME/SPRAY fluid routing, eliminates leaks and sticking, and avoids unnecessary replacement of the complete valve assembly when only the valve component is faulty.

The 800-925 Bypass Valve Assembly is the individual valve component, not the complete PRIME/SPRAY kit. Before ordering, confirm the part number in the filter assembly diagram and verify whether the external hardware (gasket, handle, cam base) is already present on your machine. If the entire valve assembly requires replacement, 700-258 may be the correct choice.

Frequently Asked Questions

Contractor-focused answers for confirming fitment, function, and repair scope.

Common Questions
What is Titan 800-925 Bypass Valve Assembly used for? It is a bypass valve assembly in the PRIME/SPRAY fluid-control system that directs coating material between priming and spraying modes.
Which Titan machines use part 800-925? Manufacturer documentation lists Impact 740, 840, 1040, and 1140. Cross-references also identify Impact 340, 400, RentSpray 650, and MultiFinish 440. Verify your specific configuration.
What is the difference between 800-925 and 700-258? 800-925 is the individual bypass valve component. 700-258 is the complete PRIME/SPRAY valve assembly that includes the gasket, cam base, handle, and groove pin. They serve different repair scopes.
Does 800-925 include the gasket and handle? No. Gasket 700-537, valve handle 700-697, and cam base are listed separately. Confirm package contents before ordering.
Can a faulty bypass valve cause priming problems? Yes. A sticking or leaking bypass valve can interfere with priming and fluid routing. However, blocked filters, inlet valves, and air leaks can produce similar symptoms.
