Titan Impact 740 & 840 Drive Assembly Parts
Shop genuine OEM Titan Impact 740 & 840 Drive Assembly Parts for servicing the mechanical drive system of the applicable airless sprayer. Use the correct model-specific exploded drive drawing to identify the component you need, match its numbered callout with the exact Titan OEM part number, and verify the required quantity and machine configuration before ordering.
Find the Correct Impact 740 & 840 Drive Assembly Parts
The drive assembly is part of the mechanical system that transfers motion to the sprayer's pumping mechanism. Components in this area operate together under repeated load, making correct identification, inspection, alignment, lubrication where specified, and proper installation important during service.
Because the Impact 740 and Impact 840 are separate sprayer models, never assume that every drive component is interchangeable between them. Confirm the exact machine model, select the applicable exploded drive assembly drawing, locate the required callout, and match it with the correct Titan OEM part number before purchasing.
What Does the Impact 740 & 840 Drive Assembly Do?
The drive system transfers mechanical motion through the sprayer so the fluid section can perform its pumping cycle. The components shown on the applicable drive assembly drawing work together with the motor and pump-related systems during normal sprayer operation.
Wear, contamination, damaged mating surfaces, looseness, incorrect assembly, or problems in adjoining components can affect drive operation. Diagnosis should therefore include the complete mechanical path rather than replacing a single component solely because it appears worn.
Impact 740 & 840 Drive System Areas to Inspect
Exact component names, quantities, locations, and model applications should always be confirmed from the applicable Titan drive assembly diagram and parts listing.
Inspect the applicable mechanical drive components for visible wear, scoring, damage, binding, contamination, or abnormal movement.
Check applicable bearing and support locations for excessive movement, wear, contamination, damage, or other conditions affecting smooth mechanical operation.
Inspect applicable housings, mounting points, mating surfaces, and attachment areas for damage, looseness, deformation, or incorrect assembly.
Verify applicable screws, bolts, washers, retainers, and other hardware against the correct exploded drawing before reassembly.
Find Your Impact 740 or 840 Drive Parts Faster

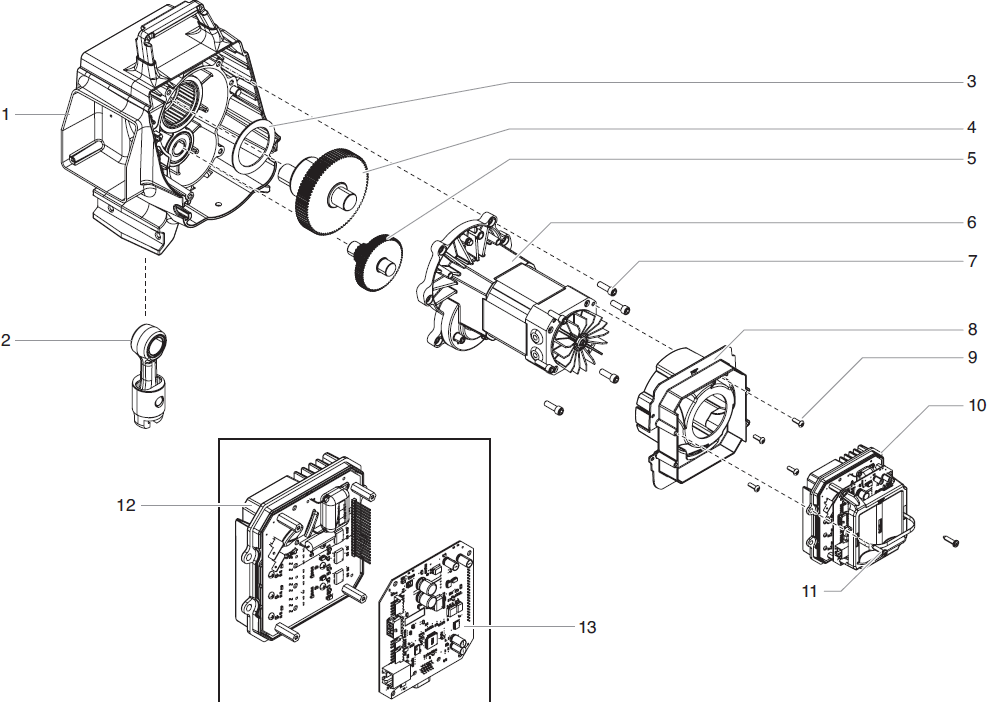

Use the model-specific exploded drawing rather than appearance alone. These four steps provide a reliable way to identify the correct genuine Titan OEM drive component.
Determine whether the machine being serviced is a Titan Impact 740 or Impact 840.
Use the drive assembly drawing that corresponds with the exact model and machine configuration.
Identify the required drive component on the exploded drawing and note its numbered reference.
Match the callout with the exact Titan OEM part number and confirm the required quantity before ordering.
Hearing Abnormal Noise or Feeling Unusual Vibration?
Unusual mechanical noise, vibration, binding, or irregular pump movement should be diagnosed before replacing individual drive parts. Inspect the drive system, mounting points, adjoining mechanical components, and fluid section for conditions that may be contributing to the symptom.
Stop operating the sprayer if continued use could worsen mechanical damage. Follow the applicable Titan service procedure before opening or disassembling the drive system.
Impact 740 & 840 Drive Assembly Inspection Guide
| Symptom | Inspect First | What to Check |
|---|---|---|
| Abnormal mechanical noise | Drive system and adjoining components | Wear, looseness, contamination, damaged components, binding, incorrect assembly or related mechanical damage |
| Excessive vibration | Mounting and support areas | Loose hardware, damaged mounts, excessive movement, wear or misalignment |
| Drive movement appears irregular | Moving drive components | Binding, scoring, wear, contamination, damaged mating surfaces or incorrect installation |
| Motor operates but pumping is abnormal | Drive-to-pump mechanical path | Drive condition, mechanical transfer, fluid-section movement and adjoining components |
| Repeated drive component wear | Complete mechanical system | Alignment, mating parts, bearings, supports, contamination, installation and related damage |
| Pump appears mechanically restricted | Drive and fluid section | Mechanical binding, damaged pump components, drive wear, contamination or other restrictions |
Drive Assembly Problem or Another Impact System?
Similar symptoms can originate in different systems. Identify whether the problem is mechanical, fluid-related, intake-related, or downstream before selecting replacement parts.
Inspect when symptoms involve abnormal mechanical noise, vibration, binding, irregular drive movement, or problems transferring motion to the pump.
Inspect when mechanical motion appears normal but the sprayer has poor priming, weak pressure, fluid leakage, valve problems, or abnormal pumping performance.
Inspect when the pump is moving but material is not entering the fluid section consistently or the sprayer repeatedly loses prime.
Inspect downstream equipment when pressure is being generated but spray delivery or spray pattern remains restricted or inconsistent.
Impact 740 & 840 Drive Assembly Service Guidance
Examine adjoining mechanical components rather than replacing only the most visibly worn part. Related wear or damage can shorten the life of a replacement.
Prevent dirt, coating residue, damaged material, and other contamination from entering exposed mechanical areas during service.
Follow the applicable Titan instructions for disassembly, inspection, lubrication where specified, installation, fastening, adjustment, and operational verification.
Verify Impact 740 vs Impact 840 Drive Parts
| Verification Step | Impact 740 | Impact 840 |
|---|---|---|
| Confirm Machine | Verify the sprayer is an Impact 740 | Verify the sprayer is an Impact 840 |
| Select Diagram | Use the applicable Impact 740 drive drawing | Use the applicable Impact 840 drive drawing |
| Locate Component | Match the required component to its 740 diagram callout | Match the required component to its 840 diagram callout |
| Final Verification | Confirm exact Titan OEM part number and quantity | Confirm exact Titan OEM part number and quantity |
Find the Correct Impact 740 & 840 Parts Section
| Repair Area | Parts Section | Typical Function |
|---|---|---|
| Mechanical power transfer | Drive Assembly | Transfers mechanical motion through the drive system toward the pump |
| Pump & pressure generation | Fluid Section | Moves coating material and develops spray pressure |
| Primary machine components | Main Assembly | Components identified on the applicable primary machine drawing |
| Material intake | Suction or Siphon Assembly | Supplies coating material from the container toward the pump |
| Material filtration | Filter Assembly | Provides applicable downstream filtration within the fluid path |
| Spray equipment | Accessories | Guns, hoses, tips, guards, extensions and related equipment |
Service the Impact 740 & 840 Drive System Safely
Before opening, inspecting, or servicing the drive assembly, shut down the sprayer, disconnect electrical power, and follow Titan's complete pressure-relief procedure. Never perform mechanical service while the machine can unexpectedly cycle or while the fluid system remains pressurized.
Follow the applicable Titan service instructions for your exact model. Verify that housings, guards, fasteners, drive components, pump connections, and related parts are correctly installed before reconnecting power and returning the sprayer to operation.
Confirm the Correct Impact 740 or 840 Drive Part Before Ordering
Drive components can appear similar across Titan sprayers while differing by model, production configuration, dimensions, mounting arrangement, or OEM part number. Appearance alone should not be used to determine compatibility.
Confirm whether your sprayer is an Impact 740 or Impact 840, select the applicable drive assembly diagram, locate the required component, match its numbered callout with the exact Titan OEM part number, and verify the required quantity before purchasing.
Explore More Titan Impact 740 & 840 Parts
Move between the combined drive and main assembly sections or use the applicable model-specific repair category to locate pump, filter, siphon, cart, and accessory components.
Shop Titan Impact 740 & 840 Drive Assembly Parts
Confirm your exact Impact model, use the applicable exploded drive diagram to identify the component, match its callout with the Titan OEM part number, verify the required quantity, and order the correct genuine replacement part.
Find Impact 740 & 840 Drive PartsTitan Impact 740 & 840 Drive Assembly Parts FAQs
What does the Titan Impact 740 or 840 drive assembly do?
The drive system transfers mechanical motion through the sprayer so the fluid section can perform its pumping cycle. Use the applicable Titan diagram for the exact components used on your model.
Are Impact 740 and Impact 840 drive parts interchangeable?
Do not assume interchangeability. Verify the exact sprayer model, applicable drive assembly diagram, numbered callout, and Titan OEM part number before ordering a replacement.
How do I identify the correct Impact drive component?
Confirm whether the sprayer is an Impact 740 or Impact 840, select the correct exploded drive drawing, locate the component's callout, and match it with the corresponding Titan OEM part number.
What should I inspect if the drive system makes unusual noise?
Inspect applicable drive components, bearings and support areas, mounting points, fasteners, mating surfaces, and adjoining pump components for wear, looseness, damage, contamination, binding, or incorrect assembly.
Does poor pressure always indicate a drive assembly problem?
No. Pressure problems can also involve the fluid section, material-intake path, filter system, hose, gun, spray tip, or other fluid-system components. Diagnose the complete system before replacing drive parts.
Should related drive components be inspected during repair?
Yes. Inspect adjoining mechanical components, supports, bearings, mating surfaces, fasteners, and the pump connection where applicable. Related wear or damage can affect a newly installed component.
Can I select a drive part by comparing its appearance?
No. Similar-looking mechanical components can have different applications or part numbers. Use the correct model-specific diagram, callout, and exact Titan OEM part number to confirm fitment.
Where can I find other Impact 740 and 840 repair parts?
Use the applicable Main Assembly, Fluid Section, Filter, Suction or Siphon, Cart, and Accessories sections, or browse the complete Titan Impact Sprayer Parts category.
