Titan Impact 740 & 840 Low Rider Siphon Assembly Parts P/N 805-296
Shop genuine OEM Titan Impact 740 & 840 Low Rider Siphon Assembly Parts P/N 805-296 for servicing the applicable material-intake and return system. Use the exploded siphon assembly drawing to identify the required tube, strainer, fitting, clamp, return-system, or related component, then match its numbered callout with the exact Titan OEM part number before ordering.
Find the Correct Impact 740 & 840 Low Rider Siphon Parts
The siphon assembly forms the material-intake path between the coating container and the sprayer's pumping system. Its components must allow coating material to reach the pump while the applicable return-system components support priming, circulation, flushing, and normal operation according to the sprayer's design.

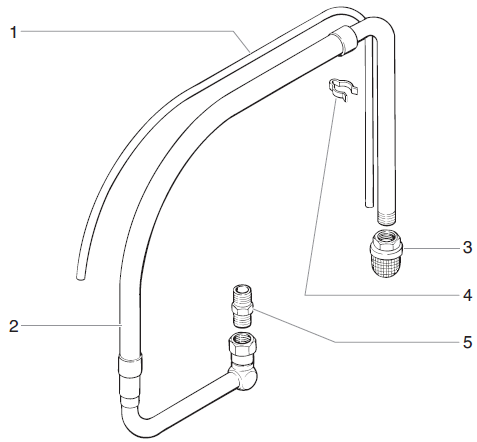

For Low Rider Siphon Assembly P/N 805-296, identify the required component on the applicable Titan exploded drawing. Match the diagram callout with the corresponding Titan OEM part number and required quantity, and verify the exact Impact model and Low Rider configuration before purchasing.
What Does the Impact 740 & 840 Low Rider Siphon Assembly Do?
The siphon assembly provides the intake path through which coating material is supplied from the material container toward the fluid section. The applicable return path works with the sprayer during priming, circulation, flushing, and related operating procedures.
Air leaks, loose connections, damaged intake components, coating buildup, blocked strainers, restricted tubes, or improperly assembled fittings can interfere with material supply. These conditions can contribute to difficult priming, interrupted material flow, irregular operation, or loss of prime.
Low Rider Siphon Assembly Areas to Inspect
Exact component names, positions, quantities, and applications should be confirmed from the Titan exploded parts documentation for Siphon Assembly P/N 805-296.
Inspect applicable intake tubes and related material-path components for cracks, damage, restriction, coating buildup, deformation, or loose connections.
Check the applicable intake strainer for dried coating, debris, contamination, damage, or restriction that could reduce material flow toward the pump.
Inspect applicable fittings, clamps, connections, and mating areas for looseness, damage, leakage, contamination, or conditions that could allow air into the intake path.
Check applicable return tubes and related components for restriction, damage, loose attachment, dried coating, or incorrect positioning.
Find Your Impact 740 & 840 Low Rider Siphon Parts Faster
Follow the assembly diagram rather than selecting a replacement by appearance. Intake and return components can look similar across different Titan models and configurations.
Verify whether you are servicing the applicable Titan Impact 740 or Impact 840 sprayer.
Verify that your machine uses the applicable Low Rider configuration and Siphon Assembly P/N 805-296.
Find the required intake or return-system component on the exploded drawing and note its numbered reference.
Match the callout with the exact Titan OEM part number and verify the required quantity before ordering.
Impact 740 or 840 Difficult to Prime or Losing Material Supply?
Inspect the complete material-intake path before replacing a single component. Check the applicable siphon tube, strainer, fittings, clamps, connections, return components, and adjoining intake areas for restriction, dried coating, loose connections, damage, or possible air entry.
If the intake system is clear, properly connected, and immersed correctly but priming or pressure problems continue, inspect the applicable fluid-section components and follow Titan's troubleshooting procedure for the machine.
Low Rider Siphon Assembly Troubleshooting & Inspection Guide
| Symptom | Inspect First | What to Check |
|---|---|---|
| Sprayer will not prime | Material-intake path | Material supply, intake position, restriction, loose connections, damaged components or possible air entry |
| Material flow is restricted | Strainer and siphon path | Dried coating, debris, contamination, damaged tubing or another restriction |
| Sprayer repeatedly loses prime | Connections and intake components | Loose fittings, damaged components, air entry, inadequate material supply or fluid-section problems |
| Air appears to enter material path | Intake fittings and connections | Loose connections, damaged mating areas, cracked components or incorrect assembly |
| Return flow appears restricted | Return-system components | Dried material, blockage, damaged tubing, incorrect positioning or related restriction |
| Priming issue remains after cleaning | Siphon system and fluid section | Intake integrity, fluid-section valves, seals and other causes identified by Titan troubleshooting procedures |
Siphon Assembly Problem or Another Impact System?
Priming, pressure, and material-flow symptoms can originate in several areas. Use the symptom and component location to determine which system should be inspected.
Inspect when material is not reaching the pump correctly, the intake path is restricted, air may be entering the system, or return components require service.
Inspect when the intake path is clear but the sprayer still has difficulty priming, developing pressure, maintaining pressure, or moving material.
Inspect when material reaches the pump but downstream flow is restricted or filtration components show contamination, buildup, or leakage.
Inspect when pressure reaches the downstream system but spray delivery or spray-pattern performance remains restricted or inconsistent.
Impact 740 & 840 Low Rider Siphon Service Guidance
Follow the applicable Titan flushing and cleaning procedure to reduce coating buildup and contamination within the siphon and return paths.
Check applicable fittings, clamps, tubes, and mating areas for damage or looseness that could interrupt material supply or permit air entry.
If the siphon system is clear and correctly assembled but the machine still will not prime, continue diagnosis through the applicable fluid-section components.
Find the Correct Impact 740 & 840 Parts Section
| Service Area | Parts Section | Primary Role |
|---|---|---|
| Material intake & return | Low Rider Siphon Assembly | Supplies coating material toward the pump and supports the applicable return path |
| Pump & pressure generation | Fluid Section | Moves and pressurizes coating material for spraying |
| Fluid filtration | Filter Assembly | Filters material within the applicable downstream fluid path |
| Frame, wheels & mobility | Low Rider Cart | Supports and transports the Low Rider sprayer configuration |
| Mechanical power transfer | Drive Assembly | Transfers mechanical movement toward the pumping system |
| Primary machine components | Main Assembly | Components identified on the applicable primary machine drawing |
Service the Impact 740 & 840 Siphon System Safely
Shut down the sprayer, disconnect electrical power, and follow Titan's complete pressure-relief procedure before servicing the siphon assembly, return system, fluid fittings, or adjoining pump components. Never loosen pressurized fluid-system components.
Follow the applicable Titan instructions for removal, cleaning, inspection, installation, flushing, priming, and operational testing. Verify that all intake and return components are correctly connected and positioned before returning the sprayer to service.
Confirm the Correct P/N 805-296 Siphon Part Before Ordering
Titan siphon tubes, strainers, return components, fittings, and related hardware can appear similar across different Impact models and configurations. Visual similarity alone does not establish compatibility.
Confirm the exact Impact 740 or Impact 840 model, verify the Low Rider configuration and Siphon Assembly P/N 805-296, locate the component on the correct exploded drawing, and match its callout with the exact Titan OEM part number and required quantity.
Explore More Titan Impact 740 & 840 Parts
Move between the related Impact 740 and Impact 840 assembly sections to locate the genuine Titan OEM parts required for your repair.
Shop Titan Impact 740 & 840 Low Rider Siphon Parts
Use the P/N 805-296 exploded siphon assembly diagram to identify the intake or return component you need, match its callout with the exact Titan OEM part number, and verify the required quantity before ordering.
Find Impact 740 & 840 Siphon PartsTitan Impact 740 & 840 Low Rider Siphon Assembly FAQs
What is Titan Impact 740 & 840 Low Rider Siphon Assembly P/N 805-296?
P/N 805-296 identifies the applicable Low Rider siphon assembly represented on this parts page. Use the corresponding Titan exploded drawing to identify individual intake, return, fitting, strainer, and related components.
How do I identify the correct siphon assembly replacement part?
Confirm the exact Impact model and Low Rider configuration, locate the required component on the P/N 805-296 exploded drawing, and match its callout with the corresponding Titan OEM part number and required quantity.
What should I inspect if my Impact 740 or 840 will not prime?
Inspect the material supply, intake position, applicable strainer, siphon path, fittings, clamps, and connections for restriction, loose attachment, damage, or possible air entry. If the intake system is functioning correctly, continue diagnosis through the fluid section.
Can a clogged intake strainer reduce material flow?
Yes. Dried coating, debris, or contamination at the intake can restrict material entering the siphon path. Inspect and service the applicable strainer according to Titan's maintenance instructions.
Does a priming problem always mean the siphon assembly is defective?
No. Priming problems can also involve inadequate material supply, air entering the intake path, fluid-section valves, sealing components, or other pump conditions. Diagnose the complete intake and pumping system before replacing parts.
Can I select a siphon component by appearance?
No. Similar-looking Titan tubes, fittings, strainers, clamps, and return components may have different applications or OEM part numbers. Use the correct exploded diagram and exact Titan part number.
Should I inspect the return system when servicing the siphon assembly?
Yes. Where applicable, inspect related return components for coating buildup, restriction, damage, loose attachment, or incorrect positioning while servicing the intake system.
Where can I find other Titan Impact 740 and 840 parts?
Browse the applicable Low Rider Cart, Fluid Section, Filter Assembly, Drive Assembly, Main Assembly, Accessories, and other model-specific sections, or return to the complete Titan Impact Sprayer Parts category.
