Hydra Pro IV 185-551 Fluid Pump Assembly Parts

Titan 185-981 Roll Plated Pin

Item No: 1

Part #: 185-981

Part number 185-981 is a roll plated pin designed to provide a durable, corrosion‑re...

$2.00

QTY:

Titan 185-984A Displacement rod

Item No: 2

Part #: 185-984A

Titan 185-984A Displacement rod *Replaced Part # 185-984* Fits: PowrCoat 940 Fluid Pump Ass...

Retail Price: $276.40

You save: $38.42 (13.90%)

Our Price: $237.98

QTY:

Titan 181-906 Lower Pump Block

Item No: 3

Part #: 181-906

Part number 181-906 is a genuine lower pump block used in Admiral, Commander, Hydra M,...

Retail Price: $673.60

You save: $107.78 (16.00%)

Our Price: $565.82

QTY:

Titan 178-001A Upper Packing Set

Item No: 4

Part #: 178-001A

Titan 178-001A Upper Packing Set, upper, pkgd leather/polyethylen shipping weight 0.087lbs, Titan ...

Retail Price: $190.60

You save: $23.82 (12.50%)

Our Price: $166.78

QTY:

Titan 228-002 Hex Hipple Adapter

Item No: 5

Part #: 228-002

Part 228-002 is a replacement hex nipple adapter used in fluid and hydraulic systems on compatib...

Retail Price: $68.70

You save: $5.7 (8.30%)

Our Price: $63.00

QTY:

Titan 182-906 Upper Packing Spring

Item No: 6

Part #: 182-906

Part number 182-906 is a genuine upper packing spring used in Admiral, Commander, Hydr...

Retail Price: $45.60

You save: $3.47 (7.61%)

Our Price: $42.13

QTY:

Titan 182-007 O-ring

Item No: 7

Part #: 182-007

Part number 182-007 is a genuine O-ring used in Admiral, Commander, Hydra M, and Hydra...

$26.30

QTY:

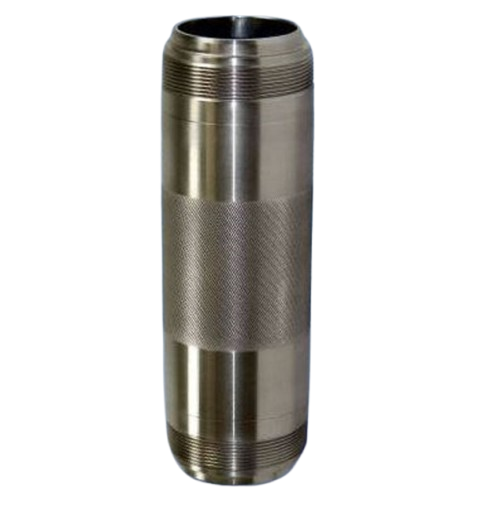

Titan 183-930 Cylinder Pump

Item No: 8

Part #: 183-930

Genuine replacement part 183-930 is a cylinder pump that serves as the core pumping me...

Retail Price: $977.90

You save: $156.46 (16.00%)

Our Price: $821.44

QTY:

Titan 185-011 Spring Retainer

Item No: 9

Part #: 185-011

SprayTech part 185-011 is a spring retainer used to secure and position springs within pump ...

Retail Price: $46.80

You save: $3.56 (7.61%)

Our Price: $43.24

QTY:

Titan 185-010 Lower Packing Spring

Item No: 10

Part #: 185-010

Hydra part 185-010 is a lower packing spring that provides consistent tension to the l...

$26.30

QTY:

Titan 183-001A Packing Set

Item No: 11

Part #: 183-001A

Titan 183-001A Packing set lower pkgd (Replaced part# 180-001) This set includes vital packing ma...

Retail Price: $229.70

You save: $31.93 (13.90%)

Our Price: $197.77

QTY:

Titan 920-103 Stainless Ball, 13/16"

Item No: 12

Part #: 920-103

Part 920-103 is a replacement 13/16 inch stainless steel ball for a wide range of compatible spr...

$24.00

QTY:

Titan 182-921A Piston Seat Assembly

Item No: 13

Part #: 182-921A

Titan 182-921A Piston Seat Assembly *Replaced Part # 182-921*Fits: Admiral, Commander, Hydra Pro ...

Retail Price: $296.20

You save: $41.17 (13.90%)

Our Price: $255.03

QTY:

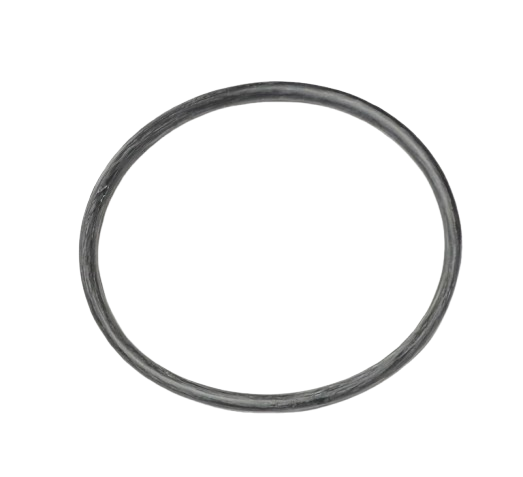

Titan 183-230 Synthetic Rubber O-ring

Item No: 14

Part #: 183-230

Genuine replacement part 183-230 is a synthetic rubber O-ring used to create a leak-ti...

$5.40

QTY:

Titan 182-007 O-ring

Item No: 15

Part #: 182-007

Part number 182-007 is a genuine O-ring used in Admiral, Commander, Hydra M, and Hydra...

$26.30

QTY:

Titan 183-992 Foot Valve Assembly

Item No: 16

Part #: 183-992

Genuine replacement part 183-992 is a foot valve assembly located at the inlet of the ...

Retail Price: $722.80

You save: $115.65 (16.00%)

Our Price: $607.15

QTY:

Titan 314-180 Stainless Ball

Item No: 17

Part #: 314-180

Part number 314-180 is a stainless steel ball designed for use as a check valve compon...

Retail Price: $51.30

You save: $4.26 (8.30%)

Our Price: $47.04

QTY:

Titan 441-016 Stanchion lower

Item No: 21

Part #: 441-016

Titan 441-016 Stanchion lower is designed for use with various Titan paint sprayers, including model...

Retail Price: $263.00

You save: $36.56 (13.90%)

Our Price: $226.44

QTY:

Titan 442-956 Connecting Rod, 5/8-11 Thrd

Item No: 22

Part #: 442-956

Part number 442-956 is a Connecting Rod with 5/8-11 threads that transmits power from the drive mech...

Retail Price: $131.20

You save: $13.64 (10.40%)

Our Price: $117.56

QTY:

Titan 870-441 Nut spacer

Part #: 870-441

Titan 870-441 Nut spacer is a genuine OEM component designed for use in Titan Hydra M2000 and M4000 ...

Retail Price: $68.00

You save: $5.64 (8.29%)

Our Price: $62.36

QTY:

Titan 240-022A Ball cage assembly, pkgd

Part #: 240-022A

Titan 240-022A Ball cage assembly fits the Fluid assembly in the Titan PowrCoat 730 and Titan 940 Po...

Retail Price: $93.70

You save: $7.78 (8.30%)

Our Price: $85.92

QTY:

Titan 241-109 Pin Ball Stop

Part #: 241-109

Titan 241-109 Pin Ball Stop, roll, stainlessFits: Commander, Admiral, Hydra M2000

$8.40

QTY:

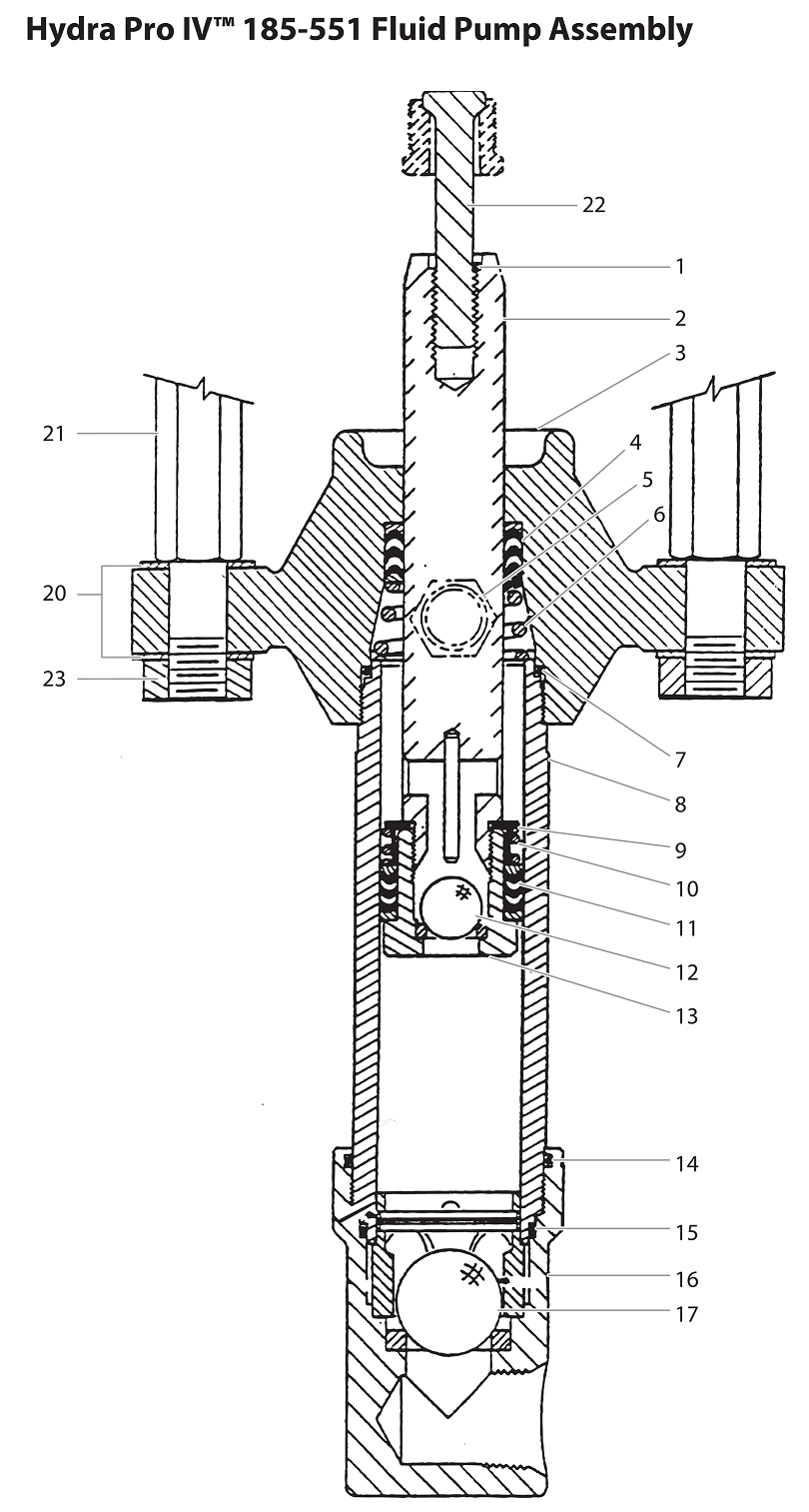

Hydra Pro IV 185-551 Fluid Pump Assembly Parts

This Category illustrates the Hydra Pro IV 185-551 Fluid Pump Assembly Parts.
