Filter Assembly Overview
Buy Titan EPX2405 Filter Assembly Replacement Parts
The Titan EPX2405 Filter Assembly is part of the airless sprayer's pressurized fluid-delivery system. Its filter components help capture debris and coating particles before they travel farther through the spray system, reducing the risk of downstream restrictions and spray-tip blockage.
The assembly also includes components associated with pressure monitoring and bypass operation. Together, these parts contribute to the sprayer's fluid-handling and control functions.
Over time, filter elements may become restricted, O-rings can deteriorate and housings or control components may require service. AllTitanParts currently lists six individual replacement products for this assembly, making it easier to identify and order the component needed for a targeted repair.
Parts Reference Directory
Titan EPX2405 Filter Assembly Parts List

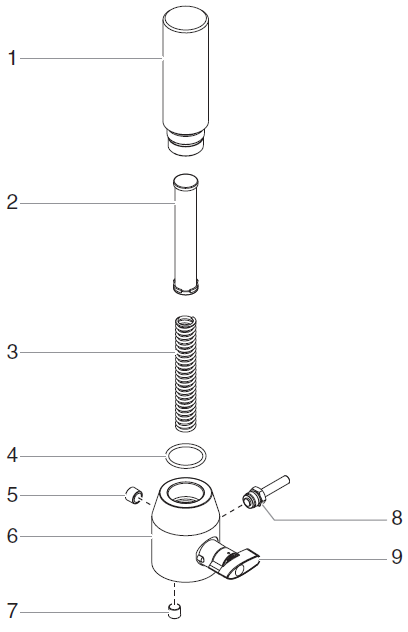

Compare the diagram reference, Titan part number and product description before purchasing.
| Diagram Ref. | Titan Part Number | Product Description |
|---|---|---|
| 1 | 0294194 | Filter Body Assembly / Filter Housing, replaces Titan 755-190 |
| 2 | 14069 | 50-Mesh Filter Element |
| 3 | 9894245 | Filter Support |
| 4 | 14072 | O-Ring, replaces Titan 755-191 |
| 8 | 0507737 | Pressure Sensor Assembly |
| 9 | 0507690 | Bypass Valve Assembly |
This table reflects the six products listed in the category, not every item shown in the complete factory diagram. Verify part specifications, quantities and current purchasing options before ordering.
Featured Filter Assembly Components
Find Titan EPX2405 Filters, Housings, Seals and Control Parts
DIAGRAM REF. 1
Titan 0294194 Filter Body Assembly
The Titan 0294194 Filter Body Assembly forms part of the sprayer's fluid filtration housing. It supports the filter components and provides the specified housing arrangement for the assembly.
Inspect the housing for damaged threads, cracks or worn sealing surfaces when investigating leaks or filter installation problems.
The product listing identifies Titan 0294194 as replacing Titan 755-190.
Part: 0294194 | Replaces: 755-190DIAGRAM REF. 2
Titan 14069 Filter 50 Mesh
The Titan 14069 50-Mesh Filter helps capture debris from coating material passing through the sprayer's filter assembly.
A clogged or damaged filter can restrict material flow, contribute to uneven spray delivery and increase the need for cleaning.
Inspect and clean the filter according to Titan's instructions. Replace it if the screen is torn, distorted or cannot be adequately cleaned.
Part Number: 14069 | 50 MeshDIAGRAM REF. 3
Titan 9894245 Filter Support
The Titan 9894245 Filter Support is a spring-coil support component associated with the filter element.
The support helps maintain the intended filter arrangement inside the housing. Inspect it for deformation, corrosion or damage during filter servicing.
A damaged support should be replaced with the correct specified component rather than a similar-looking spring.
Part Number: 9894245DIAGRAM REF. 4
Titan 14072 O-Ring
The Titan 14072 O-Ring is a sealing component associated with the fluid filter housing.
A worn, flattened, cut or chemically damaged O-ring may contribute to leakage at the specified sealing interface.
The product listing identifies Titan 14072 as replacing Titan 755-191.
Part: 14072 | Replaces: 755-191DIAGRAM REF. 8
Titan 0507737 Pressure Sensor Assembly
The Titan 0507737 Pressure Sensor Assembly is a pressure-measurement component associated with the sprayer's control system.
It provides pressure-related information used by the control arrangement. An electrical or sensor fault may interfere with pressure regulation, although other control and fluid-system problems can produce similar symptoms.
Internal sensor diagnosis and replacement should follow the applicable Titan service procedures.
Part Number: 0507737DIAGRAM REF. 9
Titan 0507690 Bypass Valve Assembly
The Titan 0507690 Bypass Valve Assembly is a fluid-control component associated with the sprayer's bypass and priming functions.
Its product listing describes components such as O-rings, a gasket, cam base, groove pin and valve-related hardware. Confirm the current supplied contents on the product page.
Inspect the bypass system when diagnosing priming problems, pressure loss or unwanted fluid return, after checking other possible causes.
Part Number: 0507690Fluid Filtration and Pressure Control
How the Titan EPX2405 Filter Assembly Works
Fluid Enters the Housing
Pressurized coating material travels through the filter housing as part of the fluid-delivery system.
The Filter Captures Debris
The 50-mesh filter element helps trap particles that could interfere with downstream spray components.
Seals Maintain Containment
The O-ring provides sealing at its designated interface, while the filter support helps maintain component positioning.
Pressure and Bypass Functions
The pressure sensor and bypass valve serve separate monitoring and fluid-routing functions within the assembly.
Filter Selection and Performance
Why the Titan 14069 50-Mesh Filter Matters
The Titan 14069 Filter 50 Mesh provides a specified level of filtration for the EPX2405 filter assembly. Mesh size describes the number of screen openings per linear inch. A 50-mesh filter generally has larger openings than a higher-mesh-number filter, although actual filtration performance also depends on screen construction.
Using the correct filter helps balance material flow and debris removal for the intended spraying application. A filter that becomes heavily restricted may contribute to reduced fluid delivery and inconsistent spray performance.
Do not substitute a different mesh size without confirming its suitability for the coating material, spray tip and Titan's equipment recommendations.
Repair and Troubleshooting
Common Titan EPX2405 Filter Assembly Problems
Use these symptoms to guide inspection. Several sprayer components can produce similar problems, so confirm the fault before ordering replacement parts.
| Problem | Parts to Inspect | Recommended Check |
|---|---|---|
| Reduced fluid flow or uneven spray | 14069 Filter 50 Mesh | Inspect the filter for debris, restriction or damage. |
| Fluid leaking around filter housing | 14072 O-Ring, 0294194 Filter Body | Relieve pressure and inspect the seal and housing surfaces. |
| Filter element appears distorted | 14069 Filter, 9894245 Filter Support | Check filter condition, support positioning and correct installation. |
| Pressure adjustment behaves unpredictably | 0507737 Pressure Sensor and control system | Have the pressure-sensing and electrical controls diagnosed. |
| Sprayer will not prime normally | 0507690 Bypass Valve and suction system | Check bypass operation, suction restrictions and inlet valve condition. |
| Pressure falls while spraying | Filter, bypass valve and fluid section | Inspect for restrictions, valve leakage or worn pump components. |
| Filter housing cannot seal correctly | 0294194 Filter Body, 14072 O-Ring | Check threads, sealing surfaces and the correct O-ring installation. |
Titan OEM Replacement References
Titan EPX2405 Filter Assembly Part Number Replacements
The AllTitanParts filter assembly category identifies two older part numbers with current replacement references:
- Titan 0294194 Filter Body Assembly replaces Titan 755-190.
- Titan 14072 O-Ring replaces Titan 755-191.
These cross-references apply to the named products. Confirm the exact component and EPX2405 diagram position before purchasing. Do not assume other filter parts are interchangeable based on appearance alone.
Replacement Parts Buying Guide
How to Order the Correct Titan EPX2405 Filter Assembly Parts
Confirm the Model
Verify your machine is a Titan EPX2405 Piston Pump and record its serial number.
Locate the Filter Part
Use the EPX2405 filter assembly diagram to identify the affected component and diagram reference.
Match the Part Number
Compare the Titan part number and any replacement reference with the product listing.
Shop at AllTitanParts
Review the product details, verify fitment and order the replacement component needed for your repair.
Preventive Maintenance
Maintain Your Titan EPX2405 Filter Assembly
Clean the Filter Regularly
Follow Titan's approved cleaning procedure to remove coating residue and accumulated debris from the filter element.
Inspect the O-Ring
Check the filter housing seal for flattening, cuts, swelling or chemical deterioration.
Check the Filter Support
Inspect the spring-coil support for deformation, corrosion or improper positioning.
Monitor Pressure Performance
Investigate unexpected pressure fluctuations or bypass problems before they affect spraying performance.
Related Titan EPX2405 Assemblies
Shop More Titan EPX2405 Piston Pump Parts
EPX2405 Main Assembly Parts
Shop fittings, fluid hoses, down tubes and bypass valve components.
EPX2405 Drive Assembly Parts
Find slider assemblies, housings and pressure-control components.
EPX2405 Fluid Section Parts
Browse piston rods, inlet and outlet valve components and pump repair parts.
EPX2405 Upright Cart Parts
Shop wheel spacers, snap buttons, rubber feet and mounting hardware.
Titan EPX2405 Piston Pump Parts
Return to the complete EPX2405 model parts directory.
Important Titan EPX2405 Filter Service Safety
Before removing the filter housing, cleaning the filter element or inspecting the pressure sensor and bypass valve, switch off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. High-pressure fluid can penetrate skin and cause serious injury. Never loosen a filter housing or fluid fitting while the system is pressurized. Internal electrical and pressure-control repairs should be performed by qualified service personnel.
Titan EPX2405 Filter Assembly Replacement Parts
Find Your Titan EPX2405 Filter Assembly Parts Today
Shop Titan filter bodies, 50-mesh filter elements, filter supports, O-rings, pressure sensors and bypass valve assemblies. Match your OEM part number before ordering.
Shop EPX2405 Filter Assembly PartsFrequently Asked Questions
Titan EPX2405 Filter Assembly Parts FAQs
What parts are listed for the Titan EPX2405 Filter Assembly?
The category lists Titan 0294194 Filter Body Assembly, 14069 Filter 50 Mesh, 9894245 Filter Support, 14072 O-Ring, 0507737 Pressure Sensor Assembly and 0507690 Bypass Valve Assembly.
How many replacement products are listed for the EPX2405 filter assembly?
AllTitanParts currently lists six replacement products in this category.
What is the Titan EPX2405 Filter Body Assembly part number?
Titan 0294194 is the Filter Body Assembly listed at diagram reference 1.
What replaces Titan 755-190 Filter Housing?
Titan 0294194 Filter Body Assembly is listed as replacing Titan 755-190.
What filter element is listed for the Titan EPX2405?
Titan 14069 is the 50-Mesh Filter listed at diagram reference 2.
What is the Titan EPX2405 Filter Support part number?
Titan 9894245 is the Filter Support listed at diagram reference 3.
Which O-ring replaces Titan 755-191?
Titan 14072 O-Ring is listed as replacing Titan 755-191.
What is the Titan EPX2405 Pressure Sensor Assembly part number?
Titan 0507737 is the Pressure Sensor Assembly listed at diagram reference 8.
What is the Titan EPX2405 Bypass Valve Assembly part number?
Titan 0507690 is the Bypass Valve Assembly listed at diagram reference 9.
Can a clogged filter cause low pressure or poor spray performance?
Yes. A clogged filter can restrict material flow and contribute to poor spray performance. Other causes include worn pump components, valve leakage or incorrect pressure settings.
Why is my EPX2405 filter housing leaking?
Possible causes include a worn O-ring, damaged housing threads, contaminated sealing surfaces or incorrect assembly. Relieve pressure completely before inspection.
Where can I buy Titan EPX2405 Filter Assembly parts?
Visit AllTitanParts Titan EPX2405 Filter Assembly Parts to shop replacement components. For assistance identifying a part, call 713-931-0006.
