Restore reliable mechanical drive and pressure-control operation with Titan EPX2405 Drive Assembly Parts from AllTitanParts. Shop model-listed slider assemblies, slider housings, circuit breakers, potentiometer caps and pressure-control knobs for your Titan EPX2405 airless piston pump.

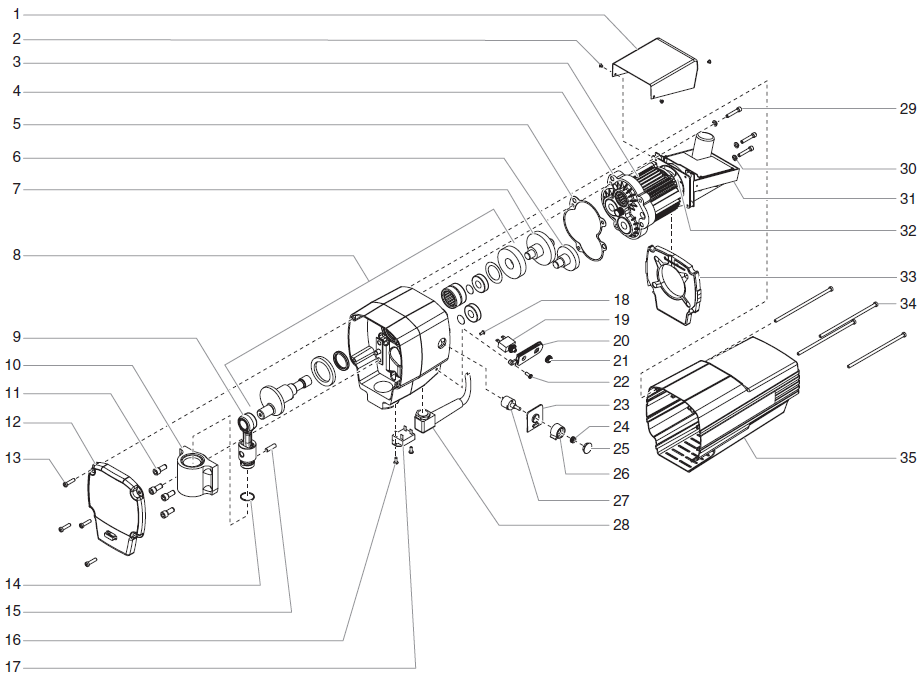

Use the factory exploded parts diagram to identify your component, compare its OEM part number and choose the correct replacement for your repair.
Drive System Overview
Buy Titan EPX2405 Drive Assembly Replacement Parts
The Titan EPX2405 Drive Assembly contains components associated with transferring motor-driven movement toward the pump's reciprocating fluid section. Its slider mechanism helps translate the drive's motion into the back-and-forth movement required for piston pumping.
The assembly diagram also includes electrical and pressure-adjustment components. These allow the operator to control pressure and help protect the machine's electrical system.
Wear, impact damage, binding or electrical faults can interfere with pump cycling and pressure adjustment. AllTitanParts currently lists five replacement products for this category, allowing you to identify individual service components without assuming the complete drive or motor assembly must be replaced.
OEM Parts Directory
Titan EPX2405 Drive Assembly Parts List
Match the factory diagram reference and part number with the product listing before ordering.
| Diagram Ref. | Titan Part Number | Product Description |
|---|---|---|
| 9 | 0507218 | Slider Assembly |
| 10 | 0507769 | Slider Housing |
| 19 | 765-327A | 15 Amp Circuit Breaker, replaces Titan 507753 |
| 25 | 700-175 | Potentiometer Cap, replaces Titan 507748 |
| 26 | 700-159 | Pressure Control Knob, replaces Titan 507740 |
This table reflects the five products listed on the EPX2405 Drive Assembly category page, not every component shown in the complete factory diagram. Check current availability and product specifications before ordering.
Mechanical Drive Components
Titan EPX2405 Slider Assembly and Slider Housing
DIAGRAM REF. 9
Titan 0507218 Slider Assembly
The Titan 0507218 Slider Assembly is a replacement mechanical drive component listed for the EPX2405. The slider participates in transmitting reciprocating movement from the drive mechanism toward the pump piston.
Inspect the slider assembly when the motor operates but the pump does not cycle normally, or when unusual mechanical noise or binding is present. Other drive and fluid-section faults can produce similar symptoms, so confirm the source before replacing the slider.
OEM Part Number: 0507218DIAGRAM REF. 10
Titan 0507769 Slider Housing
The Titan 0507769 Slider Housing is a factory-listed support and guide component associated with the slider mechanism. Proper alignment and housing condition are important for smooth drive operation.
Inspect the housing for wear, scoring, cracks or damage when servicing the slider. Confirm the correct mounting and alignment requirements using the applicable Titan service instructions.
OEM Part Number: 0507769Pressure Adjustment Components
Shop Titan EPX2405 Pressure Control Knobs and Potentiometer Caps
DIAGRAM REF. 26
Titan 700-159 Pressure Control Knob
The Titan 700-159 Pressure Control Knob is the operator-facing adjustment component for selecting the sprayer's pressure setting.
Replace a cracked, missing or damaged knob with the correctly specified part. The listing identifies Titan 700-159 as replacing Titan 507740.
OEM Part: 700-159 | Replaces: 507740DIAGRAM REF. 25
Titan 700-175 Potentiometer Cap
The Titan 700-175 Potentiometer Cap fits over the pressure-control potentiometer's adjustment interface and provides the specified protective or finishing component.
It is listed as replacing Titan 507748. A damaged cap should not be confused with an internal potentiometer or control-circuit failure.
OEM Part: 700-175 | Replaces: 507748Electrical Protection
Titan 765-327A 15 Amp Circuit Breaker
Replace Titan 507753 with Titan 765-327A
The Titan 765-327A Circuit Breaker is a 15 amp electrical protection component listed at diagram reference 19. The product listing identifies it as replacing Titan 507753.
A circuit breaker helps protect the sprayer's electrical system against specified overload conditions. Repeated tripping can indicate an underlying mechanical or electrical problem rather than a defective breaker alone.
Before replacing the breaker, have the cause of repeated tripping investigated. Never bypass the circuit breaker or substitute a different current rating. Internal electrical diagnosis and repair should be performed by qualified personnel.
Drive Assembly Troubleshooting
Common Titan EPX2405 Drive Assembly Problems
Use the following guide to identify components worth inspecting. These symptoms can have multiple causes and should not be treated as a definitive parts diagnosis.
| Problem | Components to Inspect | Diagnostic Direction |
|---|---|---|
| Motor runs but pump does not cycle normally | 0507218 Slider Assembly and connected drive parts | Inspect the drive-to-piston connection and check for wear or damage. |
| Grinding, knocking or mechanical binding | 0507218 Slider Assembly, 0507769 Slider Housing | Inspect for scoring, misalignment or damaged mechanical components. |
| Pressure knob is cracked or missing | 700-159 Pressure Control Knob | Replace the damaged external knob after confirming the control mechanism is intact. |
| Potentiometer cap is missing | 700-175 Potentiometer Cap | Match the replacement cap to the diagram reference. |
| Circuit breaker trips repeatedly | 765-327A Circuit Breaker, motor and drive system | Have the underlying overload or electrical fault investigated before replacing parts. |
| Sprayer does not respond to pressure adjustment | Pressure knob and associated control components | Check for external knob damage; qualified service personnel should test internal electrical controls. |
| Pump cycles but cannot maintain spray pressure | Fluid section, valves, packings and pressure controls | Inspect the fluid system before assuming a drive assembly failure. |
OEM Replacement Part Numbers
Titan EPX2405 Drive Assembly Part Number Replacements
Three products in the EPX2405 Drive Assembly category identify older Titan numbers that have replacement references:
- Titan 765-327A 15 Amp Circuit Breaker replaces Titan 507753.
- Titan 700-175 Potentiometer Cap replaces Titan 507748.
- Titan 700-159 Pressure Control Knob replaces Titan 507740.
These references apply to the specific named components. Verify the EPX2405 diagram position and product listing before ordering.
