Titan Advantage 500 Main Assembly Parts
Find genuine Titan Advantage 500 Main Assembly Parts for servicing and repairing your electric airless paint sprayer. Shop OEM motor assemblies, motor covers, fluid section packages, suction tubes, inlet screens, return tubes, support legs and factory mounting hardware.
From pump pressure problems and fluid intake issues to damaged covers and worn mechanical components, use the Advantage 500 exploded parts diagram to identify the exact Titan part number before you buy.
Restore and Maintain Your Titan Advantage 500 Airless Sprayer
The Titan Advantage 500 main assembly brings together the major mechanical, electrical and fluid-handling components of the sprayer. Its motor supplies the drive power, the gearbox transfers motion to the pumping mechanism, and the fluid section draws in and pressurizes coating material for delivery through the spray system.
The main assembly diagram also identifies supporting components such as the motor cover, suction and return tubes, inlet screen, support legs, hose-retaining hardware and mounting fasteners. These parts help maintain the machine's intended construction and operation.
Over time, components can require inspection or replacement because of normal wear, coating contamination, damaged hardware or mechanical failure. Selecting the correct OEM replacement part begins with confirming the machine configuration and identifying the part number on the exploded diagram.
AllTitanParts provides individual Titan Advantage 500 replacement parts and selected packaged assemblies, allowing customers to shop by part number instead of relying on visual similarity alone.
Shop Key Titan Advantage 500 Main Assembly Components
Explore factory-listed replacement components and packaged assemblies. Verify configuration-specific fitment before purchasing.

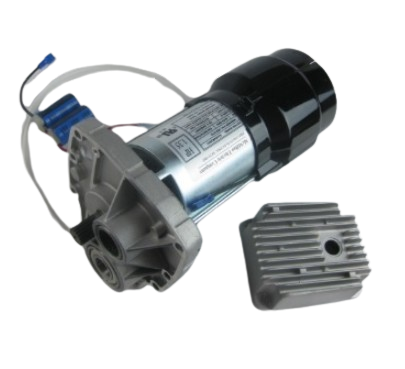

Titan 0551215A Motor Assembly, 120V
Genuine Titan OEM motor assembly used to power the pump drive system on the applicable Advantage 500 sprayer.
Part Number: 0551215ATitan 0558302 Motor Cover
Factory replacement cover for the motor area. Inspect when the original cover is cracked, damaged or missing.
Part Number: 0558302Titan 705-054 Siphon Tube
OEM siphon tube for the designated cart-mounted fluid intake arrangement. Helps convey coating material from the supply container to the pump.
Part Number: 705-054Titan 0558672A Suction Set Assembly
Genuine OEM suction set assembly for the applicable machine configuration. Confirm that your sprayer uses this suction arrangement before ordering.
Part Number: 0558672ATitan Advantage 500 Main Assembly OEM Parts Reference
The following products are listed in the AllTitanParts Advantage 500 Main Assembly category. Item numbers follow the website's diagram references, including alternative positions where applicable.
| Diagram Item | Titan Part Number | Product Description | Application / Buying Note |
|---|---|---|---|
| 1 | 0558302 | Motor Cover | Motor enclosure component |
| 2 | 9805287 | Ground Screw | Electrical grounding hardware |
| 4 | 0551215A | Motor Assembly, 120V | Motor drive assembly |
| 5 | 0551526 | Left Leg Assembly | Stand configuration only |
| 7 | 763-552 | Washer | Cart configuration only |

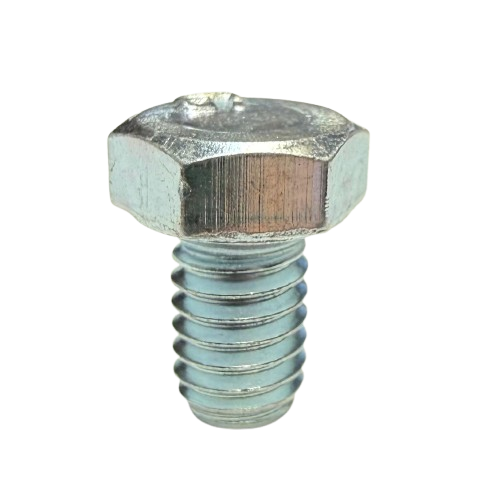

| 8 | 710-033 | Pail Bracket Bolt | Pail bracket fastening hardware |
| 9 | 730-334 | Hose Tie Clamp | Hose-retaining component |
| 10 | 0551556 | Return Tube | Cart configuration only |
| 11 | 705-054 | Siphon Tube | Designated fluid intake arrangement |
| 12 | 710-046 | Inlet Screen | Fluid intake filtration |
| 14 | 0509550 | Hexagonal Washer Cap Screw | Mounting fastener |
| 14A | 761-178 | Hexagonal Flange Screw | Alternative diagram position |
| 15 | 0551524 | Right Leg Assembly | Stand support component |
| 16 | 704-358 | Black Nylon Plug | Designated opening closure |
| 17 | 0558370A | Fluid Section 500 LR/Skid, Packaged | Confirm exact equipment application |
| 17A | 0558386A | Fluid Section 500 HR, Packaged | Confirm exact equipment application |
| 18 | 704-117 | Fluid Section Screw | Fluid section mounting hardware |
| 19 | 0558672A | Suction Set Assembly | Configuration-specific suction assembly |
| 20 | 193-200 | Return Tube Fitting | Return line connection |
| 21 | 0327226 | Return Tube Clip | Cart configuration only |
How to Identify the Correct Titan Advantage 500 Replacement Part
Confirm Your Model
Check the Advantage 500 model and serial information and identify the stand or cart configuration.
Locate the Assembly
Determine whether the problem involves the motor, fluid section, suction system or mounting hardware.
Match the Part Number
Use the factory exploded diagram and compare the Titan OEM part number with the product listing.
Verify Before Ordering
Confirm voltage, configuration, kit contents, required quantity and applicable replacement references.
Advantage 500 Stand, Cart and Fluid Section Compatibility
The main assembly category contains components associated with different machine arrangements. Do not assume every listed part fits every Advantage 500 sprayer.
Stand-Mounted Components
Titan 0551526 Left Leg Assembly and 0551524 Right Leg Assembly are associated with the stand support arrangement.
Cart-Mounted Components
Parts such as the 705-054 Siphon Tube, 0551556 Return Tube and 0327226 Return Tube Clip are listed for designated cart applications.
Packaged Fluid Sections
The category lists 0558370A and 0558386A. Verify the correct fluid section for your specific machine before purchasing either package.
Titan Advantage 500 Main Assembly Troubleshooting Guide
Use the following symptoms to identify components requiring inspection. Similar symptoms may have multiple causes.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Motor does not operate | Power supply, motor, controls and electrical connections | Follow Titan's electrical troubleshooting procedure before replacing components. |
| Sprayer will not prime | Siphon tube, inlet screen, suction connections and inlet valve | Inspect for blockages, air leaks or damaged intake components. |
| Pressure is low or inconsistent | Fluid section, packings, valves, suction system and pressure controls | Diagnose the complete fluid path before choosing replacement parts. |
| Return line is damaged or leaking | Return tube, fitting and retaining clips | Inspect connections and replace damaged components with specified OEM parts. |
| Motor cover is damaged | Titan 0558302 Motor Cover and mounting hardware | Replace the damaged cover and inspect adjacent components. |
| Machine support is unstable | Leg assemblies, cart components and mounting fasteners | Stop use until structural damage or loose hardware is corrected. |
Choose the Right Advantage 500 Repair Approach
Replace Individual Components
For confirmed damage to a cover, screen, fitting, tube or fastener, replace the specified part without assuming that a larger assembly must be replaced.
Service a Major Assembly
A motor or fluid section replacement may be appropriate when inspection confirms extensive wear or damage. Verify fitment and included components.
Inspect Related Systems
Check the suction system, gearbox, pressure controls and fluid path when symptoms remain after a targeted repair.
Explore Related Titan Advantage 500 Assemblies
Use dedicated assembly diagrams to locate additional components not shown individually in the main assembly category.
Need the full model directory? Browse Titan Advantage 500 Electric Piston Pump Parts.
Why Choose Genuine Titan Advantage 500 Main Assembly Parts?
Genuine Titan OEM replacement components are identified by manufacturer part number and intended equipment application. Using the specified components helps preserve the original machine arrangement and reduces the risk of ordering visually similar but incompatible parts.
Several Titan part numbers are used across different Advantage, Impact, RentSpray or SprayTech equipment families. Shared part numbers may indicate a documented common application, but compatibility must still be checked against the specific sprayer.
Before ordering a motor, fluid section or other major assembly, verify the exact model, voltage, support configuration and manufacturer documentation.
Titan Advantage 500 Main Assembly Maintenance and Safety
Before servicing the machine, shut off the sprayer, disconnect electrical power and complete Titan's prescribed pressure-relief procedure.
Never loosen pressurized fittings or attempt to locate high-pressure leaks with your hands. Fluid injection injuries require immediate emergency medical attention.
Inspect motor covers, wiring, grounding hardware and electrical components for damage. Electrical repairs should be completed by personnel qualified to work on the equipment.
Check suction and return lines for cracking, restrictions, damaged fittings and loose retaining components. Inspect the fluid section and drive system according to the manufacturer's service instructions.
Do not substitute unverified electrical components, pressure-rated parts or structural fasteners. Use the specified replacement parts and follow applicable assembly procedures.
After repairs, verify secure mounting, proper grounding, correct priming and leak-free operation before returning the sprayer to service.
Titan Advantage 500 Main Assembly Parts FAQ
Answers to common questions about genuine Titan motor assemblies, fluid sections, suction components and model compatibility.
What parts are available in the Titan Advantage 500 Main Assembly category?
The category currently lists 20 products, including motor assemblies, covers, support legs, fluid section packages, siphon tubes, inlet screens, return tubes, fittings and mounting hardware.
What is the Titan Advantage 500 motor assembly part number?
Titan 0551215A is the 120V motor assembly listed in the Advantage 500 main assembly category. Verify the machine's electrical configuration before ordering.
What is the Titan Advantage 500 motor cover part number?
Titan 0558302 is the motor cover listed for the Advantage 500 main assembly.
What is Titan 705-054 Siphon Tube used for?
Titan 705-054 is a siphon tube that draws coating material from the supply container into the designated sprayer intake system. Confirm the correct cart configuration before purchase.
Why will my Titan Advantage 500 not build pressure?
Possible causes include restricted suction components, air entering the intake system, worn fluid section packings, valve problems or pressure-control faults. Follow Titan's diagnostic procedure before replacing parts.
Does every Advantage 500 use the same fluid section assembly?
Do not assume so. The category includes more than one packaged fluid section listing. Confirm the model and configuration against current Titan documentation before ordering a complete fluid section.
Can I buy individual Advantage 500 parts instead of replacing the entire assembly?
Yes. AllTitanParts lists individual components such as motor covers, inlet screens, return tubes, screws, fittings and clips. Select the part that matches the diagnosed problem and the factory diagram.
Where can I buy genuine Titan Advantage 500 Main Assembly Parts?
Shop the Titan Advantage 500 Main Assembly Parts category at AllTitanParts. Use the exploded diagram and OEM part numbers to select the correct replacement components.
Shop Titan Advantage 500 Main Assembly Parts Today
Find genuine Titan motor assemblies, fluid section packages, suction components, support hardware and factory replacement parts. Identify the correct OEM number and order the components needed for your Advantage 500 repair.
BUY ADVANTAGE 500 MAIN ASSEMBLY PARTS →Need help identifying a replacement part? Call 713-931-0006.
