Shop Genuine OEM Titan TR2 Line Striping Tips
Shop genuine OEM Titan TR2 Line Striping Tips, Titan's 694-series two-pattern airless tips engineered to change from a narrow striping pattern to a wider stenciling pattern with a twist. Titan documents one tip with two fan patterns, consistent film thickness with either pattern, and a 5,000 PSI (34.5 MPa) maximum working-pressure rating. Current Titan literature lists four 694-series configurations—417/517, 419/519, 421/621 and 423/623—all with a yellow flag and white filter. Select by both patterns, orifice, material-flow demand and the capabilities of the complete striping system.
What Makes Titan TR2 Different?

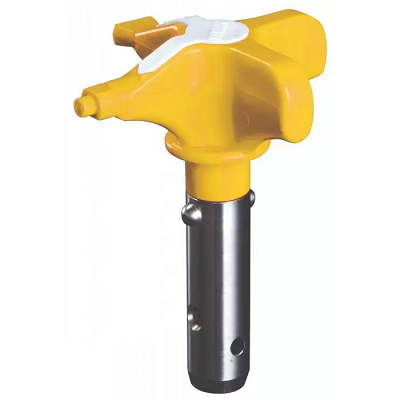

Titan's TR2 Line Striping design combines two application patterns in one tip. One side provides the striping pattern; turning the tip selects the wider stencil pattern. Titan describes the system as providing speed and control while maintaining consistent film thickness with either the wide or narrow fan pattern.
This makes the 694-series commercially distinct from a conventional single-pattern striping tip. The buyer is selecting a paired striping/stencil configuration, so both sides of the TR2 tip must suit the job and the sprayer must have enough output and tip capacity for the selected orifice.
Titan 692 TR2 Reversible vs 694 TR2 Line Striping Tips
Titan maintains separate TR2 product families. The distinction matters when shopping because a TR2 designation alone does not mean the product is a dedicated line-striping/stenciling configuration.
| Titan Family | Manufacturer Positioning | Pattern Function | Buying Focus |
|---|---|---|---|
| 692-Series TR2 Reversible | General TR2 reversible-tip family | Switches between wide and narrow fan patterns | Choose according to the documented spraying application and paired fan requirements. |
| 694-Series TR2 Line Striping | Dedicated striping/stenciling family | Switches between a narrow striping pattern and wider stencil pattern | Choose the required striping/stencil pair and verify complete machine capacity. |
Titan 694-Series TR2 Line Striping Tip Chart
Current Titan Field & Pavement and accessories literature identifies the following four TR2 Line Striping configurations. The striping and stencil sizes are manufacturer-listed paired patterns; Titan lists a yellow flag and white filter for all four.
| Titan Part Number | TR2 Pair | Striping Size | Striping Orifice | Stencil Size | Stencil Orifice | Published Orifice Flow* | Flag | Filter | Max Tip Rating |
|---|---|---|---|---|---|---|---|---|---|
| 694-1708517 | 417 / 517 | 417 | .017 in. | 517 | .017 in. | 0.31 GPM / 1.17 LPM | Yellow | White | 5,000 PSI / 34.5 MPa |
| 694-1908519 | 419 / 519 | 419 | .019 in. | 519 | .019 in. | 0.39 GPM / 1.47 LPM | Yellow | White | 5,000 PSI / 34.5 MPa |
| 694-2108621 | 421 / 621 | 421 | .021 in. | 621 | .021 in. | 0.47 GPM / 1.78 LPM | Yellow | White | 5,000 PSI / 34.5 MPa |
| 694-2308623 | 423 / 623 | 423 | .023 in. | 623 | .023 in. | 0.57 GPM / 2.15 LPM | Yellow | White | 5,000 PSI / 34.5 MPa |
*Flow values shown are Titan's published flow values for the corresponding .017, .019, .021 and .023 airless-tip orifices. Actual operating output depends on coating, pressure and equipment conditions.
How to Read Titan TR2 Striping & Stencil Tip Sizes
Each 694-series TR2 part number identifies a manufacturer-selected pair. For example, Titan 694-1708517 combines a 417 striping size with a 517 stencil size, while 694-2308623 combines a 423 striping size with a 623 stencil size. In each current 694 pairing, the two patterns share the same listed orifice while providing different narrow/wide pattern functions.
Titan PN 694-1708517
Titan PN 694-1908519
Titan PN 694-2108621
Titan PN 694-2308623
417/517 vs 419/519 vs 421/621 vs 423/623
The four current Titan 694 configurations progressively increase orifice size and published material-flow demand. Choose according to the coating requirement and equipment capacity rather than automatically selecting the largest tip.
| TR2 Pair | Orifice | Published Flow | Selection Consideration | Exact Titan PN |
|---|---|---|---|---|
| 417 / 517 | .017 in. | 0.31 GPM / 1.17 LPM | Lowest material demand among the four current listed pairs; coating requirement still controls selection. | 694-1708517 |
| 419 / 519 | .019 in. | 0.39 GPM / 1.47 LPM | Greater material demand than .017; verify coating recommendation and machine capacity. | 694-1908519 |
| 421 / 621 | .021 in. | 0.47 GPM / 1.78 LPM | Higher flow requirement; verify maximum tip size and available output. | 694-2108621 |
| 423 / 623 | .023 in. | 0.57 GPM / 2.15 LPM | Highest material demand among these four pairs; requires adequate machine capacity. | 694-2308623 |
Titan TR1 vs TR2 Line Striping Tips
| Series | Pattern Configuration | Primary Workflow | Selection Focus |
|---|---|---|---|
| 697 TR1 Line Striping | Dedicated striping pattern | Professional line striping | Required stripe width + orifice + flow + machine capacity |
| 694 TR2 Line Striping | Striping + wider stencil pattern in one tip | Jobs requiring convenient switching between striping and stenciling | Both patterns + orifice + flow + machine capacity |
Neither family is automatically the better choice. A contractor performing dedicated line work may prioritize the exact 697 TR1 stripe configuration, while a job that repeatedly alternates between striping and stencil patterns may benefit from the two-pattern 694 TR2 workflow.
Titan TR2 Flow & PowrLiner Capacity Requirements
The four current 694-series combinations use .017, .019, .021 and .023-inch orifices. Titan's published airless-tip flow chart associates those sizes with progressively greater material demand. Machine output and maximum supported tip size therefore become increasingly important as orifice size increases.
tip interface + required flow + maximum supported tip + coating requirement + operating pressure.
Which Titan PowrLiner Can Support My Selected TR2 Orifice?
Current Titan PowrLiner specifications show why model-level verification is necessary. The table below compares published machine capacity with the .017–.023-inch orifices used by the current 694-series TR2 combinations. Capacity data alone does not establish Titan's approval of a specific TR2/gun/guard installation.
| PowrLiner | Max Delivery | Max Tip — 1 Gun | Max Tip — 2 Guns | Max Operating Pressure | Selection Note |
|---|---|---|---|---|---|
| PowrLiner 850 | 0.33 GPM | .021 in. | — | 3,000 PSI | A .023 TR2 configuration exceeds the published one-gun maximum tip size. |
| PowrLiner 3500 / 3500S / 3500 72V | 0.75 GPM | .027 in. | — | 3,300 PSI | Published one-gun tip capacity encompasses the .017–.023 TR2 orifice range; verify gun/guard and coating requirements separately. |
| PowrLiner 4955 | 1.25 GPM | .034 in. | .025 in. | 3,300 PSI | Published one- and two-gun maximum tip sizes encompass the four current TR2 orifices; complete configuration still requires verification. |
| PowrLiner 6955 | 2.10 GPM | .047 in. | .031 in. | 3,300 PSI | Published capacity exceeds the four current TR2 orifice sizes; verify the actual gun, guard and job configuration. |
| PowrLiner 8955 | 2.50 GPM | .054 in. | .038 in. | 3,300 PSI | Published capacity exceeds the four current TR2 orifice sizes; verify the complete spray system before use. |
Machine-capacity comparison is not a universal fitment statement. The exact gun, guard/holder, coating, operating pressure and machine configuration must also be correct.
Titan TR2 Pressure, Gun, Guard & Hose Requirements
Titan rates the TR2 Line Striping tip to a 5,000 PSI (34.5 MPa) maximum working pressure. This is the tip's maximum component rating, not the pressure at which every striping machine should operate. Current PowrLiner models, for example, have machine-specific maximum operating pressures that can be lower than the tip rating.
Titan TR2 Gun, Guard & Tip-Holder Compatibility
Physical tip/holder fit and complete spraying compatibility are separate questions. Before ordering, verify the exact striping gun and manufacturer-approved holder or guard used on the machine.
Verify the exact tip/holder or guard interface.
Check output and maximum supported tip size.
Follow the coating manufacturer's recommended orifice and application conditions.
Observe the lowest working-pressure rating in the complete system.
TR2 Pattern Switching vs Tip Reversal
Titan specifically describes the 694 TR2 Line Striping system as switching between its stencil and striping sides with a twist. That two-pattern function should not be confused with a generic assumption about reversing a conventional tip solely to clear a clog. Follow the operating instructions for the exact TR2 tip, holder and spray gun when changing patterns, clearing an obstruction or servicing the spray system.
Professional Applications for Titan TR2 Line Striping Tips
The 694-series TR2 family is intended for professional workflows that require both line striping and stenciling. Its commercial advantage is the ability to move between the two patterns without changing to a separate tip. Match the selected orifice to the marking coating and the machine's available output rather than assuming every TR2 configuration is appropriate for every pavement-marking material.
Current TR2 Category Product-Family Check
The dedicated Titan 694-series TR2 Line Striping matrix currently consists of the four manufacturer-listed striping/stencil combinations shown above. Products carrying a 692-series number belong to Titan's separate TR2 Reversible family and should not be treated as 694-series dedicated striping/stenciling configurations.
| Products | Manufacturer Family | Category Treatment |
|---|---|---|
| 692-521, 692-635, 692-831 | TR2 Reversible | Separate from the dedicated 694 TR2 Line Striping matrix. |
| 694-1708517, 694-1908519, 694-2108621, 694-2308623 | TR2 Line Striping | Core striping/stenciling products for this category. |
When Should You Replace a Titan TR2 Tip?
Inspect the tip when either pattern no longer produces the expected spray quality or film consistency. Pattern deterioration, loss of control or increased material demand can indicate wear or another spray-system problem. Clean and inspect the system first, then replace a worn tip when it can no longer maintain the required striping and stencil performance under the coating and equipment manufacturers' recommended conditions.
How to Order the Correct Titan TR2 Line Striping Tip
- Identify the striping and stenciling requirements.
- Determine the required striping pattern.
- Check the coating manufacturer's recommended orifice.
- Determine the required wider stencil pattern.
- Confirm the stencil-side orifice requirement.
- Select the Titan TR2 configuration combining those two patterns.
- Verify the required material flow.
- Confirm sprayer output and maximum supported tip size.
- Confirm the exact spray gun and approved tip holder/guard.
- Verify operating pressure against every pressure-bearing component.
- Match the configuration to the exact 694-series Titan part number.
- Confirm current manufacturer status or replacement information when applicable.
- Order only after the complete application and equipment relationship is verified.
Shop Titan Airless & Line Striping Tips
Compare the dedicated striping and general airless-tip families before selecting the exact Titan part number.
Use striping requirement + striping pattern/orifice + stencil requirement + stencil pattern/orifice + required flow + sprayer capacity + gun/guard + pressure ratings + exact 694-series part number. For example, Titan 694-1708517 combines 417/517 patterns around a .017-inch orifice, while 694-2308623 combines 423/623 patterns around a larger .023-inch orifice. The latter therefore places greater material-flow demand on the sprayer; choose according to the coating and machine requirements, not simply the largest available orifice.
FAQ Section
Use these answers to narrow the correct Titan TR2 configuration before ordering.
How do I choose the correct Titan TR2 line striping tip?Choose the required striping and stencil patterns together, then verify the common orifice, coating requirement, published flow demand, sprayer output and maximum tip capacity, exact gun/holder configuration and complete-system pressure ratings. Finally, match the pair to the exact 694-series Titan part number.
|
What do Titan TR2 combinations such as 417/517 and 419/519 mean?They identify Titan's paired striping and stencil configurations. Titan 694-1708517 combines a 417 striping size with a 517 stencil size using a .017-inch orifice, while 694-1908519 combines 419 and 519 patterns using a .019-inch orifice. The complete pair and exact Titan part number should be used when ordering.
|
What is the difference between Titan TR1 and TR2 Line Striping Tips?Titan 697-series TR1 tips provide dedicated striping configurations selected by stripe requirement and orifice. Titan 694-series TR2 Line Striping Tips combine a narrow striping pattern and a wider stencil pattern in one tip, allowing the operator to change between those two patterns with a twist.
|
Will a Titan TR2 tip work with my PowrLiner and striping gun?It depends on the exact configuration. Verify the PowrLiner's maximum supported tip size and output, the selected TR2 orifice and flow requirement, the exact striping gun and approved holder/guard, the coating requirement and all working-pressure ratings. Physical tip fit alone does not establish complete compatibility.
|
What is the difference between Titan 692 TR2 Reversible and 694 TR2 Line Striping Tips?Titan's 692-series TR2 Reversible family provides two wide/narrow fan patterns for general TR2 spraying applications, while the 694-series TR2 Line Striping family is specifically configured around paired striping and wider stenciling patterns. Do not transfer 692-series specifications or applications to a 694-series tip.
|
