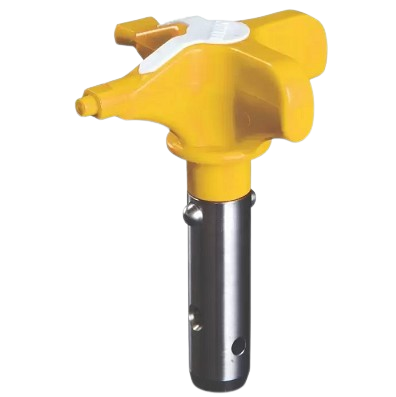

Titan 694-1708517 Airless Spray Gun Tip
TITAN TR2 DUAL-PATTERN AIRLESS SPRAY TIP
Titan 694-1708517 TR2 LS 1708/517 Airless Spray Tip combines a 417 striping pattern with a wider 517 stenciling pattern in one versatile assembly. Its .017-inch orifice class helps professional marking crews switch applications without repeatedly changing separate tips.
Titan identifies 694-1708517 with a yellow flag and white filter designation. The TR2 design changes between narrow striping and wider stenciling fan patterns with a simple twist, improving versatility for professional pavement and field-marking work.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 694-1708517 is the TR2 LS 1708/517 dual-pattern airless spray tip for professional line striping and stenciling. Titan pairs a 417 striping tip with a 517 stencil tip in one assembly. Both patterns use the .017-inch orifice class, providing different fan widths while maintaining the same nominal material opening. |
| Function | The TR2 system lets the operator change between a narrow striping fan and wider stenciling fan by twisting one tip instead of removing and replacing separate tips. The 417 pattern provides the striping function while the 517 pattern supplies the wider stencil application pattern. |
| Industrial Applications | Designed for professional pavement and field-marking operations requiring both line and stencil work. Applications include parking-lot striping, pavement markings, directional layouts, numbers, symbols and other marking projects where crews need to alternate efficiently between a narrow line pattern and wider application pattern. |
| Accurate Compatible Titan Machines | 694-1708517 is a TR2 spray-tip accessory rather than a replacement component dedicated to one specific Titan machine. Titan documents TR2 tips as part of its professional field-and-pavement marking equipment. Use with a compatible Titan PowrLiner or other appropriate airless line-striping system whose pump, gun and guard can support a .017-inch tip and the selected coating. |
| Accurate Part Number | Titan 694-1708517 — TR2 LS 1708/517. Titan's line-striping documentation specifies 417 as the striping tip size, 517 as the stencil tip size, yellow flag identification and a white filter designation. Both tip patterns use a .017-inch orifice. |
| Compatible Parts & Assemblies | Designed to operate with a compatible professional airless line-striping spray gun and tip-guard system. Supporting components include the appropriate tip seal, gun filtration and high-pressure airless hose. Correct filtration, guard condition and sealing components help maintain reliable material delivery and safe tip operation. |
| Related Parts Commonly Serviced Together | When replacing a worn TR2 tip, inspect the tip guard, tip seal, gun filter, gun fluid passages and high-pressure hose connections. Restricted filtration can reduce coating delivery, while a worn seal can permit leakage around the tip. Titan identifies a white filter for this TR2 configuration. |
| Common Problems Solved | TR2 reduces downtime associated with repeatedly changing between separate line-striping and stencil tips. The two-pattern arrangement keeps both application choices available at the spray gun. Replacing a worn tip can also help restore sharper fan definition, more consistent line width and controlled coating application. |
| Use with Coating Systems | Use with compatible airless pavement and field-marking coatings suitable for a .017-inch orifice. Titan's line-striping tip chart lists approximately 0.31 GPM / 1.17 LPM reference flow for a .017-inch orifice. Actual material requirements depend on coating viscosity, pressure, filtration and sprayer output. |
| OEM & Brand Information | 694-1708517 is a genuine Titan Tool TR2 line-striping accessory. Titan identifies it as the 417/517 combination in its TR2 family, alongside 419/519, 421/621 and 423/623 configurations. Titan's TR2 concept is specifically designed to switch from striping to stenciling with a twist of the tip. |
| Commercial Benefits | The 417/517 combination gives contractors the lowest-orifice option in Titan's documented four-model TR2 range. Its .017-inch opening can reduce material demand compared with the larger .019-, .021- and .023-inch TR2 combinations while still providing both striping and stenciling patterns from one tip assembly. |
Contractor Selection Insight
Choose 694-1708517 when you need the .017-inch TR2 configuration and want both 417 striping and 517 stenciling patterns available at the gun. It is the smallest-orifice combination in Titan's documented TR2 LS range. For progressively greater material flow, compare the .019-inch 419/519, .021-inch 421/621 and .023-inch 423/623 configurations. Always match tip size to the coating and your striper's maximum supported tip capacity.
FAQ Section
Key answers for contractors selecting Titan 694-1708517 TR2.
