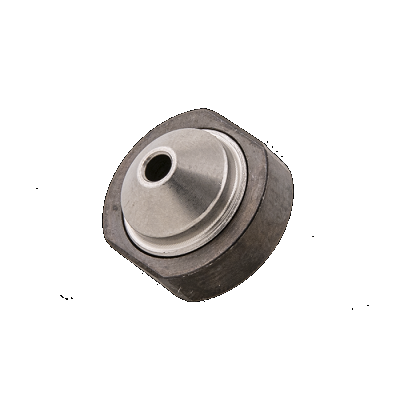

Shop Genuine OEM Titan Brilliant Flat Tips for GM3600
Titan Brilliant™ Flat Tips are precision-machined from high-quality tungsten carbide for the Titan GM3600 Air Assisted Airless / AirCoat spray gun. Titan positions these AAA flat tips for high-production fine-finish applications and publishes a dedicated selection matrix connecting each tip designation with its orifice, spray angle, recommended filtration and exact Titan part number. Select the Brilliant tip by the finish requirement and coating-recommended opening, then match the spray angle, filter and GM3600 flat-tip configuration before ordering.
Titan Brilliant Flat Tip Size & Part Number Chart
Titan’s manufacturer chart for the GM3600 connects the Brilliant tip designation directly to the orifice diameter, spray angle, recommended filter and order number. Use the documented matrix rather than creating an unlisted combination from the numbering pattern.

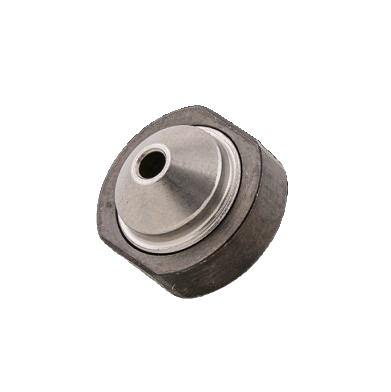

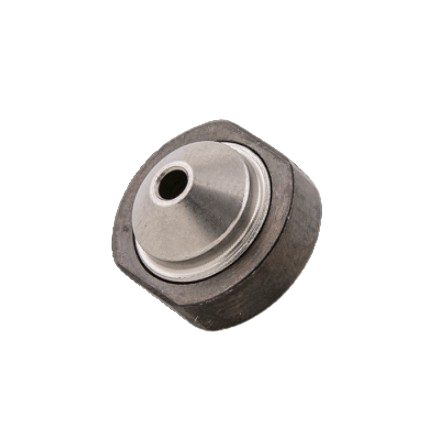

| Titan Designation | Titan Part Number | Legacy Leading-Zero Number | Orifice | Spray Angle | Recommended Filter | Documented Platform |
|---|---|---|---|---|---|---|
| 9/20 | 526209 | 0526209 | .009 in. | 20° | 180 mesh | GM3600 Brilliant flat-tip system |
| 9/40 | 526409 | 0526409 | .009 in. | 40° | 180 mesh | GM3600 Brilliant flat-tip system |
| 11/10 | 526111 | 0526111 | .011 in. | 10° | 180 or 100 mesh | GM3600 Brilliant flat-tip system |
| 11/20 | 526211 | 0526211 | .011 in. | 20° | 180 or 100 mesh | GM3600 Brilliant flat-tip system |
| 11/40 | 526411 | 0526411 | .011 in. | 40° | 180 or 100 mesh | GM3600 Brilliant flat-tip system |
| 13/10 | 526113 | 0526113 | .013 in. | 10° | 100 mesh | GM3600 Brilliant flat-tip system |
| 13/20 | 526213 | 0526213 | .013 in. | 20° | 100 mesh | GM3600 Brilliant flat-tip system |
| 13/40 | 526413 | 0526413 | .013 in. | 40° | 100 mesh | GM3600 Brilliant flat-tip system |
| 15/10 | 526115 | 0526115 | .015 in. | 10° | 100 mesh | GM3600 Brilliant flat-tip system |
| 15/20 | 526215 | 0526215 | .015 in. | 20° | 100 or 50 mesh | GM3600 Brilliant flat-tip system |
| 15/40 | 526415 | 0526415 | .015 in. | 40° | 100 or 50 mesh | GM3600 Brilliant flat-tip system |
| 17/20 | 526217 | 0526217 | .017 in. | 20° | 50 mesh | GM3600 Brilliant flat-tip system |
| 17/40 | 526417 | 0526417 | .017 in. | 40° | 50 mesh | GM3600 Brilliant flat-tip system |
Current vs Legacy Titan Brilliant Flat Tip Sizes
Titan’s later manufacturer charts publish the selected 10°, 20° and 40° combinations shown above. AllTitanParts also contains Brilliant Flat Tip listings using 30°, 50° and 60° designations. Their presence in the store is not, by itself, manufacturer evidence that each remains in Titan’s current published Brilliant matrix.
| AllTitanParts Listing | Designation | Later Titan Matrix | Responsible Status Treatment |
|---|---|---|---|
| 0526309 | 09/30 | Not shown in later surfaced matrix | Verify current/legacy status before representing it as a current Titan matrix size. |
| 0526311 | 11/30 | Not shown | Do not infer discontinuation or supersession from omission alone. |
| 0526509 | 09/50 | Not shown | Manufacturer status requires separate verification. |
| 0526511 | 11/50 | Not shown | Do not invent a replacement number. |
| 0526513 | 13/50 | Not shown | Retain only with appropriately verified product status. |
| 0526515 | 15/50 | Not shown | Current/legacy status remains a separate manufacturer-data question. |
| 0526517 | 17/50 | Not shown | Do not classify solely from the store record. |
| 0526611 | 11/60 | Not shown | Verify before presenting as current. |
| 0526615 | 15/60 | Not shown | No supersession should be inferred. |
| 0526617 | 17/60 | Not shown | Verify manufacturer status independently before sale as a current matrix size. |
How to Read Titan Brilliant Flat Tip Sizes
Brilliant designations combine documented orifice and spray-angle information. The safest approach is to read the complete designation against Titan’s chart rather than generating a part number from the pattern.
| Example | Orifice | Angle | Recommended Filter | Titan PN |
|---|---|---|---|---|
| 9/20 | .009 in. | 20° | 180 mesh | 526209 |
| 13/40 | .013 in. | 40° | 100 mesh | 526413 |
| 17/40 | .017 in. | 40° | 50 mesh | 526417 |
Identifying a 9/20, 13/40 or 17/40 Brilliant tip does not establish compatibility with a different airless gun, air cap, coating or spray system. Titan documents Brilliant Flat Tips specifically with the GM3600 Air Assisted Airless platform.
Choosing the Correct Brilliant Flat Tip Orifice
Titan’s later Brilliant Flat Tip matrix includes .009, .011, .013, .015 and .017-inch openings. Increasing the orifice creates a larger fluid opening and changes material-delivery requirements, but the correct opening must begin with the coating and finish requirement rather than a general assumption that larger is better.
| Orifice Family | Published Angle Choices | Published Filtration | Buying Check |
|---|---|---|---|
| .009 in. | 20°, 40° | 180 mesh | Confirm coating recommendation and required pattern geometry. |
| .011 in. | 10°, 20°, 40° | 180 or 100 mesh | Match the exact designation to Titan’s chart. |
| .013 in. | 10°, 20°, 40° | 100 mesh | Verify coating, angle and GM3600 configuration. |
| .015 in. | 10°, 20°, 40° | 100 or 50 mesh | Follow the exact tip-chart filtration recommendation. |
| .017 in. | 20°, 40° | 50 mesh | Confirm the coating and complete system can support the selected setup. |
Do not assign one universal coating type to an orifice. Coating formulation, viscosity, finish requirements and manufacturer application instructions determine the appropriate fluid opening.
Choosing 10°, 20° or 40° Brilliant Flat Tips
Orifice and spray angle are separate selection variables. Titan’s later chart provides several same-orifice choices, allowing the finisher to select a documented pattern angle without changing the specified fluid opening.
| Comparison | Shared Orifice | Available Angles | Selection Principle |
|---|---|---|---|
| 11/10 vs 11/20 vs 11/40 | .011 in. | 10° / 20° / 40° | Select the documented angle required for the work while retaining the .011 opening. |
| 13/10 vs 13/20 vs 13/40 | .013 in. | 10° / 20° / 40° | All three use Titan’s 100-mesh recommendation in the published chart. |
| 15/10 vs 15/20 vs 15/40 | .015 in. | 10° / 20° / 40° | Do not mistake a larger angle for a larger orifice. |
Titan’s Brilliant chart specifies angles rather than an exact inch-based fan-width table. Do not convert 10°, 20° or 40° into an invented guaranteed fan width.
Titan Brilliant Flat Tip Filter Selection
Filtration is part of Titan’s Brilliant Flat Tip selection data, not an optional afterthought. Titan publishes the recommended filter alongside each documented tip designation.
| Orifice | Titan-Published Filter | Selection Note |
|---|---|---|
| .009 in. | 180 mesh | Use the manufacturer’s fine filtration recommendation for the documented .009 tips. |
| .011 in. | 180 or 100 mesh | Titan publishes both options for the documented Brilliant .011 sizes. |
| .013 in. | 100 mesh | Published for 13/10, 13/20 and 13/40. |
| .015 in. | 100 or 50 mesh | Follow the exact Brilliant tip chart when configuring filtration. |
| .017 in. | 50 mesh | Published for the documented 17/20 and 17/40 sizes. |
Titan Brilliant Flat Tips & the GM3600 AirCoat Gun
Titan specifically documents Brilliant Flat Tips for the GM3600 Air Assisted Airless / AirCoat gun. The GM3600 uses high-pressure fluid delivery together with atomizing air and is documented for both standard reversible tips and Brilliant™ Flat Tips.
The two tip systems use corresponding front-end configurations. Titan documentation identifies 394965 as the GM3600 air-cap assembly for the flat-tip configuration and documents 524220 as the GM3600 AirCoat gun, 50-foot hose and flat-tip kit.
Do not infer Brilliant Flat Tip compatibility with unrelated Titan airless guns merely because the equipment is Titan-branded. Verify the GM3600 gun configuration and front-end hardware before ordering.
GM3600 Brilliant Flat Tip vs Reversible Tip Configuration
| Selection Point | Brilliant Flat-Tip Configuration | Reversible-Tip Configuration |
|---|---|---|
| Tip system | Titan Brilliant™ Flat Tip | Standard reversible tip |
| Documented gun platform | GM3600 AirCoat / Air Assisted Airless | GM3600 AirCoat / Air Assisted Airless |
| Air-cap assembly | 394965 | Use the reversible-tip air-cap configuration documented for the exact gun version. |
| Documented 50-ft kit | 524220 | 524219 |
| Tip selection | Designation + orifice + angle + filtration | Select from the documented reversible-tip family for the installed configuration. |
| Buying rule | Confirm flat-tip front end before ordering a Brilliant tip. | Confirm reversible front end before ordering a reversible tip. |
The fact that the GM3600 platform supports both approaches does not mean the two tip systems or their front-end hardware should be treated as interchangeable.
Brilliant Flat Tip & GM3600 Pressure Ratings
Titan rates AAA Brilliant Flat Tips to a maximum working pressure of 5,000 PSI / 34.5 MPa. This is the maximum rating of the Brilliant tip component; it is not a required spraying pressure.
Titan documentation rates the GM3600 gun to 3,600 PSI / 24.8 MPa. The higher rating of the Brilliant tip does not raise the gun’s allowable pressure.
Always operate the complete system within the rating of its lowest-rated pressure-bearing component, including the gun, hose, fittings and other installed fluid-pressure components.
Brilliant Flat Tips vs Titan Reversible, HEA & SC-6+ Tips
Titan uses different tip technologies for different spray platforms and application goals. Their specifications and marketing claims should remain separated.
| Titan Tip Family | Technology / Platform | Manufacturer Positioning | Primary Selection Variables | Important Boundary |
|---|---|---|---|---|
| Brilliant™ Flat Tips | AAA / GM3600 AirCoat | High-production fine-finish applications | Orifice + angle + filtration + GM3600 flat-tip configuration | Not TR1 HEA. |
| GM3600 Reversible Tip System | AAA / GM3600 AirCoat | Alternative GM3600 front-end tip system | Exact reversible tip + matching GM3600 front-end hardware | Do not substitute flat-tip hardware blindly. |
| TR1 HEA | High Efficiency Airless | Separate Titan HEA technology | HEA-specific size, sprayer and guard requirements | HEA overspray and low-pressure claims do not automatically apply to Brilliant tips. |
| SC-6+ Synergy Fine Finish | SC-6+ fine-finish tip family | Separate fine-finish technology | SC-6+ size + fan + orifice + equipment capacity | Synergy atomization claims do not transfer to Brilliant tips. |
| SC-6+ Reversible | Standard reversible airless | General reversible airless-tip family | Fan + orifice + flow + sprayer capability | SC-6+ guard-fit statements should not be transferred to Brilliant tips. |
AllTitanParts Brilliant Flat Tip Product-Data Audit
The Brilliant Flat Tips category should use Titan manufacturer documentation as the technical authority. Store category placement, legacy descriptions or a similar-looking part number should not override the manufacturer’s documented technology.
The same rule should be applied across every child product. Verify the exact designation, orifice, angle, filter, GM3600 relationship, part-number form and manufacturer status before publishing the product description.
Remove unsupported Brilliant-tip statements such as universal HEA classification, “up to 55% less overspray,” universal low-pressure operation, extended pump life, twice-standard-tip-life claims, universal compatibility with standard airless guards, or universal coating compatibility unless current Brilliant/GM3600 manufacturer documentation directly supports the specific claim.
Titan Brilliant Flat Tip Buying Guide
- Identify the exact coating and required finish.
- Check the coating manufacturer’s recommended fluid-tip opening.
- Confirm that the spray system is the Titan GM3600 Air Assisted Airless / AirCoat platform.
- Confirm the gun is configured for the Brilliant flat-tip system.
- Select a Titan-documented Brilliant orifice.
- Select the required documented spray angle.
- Match the exact designation to Titan’s manufacturer chart.
- Use Titan’s recommended filtration for that exact tip.
- Verify the flat-tip air-cap/front-end configuration.
- Confirm the pressure limits of the complete system.
- Verify the exact Titan part number and any documented legacy number.
- Buy only after the coating, Brilliant tip, filtration and GM3600 configuration agree.
Shop Titan Brilliant Flat Tips & GM3600 Components
Use the manufacturer’s tip data together with the exact GM3600 configuration rather than shopping by tip appearance alone.
Contractor Selection Insight
13/20 and 13/40 both use a .013-inch orifice, and Titan specifies 100-mesh filtration for both. Their documented difference is the spray angle: 20° versus 40°.
That means a buyer should not choose a Brilliant tip simply because one designation appears “larger.” First select the coating-required opening, then select the appropriate documented angle and Titan-recommended filtration.
Shop, Compare, Buy or Order genuine OEM Titan Brilliant Flat Tips from AllTitanParts.com after verifying GM3600 configuration, coating orifice, spray angle, filtration and exact Titan part number.
FAQ Section
Use these verified selection points to narrow the correct Brilliant Flat Tip and GM3600 setup before ordering.
How do I choose the correct Titan Brilliant Flat Tip for my GM3600?Confirm that the GM3600 is configured for the Brilliant flat-tip system, then start with the coating manufacturer’s recommended orifice. Select the required Titan-documented spray angle, match the exact Brilliant designation to Titan’s chart, use the specified filtration and verify the exact part number before ordering.
|
What do Brilliant Flat Tip sizes such as 9/20, 13/40 and 17/40 mean?Titan’s chart identifies 9/20 as a .009-inch tip with a 20° angle, 13/40 as a .013-inch tip with a 40° angle, and 17/40 as a .017-inch tip with a 40° angle. Always use Titan’s published chart to confirm the designation, filter and part number rather than creating an unlisted combination from the numbering pattern.
|
Which filter mesh should I use with a Titan Brilliant Flat Tip?Follow Titan’s recommendation for the exact Brilliant tip. The published chart specifies 180 mesh for .009 tips; 180 or 100 mesh for .011; 100 mesh for .013; 100 or 50 mesh for .015; and 50 mesh for the documented .017 Brilliant tips.
|
Will a Titan Brilliant Flat Tip work with any Titan airless spray gun?No universal compatibility should be assumed. Titan specifically documents Brilliant Flat Tips for the GM3600 Air Assisted Airless / AirCoat gun. Confirm the exact gun model, flat-tip front-end configuration, air-cap hardware, coating requirement and complete-system pressure limits before ordering.
|
What is the difference between the GM3600 Brilliant flat-tip and reversible-tip configurations?The GM3600 platform is documented for both Brilliant Flat Tips and standard reversible tips, but each uses the corresponding front-end configuration. Titan documents air-cap assembly 394965 for the flat-tip configuration and complete 50-foot kit 524220 for the flat-tip system, while kit 524219 is the reversible-tip package. Confirm the installed configuration before selecting a tip.
|
