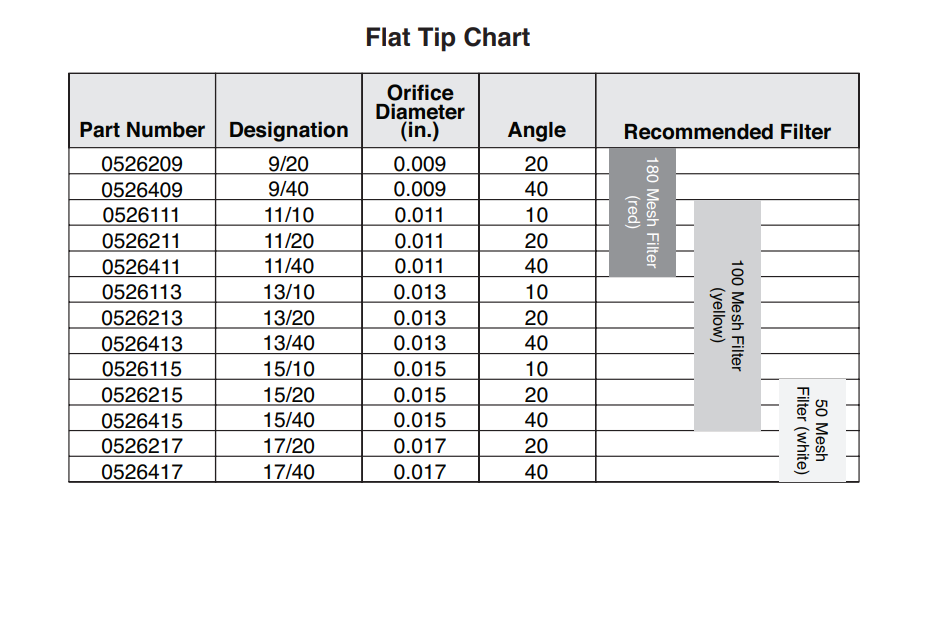

GM3600 AirCoat Spray Gun Flat Tip Chart

GM3600 AirCoat Spray Gun Flat Tip Chart
Titan 0526209 AirCoat Tip ACF 9/20
Titan 0526209 AirCoat Tip ACF 9/20

Item No: 1

Part #: 0526209

Titan 0526209 AirCoat Tip ACF 9/20Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600, GM3600

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:
Titan 0526409 Brilliant Flat Tip
Titan 0526409 Brilliant Flat Tip

Item No: 2

Part #: 0526409

Titan 0526409 Brilliant Flat Tip is designed for use with the GM3600 Air Assisted Airless gun Titan...

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:
Titan 0526111 Brilliant Flat Tip.
Titan 0526111 Brilliant Flat Tip.

Item No: 3

Part #: 0526111

Titan 0526111 Brilliant Flat Tip, 11/10Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600, GM3600

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:

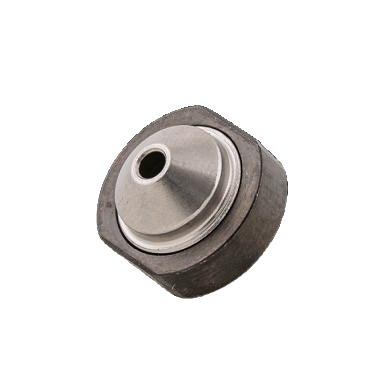

Titan 0526211 Brilliant Flat Tip
Titan 0526211 Brilliant Flat Tip

Item No: 4

Part #: 0526211

Titan 0526211 Brilliant Flat Tip, 11/20 or TIP ACF3000 11/20 CONTRACTOR

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:
Titan 0526411 Brilliant Flat Tip
Titan 0526411 Brilliant Flat Tip

Item No: 5

Part #: 0526411

Titan 0526411 Brilliant Flat Tip, flat, 11/40Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600, GM...

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:
Titan 0526113 Brilliant Flat Tip
Titan 0526113 Brilliant Flat Tip

Item No: 6

Part #: 0526113

Titan 0526113 Brilliant Flat Tip, 13/10Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600

Retail Price: $114.50
You save: $11.91 (10.40%)
Our Price: $102.59
QTY:
Titan 0526213 Brilliant Flat Tip
Titan 0526213 Brilliant Flat Tip

Item No: 7

Part #: 0526213

Titan 0526213 Brilliant Flat Tip, 13/20Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600, GM3600

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:
Titan 0526413 Brilliant Flat Tip
Titan 0526413 Brilliant Flat Tip

Item No: 8

Part #: 0526413

Titan 0526413 Brilliant Flat Tip, ac, flat, 13/40Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600,...

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:
Titan 0526115 Brilliant Flat Tip
Titan 0526115 Brilliant Flat Tip

Item No: 9

Part #: 0526115

Titan 0526115 Brilliant Flat Tip, 15/10Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600, GM3600

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:
Titan 0526215 Brilliant Flat Tip
Titan 0526215 Brilliant Flat Tip

Item No: 10

Part #: 0526215

Titan 0526215 Brilliant Flat Tip, 15/20Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600, GM3600

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:
Titan 0526415 Brilliant Flat Tip.
Titan 0526415 Brilliant Flat Tip.

Item No: 11

Part #: 0526415

Titan 0526415 Brilliant Flat Tip, flat, 15/40Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600, GM...

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:
Titan 0526217 Brilliant Flat Tip.
Titan 0526217 Brilliant Flat Tip.

Item No: 12

Part #: 0526217

Titan 0526217 Brilliant Flat Tip, 17/20 Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600, GM3600

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
Discontinued by Manufacturer

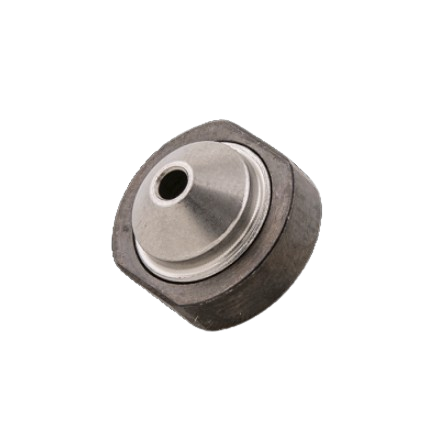

Titan 0526417 Brilliant Flat Tip.
Titan 0526417 Brilliant Flat Tip.

Item No: 13

Part #: 0526417

Titan 0526417 Brilliant Flat Tip, 17/40   Fits: GM3600 AirCoat Spray Gun, CapSpray GM 3600, GM...

Retail Price: $109.00
You save: $11.34 (10.40%)
Our Price: $97.66
QTY:

GM3600 AirCoat Spray Gun Flat Tip Chart

The GM3600 AirCoat Spray Gun Flat Tip Chart is designed to help painters and finishing professionals select the correct flat tip size for precise atomization, consistent fan patterns, and improved coating control. The chart includes multiple Brilliant Flat Tip and AirCoat Tip configurations for the GM3600 AirCoat Spray Gun, allowing users to match tip sizes with different coating viscosities and application requirements.

Using the correct tip size is essential for achieving smooth finishes while reducing overspray and material waste. The GM3600 system supports a wide range of flat tip sizes including 9/20, 11/10, 13/20, 15/40, and 17/40 configurations for different spray widths and fluid delivery rates. Proper tip selection improves transfer efficiency and helps maintain stable spray performance in fine finishing and industrial coating applications.

The GM3600 AirCoat Spray Gun Flat Tip Chart is commonly used for furniture finishing, cabinetry, wood coatings, metal fabrication, and high-quality industrial paint applications. The GM3600 AirCoat Spray Gun operates at pressures up to 3600 PSI and supports both standard reversible tips and Brilliant Flat Tips for enhanced finish quality and precise control.

FAQs

Using an incorrect tip size can lead to poor atomization, uneven fan patterns, excessive overspray, or inconsistent coating thickness during spraying applications.

Clogged flat tips can restrict fluid flow, create sputtering spray patterns, and reduce finish quality, especially when spraying fine coatings or lacquers.

Worn Brilliant Flat Tips may produce uneven edges, increased overspray, and reduced transfer efficiency due to enlarged or damaged orifice openings.

Inconsistent fan patterns are often caused by incorrect pressure settings, partially blocked air caps, damaged flat tips, or improper fluid viscosity.

Poor maintenance can allow paint buildup inside the tip and air cap assembly, reducing spray consistency and increasing the risk of clogging during high-pressure spraying applications.
