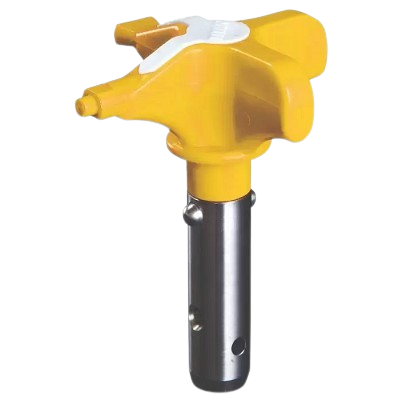

TITAN TR2 DUAL-PATTERN LINE STRIPING TIP
Titan 694-2308623 TR2 LS 2308/623 Tip combines 423 striping and 623 stenciling patterns in one reversible assembly. Its .023-inch orifice, yellow flag and white filter identification let pavement-marking contractors switch applications with a simple twist.
Brand: Titan Tool Part Number: 694-2308623 Patterns: 423 / 623 Application: Striping / Stenciling
The TR2 dual-tip design eliminates changing separate tips when moving between line striping and stencil work. Two sintered tungsten-carbide tip cores provide narrow and wide fan patterns, with a maximum working-pressure rating of 5,000 PSI.
Quantity
Genuine OEM Part
Fast Shipping
Easy Returns
Striping: 423 Stenciling: 623 Orifice: .023" Flag: Yellow Max Pressure: 5,000 PSI
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 694-2308623 is the TR2 LS 2308/623 dual-pattern airless tip for professional line striping and stenciling. It combines Titan's 423 striping pattern with a 623 stencil pattern in one assembly, uses a .023-inch orifice class and carries a 5,000 PSI / 34.5 MPa maximum working-pressure rating. |
| Function | TR2 technology places two spray patterns into one tip assembly. The operator twists the tip to move between the narrower 423 striping pattern and wider 623 stenciling pattern without removing one tip and installing another. Titan designed the system to provide speed for production striping and control for precise stencil application. |
| Industrial Applications | Designed for professional pavement and field-marking work requiring both line striping and stencil application. Typical jobs include parking-lot layouts, roadway and pavement markings, directional markings, curb-related marking work, stop bars, crosswalk-related stencil work and other contractor applications where changing fan patterns quickly improves productivity. |
| Accurate Compatible Titan Machines | This TR2 accessory is intended for compatible professional airless line-striping systems rather than one single machine. Titan field-and-pavement literature places TR2 tips within its PowrLiner striping system family. Exact sprayer capability must support the .023-inch orifice and selected coating; do not assume every smaller PowrLiner can operate this tip at full production output. |
| Accurate Part Number | Titan 694-2308623 — TR2 LS 2308/623. Titan's TR2 line-striping chart specifies 423 as the striping tip size, 623 as the stencil tip size, yellow flag identification and a white filter designation. Both patterns use the .023-inch orifice class. |
| Compatible Parts & Assemblies | Designed for a compatible high-pressure airless gun and tip-guard system used for line-striping applications. The TR2 assembly uses two sintered tungsten-carbide tip cores arranged together to provide its two fan patterns. Titan specifies yellow flag and white filter identification for 694-2308623. |
| Related Parts Commonly Serviced Together | Inspect the compatible tip guard, tip seal, gun filter, spray-gun fluid passages and high-pressure hose whenever replacing a worn TR2 tip. Restricted filters or gun passages can reduce material flow, while worn seals can cause leakage around the tip assembly. Match filtration to Titan's white-filter designation and the coating being sprayed. |
| Common Problems Solved | TR2 reduces downtime caused by repeatedly removing and replacing separate striping and stencil tips. A simple twist changes between the two fan patterns, helping crews maintain production while improving control during stencil work. Replacing a worn tip can also restore fan-pattern definition and more consistent coating application when the existing tip has reached its service limit. |
| Use with Coating Systems | Engineered for compatible airless line-marking coatings used in striping and stenciling applications. Because 694-2308623 uses a .023-inch orifice, verify that the selected PowrLiner or other compatible airless line striper has sufficient output for the coating, pressure and tip size. Follow the coating manufacturer's filtration, pressure and application requirements. |
| OEM & Brand Information | 694-2308623 is a genuine Titan Tool TR2 line-striping accessory. Titan's TR2 concept combines two sintered tungsten-carbide tip cores in one assembly and is designed to provide two application patterns without requiring a separate tip change. The product is identified in Titan literature as TR2 LS 2308/623. |
| Commercial Benefits | For contractors performing both striping and stencil work, one TR2 tip can replace the workflow of repeatedly swapping two conventional tips. Faster pattern changes reduce interruption at parking-lot and pavement-marking jobs, while the 423/623 combination gives crews a practical narrow-to-wide pattern pairing from a single professional 5,000-PSI-rated accessory. |
Contractor Selection Insight
Choose 694-2308623 when your striping workflow requires the largest-orifice TR2 line-striping/stenciling combination in Titan's documented four-tip TR2 LS range. It pairs 423 striping with 623 stenciling at a .023-inch orifice. Before ordering, verify that your airless striper can support the .023-inch tip and that the selected coating is appropriate for this larger material opening.
