ProFinish C-100 Sprayer Parts

Buy ProFinish C-100 Sprayer Parts & Accessories Online

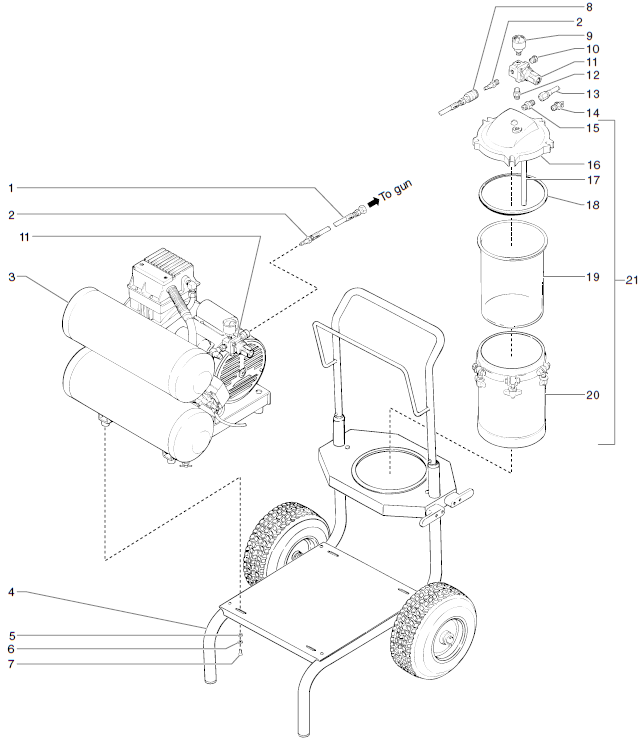

The ProFinish C-100 is a pressure-pot / cart-mounted spray system designed for professional painting and coating jobs. The system includes a compressor (air source), a pressure pot (material reservoir), a cart (for mobility), air and fluid hoses, and a spray gun (model 773-400) for applying coatings.

It is meant for “fine-finish” spraying  giving users control over atomization, spray pattern, and material flow  rather than for heavy-duty industrial airless spraying.

Key Features

• Pressure-pot delivery system: The C-100 uses a pressure pot to hold coating material under pressure, supplying paint consistently to the spray gun. This allows relatively continuous application without frequent refills.

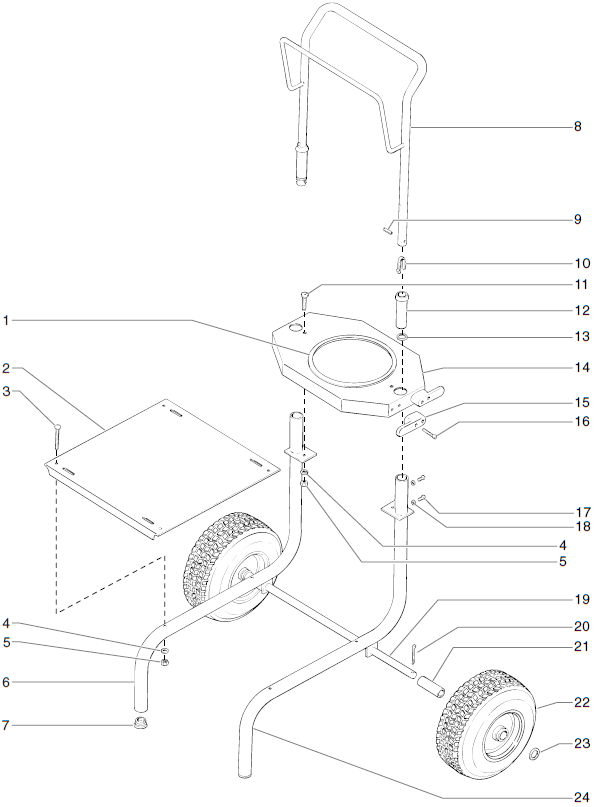

• Cart-mounted & mobile: The inclusion of a cart assembly gives portability and ease of movement, making it easier for painters to maneuver the system around job sites — useful when working on larger surfaces or moving between rooms.

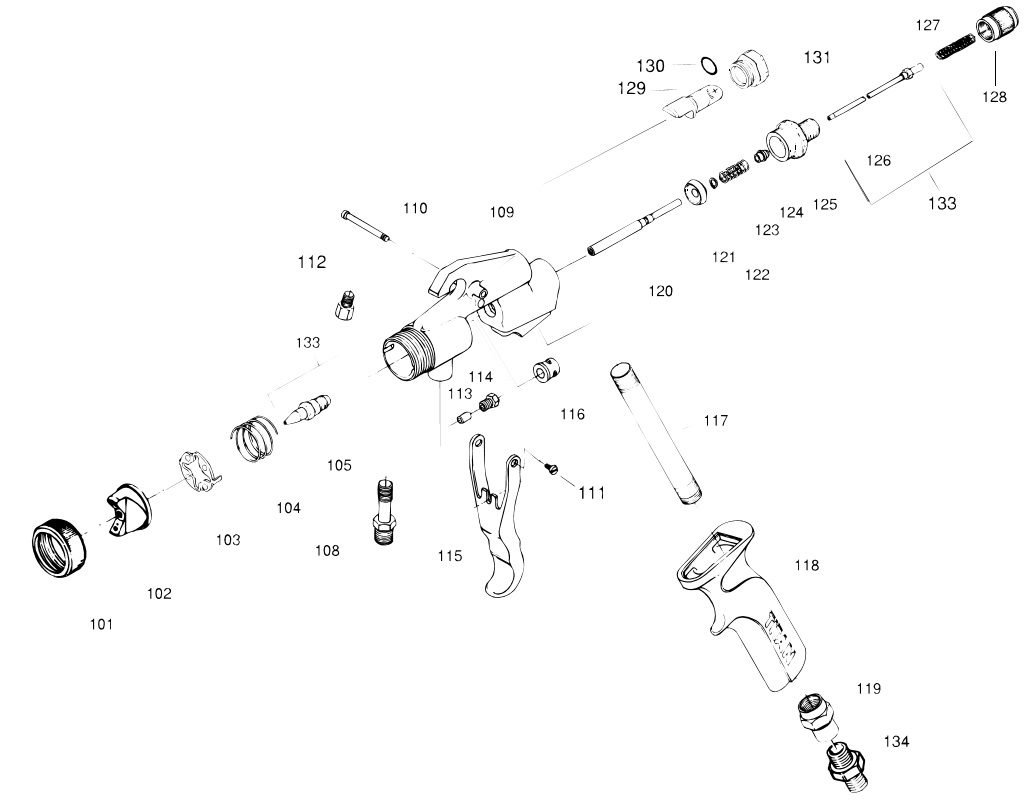

• Adjustable spray gun (773-400) configuration: The included spray gun comes with a .051 fluid nozzle and “#0A” medium air cap. The gun allows adjustments: fan size, air volume, and fluid flow — enabling customization of spray width and coating thickness.
• Flexible spray pattern control: You can switch between round, horizontal, or vertical fan patterns by rotating the air cap, and adjust fluid and air flow to suit different materials or finishing requirements.
• Compatibility with varied coatings: The system can handle materials that have been properly prepared (e.g., thinned/strained if needed) — making it suitable for different kinds of paints, varnishes or finishes where a controlled, fine finish is desired.
• Professional-grade build & safety grounding: The system must be grounded properly for electrical safety, and is built with components to support professional use (air inlet/outlet ports, pressure pot setup, secure material delivery).



Applications

The ProFinish C-100 is well-suited for jobs where controlled, smooth, even coating is needed — especially for finishing work rather than heavy-duty industrial spraying. For example:

• Fine finishing of cabinetry, furniture, woodwork — where spray pattern control and even coat are important.
• Interior or exterior painting tasks where precision and controlled spray are needed (doors, trim, window frames, moldings).
• Applying varnish, stain, sealers, primers or decorative coatings that require good atomization and uniform coverage.
• Jobs in workshops or smaller production where mobility (cart + pressure pot) helps — e.g. maintenance, refurbishment, small-scale commercial coatings.
• Anywhere you want better control than typical airless spraying — especially for detailed or delicate surfaces.



FAQ’s

1: How do I adjust the spray gun for different coating thickness or spray patterns?

The spray gun (773-400) allows several adjustments: the air-cap retainer ring adjusts the fan size (clockwise → wider fan, counter-clockwise → narrower). A top knob controls air volume (clockwise reduces air flow), and another knob controls fluid flow (clockwise reduces fluid flow, counter-clockwise increases). You can also switch between round, horizontal, or vertical fan patterns by rotating the air cap.

2: What should I do before spraying a new paint or coating to ensure good spray quality?

Before spraying, the coating material should be prepared per manufacturer instructions — that may include straining to remove lumps, and thinning if viscosity is too high to achieve proper atomization. Always test the spray pattern on a test surface before spraying the final object.

3: How should I clean and maintain the C-100 after use to ensure long life and reliable performance?

After use, first relieve system pressure (especially the pressure pot) before opening anything. Clean the spray gun thoroughly (nozzle, air cap, fluid passages), flush out leftover paint/residue from the pressure pot, hoses, and gun. Remove and clean filters/strain­er if present, and ensure all parts (seals, O-rings, nozzles, hoses) are free of clogs, dried paint or damage. Also inspect for wear on the nozzle, needle, air cap, and replace worn components as needed.

Q4: What safety precautions should I follow when using the ProFinish C-100?

Ensure the system is properly grounded before plugging in improper grounding can risk electric shock. Never exceed recommended pressure in a pressure pot, and always relieve pressure before opening the pot lid.

Additionally, make sure all hoses and connections are secure before spraying. For optimal safety and performance, regularly inspect and maintain the Main Assembly Parts to ensure they are in proper working condition.

5: What problems might occur (e.g. poor spray quality, leaks, clogging) — and how to troubleshoot them?

Common issues could include: fluid nozzle or air cap clogging (due to unstrained/thick paint), improper fluid viscosity or incorrect gun adjustment (leading to poor atomization, “tailing”, or uneven coats), worn nozzle/needle causing leaks or poor pattern, or suction/pressure issues if fluid supply or pressure pot settings are wrong. To troubleshoot: strain and thin paint as needed, check and clean/replace nozzle or air cap, inspect hoses and seals for leaks, and re-adjust spray gun’s parts and fluid settings.
