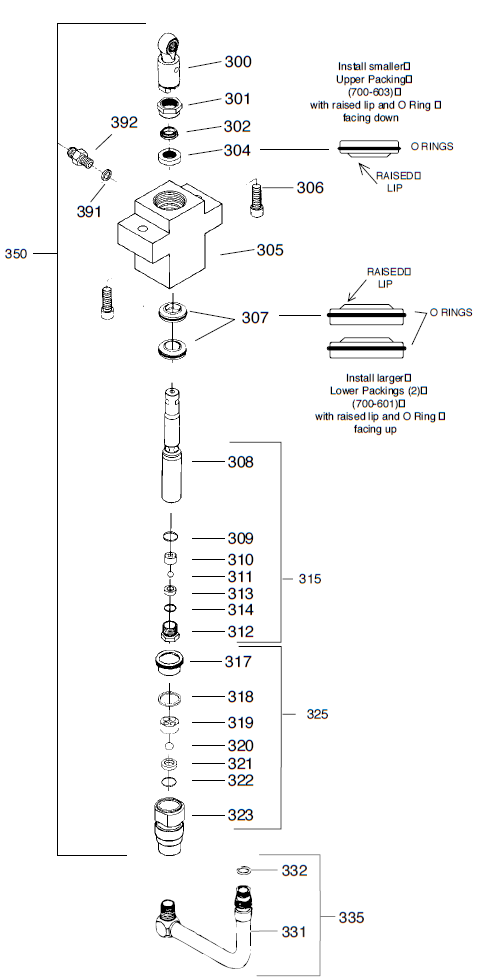

PowrLiner 3100 Fluid Section Assembly Parts

Titan 730-508 Retainer (Replaces Titan 509594)

Item No: 301

Part #: 730-508

Part number 730-508 is a Retainer that secures components in position within compatible sprayer syst...

Retail Price: $33.20

You save: $1.83 (5.51%)

Our Price: $31.37

QTY:

Titan 700-587 Upper Piston Guide

Item No: 302

Part #: 700-587

Part number 700-587 is an upper piston guide designed to align and support the piston ...

$8.80

QTY:

Titan 700-603A Upper Packing Assembly

Item No: 304

Part #: 700-603A

Titan 700-603A Upper packing assembly replaces Titan 700-603 / 0509125a ...

$20.00

QTY:

Titan 730-505 Pump Housing

Item No: 305

Part #: 730-505

Part 730-505 is a replacement pump housing used in the fluid section of compatible airless spray...

Retail Price: $140.70

You save: $14.63 (10.40%)

Our Price: $126.07

QTY:

Titan 700-678 Head Cap Screw

Item No: 306

Part #: 700-678

Part 700-678 is a head cap screw used to secure critical components in pump and drive ...

$2.53

QTY:

Titan 700-601A Lower Seal Assembly

Item No: 307

Part #: 700-601A

Titan 700-601A Lower Seal Assembly, pkgd It replaces Titan 700-601 and Titan 0507272A Titan 700-6...

Retail Price: $47.70

You save: $3.63 (7.61%)

Our Price: $44.07

QTY:

Titan 704-552A Piston Assembly

Item No: 308

Part #: 704-552A

Titan 704-552A Piston Assembly is a genuine OEM part designed to meet the same specifications and s...

Retail Price: $183.50

You save: $22.94 (12.50%)

Our Price: $160.56

QTY:

Titan 762-111 Seal

Item No: 309

Part #: 762-111

Airless Sprayer / Elite / Epic / Performer / PowrLiner / ProMark II / RentSpray part 7...

$5.60

QTY:

Titan 762-135 Outlet Cage

Item No: 310

Part #: 762-135

762-135 is an outlet cage designed to house the outlet valve ball and seat in the fl...

Retail Price: $40.40

You save: $3.07 (7.60%)

Our Price: $37.33

QTY:

Titan 762-073 Outlet Valve Retainer Housing

Item No: 312

Part #: 762-073

Airless Sprayer / Elite / Epic / Performer / PowrLiner / ProMark II / RentSpray part 7...

Retail Price: $33.50

You save: $1.84 (5.49%)

Our Price: $31.66

QTY:

Titan 762-134 Upper Valve Seat

Item No: 313

Part #: 762-134

762-134 is a direct replacement for Titan part 509597, an upper valve seat used in the...

Retail Price: $45.70

You save: $3.47 (7.59%)

Our Price: $42.23

QTY:

Titan 762-057 O-Ring, (PTFE)

Item No: 314

Part #: 762-057

Airless Sprayer / Elite / Epic / Performer / PowrLiner / ProMark II / RentSpray part 7...

$5.60

QTY:

Titan 704-560 Piston Assembly

Item No: 315

Part #: 704-560

SprayTech part 704-560 is a piston assembly used in the pumping section of airless spr...

Retail Price: $230.70

You save: $32.07 (13.90%)

Our Price: $198.63

QTY:

Titan 0509590 Piston Bushing

Item No: 317

Part #: 0509590

Part number 0509590 is a genuine piston bushing used in Helix, Impact, Impact X, RentS...

Retail Price: $41.30

You save: $3.14 (7.60%)

Our Price: $38.16

QTY:

Titan 700-821 Teflon-Ring/Seal

Item No: 318

Part #: 700-821

Part 700-821 is a Teflon ring/seal designed to provide a leak-free seal in the fluid s...

$5.80

QTY:

Titan 704-703 Inlet Valve Cage

Item No: 319

Part #: 704-703

Part number 704-703 is a genuine inlet valve cage used in Advantage, Impact, Impact X,...

Retail Price: $64.30

You save: $5.34 (8.30%)

Our Price: $58.96

QTY:

Titan 762-145 Inlet Valve Ball (replaces Titan 509583)

Item No: 320

Part #: 762-145

Part 762-145 is a replacement inlet valve ball for a wide range of compatible spray equipment. T...

$17.60

QTY:

Titan 762-137 Foot Valve Seat

Item No: 321

Part #: 762-137

Part 762-137 is a replacement foot valve seat for a wide range of compatible spray equipment. Th...

Retail Price: $55.40

You save: $4.6 (8.30%)

Our Price: $50.80

QTY:

Titan 762-058 Seat O-Ring

Item No: 322

Part #: 762-058

Part 762-058 is a replacement seat o-ring used in fluid systems across an extensive range of com...

$7.40

QTY:

Titan 730-507 Foot Valve Housing

Item No: 323

Part #: 730-507

Titan 730-507 Foot Valve Housing is a component used in Titan airless paint sprayers, specifically i...

Retail Price: $185.10

You save: $23.14 (12.50%)

Our Price: $161.96

QTY:

Titan 730-520 Foot Valve Assembly

Item No: 325

Part #: 730-520

Titan 730-520 Foot Valve Assembly is a replacement part designed for Titan LR and HP sprayers. This...

Retail Price: $321.00

You save: $46.87 (14.60%)

Our Price: $274.13

QTY:

Titan 700-211 Syphon Tube

Item No: 331

Part #: 700-211

Part number 700-211 is a syphon tube designed for Epic and PowrLiner series airless sp...

Retail Price: $125.00

You save: $13 (10.40%)

Our Price: $112.00

QTY:

Titan 700-201 O-Ring

Item No: 332

Part #: 700-201

Titan part 700-201 is an O-Ring used to create a leak‑tight seal between components ...

$6.40

QTY:

Titan 0551509 Lower seal packing tool (replaces Titan 762-202)

Item No: 347

Part #: 0551509

Titan 0551509 Lower seal packing tool replaces Titan 762-202 is a replacement part designed for Tita...

$15.30

QTY:

Titan 0509585 Transducer Gasket (Replaces Titan 700-804)

Item No: 391

Part #: 0509585

Part number 0509585 is a transducer gasket designed for sealing pressure transducer installations in...

$3.80

QTY:

Titan 490-109 Fitting

Item No: 392

Part #: 490-109

Titan part 490-109 is a fitting used to connect fluid or air lines on compatible airle...

Retail Price: $39.20

You save: $2.16 (5.51%)

Our Price: $37.04

QTY:

Titan PowrLiner 3100 Fluid Section Assembly Parts – Pump & Pressure Components

The Titan PowrLiner 3100 is engineered for professional pavement and athletic field striping. The fluid section assembly is the pump component responsible for drawing coating material from the container, pressurizing it, and delivering it to the spray hose and gun. This section includes replacement parts designed specifically for the PowrLiner 3100 fluid section.

Fits

Titan PowrLiner 3100 line striping machine

Where It Is Used

The fluid section assembly mounts to the lower drive system of the striping unit. It operates continuously during:

Parking lot striping
Roadway and municipal marking
Warehouse and industrial floor layout
Athletic field marking

As part of essential Pavement Marking Sprayer Parts, the fluid section directly affects spray consistency and system pressure.

Role in Spray Performance

On a professional Titan sprayer, the fluid section is the core pressure-generating component. Properly maintained pump parts help:

Maintain steady operating pressure
Support consistent spray fan patterns
Improve priming efficiency
Reduce pressure fluctuations during long striping runs

Worn packings, valves, or piston components can affect material flow and overall striping accuracy. Replacing damaged parts helps restore reliable operation.

Designed for Professional Striping Applications

The Titan paint sprayer. configuration used in the PowrLiner 3100 is built for high-demand environments. Because striping materials can vary in thickness and application type, the fluid section must perform consistently under pressure.

Contractors working on turf layouts also depend on durable Field Marking Sprayer Parts to maintain smooth paint delivery and clean line edges across grass and synthetic surfaces.

Available Fluid Section Components

Piston and cylinder assemblies
Inlet and outlet valve components
Packing kits and seals
Fluid housing assemblies
Mounting hardware and fittings

Always verify your machine model before ordering replacement components. For additional Titan PowrLiner 3100 striping equipment parts, visit AllTitanParts.com to find correct-fit maintenance and pump assembly components.
