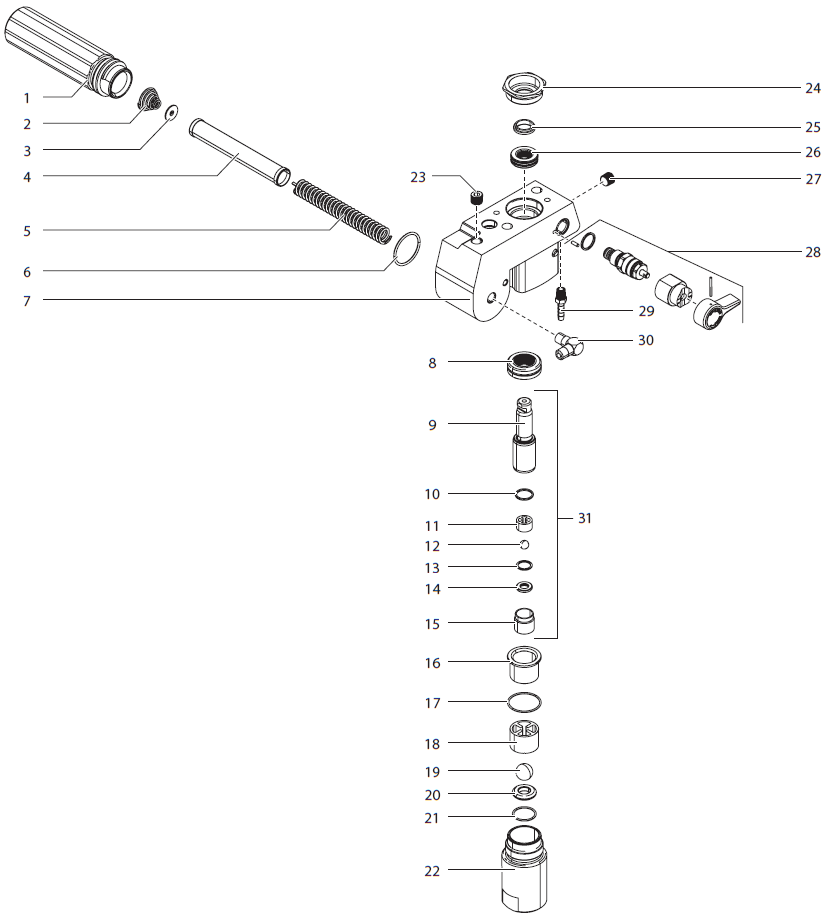

PowrLiner 2850 Fluid Section Assembly

Titan 0555960 Repacking Kit

Item No: -

Part #: 0555960

Part 0555960 is a repacking kit containing the seals and packings needed to prevent fluid leaks from...

Retail Price: $179.60

You save: $22.45 (12.50%)

Our Price: $157.15

QTY:

Titan 704-252 Filter Housing

Item No: 1

Part #: 704-252

Part number 704-252 is a filter housing that encloses and protects the fluid filter element in c...

Retail Price: $132.70

You save: $13.8 (10.40%)

Our Price: $118.90

QTY:

Titan 730-083 Filter Spring

Item No: 2

Part #: 730-083

Part number 730-083 is a filter spring used to hold the filter element in place within the filte...

$9.30

QTY:

Titan 702-251 Filter Screen Adapter

Item No: 3

Part #: 702-251

Titan 702-251 Filter Screen Adapter is same as Titan 508603. This adapter is located at the tip of ...

$9.30

QTY:

Titan 730-067 60 Mesh Manifold Filter

Item No: 4

Part #: 730-067

Titan 730-067 is a 60 Mesh Manifold Filter designed for filtering latex and enamel paints for Tita...

$18.00

QTY:

Titan 757-105 Filter Support Spring

Item No: 5

Part #: 757-105

Airless Sprayer / Advantage / Elite / Epic / Impact / Performer / PowrLiner / PowrTex ...

$10.30

QTY:

Titan 704-297 Teflon O-Ring

Item No: 6

Part #: 704-297

Part number 704-297 is a Teflon O-ring used to create a durable, chemical-resistant seal between...

$12.00

QTY:

Titan 0551681 Fluid Section Housing or Pump Manifold

Item No: 7

Part #: 0551681

Part number 0551681 is a fluid section housing or pump manifold that forms the core of the pumpi...

Retail Price: $337.10

You save: $49.22 (14.60%)

Our Price: $287.88

QTY:

Titan 0507274A Lower Packing

Item No: 8

Part #: 0507274A

Part 0507274A is a replacement lower packing component used in the fluid section of compatible s...

Retail Price: $52.40

You save: $4.35 (8.30%)

Our Price: $48.05

QTY:

Titan 800-452 Piston Rod

Item No: 9

Part #: 800-452

Part number 800-452 is a piston rod that transmits reciprocating motion from the drive system to...

Retail Price: $349.40

You save: $51.01 (14.60%)

Our Price: $298.39

QTY:

Titan 800-348 Outlet Valve Seal

Item No: 10

Part #: 800-348

Part number 800-348 is an Outlet Valve Seal used in Airless Sprayer 1140 I and IX, 740...

$2.50

QTY:

Titan 800-441 Outlet Cage

Item No: 11

Part #: 800-441

Part number 800-441 is an outlet cage that houses and protects the outlet valve components in co...

Retail Price: $35.80

You save: $1.97 (5.50%)

Our Price: $33.83

QTY:

Titan 9841502 Outlet Valve Ball

Item No: 12

Part #: 9841502

Titan 9841502 Outlet Valve Ball is a 10mm Carbide ball used on various Titan spray guns. Titan 9841...

$25.10

QTY:

Titan 0507454 Washer

Item No: 13

Part #: 0507454

Part number 0507454 is a replacement washer used in various airless sprayer models. It...

$2.50

QTY:

Titan 0294516 Outlet Valve Seat (replaces Titan 944-043)

Item No: 14

Part #: 0294516

Titan 0294516 Outlet Valve replaces Titan 944-043, it is a circular seal which ensures proper sealin...

Titan 800-336 Outlet Valve Retainer

Item No: 15

Part #: 800-336

Part number 800-336 is an Outlet Valve Retainer used in Airless Sprayer 1140I and IA, ...

Retail Price: $57.80

You save: $4.8 (8.30%)

Our Price: $53.00

QTY:

Titan 0555002 Adapter or Bushing

Item No: 16

Part #: 0555002

Part number 0555002 is an adapter or bushing used to connect components of different sizes or ty...

Retail Price: $35.60

You save: $1.96 (5.51%)

Our Price: $33.64

QTY:

Titan 762-103 Lower Seal

Item No: 17

Part #: 762-103

Part number 762-103 is a lower seal used to prevent fluid leakage around the lower end of the pi...

$7.60

QTY:

Titan 800-442 Inlet Cage

Item No: 18

Part #: 800-442

Part number 800-442 is an inlet cage that houses and protects the inlet valve components in comp...

Retail Price: $51.00

You save: $4.23 (8.29%)

Our Price: $46.77

QTY:

Titan 51519 Inlet Ball (replaces Titan 800-242)

Item No: 19

Part #: 51519

Titan 51519 Inlet Ball replaces Titan 800-242 is a replacement part designed for Titan sprayers. ...

$21.40

QTY:

Titan 00310 Inlet Seat

Item No: 20

Part #: 00310

Titan 00310 Inlet Seat for several Titan sprayers like the Titan ProMark II Line Striper, Titan ED65...

Retail Price: $93.60

You save: $7.77 (8.30%)

Our Price: $85.83

QTY:

Titan 762-058 Seat O-Ring

Item No: 21

Part #: 762-058

Part 762-058 is a replacement seat o-ring used in fluid systems across an extensive range of com...

$7.40

QTY:

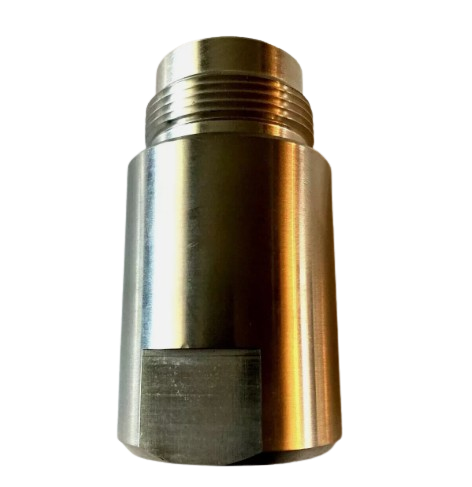

Titan 0555003 Foot Valve Housing

Item No: 22

Part #: 0555003

Part number 0555003 is a foot valve housing that encloses and supports the foot valve components...

Retail Price: $141.10

You save: $14.67 (10.40%)

Our Price: $126.43

QTY:

Titan 227-028 Pipe Plug

Item No: 23

Part #: 227-028

Part number 227-028 is a Pipe Plug used to seal unused threaded ports in fluid and air systems on a ...

$3.40

QTY:

Titan 705-104 Retainer

Item No: 24

Part #: 705-104

Part number 705-104 is a retainer used to hold components in position within compatible sprayer ...

Retail Price: $65.70

You save: $5.45 (8.30%)

Our Price: $60.25

QTY:

Titan 705-105 Upper Guide

Item No: 25

Part #: 705-105

Part number 705-105 is an upper guide used to align and support moving components in compatible ...

$18.10

QTY:

Titan 0507273A Upper Packing Kit

Item No: 26

Part #: 0507273A

Part 0507273A is a replacement upper packing kit used in the fluid section of compatible spray e...

Retail Price: $70.00

You save: $5.81 (8.30%)

Our Price: $64.19

QTY:

Titan 227-028 Pipe Plug

Item No: 27

Part #: 227-028

Part number 227-028 is a Pipe Plug used to seal unused threaded ports in fluid and air systems on a ...

$3.40

QTY:

Titan 700-258 PrimeSpray Valve Assembly

Item No: 28

Part #: 700-258

Part 700-258 is a replacement PrimeSpray valve assembly for a wide range of compatible spray equ...

Retail Price: $125.10

You save: $13.01 (10.40%)

Our Price: $112.09

QTY:

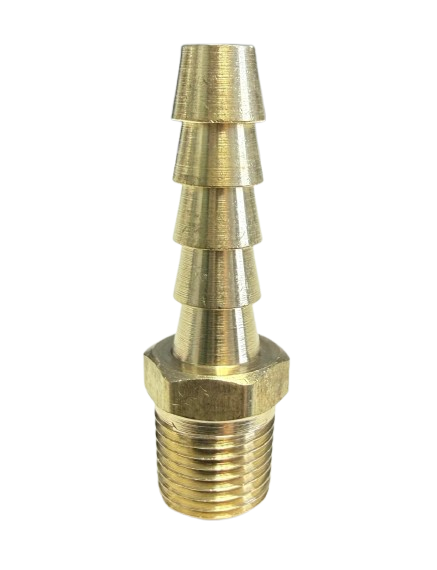

Titan 193-200 Return Tube Fitting

Item No: 29

Part #: 193-200

Part number 193-200 is a Return Tube Fitting that connects the return hose to the pump inlet assembl...

$6.20

QTY:

Titan 12440 Elbow, 90 Deg

Item No: 30

Part #: 12440

Titan 12440 is a Titan 90-degree elbow compatible with various Powerliner, PowrLiner, and Spraytech ...

$14.70

QTY:

Titan 705-120A Piston Rod Complete Assembly

Item No: 31

Part #: 705-120A

Part number 705-120A is a complete piston rod assembly that transmits reciprocating motion from ...

Retail Price: $490.00

You save: $71.54 (14.60%)

Our Price: $418.46

QTY:

Titan PowrLiner 2850 Fluid Section Assembly – Pump System Replacement

The Titan PowrLiner 2850 Fluid Section Assembly is the pump component responsible for moving striping material from the container through the hose and out to the spray gun. This assembly plays a central role in pressure generation and material delivery during professional striping operations.

Fits

Titan PowrLiner 2850 line striping machine

Where It Is Used

The fluid section assembly is mounted to the lower pump drive of the PowrLiner 2850. It is used in applications such as:

Parking lot striping
Roadway and pavement marking
Warehouse floor layout
Athletic field marking

As the primary pressure-producing component, the fluid section ensures coating material is drawn into the pump and delivered consistently through the spray system.

Function in Striping Performance

On any professional Titan sprayer, the fluid section directly impacts spray consistency and overall productivity. A properly functioning pump assembly helps:

Maintain steady operating pressure
Support consistent spray fan patterns
Improve priming efficiency
Reduce pressure fluctuations during operation

Because this unit falls within essential Pavement Marking Sprayer Parts, maintaining the fluid section is critical to minimizing downtime and maintaining job-site reliability.

Built for Professional Marking Applications

The Titan paint sprayer. configuration used in the PowrLiner 2850 is engineered for medium- to large-scale striping projects. A worn or damaged fluid section can affect spray quality and pressure stability.

Contractors handling turf and sports facility projects rely on dependable Field Marking Sprayer Parts to maintain clean, sharp lines across grass and synthetic surfaces.

Assembly Overview

Application: Pump and pressure generation system
Machine Compatibility: Titan PowrLiner 2850
Location: Lower pump and drive interface
Use Case: Pavement and athletic field striping

Always confirm your machine model before ordering major pump components. For additional parts and service components for your Titan PowrLiner 2850 equipment, visit AllTitanParts.com to find the correct striping system replacements.
