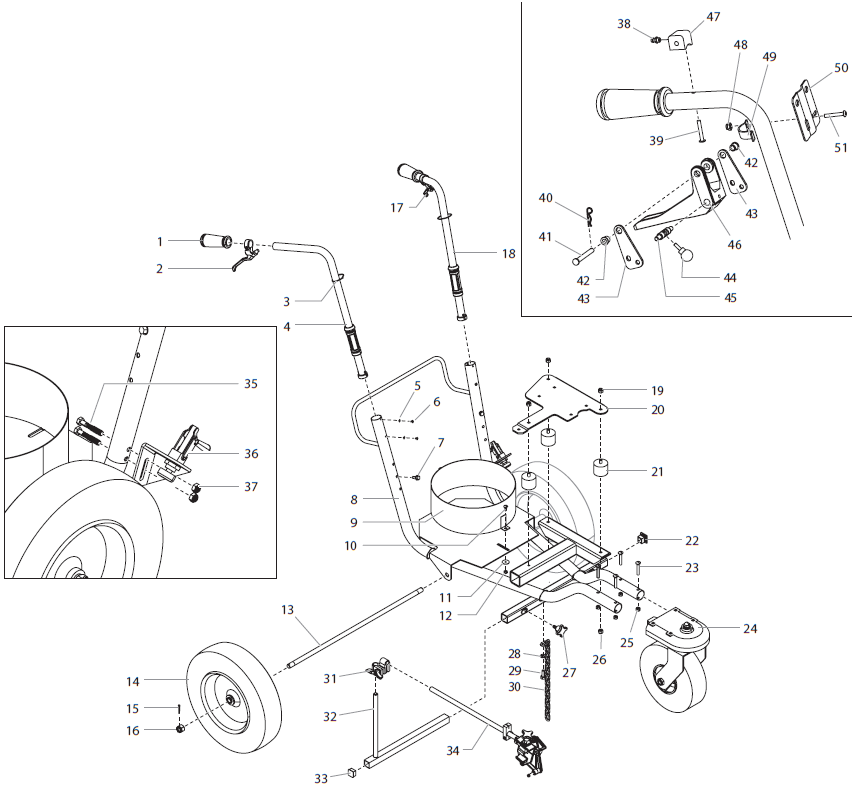

PowrLiner 2850 Cart Assembly

PowrLiner 2850 Cart Assembly
Titan 759-499 Cable Gun
Titan 759-499 Cable Gun

Item No: --

Part #: 759-499

  PowrLiner part 759-499 is a cable gun designed to control the flow of material on comp...

Retail Price: $42.90
You save: $3.26 (7.60%)
Our Price: $39.64
QTY:
Titan 779-298 Caster Cable PowrLiner
Titan 779-298 Caster Cable PowrLiner

Item No: -

Part #: 779-298

  PowrLiner part 779-298 is a caster cable that connects to the steering mechanism, allo...

$26.20
QTY:
Titan 424-245 Handle Grip
Titan 424-245 Handle Grip

Item No: 1

Part #: 424-245

Part 424-245 is a replacement handle grip for compatible PowrLiner line stripers. This ergonomic...

$10.20
QTY:
Titan 759-215 Lever Assembly-One Gun
Titan 759-215 Lever Assembly-One Gun

Item No: 2

Part #: 759-215

  PowrLiner part 759-215 is a lever assembly (one gun) that provides mechanical actuatio...

Retail Price: $31.10
You save: $1.71 (5.50%)
Our Price: $29.39
QTY:
Titan 770-099 Tie Wrap
Titan 770-099 Tie Wrap

Item No: 3

Part #: 770-099

Tie Wrap or Tie wrap, 15.5" lg x .18" wide Fits the following models: Impact ...

$2.50
QTY:
Titan 0528289A Left Handle Assembly
Titan 0528289A Left Handle Assembly

Item No: 4

Part #: 0528289A

Part number 0528289A is a left handle assembly designed for comfortable carrying and maneuvering...

Retail Price: $230.70
You save: $32.07 (13.90%)
Our Price: $198.63
QTY:
Titan 856-002 Lock Washer
Titan 856-002 Lock Washer

Item No: 5

Part #: 856-002

Secure your Titan equipment with the Titan 856-002 Washer Lock, built with an internal tooth design ...

$3.40
QTY:
Titan 856-921 Screw
Titan 856-921 Screw

Item No: 6

Part #: 856-921

The Titan 856-921 Screw (Pan #10-32 x 1/4”) is a must-have replacement part for keeping your Titan...

$2.00
QTY:
Titan 293518  Hexagonal Screw (replaces Titan 756-091)
Titan 293518  Hexagonal Screw (replaces Titan 756-091)

Item No: 7

Part #: 293518

Titan 293518  Hexagonal Screw (replaces Titan 756-091)

$2.13
QTY:
Titan 759-474 Cart Weldment
Titan 759-474 Cart Weldment

Item No: 8

Part #: 759-474

  PowrLiner part 759-474 is a cart weldment designed to provide the structural frame and...

Retail Price: $736.50
You save: $117.84 (16.00%)
Our Price: $618.66
QTY:
Titan 770-712 Screw
Titan 770-712 Screw

Item No: 10

Part #: 770-712

Part 770-712 is a replacement screw used in various assembly points across a wide range of compa...

$2.90
QTY:
Titan 770-223 Washer, STL, 1/4ID x 1
Titan 770-223 Washer, STL, 1/4ID x 1" OD

Item No: 11

Part #: 770-223

  Part 770-223 Washer, STL, 1/4" ID x 1" OD is a precision flat washer manufactured from...

$2.50
QTY:
Titan 770-144 Hexagonal Locknut
Titan 770-144 Hexagonal Locknut

Item No: 12

Part #: 770-144

  Airless Sprayer HVLP ProFinish / Hydra X / PowrBeast / PowrLiner part 770-144 is a hex...

$2.90
QTY:
Titan 759-516A Pair of Wheels
Titan 759-516A Pair of Wheels

Item No: 14

Part #: 759-516A

Part 759-516A is a replacement pair of wheels for compatible PowrLiner line stripers. This set i...

Retail Price: $282.00
You save: $39.2 (13.90%)
Our Price: $242.80
QTY:
Titan 756-079 Cotter Pin
Titan 756-079 Cotter Pin

Item No: 15

Part #: 756-079

Part 756-079 is a replacement cotter pin for a wide range of compatible PowrLiner equipment. Thi...

$6.30
Discontinued by Manufacturer
Titan 759-067 Slotted Hex Nut
Titan 759-067 Slotted Hex Nut

Item No: 16

Part #: 759-067

  Part number 759-067 is a genuine slotted hex nut used in PowrLiner 2850, 1800M, and 28...

$2.10
Discontinued by Manufacturer
Titan 759-215 Lever Assembly-One Gun
Titan 759-215 Lever Assembly-One Gun

Item No: 17

Part #: 759-215

  PowrLiner part 759-215 is a lever assembly (one gun) that provides mechanical actuatio...

Retail Price: $31.10
You save: $1.71 (5.50%)
Our Price: $29.39
QTY:
Titan 0528288A Handle Assembly
Titan 0528288A Handle Assembly

Item No: 18

Part #: 0528288A

Part number 0528288A is a handle assembly designed for comfortable carrying and maneuvering of c...

Retail Price: $237.10
You save: $32.96 (13.90%)
Our Price: $204.14
QTY:
Titan 862-410 Locknut
Titan 862-410 Locknut

Item No: 19

Part #: 862-410

  Genuine replacement part 862-410 is a locknut designed to securely fasten components w...

$3.10
QTY:
Titan 759-517 Plate Pump Mounting
Titan 759-517 Plate Pump Mounting

Item No: 20

Part #: 759-517

Part 759-517 is a replacement pump mounting plate for compatible PowrLiner line stripers. This p...

Retail Price: $66.90
You save: $5.55 (8.30%)
Our Price: $61.35
QTY:
Titan 757-042 Vibration Mount
Titan 757-042 Vibration Mount

Item No: 21

Part #: 757-042

Part 757-042 is a replacement vibration mount for compatible PowrLiner and ProMark equipment. Th...

Retail Price: $41.00
You save: $3.12 (7.61%)
Our Price: $37.88
QTY:
Titan 757-055 End Cap
Titan 757-055 End Cap

Item No: 22

Part #: 757-055

  Part number 757-055 is an end cap designed to seal or close off the open end of a tube...

$2.00
QTY:
Titan 759-463 Screw
Titan 759-463 Screw

Item No: 23

Part #: 759-463

  PowrLiner part 759-463 is a screw designed to secure components and assemblies on comp...

$3.40
QTY:

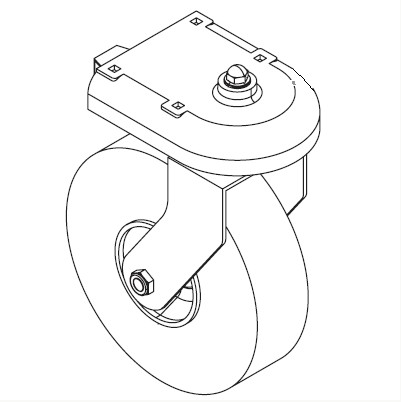

Titan 759-508A Front Wheel Assembly
Titan 759-508A Front Wheel Assembly

Item No: 24

Part #: 759-508A

  PowrLiner part 759-508A is a front wheel assembly designed to provide smooth mobility ...

Retail Price: $907.20
You save: $145.15 (16.00%)
Our Price: $762.05
QTY:
Titan 763-549 Lock Nut
Titan 763-549 Lock Nut

Item No: 25

Part #: 763-549

Part 763-549 is a replacement lock nut for a wide range of compatible spray equipment. This nut ...

$2.10
QTY:
Titan 862-410 Locknut
Titan 862-410 Locknut

Item No: 26

Part #: 862-410

  Genuine replacement part 862-410 is a locknut designed to securely fasten components w...

$3.10
QTY:
Titan 759-306 Clamp Knob
Titan 759-306 Clamp Knob

Item No: 27

Part #: 759-306

  PowrLiner part 759-306 is a clamp knob designed to secure and adjust clamping mechanis...

$19.00
QTY:
Titan 0509285 Flat Washer
Titan 0509285 Flat Washer

Item No: 28

Part #: 0509285

Titan 0509285 Flat Washer or Washer,flat 3/8 replaces Titan 862-001.Fits the following models: PowrL...

$3.40
QTY:
Titan 862-436 Screw
Titan 862-436 Screw

Item No: 29

Part #: 862-436

  Hydra / Advantage / PowrBeast / PowrLiner / PowrTwin / ProMark II / RentSpray part 862...

$2.00
QTY:
Titan 759-329 Clamp Assembly
Titan 759-329 Clamp Assembly

Item No: 31

Part #: 759-329

Part number 759-329 is a Clamp Assembly that secures and positions components on compatible PowrLine...

Retail Price: $46.30
You save: $3.52 (7.60%)
Our Price: $42.78
QTY:
Titan 759-188 Gun Support Weldment
Titan 759-188 Gun Support Weldment

Item No: 32

Part #: 759-188

  Part number 759-188 is a genuine gun support weldment used in PowrLiner 2850, 550, and...

Retail Price: $44.20
You save: $3.36 (7.60%)
Our Price: $40.84
QTY:
Titan 756-056 PLUG 1
Titan 756-056 PLUG 1"SQ

Item No: 33

Part #: 756-056

Part 756-056 is a replacement 1 inch square plug for compatible PowrLiner equipment. This plug s...

$8.20
QTY:
Titan 0509171A Gun Holder Assembly (replaces Titan 779-276)
Titan 0509171A Gun Holder Assembly (replaces Titan 779-276)

Item No: 34

Part #: 0509171A

The Titan 0509171A Gun Holder Assembly replaces Titan 779-276 and is designed for safe, convenient s...

Retail Price: $420.10
You save: $61.33 (14.60%)
Our Price: $358.77
QTY:
TITAN 761-149 Screw
TITAN 761-149 Screw

Item No: 35

Part #: 761-149

Part 761-149 is a replacement screw used in various assembly points on compatible spray equipmen...

$9.50
QTY:
Titan 759-550A Brake Assembly, pkgd
Titan 759-550A Brake Assembly, pkgd

Item No: 36

Part #: 759-550A

  PowrLiner part 759-550A is a brake assembly (packaged) designed to provide stopping an...

Retail Price: $245.40
You save: $34.11 (13.90%)
Our Price: $211.29
QTY:
Titan 9811122 Nut
Titan 9811122 Nut

Item No: 37

Part #: 9811122

  Part 9811122 Nut is a genuine replacement fastener used across multiple Elite, Helix, ...

$2.13
QTY:
Titan 762-058 Seat O-Ring
Titan 762-058 Seat O-Ring

Item No: 38

Part #: 762-058

Part 762-058 is a replacement seat o-ring used in fluid systems across an extensive range of com...

$7.40
QTY:
Titan 856-744 Screw
Titan 856-744 Screw

Item No: 39

Part #: 856-744

PowrLiner part 856-744 is a replacement screw used for securing components on compatible PowrLiner s...

$3.40
QTY:
Titan 759-034 Pin, cotter
Titan 759-034 Pin, cotter

Item No: 40

Part #: 759-034

Titan 759-034 Cotter PinFits: PowrLiner 4950, PowrLiner 8900 XLT, PowrLiner 9900XLT, PowrLiner ...

$3.40
QTY:
Titan 759-015 Pin Clevis
Titan 759-015 Pin Clevis

Item No: 41

Part #: 759-015

SprayTech part 0295960 is a 15A circuit breaker switch kit used to protect the sprayer's electrical ...

$3.20
QTY:
Titan 424-218 Flange Bearing
Titan 424-218 Flange Bearing

Item No: 42

Part #: 424-218

SprayTech part 424-218 is a replacement flange bearing used in the trigger mechanism assembly on com...

$6.60
QTY:
Titan 424-217 Lever Plate
Titan 424-217 Lever Plate

Item No: 43

Part #: 424-217

SprayTech part 424-217 is a replacement lever plate used in the trigger mechanism assembly on compat...

$15.30
QTY:
Titan 759-033 Clamp Knob
Titan 759-033 Clamp Knob

Item No: 44

Part #: 759-033

PowrLiner part 759-033 is a replacement clamp knob used to secure components on compatible PowrLiner...

$7.60
QTY:
Titan 424-227 Selector Spool
Titan 424-227 Selector Spool

Item No: 45

Part #: 424-227

PowrLiner part 424-227 is a selector spool used in hydraulic systems to direct fluid flow between ci...

Retail Price: $54.00
You save: $4.48 (8.30%)
Our Price: $49.52
QTY:
Titan 424-203 Trigger
Titan 424-203 Trigger

Item No: 46

Part #: 424-203

SprayTech part 424-203 is a replacement trigger assembly used to control sprayer operation on compat...

Retail Price: $181.40
You save: $22.67 (12.50%)
Our Price: $158.73
QTY:
Titan 424-219 Block Mounting
Titan 424-219 Block Mounting

Item No: 47

Part #: 424-219

SprayTech part 424-219 is a replacement block mounting component used to secure critical assemblies ...

Retail Price: $69.00
You save: $5.73 (8.30%)
Our Price: $63.27
QTY:
Titan 226-001 Nylon Lock Nut
Titan 226-001 Nylon Lock Nut

Item No: 48

Part #: 226-001

Titan 226-001 Nylon Lock Nut is used as a fastener in various Titan Tool Sprayers and Accessories. ...

$2.90
QTY:
Titan 759-035 Strap, lever
Titan 759-035 Strap, lever

Item No: 49

Part #: 759-035

Titan Strap, lever 759-035Fits: PowrLiner 4950, PowrLiner 8900 XLT, PowrLiner 9900XLT, PowrLiner...

$28.90
QTY:
Titan 759-031 Control guide
Titan 759-031 Control guide

Item No: 50

Part #: 759-031

Titan 759-031 Control guide

$22.70
QTY:
Titan 757-092 Screw
Titan 757-092 Screw

Item No: 51

Part #: 757-092

Titan 757-092 ScrewFits: PowrLiner 4950, PowrLiner 8900 XLT, PowrLiner 9900XLT, PowrLiner 8900,�...

$3.50
QTY:
Titan 0537919 Chain, cut to length, 19
Titan 0537919 Chain, cut to length, 19"(replaces Titan 424-283)

Part #: 0537919

Titan 0537919 Chain, cut to length, 19" - Durable and Versatile replaces Titan 424-283 Titan 053791...

Retail Price: $74.80
You save: $6.21 (8.30%)
Our Price: $68.59
QTY:

Titan PowrLiner 2850 Cart Assembly – Frame & Mobility Structure

The Titan PowrLiner 2850 Cart Assembly is the structural frame and mobility platform that supports the engine, pump, drive system, and spray components of the PowrLiner 2850 line striping machine. This assembly forms the foundation of the unit and is essential for balanced movement and striping accuracy.

Fits

  • Titan PowrLiner 2850 line striping machine

Where It Is Used

The cart assembly is the main chassis of the striping unit. It houses and supports key components while providing wheel mounting points and handle positioning. The PowrLiner 2850 is commonly used for:

  • Parking lot striping
  • Roadway and asphalt marking
  • Industrial floor layout
  • Athletic field striping

Because this is a self-propelled walk-behind system, the cart assembly ensures the entire machine remains aligned and stable during operation.

Role in Striping Performance

On any professional Titan sprayer, the frame and cart structure directly affect tracking and spray alignment. A properly maintained cart assembly helps:

  • Maintain structural integrity under load
  • Support smooth forward motion
  • Keep spray components properly aligned
  • Provide stable wheel positioning

As part of critical Pavement Marking Sprayer Parts, the cart assembly contributes to consistent line quality across long striping runs.

Designed for Professional Marking Work

The Titan paint sprayer. platform in the PowrLiner 2850 is built for medium to large striping projects. A solid frame structure supports accurate gun positioning and helps maintain even spray tip-to-surface distance.

For turf applications, contractors rely on dependable Field Marking Sprayer Parts to ensure stable handling on grass and synthetic surfaces. A properly functioning cart assembly reduces vibration and improves overall control.

Assembly Overview

  • Application: Structural frame and mobility base
  • Machine Compatibility: Titan PowrLiner 2850
  • Location: Complete chassis and wheel support system
  • Use Case: Pavement and athletic field striping

Always verify your model before ordering structural components. For additional replacement assemblies and service parts for your Titan PowrLiner 2850 striping equipment, visit AllTitanParts.com for correct-fit solutions.

Copyright © 2024 AlltitanParts.com - All Rights Reserved.

Payment Methods
