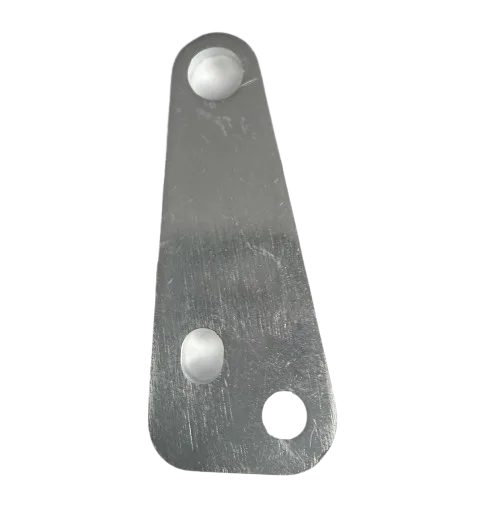

Titan 424-217 Lever Plate

Lever Plate for SprayTech PowrLiner Series Sprayers

The SprayTech 424-217 lever plate is a precision-engineered mechanical component that forms a critical part of the trigger actuation system on professional sprayer equipment. This lever plate functions as the mechanical link between the trigger and the valve assembly, translating the operator's finger motion into the precise linear or rotational movement required to open and close the spray valve. When the trigger is pulled, force transfers through this lever plate, which pivots or slides to engage the valve stem, allowing pressurized coating material to flow through the spray tip. Upon release, the lever plate facilitates the return of the valve to its closed position, ensuring immediate cessation of material flow. This mechanical interface must operate with minimal friction and precise geometry to provide the responsive control that professional operators demand for accurate line striping and coating applications.

In demanding professional environments, the lever plate is subjected to thousands of actuation cycles over its service life, often while exposed to coating materials, cleaning solvents, and environmental contaminants. Over time, this component may experience wear at pivot points, deformation from repeated stress, or accumulation of dried coating material that impedes smooth operation. When the lever plate becomes worn or damaged, operators may notice increased trigger resistance, inconsistent valve engagement, delayed response, or incomplete closure of the spray valve. These conditions directly impact application quality, potentially causing irregular line widths, unwanted drips, or operator fatigue from compensating for poor trigger feel. Replacing a worn lever plate with genuine SprayTech componentry restores the mechanical precision and responsive actuation required for professional-grade work.

Proper function of the lever plate is essential not only for application quality but also for operator safety and equipment longevity. A lever plate that fails to engage the valve fully may result in intermittent spray patterns that compromise line quality and material usage efficiency. Conversely, a lever plate that fails to return completely can allow material to continue flowing after trigger release, creating hazardous conditions and material waste. The precise geometry of this replacement lever plate ensures correct alignment with adjacent components, proper mechanical advantage for smooth actuation, and consistent engagement throughout the full range of motion. When installed according to factory service procedures, this component restores the crisp, predictable trigger response that operators rely upon for precise control in line striping applications.

Compatibility across an extensive range of PowrLiner models makes this lever plate a valuable addition to service inventory for professional equipment technicians. Whether maintaining high-production units for parking lot striping operations or servicing compact models for smaller applications, having the correct replacement lever plate available supports efficient repair workflows and minimizes equipment downtime. This component is manufactured to original equipment specifications, ensuring proper fitment and reliable operation when installed according to service manual procedures. Regular inspection of trigger mechanism components during preventive maintenance can identify developing wear before it affects job site performance, allowing proactive replacement that maintains equipment reliability and operator confidence.
