Motor Assembly Overview
Buy Genuine Titan Performer 640i Motor Replacement Parts
The motor assembly provides the mechanical power needed to operate the pumping system of the Titan Performer 640i Airless Sprayer. Its electrical and mechanical components work together to drive the machine during normal spraying operations.
Over time, motor brushes can wear, cooling components can become damaged, electrical connections may deteriorate and motor-related hardware can require replacement. Correctly identifying the cause of a malfunction helps determine whether an individual service component or a complete motor kit is required.
At AllTitanParts, you can shop 12 listed Titan OEM motor assembly products, including the 704-344 Motor Kit, 704-276 Motor Brush Kit, 704-364 Capacitor/Rectifier Kit, 704-250 Motor Fan and 704-285A Fan Shroud.
OEM Parts Directory
Titan Performer 640i Motor Assembly Parts List

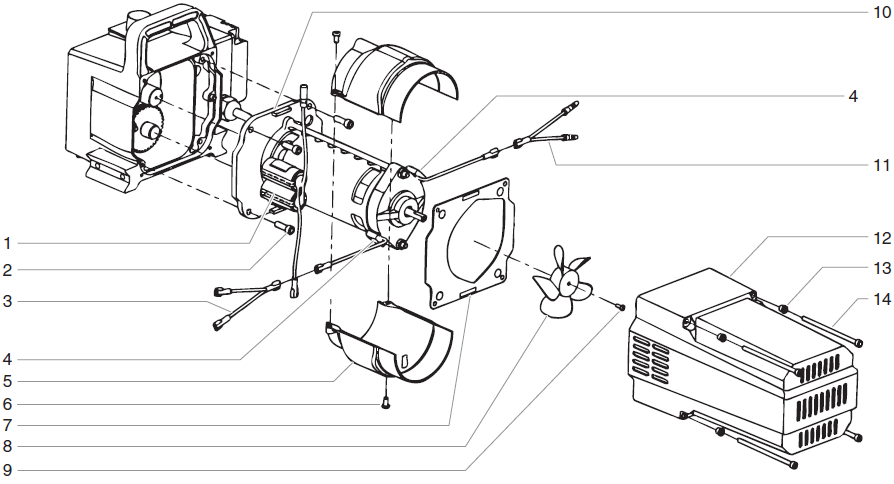

Find the correct motor replacement component using the factory diagram reference and Titan OEM part number.
| Diagram Reference | Titan Part Number | OEM Part Description |
|---|---|---|
| 1 | 704-364 | Capacitor / Rectifier Kit |
| 2 | 700-681 | Motor Mount Screw |
| 3 | 704-269 | Wire Assembly |
| 4 | 704-276 | Motor Brush Kit |
| 5 | 704-285A | Fan Shroud, replaces Titan 508646 |
| 6 | 704-322 | Screw |
| 7 | 704-331 | Gasket Housing |
| 8 | 704-250 | Motor Fan, replaces Titan 0508648 |
| 9 | 854-915 | Round Head Screw |
| 10 | 704-344 | Motor Kit |
| 11 | 704-258 | Wire Adapter Assembly |
| Not numbered in listing | 770-099 | Tie Wrap |
Featured OEM Components
Shop Titan Performer 640i Motor Kits, Brushes and Cooling Parts
Titan 704-344 Motor Kit
The Titan 704-344 Motor Kit is the listed OEM replacement motor kit for the Performer 640i motor assembly. Consider this option when a qualified diagnosis confirms motor failure or damage that requires motor replacement. Check the individual product listing for the supplied kit contents.
OEM Part: 704-344 | Ref. 10Titan 704-276 Motor Brush Kit
Motor brushes help maintain electrical contact with the motor commutator. The Titan 704-276 Motor Brush Kit provides the specified service parts for applicable brush replacement. Inspect brush wear and commutator condition before installation.
OEM Part: 704-276 | Ref. 4Titan 704-364 Capacitor / Rectifier Kit
The Titan 704-364 Capacitor/Rectifier Kit is an electrical service component listed in the motor assembly. Electrical testing should confirm a fault before replacement, with installation performed according to the relevant Titan service instructions.
OEM Part: 704-364 | Ref. 1Titan 704-250 Motor Fan
The Titan 704-250 Motor Fan helps move cooling air around the motor during operation. Replace a cracked, broken or damaged fan with the specified OEM component. This part is listed as replacing Titan 0508648.
OEM Part: 704-250 | Replaces 0508648Titan 704-285A Fan Shroud
The Titan 704-285A Fan Shroud surrounds the motor cooling area and helps maintain the intended airflow arrangement. Inspect it for cracks, deformation or interference with the motor fan. It is listed as replacing Titan 508646.
OEM Part: 704-285A | Replaces 508646Titan 704-269 Wire Assembly
The Titan 704-269 Wire Assembly is a designated electrical connection component. Inspect the associated wiring and connectors when diagnosing electrical continuity or connection problems.
OEM Part: 704-269 | Ref. 3Titan 704-258 Wire Adapter Assembly
The Titan 704-258 Wire Adapter Assembly provides a specified electrical connection within the motor assembly. Match the exact OEM part number and wiring arrangement before replacing it.
OEM Part: 704-258 | Ref. 11Titan 700-681 Motor Mount Screw
The Titan 700-681 Motor Mount Screw is OEM fastening hardware for the motor mounting arrangement. Replace missing or damaged mounting screws using the correct factory part.
OEM Part: 700-681 | Ref. 2Titan 704-331 Gasket Housing
The Titan 704-331 Gasket Housing is a designated motor assembly component. Inspect the housing and its installation location for damage when servicing adjacent parts.
OEM Part: 704-331 | Ref. 7Titan 704-322 Screw
The Titan 704-322 Screw is a factory-listed fastening component. Match the part number and diagram reference when replacing damaged or missing hardware.
OEM Part: 704-322 | Ref. 6Titan 854-915 Round Head Screw
The Titan 854-915 Round Head Screw is listed as motor assembly mounting hardware. Use the OEM diagram to confirm its location and installation requirements.
OEM Part: 854-915 | Ref. 9Titan 770-099 Tie Wrap
The Titan 770-099 Tie Wrap is used to secure and organize wiring or other designated components. Follow the factory routing arrangement to keep wiring clear of moving and heated parts.
OEM Part: 770-099Motor System Overview
Understanding the Titan Performer 640i Motor Assembly
Motor Drive
The motor supplies the rotational power transferred through the drive system to operate the pump.
Electrical Contact
The motor brush system maintains the electrical contact required for operation of the applicable brushed motor.
Cooling Airflow
The motor fan and shroud support airflow around the motor to help manage operating temperature.
Electrical Connections
Wiring assemblies and electrical service components form part of the motor's power and connection system.
Troubleshooting Guide
Common Titan Performer 640i Motor Problems
Motor-related symptoms can have several causes. Use the appropriate Titan troubleshooting procedure and have electrical testing performed by a qualified technician.
| Symptom | Components to Check | Recommended Action |
|---|---|---|
| Motor does not start | 704-276 Motor Brush Kit, 704-269 Wiring, 704-364 Electrical Kit | Confirm the power supply and controls, then inspect and test motor electrical components. |
| Motor operation is intermittent | 704-276 Brushes, 704-258 Wire Adapter, 704-269 Wire Assembly | Check brush condition, connectors and wiring continuity. |
| Unusual motor temperature | 704-250 Motor Fan, 704-285A Fan Shroud | Inspect cooling airflow and check for mechanical overload or other faults. |
| Fan is cracked or damaged | 704-250 Motor Fan | Replace the damaged fan and inspect surrounding components. |
| Cooling shroud is damaged | 704-285A Fan Shroud | Replace the shroud and verify fan clearance. |
| Motor mounting is loose | 700-681, 704-322 and 854-915 Fasteners | Inspect the appropriate mounting locations and follow factory fastening instructions. |
| Confirmed motor failure | 704-344 Motor Kit | Verify the diagnosis and select the specified replacement kit. |
Repair Planning
Motor Brush Replacement vs. Complete Motor Replacement
The Titan 704-276 Motor Brush Kit is intended for servicing the motor brush system. If the motor is otherwise serviceable and the brushes are the confirmed cause of the problem, brush replacement may be an appropriate repair.
The Titan 704-344 Motor Kit is the listed replacement option when the motor itself requires replacement. Internal winding damage, severe commutator damage or other confirmed motor defects may make replacement necessary.
Do not assume that replacing brushes will correct every electrical or motor fault. Confirm the diagnosis and follow the manufacturer's service instructions.
OEM Replacement References
Titan Motor Fan and Fan Shroud Replacement Numbers
If you are searching using an earlier Titan part number, the current AllTitanParts listings identify these replacements:
| Current Titan Part | Previous Part Number | Description |
|---|---|---|
| 704-250 | 0508648 | Motor Fan |
| 704-285A | 508646 | Fan Shroud |
Always confirm the exact model and component configuration before ordering a replacement.
OEM Buying Guide
How to Order the Correct Titan Performer 640i Motor Parts
Confirm Your Model
Verify that your sprayer is the Titan Performer 640i, not another Titan 640-series model.
Identify the Failed Part
Use inspection and appropriate diagnostic testing to determine which component requires replacement.
Match the OEM Number
Locate the part on the exploded diagram and confirm its Titan part number.
Purchase from AllTitanParts
Order the appropriate motor kit, electrical component, cooling part or mounting hardware.
Preventive Maintenance
Maintain Your Titan Performer 640i Motor Assembly
Keep Cooling Areas Clear
Inspect accessible cooling openings and remove debris according to the manufacturer maintenance procedure.
Inspect Motor Brushes
Have motor brush condition checked at the service intervals specified for the machine.
Check Electrical Connections
Have damaged wiring, loose connections and worn insulation evaluated by a qualified technician.
Address Unusual Operation
Stop using the machine if the motor overheats, emits unusual odors or develops abnormal noise.
Related Titan Performer 640i Categories
Shop More Titan Performer 640i Airless Sprayer Parts
Performer 640i Gear Box Assembly
Shop gearbox gears, crankshaft components, control hardware and associated service parts.
Performer 640i Fluid Section Assembly
Find pump components, packings, piston parts and fluid-section service items.
Titan Performer 640i Airless Sprayer
Explore all six assembly categories and the complete model parts directory.
Titan Motor Assembly Service Safety
Before servicing the Titan Performer 640i motor assembly, switch off the sprayer, disconnect electrical power and follow the manufacturer's pressure-relief procedure. Electrical components, including capacitors, may retain hazardous energy after disconnection. Have internal electrical repairs and motor testing performed by qualified service personnel. Do not operate the sprayer with damaged wiring, missing cooling components or unsecured motor hardware.
Genuine Titan OEM Motor Replacement Parts
Order Titan Performer 640i Motor Parts Today
Shop Titan 704-344 Motor Kits, 704-276 Motor Brush Kits, 704-364 Capacitor/Rectifier Kits, motor fans, fan shrouds and genuine OEM electrical components.
Shop Titan Performer 640i Motor PartsFrequently Asked Questions
Titan Performer 640i Motor Assembly FAQ
What parts are included in the Titan Performer 640i Motor Assembly category?
The category lists 12 OEM products, including a motor kit, motor brush kit, capacitor/rectifier kit, fan, fan shroud, wiring components and mounting hardware.
What is the Titan Performer 640i replacement motor kit part number?
Titan 704-344 is the Motor Kit listed at diagram reference 10.
What is the Titan Performer 640i motor brush kit part number?
Titan 704-276 is the Motor Brush Kit listed at diagram reference 4.
What is the Titan 704-364 Capacitor/Rectifier Kit?
Titan 704-364 is an electrical service kit listed in the Performer 640i Motor Assembly at reference 1.
Which motor fan replaces Titan 0508648?
Titan 704-250 is listed as the replacement Motor Fan for Titan 0508648.
Which fan shroud replaces Titan 508646?
Titan 704-285A is listed as the replacement Fan Shroud for Titan 508646.
Can worn motor brushes prevent the Titan Performer 640i from starting?
Worn motor brushes can contribute to starting or intermittent-operation problems. However, electrical supply faults, wiring, control components and other motor defects can produce similar symptoms.
Should I replace the motor brush kit or the complete motor?
The correct repair depends on the diagnosis. A serviceable motor with worn brushes may require the 704-276 Motor Brush Kit, while a motor with confirmed internal failure may require the 704-344 Motor Kit.
What can cause a Titan Performer 640i motor to overheat?
Potential causes include obstructed cooling airflow, damaged fan components, excessive mechanical load and electrical faults. Stop operation and investigate the cause before restarting.
Are Titan Performer 640i motor parts interchangeable with Impact 640 parts?
Do not assume compatibility based on the 640 designation. Match the exact Titan OEM part number and confirm the intended model application.
Where can I find the Titan Performer 640i motor parts diagram?
The Titan Performer 640i Motor Assembly page includes the exploded parts diagram and the corresponding OEM parts list.
Where can I buy genuine Titan Performer 640i Motor Assembly Parts?
Shop genuine Titan Performer 640i Motor Assembly Parts at AllTitanParts. Verify your model, diagram reference and OEM part number before ordering.
