The Titan Impact X 410 is an electric piston-pump airless sprayer rated 0.47 gpm with a 0.021 in. maximum tip and 3300 psi. It comes as a skid (2430897) or a high rider (2430869). Titan lists a brushless DuraLife HE motor, Logix Adaptive Pressure Control and the MaxFX tool-free fluid section. Its parts are spread over seven diagram pages.
What the Impact X 410 is

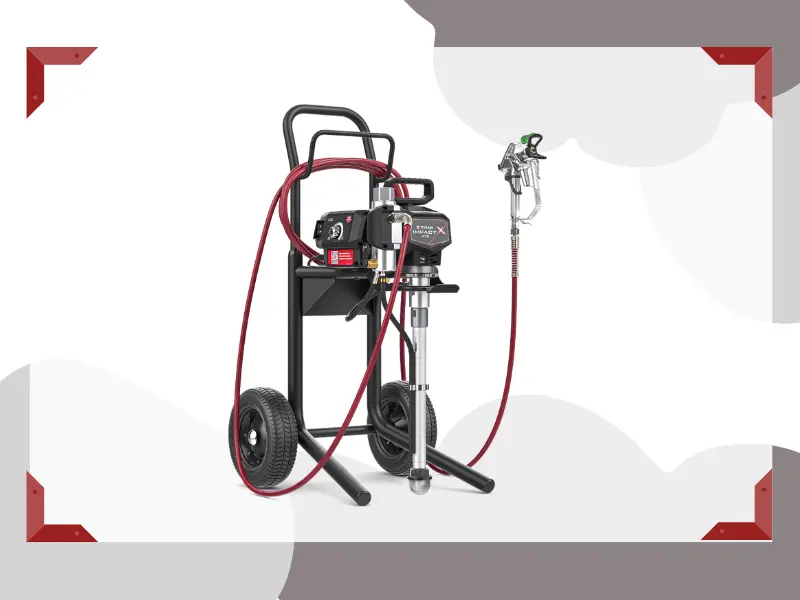

The Impact X 410 is the smallest sprayer in Titan's newer Impact X line. It is an electric piston-pump airless sprayer sold in two configurations on the site: the 2430897 skid and the 2430869 high rider.
Verified specs
Impact X 410 (Titan product page, site product pages)
| Item | Value |
|---|---|
| Maximum delivery | 0.47 gpm (1.78 L/min) |
| Maximum tip size | 0.021 in. |
| Maximum pressure | 3300 psi (22.8 MPa) |
| Motor | DuraLife HE brushless |
| Gun included | RX-80 |
Sources disagree on the Impact X 410 motor horsepower and weight, so we do not print either. For those, use the sprayer's own label or Titan's manual.
A 0.021 in. maximum tip is the smallest in the Impact X line. That fits the work Titan lists for it: standard architectural primers, paints and coatings, plus stains, lacquers, enamels, latex and other low and medium viscosity coatings, for residential, property maintenance and small commercial jobs. It is not the sprayer to pick for heavy-bodied coatings that need a large orifice.
Technology Titan lists
- Logix Adaptive Pressure Control: Titan says it automatically adjusts pump speed and power based on tip size.
- MaxFX No Tools Fluid Section: Titan says the fluid section changes in minutes on the job with just your hands.
- Quad+ Packings and PermaLife Cylinder: Titan lists self-adjusting packings and a cylinder that Titan describes as non-wearing. The packings, valve seats, balls and piston rod are still wear parts.
- No-Spill Pump Filter and a 360-degree adjustable handle, as Titan describes the Impact X design.
The site's product page says the Impact X 410 does not include IntelliSync, the Bluetooth link to the MyTitan app. If that feature matters to you, see the Impact X sprayer parts category and Titan's own model pages for the models that list it.
What comes in the box
Per the site's product page for the 2430869 high rider, Titan includes:
- RX-80 spray gun with a 517 HEA tip
- A 1/4 in. x 50 ft airless hose (the matching hose on the site is 316-505)
- A 4 oz bottle of Piston Lube, 314-481
- A 60 mesh filter, 2424933
Treat that as a checklist for what you already have and what you will need to reorder. The filter and the Piston Lube are the two consumables you will use up first.
The seven diagram pages
Impact X 410 diagram pages
| Page | Parts | Open it when |
|---|---|---|
| Fluid Section | 24 | The pump will not prime, will not hold pressure or leaks at the pump |
| Drive Assembly | 18 or 19 | You need the crankshaft, gears, connecting rod, control knob, fuse or potentiometer. The site lists two Drive Assembly pages under the same name, so match yours by callout |
| Filter Assembly | 11 | Spitting, pulsing or a clogged filter |
| Main Assembly | 14 | Legs, shrouds, pail hook, siphon assembly, return hose |
| Suction Set Assembly | 8 | Air leaks at the intake, a damaged siphon tube or inlet screen |
| Cart Assembly | 6 | Wheels, handle kit, cart weldment |
| Accessories | 20 | Hoses, gun extensions, valve kits, Piston Lube, Liquid Shield |
Parts to know before you open the machine
On the Fluid Section page the valve parts are the ones most likely to matter: 762-145 inlet valve ball, 50164 outlet valve ball, 762-137 foot valve seat, 704-558 outlet valve seat and 704-703 inlet valve cage. If you would rather replace the working set, the Accessories page lists the 805-846 inlet valve kit and 805-845 outlet valve kit, and the site's catalog fitment for both names the Impact X 410.
On the Filter Assembly page, the 60 mesh filter 2424933 sits in a bowl (2424886A) with an O-ring (2424934) and a bypass valve assembly (2440405). Catalog fitment for the 2424933 filter names the Impact X 410, 440 and 540I. On the Main Assembly page, the siphon assembly is 2431199A.
Impact X 410 sprayers and parts listed on the site:
The Short Version
The Impact X 410 is a 0.47 gpm, 0.021 in. maximum tip, 3300 psi electric sprayer for light to medium coatings, and its parts live on seven diagram pages. Start with the Fluid Section for pump trouble and the Filter Assembly for spitting, and call (713) 931-0006 with your serial number if you cannot tell it from the earlier Impact 410.
Not sure it is an Impact X 410?
Call (713) 931-0006 with the model name and serial number and our parts team will confirm the right diagram before you order.
