There is no single Titan 440. The site lists the current Impact X 440, the earlier Impact 440, and the older 440i, 440ix and 440xc, each with its own diagram pages. Their fluid sections list different piston rod and repacking numbers, so confirm your exact model from the sprayer's label and manual, then order from that model's diagram, not from one that merely says 440.
Why 440 can mean several machines
Titan has used the 440 name across generations. Titan's own site has a page for the Impact X 440 and a separate, older page for the Impact 440. The parts site also carries diagram pages for the 440i, 440ix and 440xc, which are earlier electric models. They look related and share some small parts, but they are not one machine with five names.
Two other 440s exist and are not covered here: the MultiFinish 440 spray system and the Epic 440E. Both have their own diagrams, so if your label says either of those, use those pages.
Impact X 440
The current model. From Titan's Impact X 440 page: 0.54 gpm, 3300 psi, a 0.023 in. maximum tip, a 1.2 hp DuraLife HE Brushless motor, 50-100 gallons per week, and an RX-80 gun included. Titan lists the skid at 30 lbs and the high rider at 54 lbs. Its features include Logix Adaptive Pressure Control, a No-Spill Pump Filter, Quad+ Packings, the Sureflo Pusher Valve and a PermaLife Cylinder.

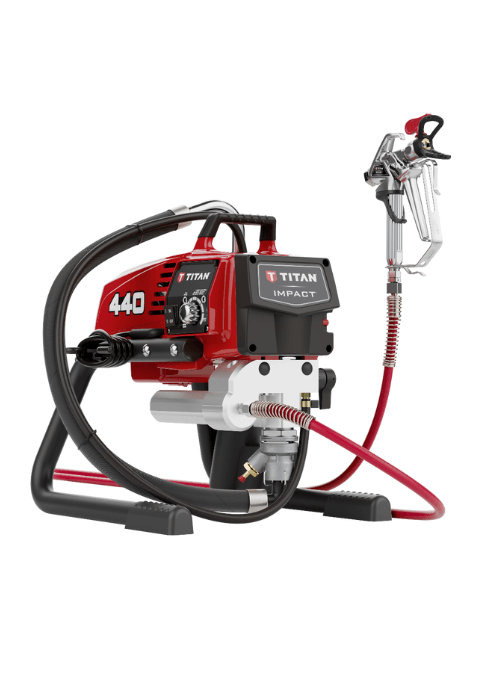

Impact 440 (the earlier page)
Titan's older Impact 440 page lists the same 0.54 gpm, 3300 psi and 0.023 in. maximum tip and the same 50-100 gallons per week, but the motor is a 7/8 HP DCX. It lists an RX-80 gun, a 517 tip and a 1/4 in. by 50 ft hose, with an AutoOiler among the features.
440i, 440ix and 440xc
These are the older generations. The site has diagram pages for them but this guide gives no specs for them, because we have no manufacturer spec page to quote for them. Your manual has them. The site's diagrams split each into assemblies such as the fluid section, gear box, motor and suction set; the fluid section pages are the 440i, 440ix and 440xc..
How to tell which one you own
Read the label
The sprayer's label and your manual give the full model name and serial number. Look for the Impact X or Impact wording, or an i, ix or xc suffix.
Compare with the diagram
Open the diagram pages below and look at the fluid section drawing. If the drawing does not look like your pump, you are on the wrong page.
Call with the serial number
If it is still unclear, call (713) 931-0006 with the model and serial number and we will point you to the right assembly.
Parts that differ by generation
The easiest proof that you cannot swap by name is the fluid section. These numbers are what each model's diagram page lists today:
Fluid section parts listed on each model's diagram page
| Model | Piston rod | Piston assembly | Repacking items listed |
|---|---|---|---|
| Impact X 440 | 2420579A | 2420580A | 704-586B repacking kit |
| Impact 440 | 704-551A | 704-552A | Valve kits 805-845 and 805-846 |
| 440ix | 704-551A | 704-560 | 704-564 upper packing kit |
| 440i | 704-551A | 704-560 | 730-401 pump repacking kit |
| 440xc | 704-551A | 704-560 | 730-401 pump repacking kit |
From the site's diagram pages. Always confirm the callout on your own model's page before you order.
Some small parts do repeat. For example, both the Impact X 440 and Impact 440 pages list the 805-845 outlet valve kit and 805-846 inlet valve kit. But the piston rod and piston assembly differ from the Impact X 440 to the others, so a part that fits one 440 can be wrong for another. Repacking kits you see listed for other Impact or Advantage sprayers, such as 0552951 or 800-273, are matched to those models, not to a 440.
Diagrams for the current Impact X line
Impact series diagram index
Older 440i pump parts
440ix pump parts
440xc pump parts
Impact X 440 sprayers and fluid section parts named above:
The Short Version
The Impact X 440 and the older Impact 440 share flow, pressure and tip size but not a motor figure, and the 440i, 440ix and 440xc are older again. The fluid sections list different part numbers, so identify your exact model first and order from its own diagram.
Not sure which 440 you own?
Call (713) 931-0006 with the model and serial number and our parts team will help identify the sprayer and its diagram.
