Property maintenance, rental, and light commercial applications and is equipped with digital technology for improved efficiency. It is designed to consistently spray 75-100 gallons per week and is recommended for small and medium residential and commercial projects It includes RX-Pro Gun, TR1 517 Tip, and 50 Airless Hose. It can work with sprays stains, lacquers, enamels, latex and other low and medium viscosity coatings.
Features:
The features of the Titan 640 are as below:
Quad + Packings: It is designed to wipe abrasive coatings clean during operations preventing damage to the piston or the main sealing lip.
Auto-Oiler with the push of a button you deliver oil from the reservoir directly to the packings.
Sureflo Pusher Valve lets you release a stuck lower ball valve without using a hammer (available on selected units)
DuraLife Brushless HE motor is available in titan impact 640.
Full size manifold filter is present to avoid any shortage of space.
Easy load cart makes it portable and easy to carry around.
Semi full pneumatic tires for easy movement.

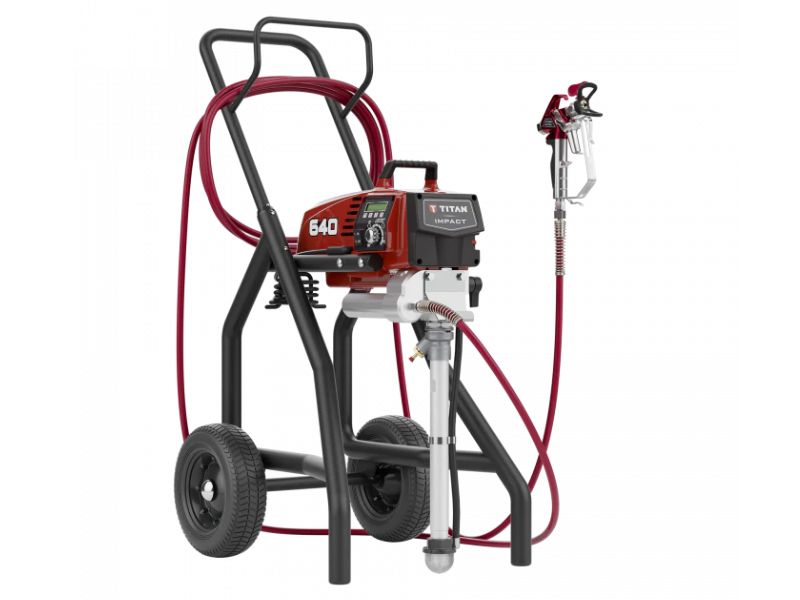

Specifications of Titan Impact 640
Max. operating pressure: The maximum operating pressure of the Titan Impact 640 is 3300 PSI.
Max. delivery: The maximum delivery of the Titan 640 is 0.70 GPM.
Max tip size: The maximum tip size of the Titan Impact 640 is 0.027.
Weight, skid: The Titan Impact 640 weighs approximately 36 lbs. (16.3 kg).
Weight, low rider: The Titan Impact 640 weighs approximately 57 lbs. (25.8 kg)
Weight, high rider: The Titan Impact 640 weighs approximately 57 lbs. (25.8 kg)
Motor: The motor used in the Titan 640 is 1.55 hp.
Generator requirement Maximum hose length: The maximum hose length of the Titan 640 is 300 (91.4 m).
Power: The power required for the Titan 640 is 1.55 Brushless motor, 120 V, 60 Hz, 11.8 A.
Few painting tips:
- Place the siphon tube into a container of paint.
- Place the return hose into a metal waste container.
- Set the pressure to minimum by turning the pressure control knob to the setting.
- Move the PRIME/SPRAY valve down to the PRIME position.
- Turn on the sprayer by moving the ON/ OFF switch to the ON position.
- Allow the sprayer to run until paint is coming through the return hose into the metal waste container.
- Turn off the sprayer by moving the ON/OFF switch to the OFF position.
- Remove the return hose from the waste container and place it in its operating position above the container of paint.
- Move the PRIME/SPRAY valve up to the SPRAY position.
- Turn on the sprayer.
- Unlock the gun by turning the gun trigger lock to the unlocked position.
The best sprayer line of all the time is available in all its glory at the alltitanparts.com online store. The titan spray guns are best in town and durable. They will not leave your side anytime soon.
