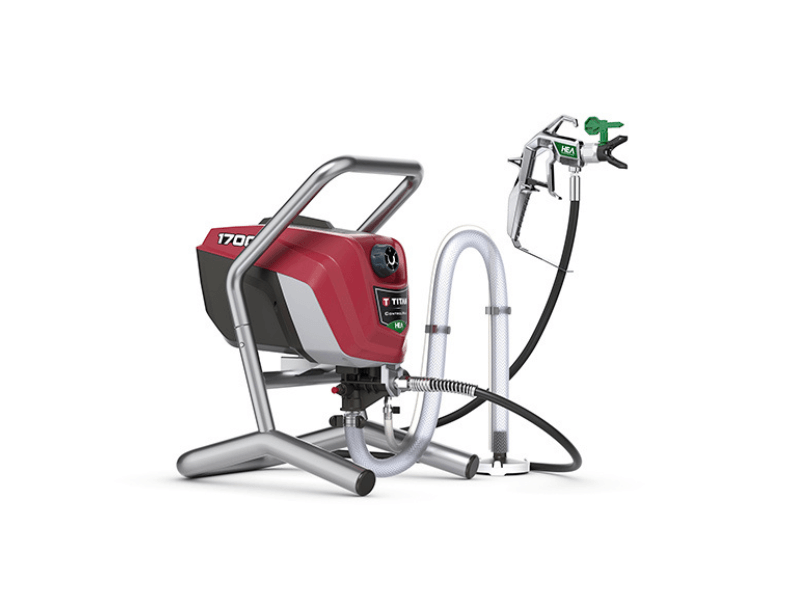

The Titan ControlMax 1700 Pro is an electric airless sprayer rated 1500 psi and 0.33 gpm, with a 0.6 hp pump motor, a 0.017 in. maximum tip and a duty rating of up to 300 gal per year. It uses Titan's HEA tips, which Titan says cut overspray by up to 55%, and it has a replaceable fluid section.
The ControlMax 1700 Pro in one table
Titan ControlMax 1700 Pro as listed by Titan's dealers
| Item | Listed figure |
|---|---|
| Maximum pressure | 1500 psi |
| Maximum delivery | 0.33 gpm |
| Maximum tip size | 0.017 in. |
| Pump motor | 0.6 hp |
| Duty rating | Up to 300 gal per year |
| Part numbers | 0580009 (1700) and 0580006 (1700 Pro, cart) |
Figures come from dealer listings that quote Titan. Hose length and weight are left out because the sources disagree; check your own manual for both.
The two part numbers show the split in the line: 0580009 is the 1700 and 0580006 is the 1700 Pro on a cart. The site lists the 1700 as 0580009B. If you own the Pro on a cart, your parts are on the cart-models page. A stand-mounted model uses the stand-models page.
What HEA means
HEA stands for High Efficiency Airless. Titan states that HEA tip technology decreases overspray by up to 55% and delivers a softer spray, and that HEA tips operate at half the pressure of traditional airless tips. Those are Titan's claims about the tips, and the words "up to" matter: they describe a best case, not what every coating and job will give.
The practical point is that the tip is part of the system on this sprayer. A small electric pump with a tip designed to work at lower pressure is the idea behind it. The family is grouped on the site's ControlMax HEA page.
What comes with it
Dealer listings describe the 1700 Pro with a 515 spray tip, a professional spray gun and a metal cart, and say it pulls from 1 gallon or 5 gallon containers. The ControlMax gun on the site is the 353-701F, and the tip listed for the Pro spray gun diagram is the 353-515. Check what is in your own box against your manual, since dealer kits vary.
What it suits and what it does not
Titan's listings give latex paints, stains and primers, and describe the sprayer as able to spray unthinned coatings. That puts it in the territory of a homeowner, a repaint contractor or a small crew working on interiors and smaller exteriors.
The 300 gal per year figure is a rating of the sprayer's duty over a year, not a limit on a single job. A crew that sprays a lot should read it as a reason to look at a larger machine, and a homeowner will find it far above what a few rooms need. Check your manual and the coating's data sheet before spraying anything unusual, such as a block filler or a sealer. We cannot confirm from our research that a given material suits this sprayer.
If you are weighing the 1700 Pro against the next model up, the 1900 Pro lists 1600 psi, 0.40 gpm and a 0.019 in. tip. Our separate comparison goes through the differences.
Care that protects a small sprayer
Titan's ControlMax manuals describe a short routine. Relieve pressure with the PRIME/SPRAY valve per the pressure relief procedure, and flush after every job. For short-term latex storage, pump water mixed with Liquid Shield (314-482) through the system. For long-term storage, put a few drops of Piston Lube (314-480) or light household oil into the gun housing. When the pump will not prime or loses pressure, the manual says to clean the inlet valve.
Wear parts to know
- 353-515 spray tip. A worn tip has a wider orifice, so pressure drops, the pattern turns coarse and more paint is used.
- 353-705 swivel filter for ControlMax sprayers.
- 0580155 inlet filter, on the suction set.
- 0580391 inlet valve kit, the first parts to look at after cleaning if the pump loses prime.
- 0580493 fluid section assembly. Titan describes the fluid section as replaceable, so a worn one does not end the sprayer.
- 661-020 tip seat and seal kit (5 pack).
ControlMax 1700 Pro parts and the sprayer itself:
The Short Version
The ControlMax 1700 Pro is a small electric airless sprayer: 1500 psi, 0.33 gpm, 0.017 in. maximum tip, 0.6 hp, rated for up to 300 gal per year. It is aimed at latex, stains and primers on repaint and smaller jobs. Keep a spare 353-515 tip and know where the inlet filter and valve kit are.
