This section is one of the most critical areas of the sprayer because it directly affects spray consistency, atomization quality, and pressure stability during operation.

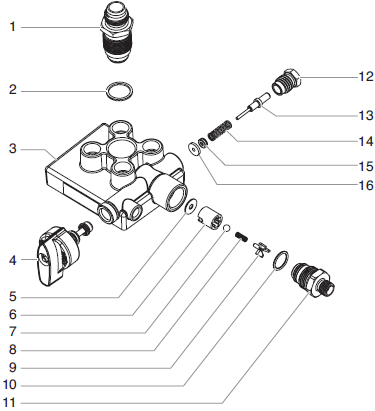

The pump head assembly sits at the heart of the diaphragm pump system and works by controlling how material enters and exits the pump chamber.
Pump Head Function & Performance
It ensures that coating material moves smoothly without pulsation, which is essential for achieving a fine, even finish in professional spraying applications such as cabinetry, woodwork, metal coatings, lacquers, and surface finishing systems.
Frequently Asked Questions
Pressure loss is often caused by worn inlet/outlet valves, damaged seals, or debris inside the pump head. When these components fail, fluid cannot be regulated properly, leading to weak or inconsistent spray output.
Leaks usually occur due to worn sealing washers, cracked gaskets, or loose fittings. High-pressure cycling gradually degrades these seals, especially during heavy or continuous use.
An uneven pattern can result from partially blocked valve seats or a malfunctioning outlet ball/spring system inside the pump head. This disrupts smooth fluid flow and atomization.
If the inlet valve fails, material may not enter the pump correctly, causing priming issues, pressure drops, or complete loss of spray output.
Because it controls all fluid movement, even minor wear in the pump head can affect the entire system—leading to poor finish quality, pressure instability, and increased wear on the diaphragm pump.
