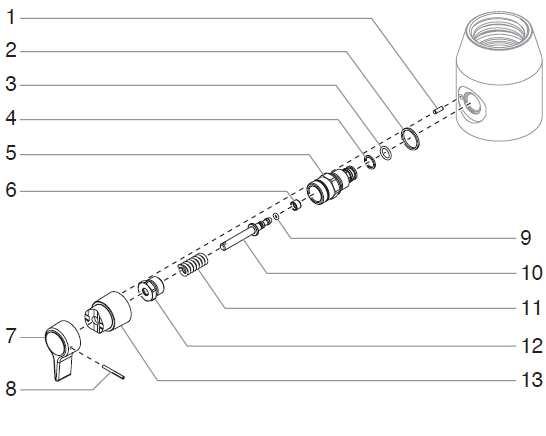

840i PRIME/SPRAY Valve Assembly (P/N 800-915)

Click a marker on the diagram to see that part's details
840i PRIME/SPRAY Valve Assembly (P/N 800-915)
View:
1
Item
Titan 700-823 Dowel Pin
Titan 700-823 Dowel Pin
Part #: 700-823
UPC: 612564167947
Titan 700-823 Dowel Pin, 1/8 od x 3/8 lg
$2.40
QTY:
Buy Now
1
Genuine OEM
Titan
Titan 700-823 Dowel Pin
Part #: 700-823
$2.40
Buy Now
2
Item
Titan 700-537 Gasket
Titan 700-537 Gasket
Part #: 700-537
UPC: 612564168586
  OEM Titan Valve Component Titan 800-925 Bypass Valve Assembly is an OEM pre-assembled val...
$2.50
QTY:
Buy Now
2
Titan 700-537 Gasket Genuine OEM
Titan
Titan 700-537 Gasket
Part #: 700-537
$2.50
Buy Now
3`
Item
Titan 222-012 O-Ring PTFE
Titan 222-012 O-Ring PTFE
Part #: 222-012
UPC: 612560031778
Part number 222-012 is a PTFE O-Ring that provides a leak-proof seal in fluid systems across an exce...
$6.30
QTY:
Buy Now
3`
Titan 222-012 O-Ring PTFE Genuine OEM
Titan
Titan 222-012 O-Ring PTFE
Part #: 222-012
$6.30
Buy Now
4
Item
Titan 221-012 Viton O-Ring
Titan 221-012 Viton O-Ring
Part #: 221-012
UPC: 612560031754
  Titan part 221-012 is a Viton fluoroelastomer O‑ring used to seal fluid passages, pu...
$2.50
QTY:
Buy Now
4
Titan 221-012 Viton O-Ring Genuine OEM
Titan
Titan 221-012 Viton O-Ring
Part #: 221-012
$2.50
Buy Now
5
Item
Titan 700-253 Bypass Valve Housing
Titan 700-253 Bypass Valve Housing
Part #: 700-253
UPC: 612564166346
  Airless Sprayer part 700-253 is a bypass valve housing that directs fluid flow during sp...
$29.30
$31.00Save 5%
QTY:
Buy Now
5
Titan 700-253 Bypass Valve Housing −5%
Titan
Titan 700-253 Bypass Valve Housing
Part #: 700-253
$29.30 $31.00 Save $1.70
Buy Now
6
Item
Titan 800-910 Bypass Valve Seat
Titan 800-910 Bypass Valve Seat
Part #: 800-910
UPC: 612564166568
  Titan part 800-910 is a bypass valve seat used in the pump fluid section of compatible...
$15.10
QTY:
Buy Now
6
Genuine OEM
Titan
Titan 800-910 Bypass Valve Seat
Part #: 800-910
$15.10
Buy Now
7
Item
Titan 700-697 Valve Handle
Titan 700-697 Valve Handle
Part #: 700-697
UPC: 612567390946
  OEM Titan Valve Component Titan 700-697 Valve Handle is an OEM replacement control compon...
$18.50
QTY:
Buy Now
7
Titan 700-697 Valve Handle Genuine OEM
Titan
Titan 700-697 Valve Handle
Part #: 700-697
$18.50
Buy Now
8
Item
Titan 700-759 Groove Pin
Titan 700-759 Groove Pin
Part #: 700-759
UPC: 612560069344
  OEM Titan Fastening Component Titan 700-759 Groove Pin is an OEM cylindrical fastener tha...
$3.80
QTY:
Buy Now
8
Titan 700-759 Groove Pin Genuine OEM
Titan
Titan 700-759 Groove Pin
Part #: 700-759
$3.80
Buy Now
9
Item
Titan 700-721 O-Ring
Titan 700-721 O-Ring
Part #: 700-721
UPC: 612560069122
  700-721 is a replacement O-ring used in various Titan airless sprayer models to seal f...
$2.50
QTY:
Buy Now
9
Titan 700-721 O-Ring Genuine OEM
Titan
Titan 700-721 O-Ring
Part #: 700-721
$2.50
Buy Now
11
Item
Titan 800-926 Spring
Titan 800-926 Spring
Part #: 800-926
UPC: 612564168081
  Part 800-926 is a replacement spring used in the pressure control / unloader valve ass...
$7.80
QTY:
Buy Now
11
Genuine OEM
Titan
Titan 800-926 Spring
Part #: 800-926
$7.80
Buy Now
12
Item
Titan 700-248 Bypass Valve Retainer
Titan 700-248 Bypass Valve Retainer
Part #: 700-248
UPC: 612564167602
Part 700-248 is a replacement bypass valve retainer for a wide range of compatible spray equipme...
$7.18
QTY:
Buy Now
12
Titan 700-248 Bypass Valve Retainer Genuine OEM
Titan
Titan 700-248 Bypass Valve Retainer
Part #: 700-248
$7.18
Buy Now
13
Item
Titan 700-251 Bypass Cam Base (Replaces Titan 0507735)
Titan 700-251 Bypass Cam Base (Replaces Titan 0507735)
Part #: 700-251
UPC: 612564167763
Part 700-251 is a bypass cam base (replaces Titan 0507735) that controls the pressure bypass mec...
$3.00
QTY:
Buy Now



Get Your 840I Airless Sprayer Prime/Spray Valve Assembly Parts Today

In need of replacement parts for your Titan 840I Airless Sprayer's Prime/Spray Valve assembly? Don't let lost or broken parts hold you back. Order the perfect replacement assembly parts online and get your sprayer back in action with just a few clicks.

Experience reliable operation with the Gasket Bypass Valve and Bypass Valve Stem included in the Prime/Spray Valve Assembly. These essential components ensure smooth and consistent performance, allowing you to tackle any spraying task confidently.

AllTitanParts offers a wide selection of assembly parts for the Titan 840I Airless Sprayer. From the Siphon Set Low Rider Assembly to the Low Rider Cart Assembly and all other important components, we have everything you need to keep your sprayer running at its best.

Don't let a malfunctioning Prime/Spray Valve assembly slow you down. Order your replacement parts today from AllTitanParts and enjoy the convenience of a fully operational 840I Airless Sprayer. Get back to spraying with ease!

FAQs

1. How do I know if my Prime/Spray Valve Assembly needs replacement?

If your sprayer is difficult to prime, loses pressure, or sprays inconsistently, worn components like the gasket bypass valve or bypass valve stem may need replacement.

2. What do the Gasket Bypass Valve and Bypass Valve Stem do?

These parts regulate fluid flow, ensuring smooth priming and consistent spray pressure. They help maintain reliable performance and prevent leaks or erratic spray patterns.

3. Can a faulty Prime/Spray Valve Assembly affect spray quality?

Yes. Damaged or worn valve components can cause sputtering, uneven coverage, or loss of pressure, making it difficult to achieve a professional finish.

4. Are these valve assembly parts compatible with other Titan sprayers?

No. Prime/Spray Valve Assembly parts are designed specifically for the Titan 840I. Using parts from other models may result in improper fit or poor performance.

5. Can I replace Prime/Spray Valve Assembly parts myself?

Yes. Many components are simple to replace with basic tools, but careful handling is needed to ensure proper installation and avoid leaks. Regular inspection and timely replacement keep your sprayer operating reliably.
